SV21L-UEPDKW (1988)
Toyota Camry

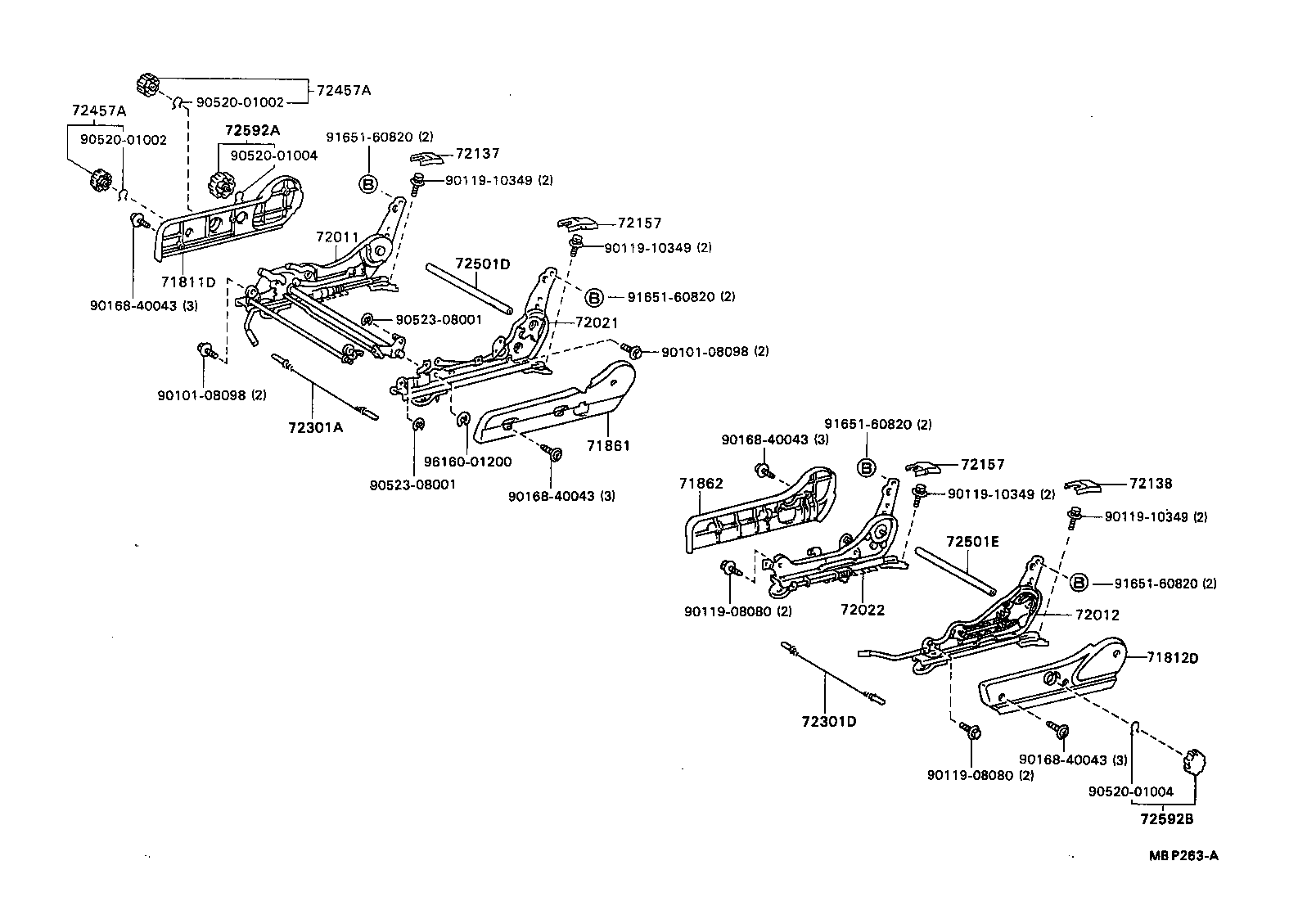

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3207006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 71811-3207003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-3207004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3208004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 71812-3208006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 71812-3208003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3204003 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-3204004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 71861-3204006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3205006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 71862-3205004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 71862-3205003 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-32070 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32080 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-32070 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-32070 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-32020B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-32020E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 72137-32020J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-32020J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72137-32020B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-32020E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-32010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4#,RH |
1 | ||
| 72158-32010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72158-32010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72157-32010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72158-32010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4#,LH |
1 | ||
| 72157-32010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8#,RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-32010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4#,RH |
1 | ||
| 72158-32010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72158-32010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72157-32010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72158-32010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4#,LH |
1 | ||
| 72157-32010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8#,RH |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-22010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
2 | ||
| 72457-22010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-22010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
2 | ||
| 72457-22010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-14010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72592-14010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 72592-14010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-14010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72592-14010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72592-14010E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 90520-01004 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 96160-01200 | ||||

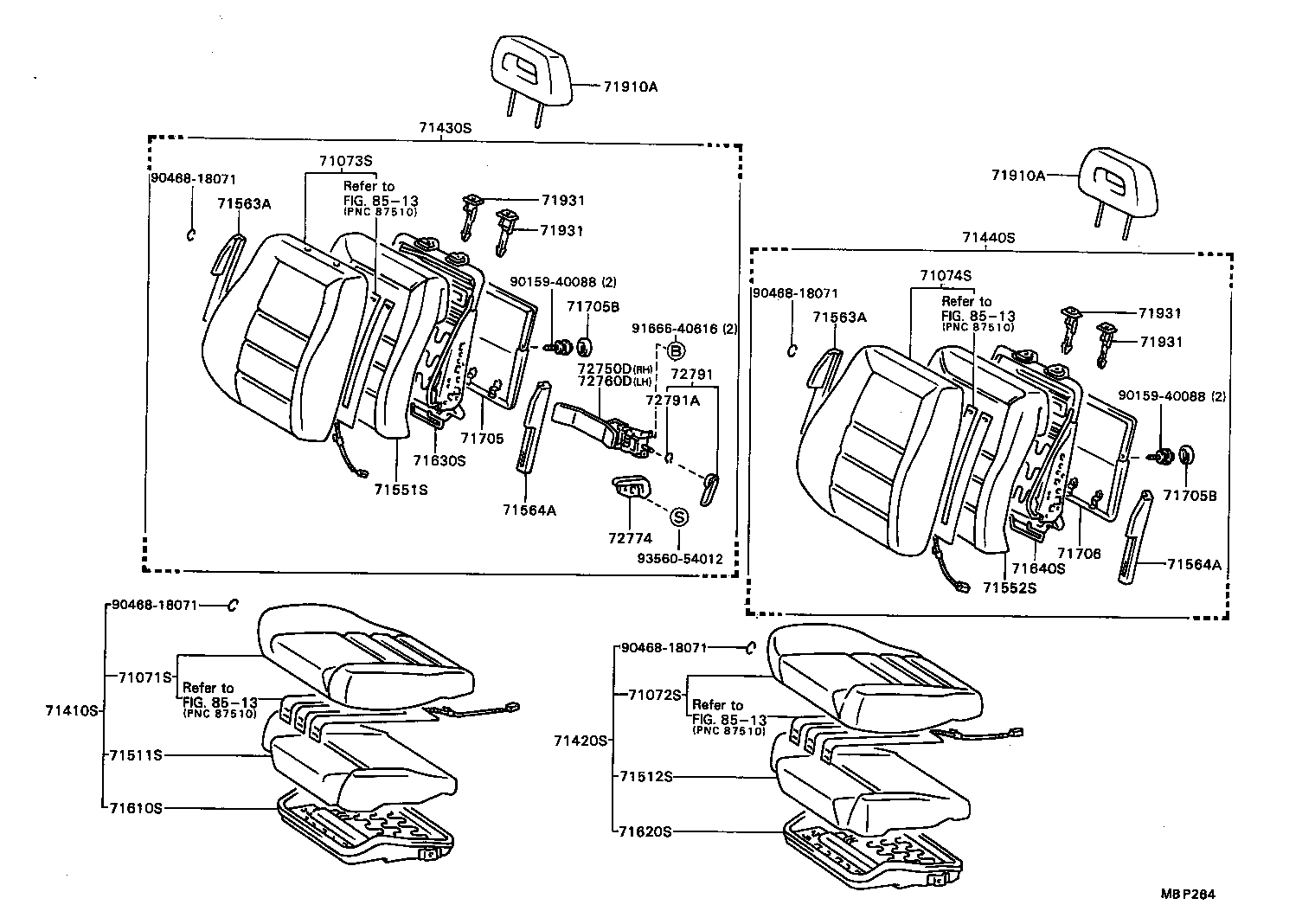

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3284003 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3284006 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71071-3284004 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-3280003 |
CV20,SV21..SED..(XL,XLI) MEDIUM GRAY,TRIM1# |
2 | ||
| 71071-3280004 |
CV20,SV21..SED..(XL,XLI) DARK BLUE,TRIM8# |
2 | ||
| 71071-3280006 |
CV20,SV21..SED..(XL,XLI) BROWN,TRIM4# |
2 | ||
| 71071-3266104 |
CV20,SV21..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71071-3266103 |
CV20,SV21..LHD..(XL,XLI) MEDIUM GAY,TRIM1# |
1 | ||
| 71071-3266106 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 71071-3284103 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3284104 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-3284106 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3277003 |
CV20,SV21..SED..(XL,XLI) MEDIUM GRAY,TRIM1# |
2 | ||
| 71072-3277006 |
CV20,SV21..SED..(XL,XLI) BROWN,TRIM4# |
2 | ||
| 71072-3277004 |
CV20,SV21..SED..(XL,XLI) DARK BLUE,TRIM8# |
2 | ||
| 71072-3281004 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
2 | ||
| 71072-3281003 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
2 | ||
| 71072-3281006 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
2 | ||
| 71072-3263103 |
CV20,SV21..LHD..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-3263104 |
CV20,SV21..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71072-3281104 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-3263106 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 71072-3281106 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71072-3281103 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3265003 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
2 | ||
| 71073-3264003 |
CV20,SV21..XL,XLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3264006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 71073-3265004 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
2 | ||
| 71073-3264004 |
CV20,SV21..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71073-3265006 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
2 | ||
| 71073-3246104 |
CV20..RHD..XL;CV20,SV21..SED..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71073-3246103 |
CV20..RHD..XL;CV20,SV21..SED..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3265104 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-3265103 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3265106 |
CV20,SV21..SED..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-3246106 |
CV20,SV21..SED..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3264004 |
CV20,SV21..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71073-3264003 |
CV20,SV21..XL,XLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3239006 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71074-3239004 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-3264006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 71074-3239003 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3227103 |
CV20,SV21..SED..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3227104 |
CV20,SV21..SED..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71074-3239106 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71074-3239104 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71074-3227106 |
CV20,SV21..SED..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 71074-3239103 |
CV20,SV21..LHD..(XL,XLI) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3279004 |
CV20,SV21..LHD..(XL,XLI) ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-3279003 |
CV20,SV21..LHD..(XL,XLI) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-3283004 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-3283003 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-3283006 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71410-3279006 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71410-3283104 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-3283103 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-3265106 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71410-3283106 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71410-3265104 |
CV20,SV21..LHD..(XL,XLI) ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-3265103 |
CV20,SV21..LHD..(XL,XLI) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3279004 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-3275003 |
CV20,SV21..LHD..(XL,XLI) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-3275006 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71420-3279006 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71420-3279003 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-3275004 |
CV20,SV21..LHD..(XL,XLI) ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-3261103 |
CV20,SV21..LHD..(XL,XLI) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-3279106 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71420-3261104 |
CV20,SV21..LHD..(XL,XLI) ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-3279103 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-3261106 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71420-3279104 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3266004 |
CV20,SV21..XL,XLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-3266003 |
CV20,SV21..XL,XLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3268003 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3266006 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71430-3268006 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71430-3268004 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-3268104 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-3248103 |
CV20,SV21..XL,XLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3268103 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3268106 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71430-3248104 |
CV20,SV21..XL,XLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-3248106 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-3266006 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71440-3253004 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-3266003 |
CV20,SV21..XL,XLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3266004 |
CV20,SV21..XL,XLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-3253006 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-3253003 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-3238104 |
CV20,SV21..XL,XLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-3253103 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-3253106 |
CV20,SV21..SED..(XL,XLI) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-3238106 |
CV20,SV21..LHD..(XL,XLI) ***,BROWN,TRIM4# |
1 | ||
| 71440-3253104 |
CV20,SV21..LHD..(XL,XLI) ***,W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71440-3238103 |
CV20,SV21..XL,XLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32130 |
CV20,SV21..XL,XLI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32130 |
CV20,SV21..XL,XLI |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32100 |
CV20,SV21..XL,XLI |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32100 |
CV20,SV21..XL,XLI |
1 | ||
| 71563A - PAD, FRONT SEAT BACK SIDE, RH | ||||
| 71563-32030 |
CV20,SV21..XL,XLI |
2 | ||
| 71563A - PAD, FRONT SEAT BACK SIDE, RH | ||||
| 71563-32030 |
CV20,SV21..XL,XLI |
2 | ||
| 71564A - PAD, FRONT SEAT BACK SIDE, LH | ||||
| 71564-32030 |
CV20,SV21..XL,XLI |
2 | ||
| 71564A - PAD, FRONT SEAT BACK SIDE, LH | ||||
| 71564-32030 |
CV20,SV21..XL,XLI |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32030 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32050 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32140 |
CV20..XL;CV20,SV2#,VZV21..LHD..(GL,GLI,GXI,XLI) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-32140 |
CV20,SV2#,VZV21..RHD;CV20,SV21..LHD..(XL,XLI) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3230004 |
CV20,SV21..XL,XLI DARK BLUE,TRIM8# |
4 | ||
| 71910-3230003 |
CV20,SV21..XL,XLI MEDIUM GRAY,TRIM1# |
4 | ||
| 71910-3255003 |
CV20,SV21..XL,XLI MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3255006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
2 | ||
| 71910-3230006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
4 | ||
| 71910-3255004 |
CV20,SV21..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3230004 |
CV20,SV21..XL,XLI DARK BLUE,TRIM8# |
4 | ||
| 71910-3230003 |
CV20,SV21..XL,XLI MEDIUM GRAY,TRIM1# |
4 | ||
| 71910-3255003 |
CV20,SV21..XL,XLI MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3255006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
2 | ||
| 71910-3230006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
4 | ||
| 71910-3255004 |
CV20,SV21..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
CV20,SV2#,VZV21..LHD W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
CV20,SV2#,VZV21..LHD W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
CV20,SV2#,VZV21..LHD W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
CV20,SV2#,VZV21..LHD W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
CV20,SV2#,VZV21..LHD W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
CV20,SV2#,VZV21..LHD W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
CV20,SV2#,VZV21..LHD W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
CV20,SV2#,VZV21..LHD W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90468-18071 | ||||
| 91666-40616 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(8808-9008)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9008- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
