SV21L-UEPDKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )CV20,SV21,VZV21

Click highlighted areas on diagram

diagram 57206A 58027A 58102A 58111 58131A 58131A 58171 58191 58207 58367 58369B 58396A 9095001005 9095001060 9165540616
Part # Description Qty Price
57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57206-32010

CV20,SV21,VZV21

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-32030

CV20,SV21,VZV21

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-32900

CV20,SV21,VZV21

 1
58111 - PAN, FRONT FLOOR
58111-32020

SV21,VZV21..4FC

 1
58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-32010

CV20,SV21,VZV21

 2
58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-32010

CV20,SV21,VZV21

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-32010

SV25;CV20,SV21..EUR

 1
58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58207-32020

CV20,SV21,VZV21

 1
58367 - BRACKET, FUEL TUBE CLAMP
58266-22040

CV20,SV2#,VZV21

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

CV20,SV21,VZV21

 1
58396A - BRACKET, WIRE HARNESS CLAMP
58396-32010

CV20,SV21,VZV21

 1
Common parts
90950-01005
90950-01060
91655-40616

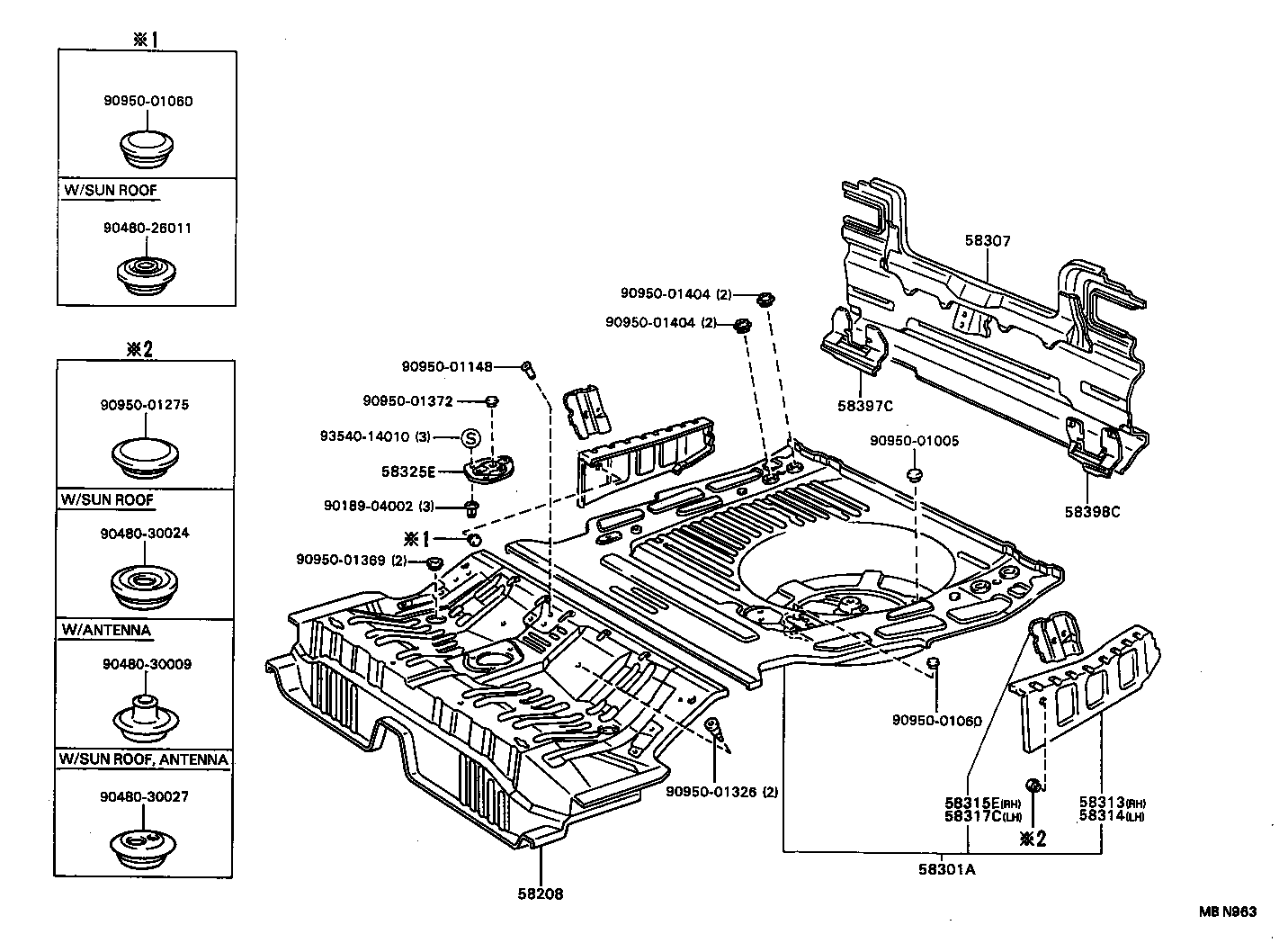

ILLUST NO. 2 OF 2(8808- )CV20,SV21,VZV21..SED

Click highlighted areas on diagram

diagram 58208 58301A 58307 58313 58314 58315E 58317C 58325E 58397C 58398C 9018904002 9048026011 9048030009 9048030024 9048030027 9095001005 9095001060 9095001060 9095001148 9095001275 9095001326 9095001369 9095001372 9095001404 9095001404 9354014010
Part # Description Qty Price
58208 - PAN, CENTER FLOOR
58201-32051

CV20,SV21..SED..(XL,XLI)

 1
58201-32061

SV21..SED..XLI

W(ANTI-LOCK BRAKE SYSTEM & SPLIT REAR SEAT)

 1
58201-32041

CV20,SV21..SED..(XL,XLI)

W(SPLIT REAR SEAT)

 1
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-32150

CV20,SV21,VZV21..SED

 1
58301-32230

SV21,VZV21..SED

W(ANTI-LOCK BRAKE SYSTEM)

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-32121

CV20,SV21,VZV21..SED

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-32050

CV20,SV21,VZV21..SED

 1
58313-32051

CV20,SV21,VZV21..SED

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-32050

CV20,SV21,VZV21..SED

 1
58314-32051

CV20,SV21,VZV21..SED

 1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-32020

CV20,SV21,VZV21..SED

 1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58317-32020

CV20,SV21,VZV21..SED

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-32020

CV20,SV21,VZV21

 1
58397C - COVER, BODY LOWER BACK, RH
58397-32010

CV20,SV21,VZV21..SED

 1
58398C - COVER, BODY LOWER BACK, LH
58398-32010

CV20,SV21,VZV21..SED

 1
Common parts
90189-04002
90480-26011
90480-30009
90480-30024
90480-30027
90950-01005
90950-01060
90950-01148
90950-01275
90950-01326
90950-01369
90950-01372
90950-01404
93540-14010
