SV21L-UEPDKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

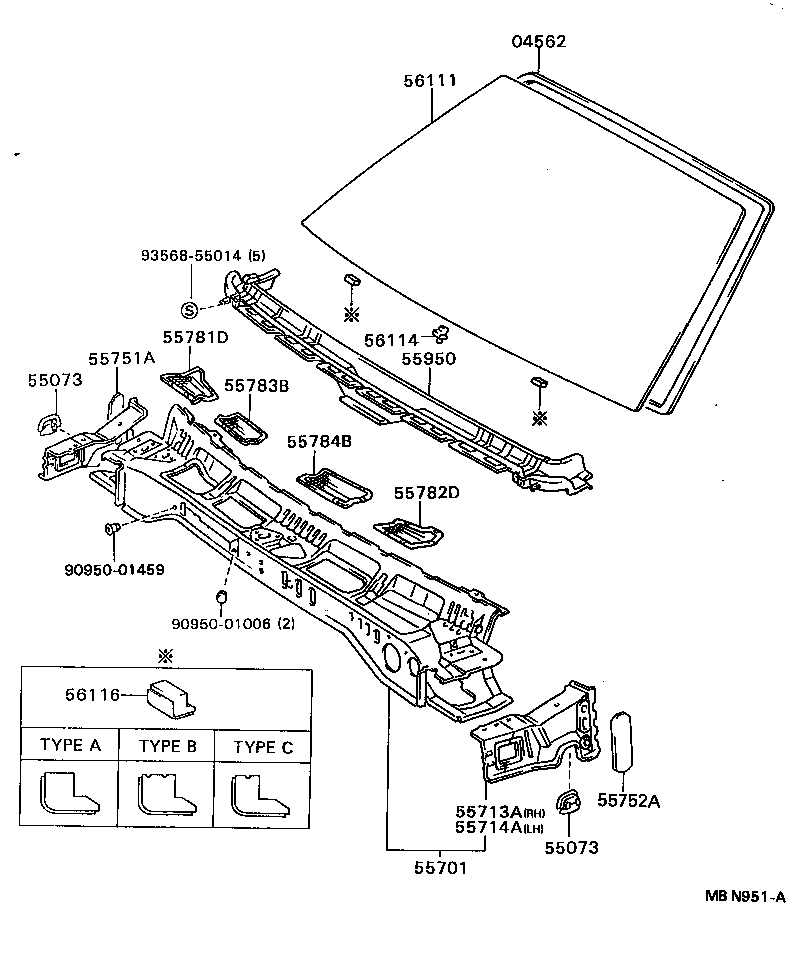

Click highlighted areas on diagram

diagram 04562 55073 55073 55701 55713A 55714A 55751A 55752A 55781D 55782D 55783B 55784B 55950 56111 56114 56116 9095001006 9095001459 9356855014
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

CV20,SV2#,VZV21

 1
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-32020

CV20,SV2#,VZV21

 2
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-32020

CV20,SV2#,VZV21

 2
55701 - PANEL SUB-ASSY, COWL
55700-32160

SV2#,VZV21..LHD

 1
55700-32162

SV2#,VZV21..LHD

 1
55700-32161

SV2#,VZV21..LHD

 1
55700-32163

SV2#,VZV21..LHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-32020

CV20,SV2#,VZV21

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-32020

CV20,SV2#,VZV21

 1
55751A - SHIELD, COWL VENTILATOR SPLASH, RH
55751-32010

CV20,SV2#,VZV21

 1
55752A - SHIELD, COWL VENTILATOR SPLASH, LH
55751-32010

CV20,SV2#,VZV21

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-32030

CV20,SV2#..LHD..EUR

FINLAND SPEC OR NORWAY SPEC

 1
55782-32040

CV20,SV2#,VZV21..LHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-32040

CV20,SV2#,VZV21

 1
55783-32030

CV20,SV2#..LHD..EUR

FINLAND SPEC OR NORWAY SPEC

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-32030

CV20,SV2#..LHD..EUR

FINLAND SPEC OR NORWAY SPEC

 1
55784-32040

CV20,SV2#,VZV21

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-32041

CV20,SV2#,VZV21..LHD

 1
56111 - GLASS, WINDSHIELD
56111-32120

CV20,SV2#,VZV21

*TL,T=5.3,BLUE

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-32010

CV20,SV2#,VZV21

 2
56116 - SPACER, WINDSHIELD GLASS
56116-32060

CV20,SV2#,VZV21

TYPE C

 2
56116-32050

CV20,SV2#,VZV21

TYPE B

 2
56116-32040

CV20,SV2#,VZV21

TYPE A

 2
Common parts
90950-01006
90950-01459
93568-55014
