SV21L-UEPDKW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )SV20,21..4FC

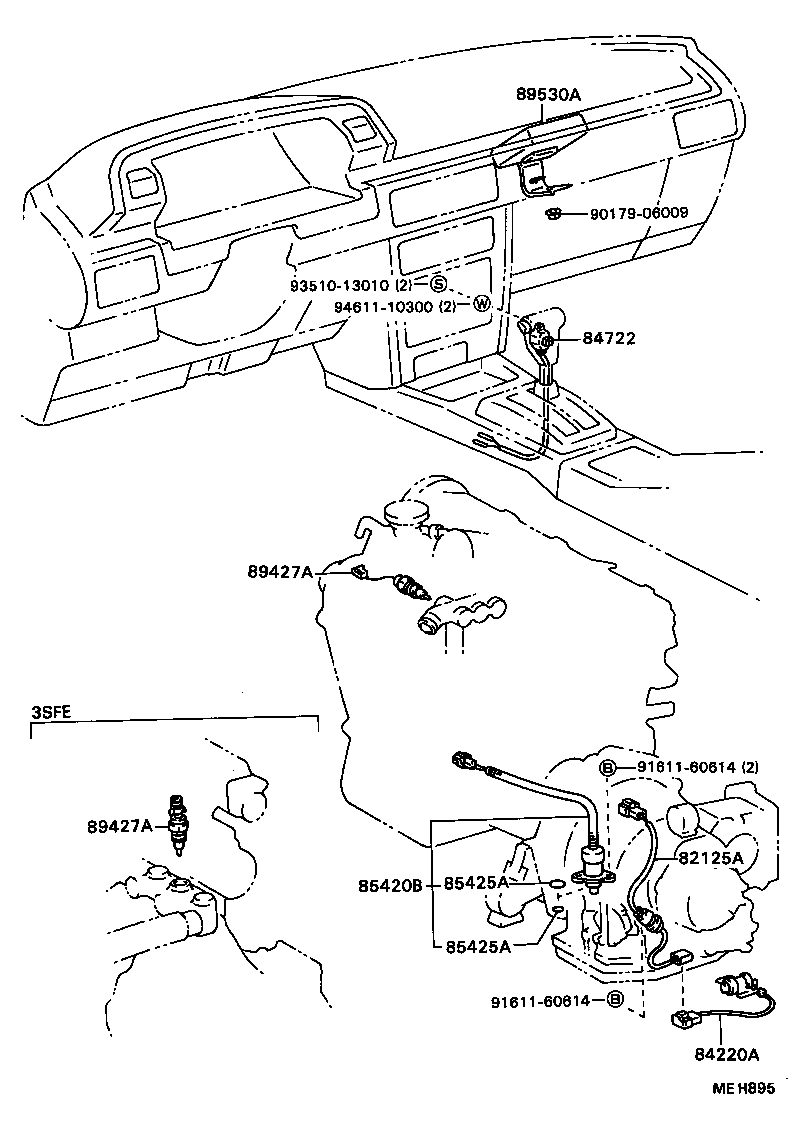

Click highlighted areas on diagram
OVERDRIVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-32020 |
SV20,21..4FC |
1 | ||
| 82125-32020 |
SV2#..4FC |
1 | ||
| 84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-32010 |
SV20,21..4FC |
1 | ||
| 84220-32010 |
SV2#..4FC |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-3202001 |
SV2#..4FC BLACK,BLACK |
1 | ||
| 84722-3202001 |
SV20,21,VZV21..4FC BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32081 |
SV2#..4FC |
1 | ||
| 85420-32081 |
SV20,21..4FC |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-06005 |
SV2#..4FC ID=7 |
1 | ||
| 90301-06005 |
SV20,21..4FC ID=7 |
1 | ||
| 96721-19017 |
SV20,21..4FC ID=17 |
1 | ||
| 96721-19017 |
SV2#..4FC ID=17 |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-06005 |
SV2#..4FC ID=7 |
1 | ||
| 90301-06005 |
SV20,21..4FC ID=7 |
1 | ||
| 96721-19017 |
SV20,21..4FC ID=17 |
1 | ||
| 96721-19017 |
SV2#..4FC ID=17 |
1 | ||
| 89427A - SWITCH, TEMPERATURE | ||||
| 89427-12070 |
SV21..4FC |
1 | ||
| 89427A - SWITCH, TEMPERATURE | ||||
| 89427-12070 |
SV21..4FC |
1 | ||
| 89530A - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-32180 |
SV21..4FC |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 91611-60614 | ||||
| 93510-13010 | ||||
| 94611-10300 | ||||
