SV21L-UEPDKW (1986)
Toyota Camry

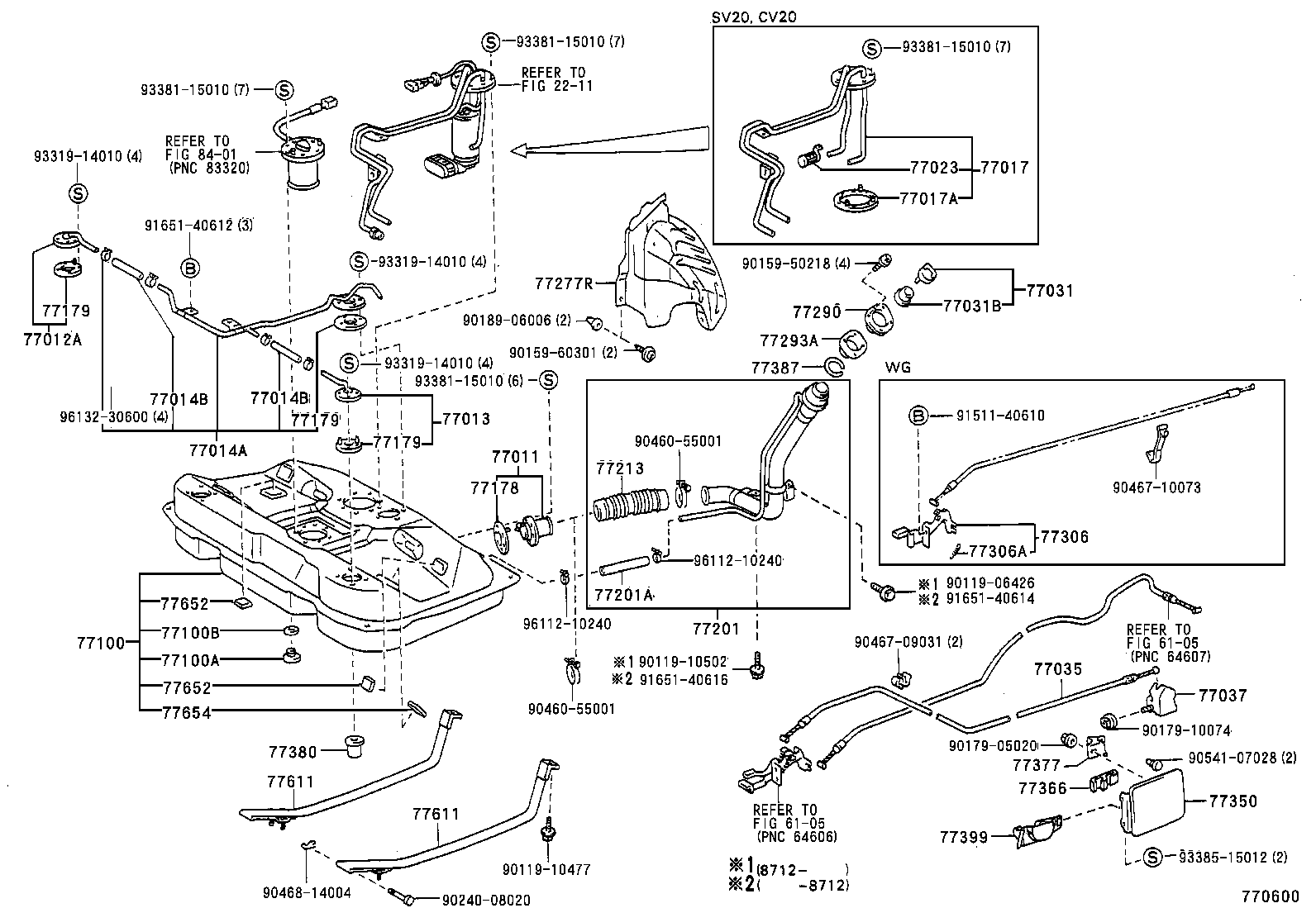

(8610- )CV20,SV20,21..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20010 |
CV20,SV2# |
1 | ||
| 77011-20020 |
CV20,SV2# |
1 | ||
| 77011-20020 |
CV20,SV20,21,VZV21 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-32020 |
CV20,SV2# |
1 | ||
| 77012-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77012-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 77012-32020 |
CV20,SV2# |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 77014-32020 |
CV20,SV2# |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
CV20,SV20,21,VZV21 *H,L=100 |
2 | ||
| 95332-06010 |
CV20,SV2# *H,L=100 |
2 | ||
| 95333-06010 |
CV20,SV2# *H,L=100 |
2 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
CV20,SV20,21,VZV21 *H,L=100 |
2 | ||
| 95332-06010 |
CV20,SV2# *H,L=100 |
2 | ||
| 95333-06010 |
CV20,SV2# *H,L=100 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
SV2#..EUG |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
SV2#..EUG |
1 | ||
| 77316-12050 |
CV20,SV2#..EUG |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32070 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 77035-32070 |
CV20,SV2#..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12040 |
CV20,SV2# |
1 | ||
| 77037-12040 |
CV20,SV2#,VZV21 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39215 |
CV20,SV2# |
1 | ||
| 77001-39215 |
CV20,SV20,21,VZV21 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
CV20,SV2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
CV20,SV2# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
CV20,SV2# |
1 | ||
| 77178-20010 |
CV20,SV20,21,VZV21 |
1 | ||
| 77179 - RETAINER, FUEL TANK MOUNTING, FRONT | ||||
| 77179-16010 |
CV20,SV2# |
3 | ||
| 77179-16010 |
CV20,SV20,21,VZV21 |
3 | ||
| 77179 - RETAINER, FUEL TANK MOUNTING, FRONT | ||||
| 77179-16010 |
CV20,SV2# |
3 | ||
| 77179-16010 |
CV20,SV20,21,VZV21 |
3 | ||
| 77179 - RETAINER, FUEL TANK MOUNTING, FRONT | ||||
| 77179-16010 |
CV20,SV2# |
3 | ||
| 77179-16010 |
CV20,SV20,21,VZV21 |
3 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-32070 |
CV20,SV20,21..EUG |
1 | ||
| 77201-32070 |
CV20,SV20,21..EUG |
1 | ||
| 77210-32090 |
CV20,SV2#..EUG |
1 | ||
| 77201-32070 |
CV20,SV2#..EUG |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22002 |
CV20,SV2# L=200 |
1 | ||
| 90445-22030 |
CV20,SV2#..EUG L=185,WHITE PAINTED |
1 | ||
| 90445-22030 |
CV20,SV20,21..EUG L=185,WHITE PAINTED |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 77213-32020 |
CV20,SV2# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-32020 |
CV20,SV2# |
1 | ||
| 77277-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-32021 |
CV20,SV2#,VZV21 |
1 | ||
| 77290-32021 |
CV20,SV2# |
1 | ||
| 77290-32020 |
CV20,SV2# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20010 |
CV20,SV2# |
1 | ||
| 77293-20010 |
CV20,SV2#,VZV21 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 77350-32030 |
CV20,SV2# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
CV20,SV2# |
1 | ||
| 77360-24010 |
CV20,SV2#,VZV21 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
CV20,SV2#,VZV21 |
1 | ||
| 77377-20030 |
CV20,SV2# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
CV20,SV20,21,VZV21 |
3 | ||
| 77380-14020 |
CV20,SV2# |
3 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
CV20,SV2# |
1 | ||
| 77391-16011 |
CV20,SV2#,VZV21 |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-32010 |
CV20,SV2# |
1 | ||
| 77399-32010 |
CV20,SV2#..EUG |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-32050 |
CV20,SV2# RH |
1 | ||
| 77601-32050 |
CV20,SV20,21,VZV21 RH |
1 | ||
| 77602-32040 |
CV20,SV20,21,VZV21 LH |
1 | ||
| 77602-32040 |
CV20,SV2# LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-32050 |
CV20,SV2# RH |
1 | ||
| 77601-32050 |
CV20,SV20,21,VZV21 RH |
1 | ||
| 77602-32040 |
CV20,SV20,21,VZV21 LH |
1 | ||
| 77602-32040 |
CV20,SV2# LH |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV20,SV20,21,VZV21 |
4 | ||
| 77651-32050 |
CV20,SV2# |
4 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV20,SV20,21,VZV21 |
4 | ||
| 77651-32050 |
CV20,SV2# |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32030 |
CV20,SV20,21,VZV21 |
2 | ||
| 77652-32030 |
CV20,SV2# |
2 | ||
| Common parts | ||||
| 90119-06426 | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-50218 | ||||
| 90159-60301 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90460-55001 | ||||
| 90467-09031 | ||||
| 90467-10073 | ||||
| 90468-14004 | ||||
| 90541-07028 | ||||
| 91511-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93385-15012 | ||||
| 96112-10240 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 8401 | ||||
(8610- )SV21..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-32110 |
SV21,VZV21 |
1 | ||
| 77251-32110 |
SV21 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 77266-32020 |
CV20,SV2# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-32020 |
CV20,SV2# |
1 | ||
| 77267-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-32080 |
SV21 |
1 | ||
| 77255-32080 |
SV21,VZV21 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12018 |
SV21 |
1 | ||
| 90447-12085 |
SV21,25 L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06017 |
CV20,SV21 *H,L=170 |
1 | ||
| 95333-06020 |
CV20,SV21,VZV21 *H,L=200 |
1 | ||
| 95333-06020 |
CV20,SV21 *H,L=170 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77278-32010 |
CV20,SV2#..EUG |
1 | ||
| 77278-32010 |
CV20,SV20,21..EUG |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
CV20,SV2#..EUG |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06030 |
CV20,SV2#..EUG *H,L=240 |
2 | ||
| 95333-06030 |
CV20,SV2#..EUG *H,L=240 |
2 | ||
| 95333-06030 |
CV20,SV20,21..EUG *H,L=300 |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06030 |
CV20,SV2#..EUG *H,L=240 |
2 | ||
| 95333-06030 |
CV20,SV2#..EUG *H,L=240 |
2 | ||
| 95333-06030 |
CV20,SV20,21..EUG *H,L=300 |
2 | ||
| Common parts | ||||
| 90464-00385 | ||||
| 90467-11049 | ||||
| 90480-01277 | ||||
| 90480-01359 | ||||
| 90480-01360 | ||||
| 90959-01268 | ||||
| 90959-01269 | ||||
| 90959-01270 | ||||
| 90959-01271 | ||||
| 90959-01272 | ||||
| 90959-01273 | ||||
| 90959-01274 | ||||
| 90959-01275 | ||||
| 90959-01278 | ||||
| 91656-40616 | ||||
| 96132-30600 | ||||
