SV21L-UEPDKW (1986)
Toyota Camry

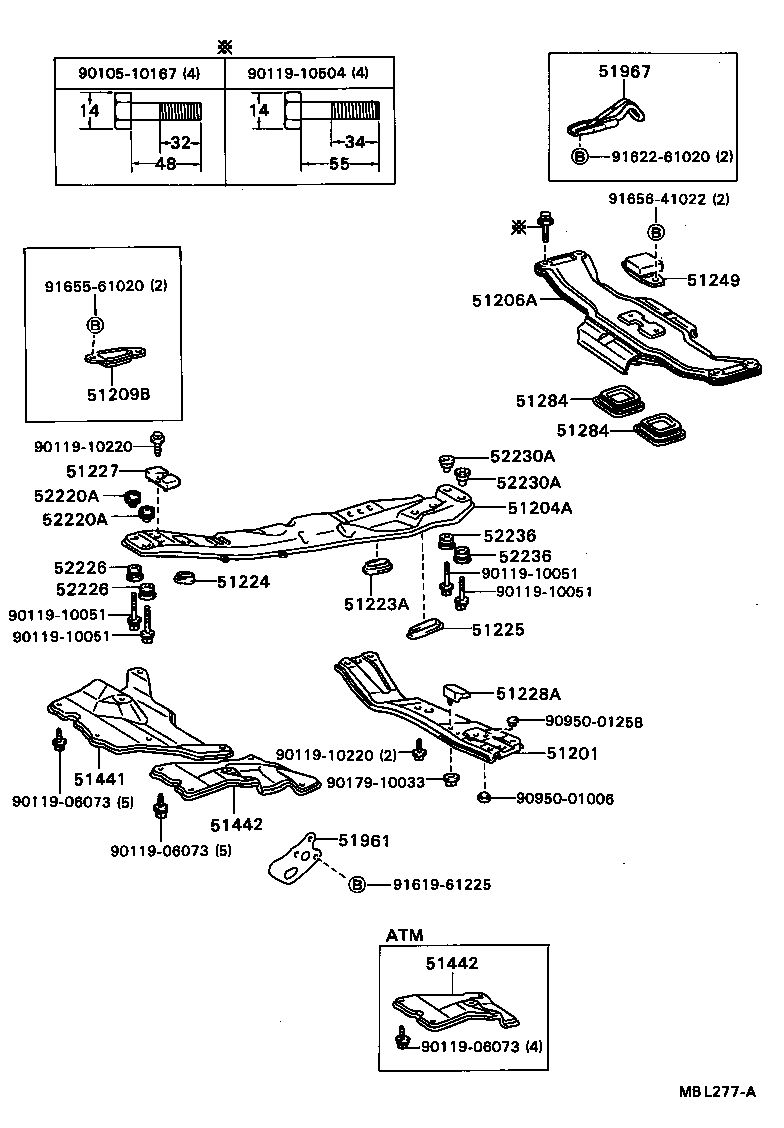

ILLUST NO. 1 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-32010 |
CV20,SV20,21,VZV21 |
1 | ||
| 51201-32010 |
CV20,SV2# |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-32020 |
CV20,SV2# |
1 | ||
| 51204-32021 |
CV20,SV20,21,VZV21 |
1 | ||
| 51204-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-32010 |
CV20,SV20,21,VZV21 |
1 | ||
| 51206-32010 |
CV20,SV2# |
1 | ||
| 51223A - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-32020 |
CV20,SV2# |
1 | ||
| 51223-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 51224 - COVER, ENGINE MOUNTING HOLE, NO.2 | ||||
| 51224-32010 |
CV20,SV2# |
1 | ||
| 51224-32010 |
CV20,SV20,21,VZV21 |
1 | ||
| 51225 - COVER, ENGINE MOUNTING HOLE, NO.3 | ||||
| 51225-32010 |
CV20,SV20,21,VZV21 |
1 | ||
| 51225-32010 |
CV20,SV2# |
1 | ||
| 51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER | ||||
| 51227-32010 |
CV20,SV2# |
1 | ||
| 51227-32010 |
CV20,SV20,21,VZV21 |
1 | ||
| 51228A - WEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH | ||||
| 51228-32010 |
CV20,SV2# |
1 | ||
| 51228-32010 |
CV20,SV20,21,VZV21 |
1 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-32010 |
CV20,SV2# |
1 | ||
| 51249-32010 |
CV20,SV20,21,VZV21 |
1 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-32010 |
CV20,SV2# |
2 | ||
| 51284-32010 |
CV20,SV20,21,VZV21 |
2 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-32010 |
CV20,SV2# |
2 | ||
| 51284-32010 |
CV20,SV20,21,VZV21 |
2 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 51441-32030 |
CV20,SV2# |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-32040 |
SV2#..4FC |
1 | ||
| 51442-32040 |
SV20,21,VZV21..4FC |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-32040 |
SV2#..4FC |
1 | ||
| 51442-32040 |
SV20,21,VZV21..4FC |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-32020 |
CV20,SV2#,VZV21 |
2 | ||
| 51963-32020 |
CV20,SV2# |
2 | ||
| 51967 - HOOK, TRANSPORT, REAR | ||||
| 51096-32010 |
CV20,SV2#..SED LH |
1 | ||
| 51095-32020 |
CV20,SV2#..SED RH |
1 | ||
| 51096-32010 |
CV20,SV20,21..SED LH |
1 | ||
| 51095-32020 |
CV20,SV20,21..SED RH |
1 | ||
| 52220A - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER | ||||
| 52220-32040 |
CV20,SV2#,VZV21 |
1 | ||
| 52220-32040 |
CV20,SV2# |
2 | ||
| 52220A - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER | ||||
| 52220-32040 |
CV20,SV2#,VZV21 |
1 | ||
| 52220-32040 |
CV20,SV2# |
2 | ||
| 52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER | ||||
| 52226-32010 |
CV20,SV2# |
2 | ||
| 52226-32010 |
CV20,SV2#,VZV21 |
2 | ||
| 52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER | ||||
| 52226-32010 |
CV20,SV2# |
2 | ||
| 52226-32010 |
CV20,SV2#,VZV21 |
2 | ||
| 52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER | ||||
| 52230-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 52230-32030 |
CV20,SV2# |
2 | ||
| 52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER | ||||
| 52230-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 52230-32030 |
CV20,SV2# |
2 | ||
| 52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER | ||||
| 52236-32020 |
CV20,SV2#,VZV21 |
2 | ||
| 52236-32020 |
CV20,SV2# |
2 | ||
| 52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER | ||||
| 52236-32020 |
CV20,SV2#,VZV21 |
2 | ||
| 52236-32020 |
CV20,SV2# |
2 | ||
| Common parts | ||||
| 90105-10167 | ||||
| 90119-06073 | ||||
| 90119-10051 | ||||
| 90119-10220 | ||||
| 90119-10504 | ||||
| 90179-10033 | ||||
| 90950-01006 | ||||
| 90950-01258 | ||||
| 91619-61225 | ||||
| 91622-61020 | ||||
| 91655-61020 | ||||
| 91656-41022 | ||||
