SV21L-UEPDKK (1986)
Toyota Camry

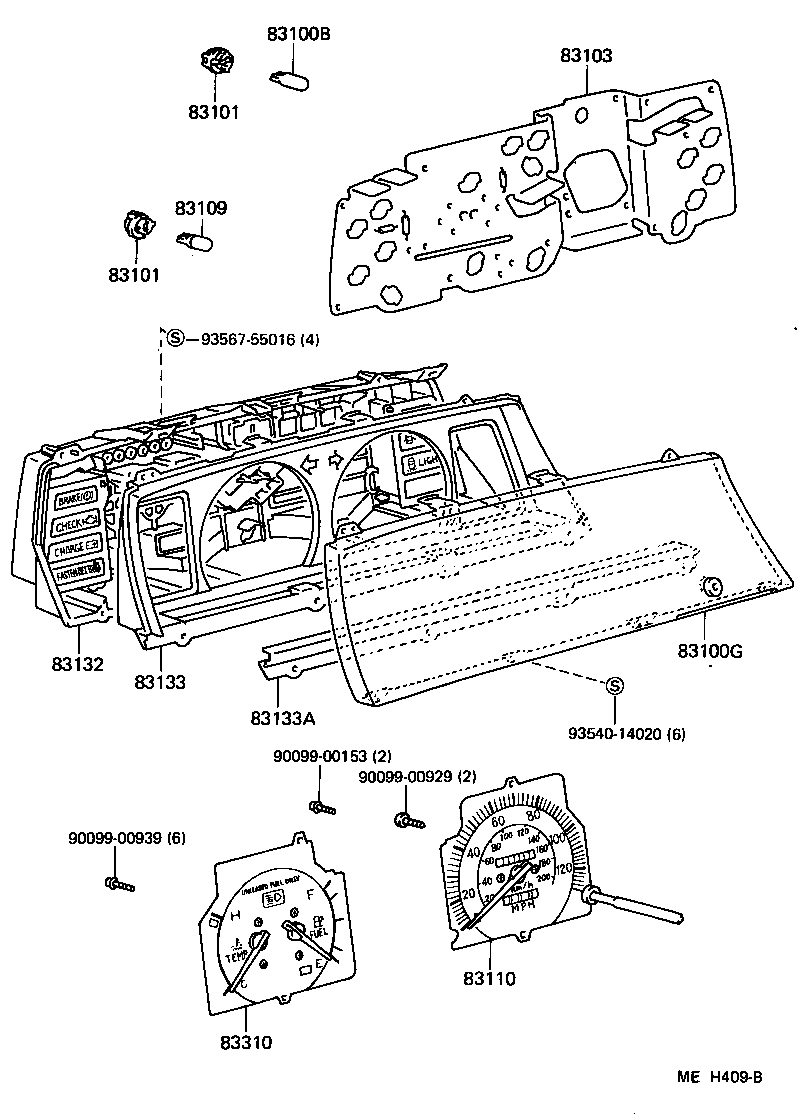

ILLUST NO. 1 OF 3(8608- )DX,STD
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
SV21 12V 1.2W W/O SOCKET,12V 1.4W |
10 | ||
| 99132-12034 |
SV2#..SED..(DX,STD) 12V 3.4W,12V 3.4W |
11 | ||
| 99132-12034 |
SV21 12V 3.4W,12V 3.4W |
15 | ||
| 83109-10010 |
SV21..WG..LE;SV21,VZV21..DX 12V 1.4W,ORANGE CAP,12V 1.4W ORANGE CAP |
1 | ||
| 99132-12034 |
SV21..WG..LE;SV21,VZV21..DX 12V 3.4W,W(TACHOMETER) |
1 | ||
| 90981-11018 |
SV21..WG..LE;SV21,VZV21..DX 12V 1.2W W/O SOCKET,W(TACHOMETER) |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32050 |
SV21 |
1 | ||
| 83138-32050 |
SV2#,VZV21 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV21 12V 3.4W BULB |
11 | ||
| 83101-14040 |
SV21 12V 1.4W BULB |
11 | ||
| 83101-14030 |
SV2#..SED..(DX,STD) 12V 3.4W BULB |
16 | ||
| 83101-14030 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER),12V 1.4W BULB |
5 | ||
| 83101-14040 |
SV21,VZV21..DX 12V 3.4W BULB |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV21 12V 3.4W BULB |
11 | ||
| 83101-14040 |
SV21 12V 1.4W BULB |
11 | ||
| 83101-14030 |
SV2#..SED..(DX,STD) 12V 3.4W BULB |
16 | ||
| 83101-14030 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER),12V 1.4W BULB |
5 | ||
| 83101-14040 |
SV21,VZV21..DX 12V 3.4W BULB |
11 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-32360 |
SV21 W/TACHOMETER |
1 | ||
| 83247-32480 |
SV21..WG..LE;SV2#,VZV21..DX,STD |
1 | ||
| 83247-32880 |
SV21..DX,LE W/TACHOMETER |
1 | ||
| 83247-32880 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER) |
1 | ||
| 83247-32480 |
SV21..SED..(DX,STD) |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
SV21 12V3.4W W(GREEN CAP),12V 3.4W,GREEN |
4 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32430 |
SV21..(DX,LE)..CND W/TACHOMETER |
1 | ||
| 83110-32430 |
SV21..DX..CND;SV21..WG..LE..CND W(TACHOMETER) |
1 | ||
| 83110-32420 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83110-32640 |
SV21..DX..CND;SV21..WG..LE..CND W(TACHOMETER) |
1 | ||
| 83110-32630 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83110-32420 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32400 |
SV21..SED..DX BASE GRADE |
1 | ||
| 83132-32300 |
SV21..DX,LE W/TACHOMETER |
1 | ||
| 83132-32120 |
SV21..WG..LE;SV2#,VZV21..DX |
1 | ||
| 83132-32300 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER) |
1 | ||
| 83132-32120 |
SV21..SED..DX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32570 |
SV21..DX,LE W/TACHOMETER |
1 | ||
| 83133-32550 |
SV21..WG..LE;SV2#,VZV21..DX,STD |
1 | ||
| 83133-32570 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER) |
1 | ||
| 83133-32550 |
SV21..SED..(DX,STD) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32610 |
SV2#,VZV21 |
1 | ||
| 83133-32610 |
SV21 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-32610 |
SV21..DX..CND;SV21..WG..LE..CND W(TACHOMETER) |
1 | ||
| 83243-32350 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83243-32350 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83243-32470 |
SV21..(DX,LE)..CND W/TACHOMETER |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

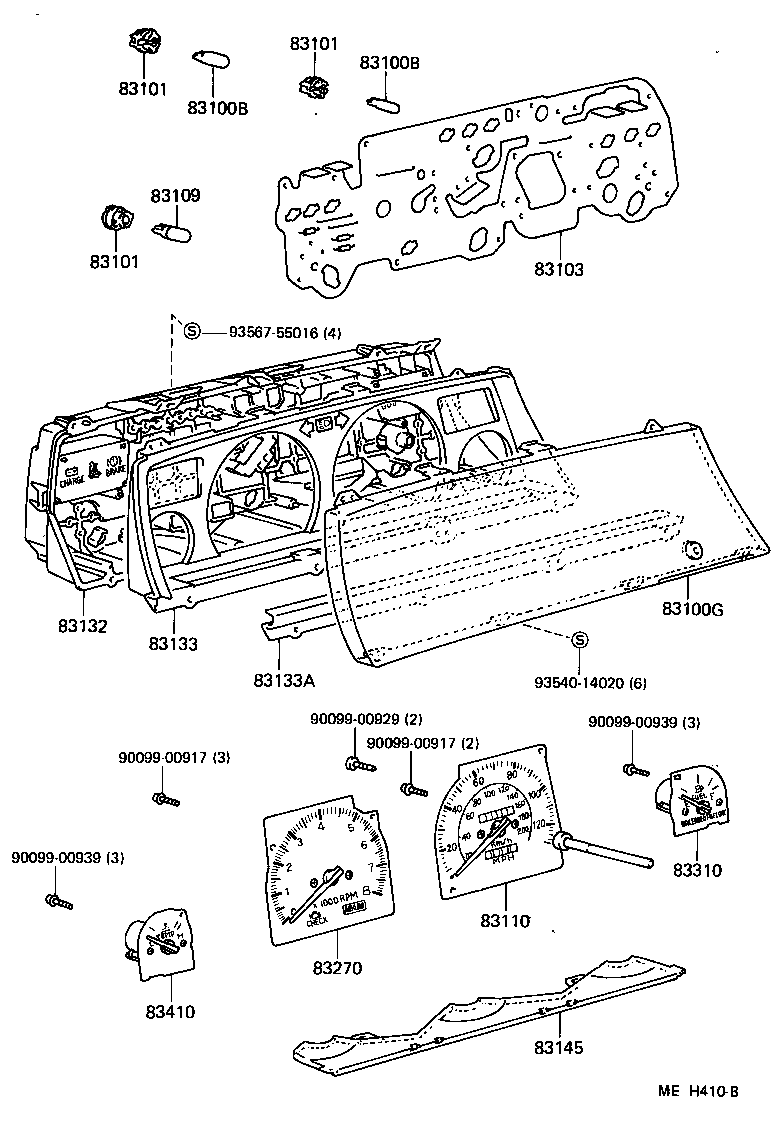

ILLUST NO. 1 OF 3(8608- )DX,LE
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
SV21 12V 1.2W W/O SOCKET,12V 1.4W |
10 | ||
| 99132-12034 |
SV2#..SED..(DX,STD) 12V 3.4W,12V 3.4W |
11 | ||
| 99132-12034 |
SV21 12V 3.4W,12V 3.4W |
15 | ||
| 83109-10010 |
SV21..WG..LE;SV21,VZV21..DX 12V 1.4W,ORANGE CAP,12V 1.4W ORANGE CAP |
1 | ||
| 99132-12034 |
SV21..WG..LE;SV21,VZV21..DX 12V 3.4W,W(TACHOMETER) |
1 | ||
| 90981-11018 |
SV21..WG..LE;SV21,VZV21..DX 12V 1.2W W/O SOCKET,W(TACHOMETER) |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
SV21 12V 1.2W W/O SOCKET,12V 1.4W |
10 | ||
| 99132-12034 |
SV2#..SED..(DX,STD) 12V 3.4W,12V 3.4W |
11 | ||
| 99132-12034 |
SV21 12V 3.4W,12V 3.4W |
15 | ||
| 83109-10010 |
SV21..WG..LE;SV21,VZV21..DX 12V 1.4W,ORANGE CAP,12V 1.4W ORANGE CAP |
1 | ||
| 99132-12034 |
SV21..WG..LE;SV21,VZV21..DX 12V 3.4W,W(TACHOMETER) |
1 | ||
| 90981-11018 |
SV21..WG..LE;SV21,VZV21..DX 12V 1.2W W/O SOCKET,W(TACHOMETER) |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32050 |
SV21 |
1 | ||
| 83138-32050 |
SV2#,VZV21 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV21 12V 3.4W BULB |
11 | ||
| 83101-14040 |
SV21 12V 1.4W BULB |
11 | ||
| 83101-14030 |
SV2#..SED..(DX,STD) 12V 3.4W BULB |
16 | ||
| 83101-14030 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER),12V 1.4W BULB |
5 | ||
| 83101-14040 |
SV21,VZV21..DX 12V 3.4W BULB |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV21 12V 3.4W BULB |
11 | ||
| 83101-14040 |
SV21 12V 1.4W BULB |
11 | ||
| 83101-14030 |
SV2#..SED..(DX,STD) 12V 3.4W BULB |
16 | ||
| 83101-14030 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER),12V 1.4W BULB |
5 | ||
| 83101-14040 |
SV21,VZV21..DX 12V 3.4W BULB |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV21 12V 3.4W BULB |
11 | ||
| 83101-14040 |
SV21 12V 1.4W BULB |
11 | ||
| 83101-14030 |
SV2#..SED..(DX,STD) 12V 3.4W BULB |
16 | ||
| 83101-14030 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER),12V 1.4W BULB |
5 | ||
| 83101-14040 |
SV21,VZV21..DX 12V 3.4W BULB |
11 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-32360 |
SV21 W/TACHOMETER |
1 | ||
| 83247-32480 |
SV21..WG..LE;SV2#,VZV21..DX,STD |
1 | ||
| 83247-32880 |
SV21..DX,LE W/TACHOMETER |
1 | ||
| 83247-32880 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER) |
1 | ||
| 83247-32480 |
SV21..SED..(DX,STD) |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
SV21 12V3.4W W(GREEN CAP),12V 3.4W,GREEN |
4 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32430 |
SV21..(DX,LE)..CND W/TACHOMETER |
1 | ||
| 83110-32430 |
SV21..DX..CND;SV21..WG..LE..CND W(TACHOMETER) |
1 | ||
| 83110-32420 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83110-32640 |
SV21..DX..CND;SV21..WG..LE..CND W(TACHOMETER) |
1 | ||
| 83110-32630 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83110-32420 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32400 |
SV21..SED..DX BASE GRADE |
1 | ||
| 83132-32300 |
SV21..DX,LE W/TACHOMETER |
1 | ||
| 83132-32120 |
SV21..WG..LE;SV2#,VZV21..DX |
1 | ||
| 83132-32300 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER) |
1 | ||
| 83132-32120 |
SV21..SED..DX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32570 |
SV21..DX,LE W/TACHOMETER |
1 | ||
| 83133-32550 |
SV21..WG..LE;SV2#,VZV21..DX,STD |
1 | ||
| 83133-32570 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER) |
1 | ||
| 83133-32550 |
SV21..SED..(DX,STD) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32610 |
SV2#,VZV21 |
1 | ||
| 83133-32610 |
SV21 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-32370 |
SV21..DX,LE W/TACHOMETER |
1 | ||
| 83145-32370 |
SV21..WG..LE;SV21,VZV21..DX W(TACHOMETER) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-32730 |
SV21..(DX,LE)..CND |
1 | ||
| 83242-32730 |
SV21..DX..CND;SV21..WG..LE..CND |
1 | ||
| 83242-32510 |
SV21..CND |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-32610 |
SV21..DX..CND;SV21..WG..LE..CND W(TACHOMETER) |
1 | ||
| 83243-32350 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83243-32350 |
SV21..WG..LE..CND;SV21..(DX,STD)..CND |
1 | ||
| 83243-32470 |
SV21..(DX,LE)..CND W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32510 |
SV21 |
1 | ||
| 83244-32510 |
SV21..WG..LE;SV21,VZV21..DX |
1 | ||
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

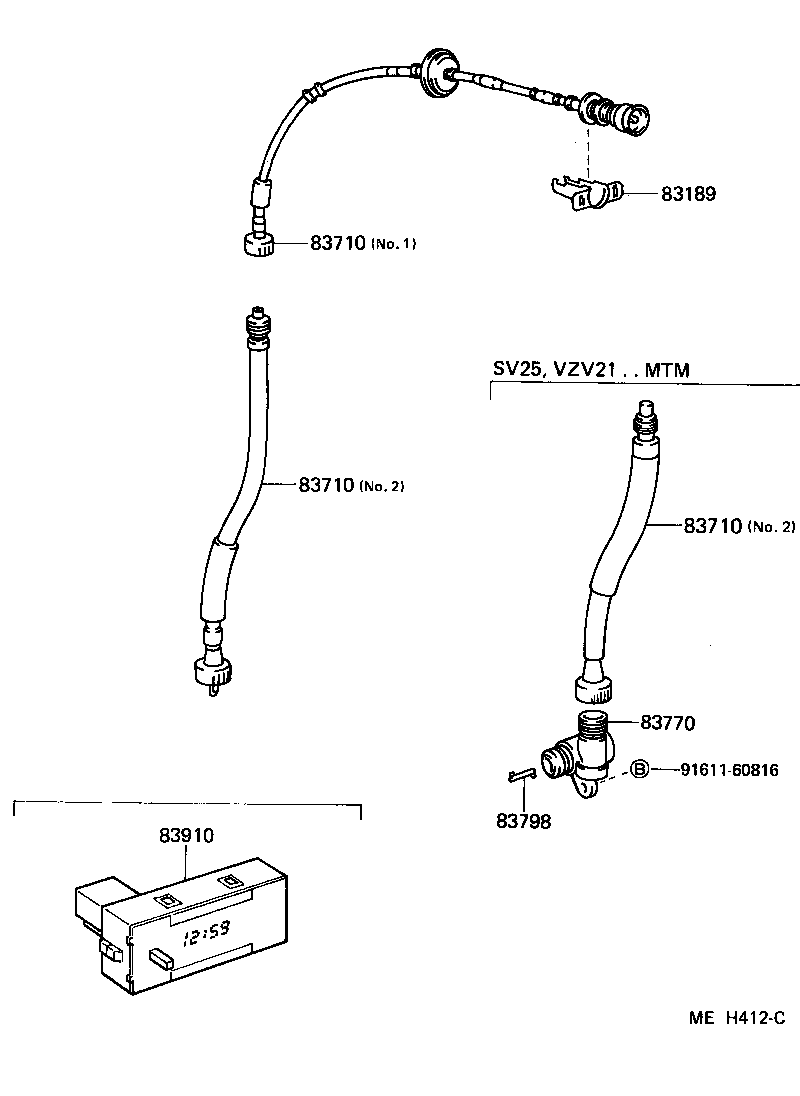

ILLUST NO. 3 OF 3(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
SV2#,VZV21 |
1 | ||
| 83189-20020 |
SV21 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32160 |
SV21 NO.1 |
1 | ||
| 83710-32160 |
SV2# NO.1 |
1 | ||
| 83710-32170 |
SV21 NO.2 |
1 | ||
| 83710-32170 |
SV21 NO.2 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32160 |
SV21 NO.1 |
1 | ||
| 83710-32160 |
SV2# NO.1 |
1 | ||
| 83710-32170 |
SV21 NO.2 |
1 | ||
| 83710-32170 |
SV21 NO.2 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32160 |
SV21 NO.1 |
1 | ||
| 83710-32160 |
SV2# NO.1 |
1 | ||
| 83710-32170 |
SV21 NO.2 |
1 | ||
| 83710-32170 |
SV21 NO.2 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32060 |
SV21 |
1 | ||
| 83910-32060 |
SV2#,VZV21..DX,LE |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||

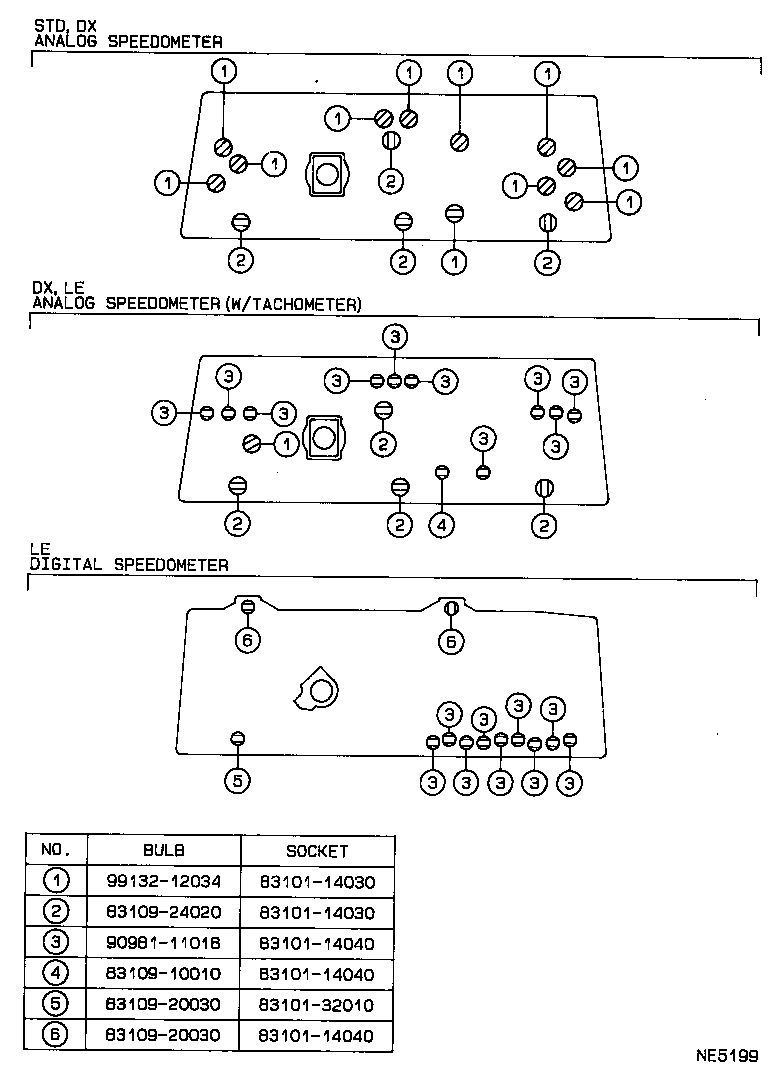

ILLUST NO. 2 OF 3(8608- )
SOCKET & BULB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83101-14030 | ||||
| 83101-14040 | ||||
| 83101-32010 | ||||
| 83109-10010 | ||||
| 83109-20030 | ||||
| 83109-24020 | ||||
| 90981-11018 | ||||
| 99132-12034 | ||||
ILLUST NO. 1 OF 5(8610- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 5(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60816 | ||||
ILLUST NO. 5 OF 5(8610- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 5(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
| 90464-00248 | ||||
| 90468-04021 | ||||
ILLUST NO. 2 OF 5(8610- )
BULB & SOCKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83101-14030 | ||||
| 83101-14040 | ||||
| 83101-32010 | ||||
| 83109-10010 | ||||
| 83109-20030 | ||||
| 83109-24020 | ||||
| 90981-11018 | ||||
| 99132-12034 | ||||
