SV21L-UEPDKK (1986)
Toyota Camry
ILLUST NO. 1 OF 2(8608- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
SV21,VZV21..SED |
1 | ||
| 04562-30040 |
SV21..SED |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
SV21,VZV21..SED |
1 | ||
| 04562-30040 |
SV21..SED |
1 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
SV21..SED |
4 | ||
| 61824-12010 |
SV21,VZV21..SED |
4 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
SV21..SED |
4 | ||
| 61824-12010 |
SV21,VZV21..SED |
4 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32050 |
SV2#,VZV21..DX,STD |
1 | ||
| 63102-32050 |
SV21..DX,STD |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32050 |
SV2#,VZV21..DX,STD |
1 | ||
| 63102-32050 |
SV21..DX,STD |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-32030 |
SV21..SED |
1 | ||
| 63141-32030 |
SV2#,VZV21..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32050 |
SV21..SED W/O SUN ROOF |
1 | ||
| 63111-32050 |
SV2#,VZV21..SED |
1 | ||
| 63111-32060 |
SV21..SED..(DX,LE) W/SUN ROOF |
1 | ||
| 63111-32060 |
SV2#,VZV21..SED..(DX,LE) W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32050 |
SV21..SED W/O SUN ROOF |
1 | ||
| 63111-32050 |
SV2#,VZV21..SED |
1 | ||
| 63111-32060 |
SV21..SED..(DX,LE) W/SUN ROOF |
1 | ||
| 63111-32060 |
SV2#,VZV21..SED..(DX,LE) W(MOON ROOF) |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
SV21,VZV21 |
2 | ||
| 63126-32010 |
SV21 |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
SV21,VZV21 |
2 | ||
| 63126-32010 |
SV21 |
2 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-32020 |
SV2#,VZV21..SED |
1 | ||
| 63133-32020 |
SV21..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-32020 |
SV2#,VZV21..SED |
1 | ||
| 63133-32020 |
SV21..SED |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-32020 |
SV21..SED..(DX,LE) |
1 | ||
| 63142-32020 |
SV2#,VZV21..SED..(DX,LE) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-32010 |
SV21..SED |
1 | ||
| 63143-32010 |
SV2#,VZV21..SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-32010 |
SV21..SED |
1 | ||
| 63144-32010 |
SV2#,VZV21..SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-32010 |
SV21..SED |
1 | ||
| 63144-32010 |
SV2#,VZV21..SED |
1 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
SV21..SED |
4 | ||
| 63161-22010 |
SV21,VZV21..SED |
4 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
SV21..SED |
4 | ||
| 63161-22010 |
SV21,VZV21..SED |
4 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-32040 |
SV21..SED..(DX,STD) |
1 | ||
| 64101-32040 |
SV2#,VZV21..SED..(DX,STD) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-32040 |
SV21..SED..(DX,STD) |
1 | ||
| 64101-32040 |
SV2#,VZV21..SED..(DX,STD) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-32110 |
SV21..SED *EHTT,T=4.0,*EHTT,T=4.0,W/O ANTENNA |
1 | ||
| 64811-03010 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||
| 64811-32110 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-32110 |
SV21..SED *EHTT,T=4.0,*EHTT,T=4.0,W/O ANTENNA |
1 | ||
| 64811-03010 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||
| 64811-32110 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||

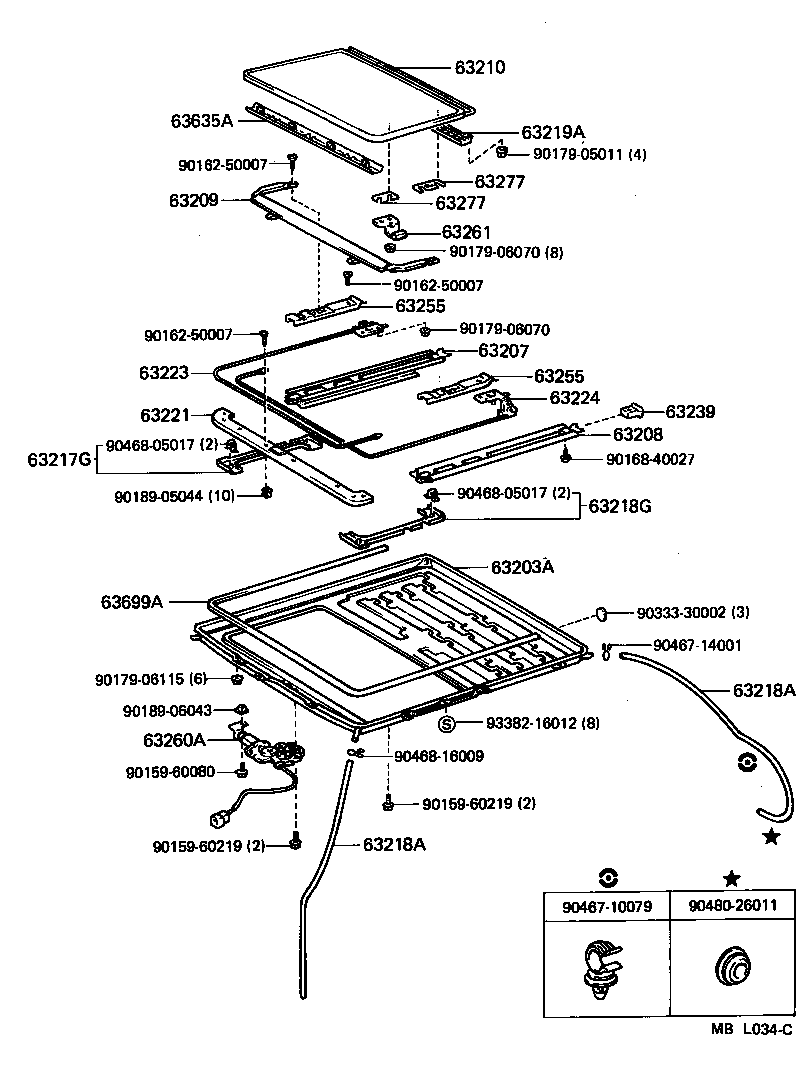

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-32030 |
SV2#,VZV21..DX,LE |
1 | ||
| 63203-32030 |
SV21..DX,LE |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-32010 |
SV21..DX,LE |
1 | ||
| 63207-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-32010 |
SV21..DX,LE |
1 | ||
| 63208-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-32011 |
SV21..DX,LE |
1 | ||
| 63209-32012 |
SV2#,VZV21..SED..(DX,LE) |
1 | ||
| 63210 - GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-32022 |
SV21..SED..(DX,LE) |
1 | ||
| 63201-32022 |
SV2#,VZV21..SED..(DX,LE) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-3201003 |
SV21..DX,LE GRAY,LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63217-3201005 |
SV21..DX,LE BEIGE,LIGHT BEIGE,TRIM4# |
1 | ||
| 63217-3201003 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63217-32010B0 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63217-3201005 |
SV25..LE;SV21,VZV21..DX,LE LIGHT BEIGE,TRIM4# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32050 |
SV21..SED..(DX,LE) RR |
2 | ||
| 63249-32050 |
SV2#,VZV21..SED..(DX,LE) RR |
2 | ||
| 63249-20080 |
SV21..DX,LE FR |
2 | ||
| 63249-20080 |
SV2#,VZV21..DX,LE FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32050 |
SV21..SED..(DX,LE) RR |
2 | ||
| 63249-32050 |
SV2#,VZV21..SED..(DX,LE) RR |
2 | ||
| 63249-20080 |
SV21..DX,LE FR |
2 | ||
| 63249-20080 |
SV2#,VZV21..DX,LE FR |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-3201003 |
SV21..DX,LE GRAY,LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63218-3201003 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63218-3201005 |
SV25..LE;SV21,VZV21..DX,LE LIGHT BEIGE,TRIM4# |
1 | ||
| 63218-32010B0 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63218-3201005 |
SV21..DX,LE BEIGE,LIGHT BEIGE,TRIM4# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-32011B0 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63219-3201105 |
SV21..DX,LE BEIGE,LIGHT BEIGE,TRIM4# |
1 | ||
| 63219-3201103 |
SV21..DX,LE GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 63219-3201105 |
SV25..LE;SV21,VZV21..DX,LE LIGHT BEIGE,TRIM4# |
1 | ||
| 63219-3201103 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-32010 |
SV21..DX,LE |
1 | ||
| 63221-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63223-32010 |
SV21..DX,LE |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63224-32010 |
SV21..DX,LE |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-24010 |
SV21..DX,LE |
1 | ||
| 63239-24010 |
SV2#,VZV21..DX,LE |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-32010 |
SV2#,VZV21..DX,LE |
2 | ||
| 63255-32010 |
SV21..DX,LE |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-32010 |
SV2#,VZV21..DX,LE |
2 | ||
| 63255-32010 |
SV21..DX,LE |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63260-32010 |
SV21..DX,LE |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63262-32010 |
SV21..DX,LE LH |
1 | ||
| 63261-32010 |
SV21..DX,LE RH |
1 | ||
| 63262-32010 |
SV2#,VZV21..DX,LE LH |
1 | ||
| 63261-32010 |
SV2#,VZV21..DX,LE RH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-24010 |
SV21..DX,LE RR,T=1.0 |
8 | ||
| 63277-32020 |
SV21..DX,LE RR,T=2.0 |
4 | ||
| 63277-30020 |
SV21..DX,LE FR,T=1.0 |
8 | ||
| 63277-32010 |
SV21..DX,LE FR,T=2.0 |
4 | ||
| 63277-24010 |
SV2#,VZV21..DX,LE RR,T=2.0 |
1 | ||
| 63277-32020 |
SV2#,VZV21..DX,LE FR,T=1.0 |
1 | ||
| 63277-32010 |
SV2#,VZV21..DX,LE FR,T=2.0 |
1 | ||
| 63277-30020 |
SV2#,VZV21..DX,LE RR,T=1.0 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-24010 |
SV21..DX,LE RR,T=1.0 |
8 | ||
| 63277-32020 |
SV21..DX,LE RR,T=2.0 |
4 | ||
| 63277-30020 |
SV21..DX,LE FR,T=1.0 |
8 | ||
| 63277-32010 |
SV21..DX,LE FR,T=2.0 |
4 | ||
| 63277-24010 |
SV2#,VZV21..DX,LE RR,T=2.0 |
1 | ||
| 63277-32020 |
SV2#,VZV21..DX,LE FR,T=1.0 |
1 | ||
| 63277-32010 |
SV2#,VZV21..DX,LE FR,T=2.0 |
1 | ||
| 63277-30020 |
SV2#,VZV21..DX,LE RR,T=1.0 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-32011B0 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63635-3201103 |
SV2#,VZV21..DX,LE W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63635-3201105 |
SV21..DX,LE BEIGE,LIGHT BEIGE,TRIM4# |
1 | ||
| 63635-3201105 |
SV25..LE;SV21,VZV21..DX,LE LIGHT BEIGE,TRIM4# |
1 | ||
| 63635-3201103 |
SV21..DX,LE GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-32010 |
SV2#..DX,LE |
1 | ||
| 63699-32010 |
SV21..DX,LE |
1 | ||
| 63699-12040 |
SV2#,VZV21..DX,LE |
1 | ||
| Common parts | ||||
| 90159-60080 | ||||
| 90159-60219 | ||||
| 90162-50007 | ||||
| 90168-40027 | ||||
| 90179-05011 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-05044 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90467-10079 | ||||
| 90467-14001 | ||||
| 90468-05017 | ||||
| 90468-16009 | ||||
| 90480-26011 | ||||
| 93382-16012 | ||||
ILLUST NO. 1 OF 2(8610- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
SV21,VZV21..SED |
1 | ||
| 04562-30040 |
SV21..SED |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
SV21,VZV21..SED |
1 | ||
| 04562-30040 |
SV21..SED |
1 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
SV21..SED |
4 | ||
| 61824-12010 |
SV21,VZV21..SED |
4 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
SV21..SED |
4 | ||
| 61824-12010 |
SV21,VZV21..SED |
4 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32050 |
SV2#,VZV21..DX,STD |
1 | ||
| 63102-32050 |
SV21..DX,STD |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32050 |
SV2#,VZV21..DX,STD |
1 | ||
| 63102-32050 |
SV21..DX,STD |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-32030 |
SV21..SED |
1 | ||
| 63141-32030 |
SV2#,VZV21..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32050 |
SV21..SED W/O SUN ROOF |
1 | ||
| 63111-32050 |
SV2#,VZV21..SED |
1 | ||
| 63111-32060 |
SV21..SED..(DX,LE) W/SUN ROOF |
1 | ||
| 63111-32060 |
SV2#,VZV21..SED..(DX,LE) W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32050 |
SV21..SED W/O SUN ROOF |
1 | ||
| 63111-32050 |
SV2#,VZV21..SED |
1 | ||
| 63111-32060 |
SV21..SED..(DX,LE) W/SUN ROOF |
1 | ||
| 63111-32060 |
SV2#,VZV21..SED..(DX,LE) W(MOON ROOF) |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
SV21,VZV21 |
2 | ||
| 63126-32010 |
SV21 |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
SV21,VZV21 |
2 | ||
| 63126-32010 |
SV21 |
2 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-32020 |
SV2#,VZV21..SED |
1 | ||
| 63133-32020 |
SV21..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-32020 |
SV2#,VZV21..SED |
1 | ||
| 63133-32020 |
SV21..SED |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-32020 |
SV21..SED..(DX,LE) |
1 | ||
| 63142-32020 |
SV2#,VZV21..SED..(DX,LE) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-32010 |
SV21..SED |
1 | ||
| 63143-32010 |
SV2#,VZV21..SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-32010 |
SV21..SED |
1 | ||
| 63144-32010 |
SV2#,VZV21..SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-32010 |
SV21..SED |
1 | ||
| 63144-32010 |
SV2#,VZV21..SED |
1 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
SV21..SED |
4 | ||
| 63161-22010 |
SV21,VZV21..SED |
4 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
SV21..SED |
4 | ||
| 63161-22010 |
SV21,VZV21..SED |
4 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-32040 |
SV21..SED..(DX,STD) |
1 | ||
| 64101-32040 |
SV2#,VZV21..SED..(DX,STD) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-32040 |
SV21..SED..(DX,STD) |
1 | ||
| 64101-32040 |
SV2#,VZV21..SED..(DX,STD) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-32110 |
SV21..SED *EHTT,T=4.0,*EHTT,T=4.0,W/O ANTENNA |
1 | ||
| 64811-03010 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||
| 64811-32110 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-32110 |
SV21..SED *EHTT,T=4.0,*EHTT,T=4.0,W/O ANTENNA |
1 | ||
| 64811-03010 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||
| 64811-32110 |
SV2#,VZV21..SED *EHTT,T=4.0 |
1 | ||
ILLUST NO. 2 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60080 | ||||
| 90159-60219 | ||||
| 90162-50007 | ||||
| 90168-40027 | ||||
| 90179-05011 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-05044 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-05017 | ||||
| 90468-16009 | ||||
| 93382-16012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
