SV21L-UEPDKG (1988)
Toyota Camry

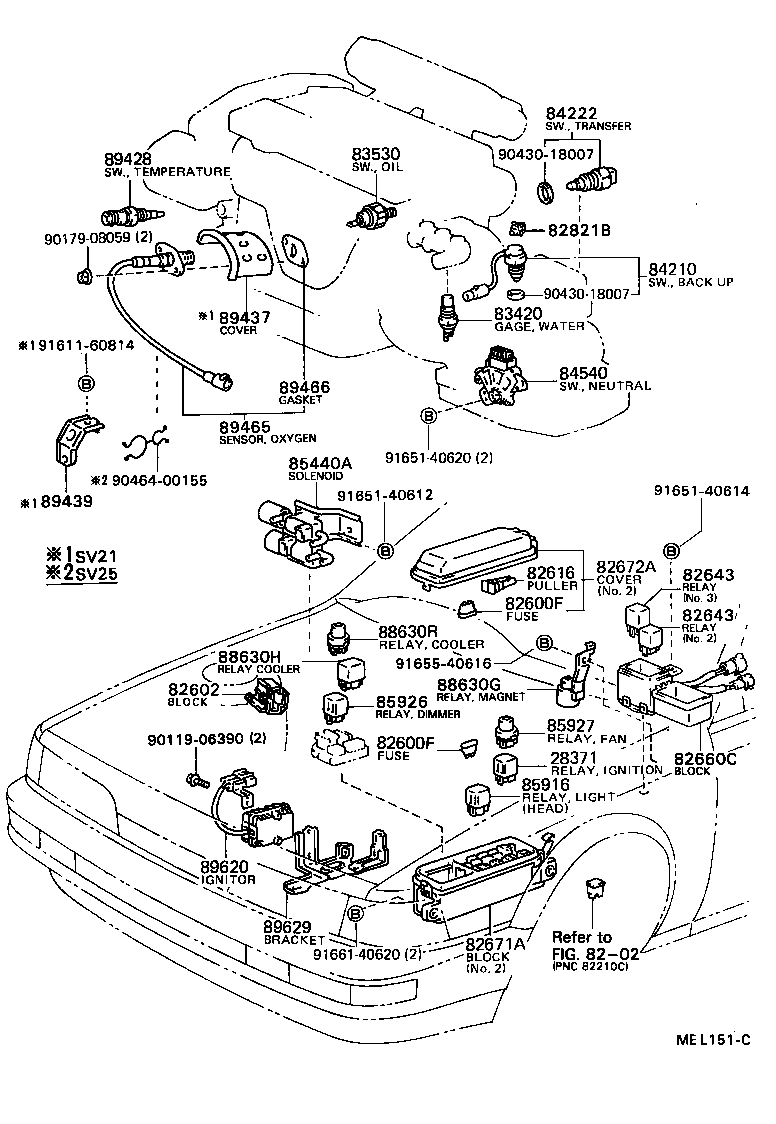

ILLUST NO. 1 OF 7(8808- )SV2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
2CT,3SFE,2VZFE..CV20,SV2#,VZV21 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21 15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV20,SV2#,VZV21 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-32030 |
CV20,SV2#,VZV21 NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV21 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32050 |
CV20,SV2#,VZV21..LHD NO.3 |
1 | ||
| 82672-32210 |
VZV21;SV2#..LHD NO.2 |
1 | ||
| 82672-32180 |
CV20,SV2#,VZV21..LHD NO.1 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-35010 |
SV21,VZV21..4FC |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
SV2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
SV2#,VZV21 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-32070 |
SV21..4FC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2#,VZV21 HEADLAMP |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV21 NIPPONDENSO,TAIL LAMP |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO,TAIL LAMP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
VZV21;CV20,SV2#..LHD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV20,SV2#,VZV21 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32020 |
SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-32010 |
SV2#,VZV21 |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02004 |
SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
SV2#,VZV21 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-32020 |
SV21..G |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-32010 |
SV21..G |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39215 |
SV21..G |
1 | ||
| 89465-39345 |
SV21..G |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
SV2#,VZV21..G |
1 | ||
| 89466-20020 |
SV2#,VZV21..G |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-32010 |
SV2# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-32030 |
SV2# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90464-00155 | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

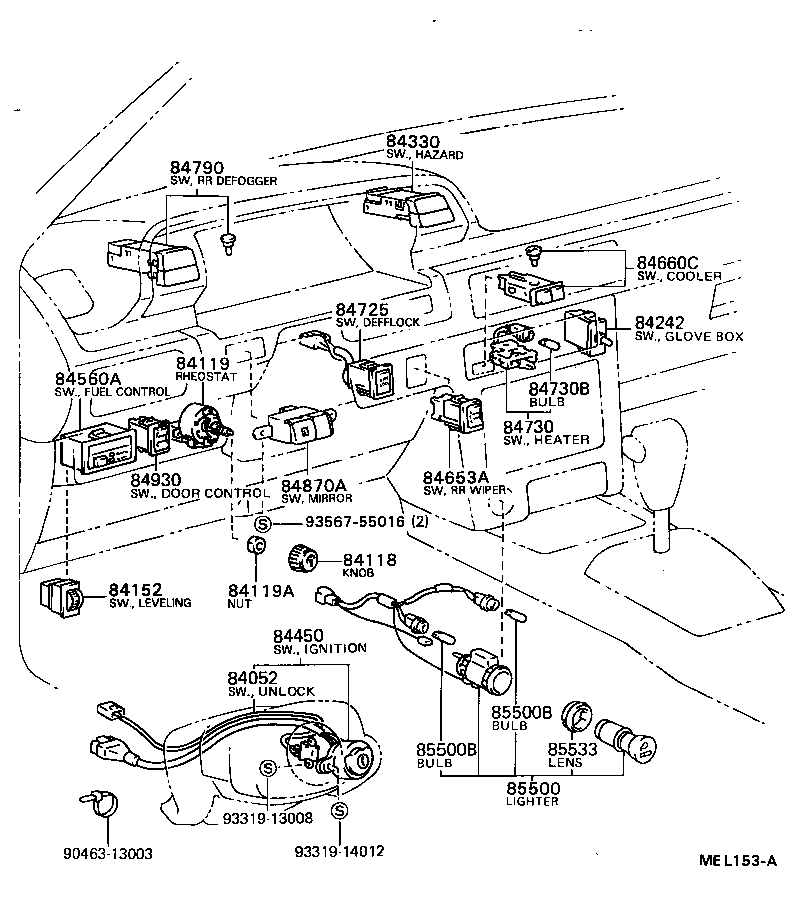

ILLUST NO. 3 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
CV20,SV2#,VZV21 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
CV20,SV2#,VZV21 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
CV20,SV2#,VZV21 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-32010 |
SV25..LHD..EUR;CV20,SV21,VZV21..LHD |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
CV20,SV2#,VZV21 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-32190 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-32050 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84560A - SWITCH ASSY, FUEL CONTROL | ||||
| 84560-32010 |
SV2#,VZV21..G |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-32050 |
CV20,SV2#..LHD |
1 | ||
| 84660-32051 |
CV20,SV2#..LHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32080 |
CV20,SV2#..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 81850-32160 |
CV20,SV2# 12V 1.2W GREEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32140 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84790-32130 |
CV20,SV2#,VZV21..LHD..(GL,GLI,GXI,XL) HEAVY DUTY |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32051 |
CV20,SV2#,VZV21 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2#,VZV21 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2#,VZV21 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-32010 |
CV20,SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39585 |
CV20,SV2#,VZV21..LHD TOKAIRIKA |
1 | ||
| 84112-39605 |
CV20,SV2#,VZV21..LHD MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32130 |
CV20,SV2#,VZV21..LHD MATSUSHITA |
1 | ||
| 84140-32140 |
CV20,SV2#,VZV21..LHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32790 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84310-32810 |
CV20,SV2#,VZV21..LHD W(INT.TIME) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
CV20,SV2#,VZV21 MATSUSHITA |
1 | ||
| 84312-12040 |
CV20,SV2#,VZV21 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-32020 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-32690 |
CV20,SV2#,VZV21..LHD MATSUSHITA |
1 | ||
| 84652-32700 |
CV20,SV2#,VZV21..LHD TOKAIRIKA |
1 | ||
| 84652-32720 |
CV20,SV2#,VZV21..LHD W(INT.TIME),TOKAIRIKA |
1 | ||
| 84652-32710 |
CV20,SV2#,VZV21..LHD W(INT.TIME),MATSUSHITA |
1 | ||
| Common parts | ||||
| 82711-32690 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||

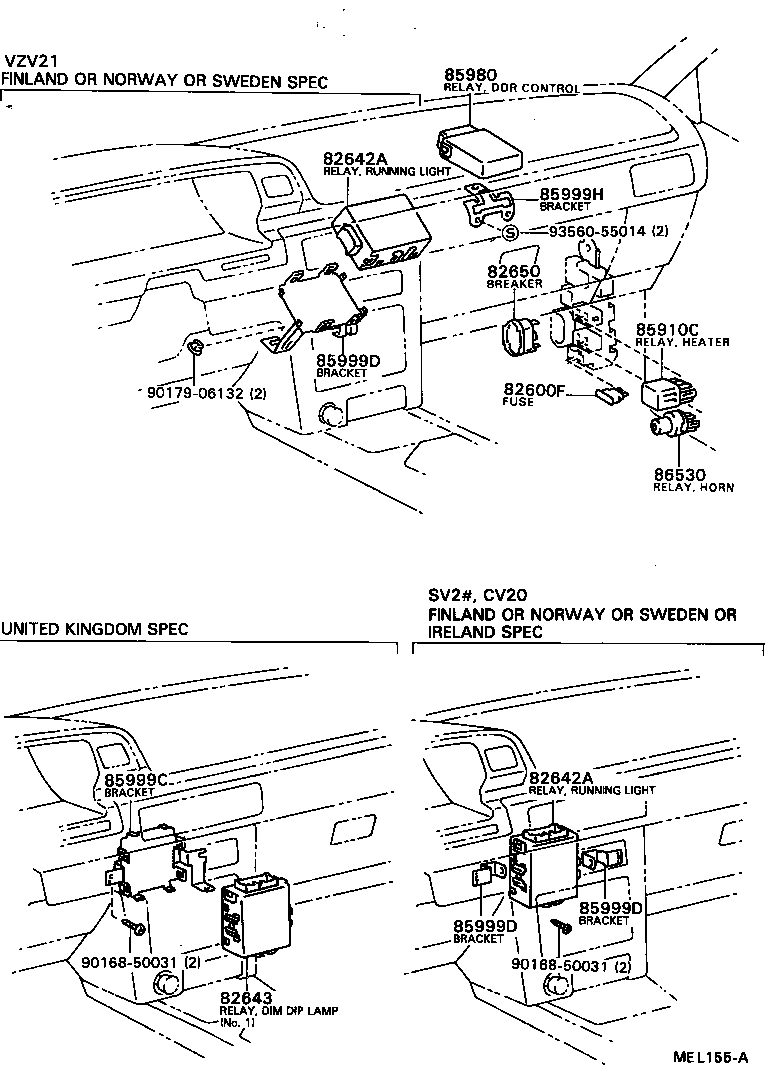

ILLUST NO. 5 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21 15A |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-32030 |
SV2#..G SWEDEN SPEC OR NORWAY SPEC |
1 | ||
| 82642-32030 |
SV2#..G;VZV21..SED..LHD SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC |
1 | ||
| 82642-32030 |
SV21..5F..G;VZV21..SED..LHD;SV21..SED..4FC..G |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-32030 |
SV2#..G SWEDEN SPEC OR NORWAY SPEC |
1 | ||
| 82642-32030 |
SV2#..G;VZV21..SED..LHD SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC |
1 | ||
| 82642-32030 |
SV21..5F..G;VZV21..SED..LHD;SV21..SED..4FC..G |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
CV20,SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
CV20,SV2#,VZV21 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-32060 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-32110 |
SV2#..G SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC |
2 | ||
| 85999-32110 |
SV21..5F..G;SV21..SED..4FC..G SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC OR DENMARK SPEC |
2 | ||
| 85999-32110 |
SV2#..G SWEDEN SPEC OR NORWAY SPEC |
2 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-32110 |
SV2#..G SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC |
2 | ||
| 85999-32110 |
SV21..5F..G;SV21..SED..4FC..G SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC OR DENMARK SPEC |
2 | ||
| 85999-32110 |
SV2#..G SWEDEN SPEC OR NORWAY SPEC |
2 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-32110 |
SV2#..G SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC |
2 | ||
| 85999-32110 |
SV21..5F..G;SV21..SED..4FC..G SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC OR DENMARK SPEC |
2 | ||
| 85999-32110 |
SV2#..G SWEDEN SPEC OR NORWAY SPEC |
2 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
CV20,SV2#,VZV21 NIPPONDENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO |
1 | ||
| Common parts | ||||
| 90168-50031 | ||||
| 90179-06132 | ||||
| 93560-55014 | ||||

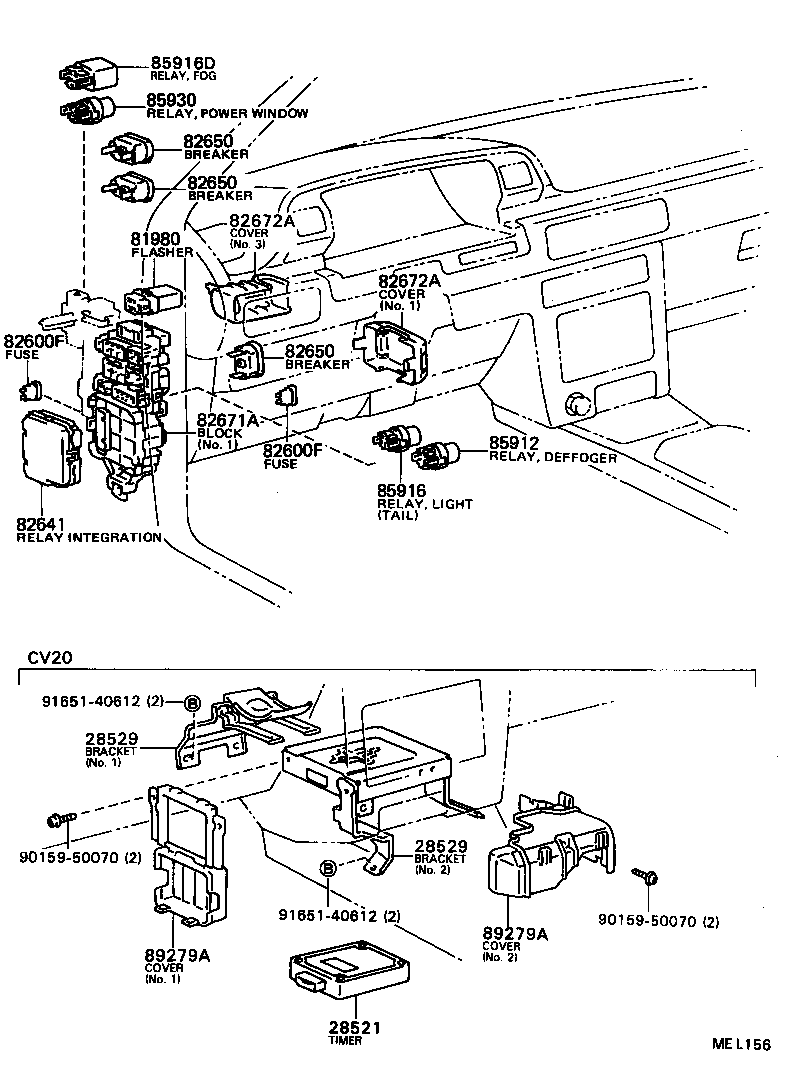

ILLUST NO. 6 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
CV20,SV2#,VZV21 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21 15A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20110 |
CV20,SV2#,VZV21 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
CV20,SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
CV20,SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
CV20,SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-32030 |
CV20,SV2#,VZV21 NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV21 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32050 |
CV20,SV2#,VZV21..LHD NO.3 |
1 | ||
| 82672-32210 |
VZV21;SV2#..LHD NO.2 |
1 | ||
| 82672-32180 |
CV20,SV2#,VZV21..LHD NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32050 |
CV20,SV2#,VZV21..LHD NO.3 |
1 | ||
| 82672-32210 |
VZV21;SV2#..LHD NO.2 |
1 | ||
| 82672-32180 |
CV20,SV2#,VZV21..LHD NO.1 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV21 NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2#,VZV21 HEADLAMP |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV21 NIPPONDENSO,TAIL LAMP |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO,TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
CV20,SV2#,VZV21 NIPPONDENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV20,SV2#,VZV21 NIPPONDENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO |
1 | ||
| Common parts | ||||
| 90159-50070 | ||||
| 91651-40612 | ||||

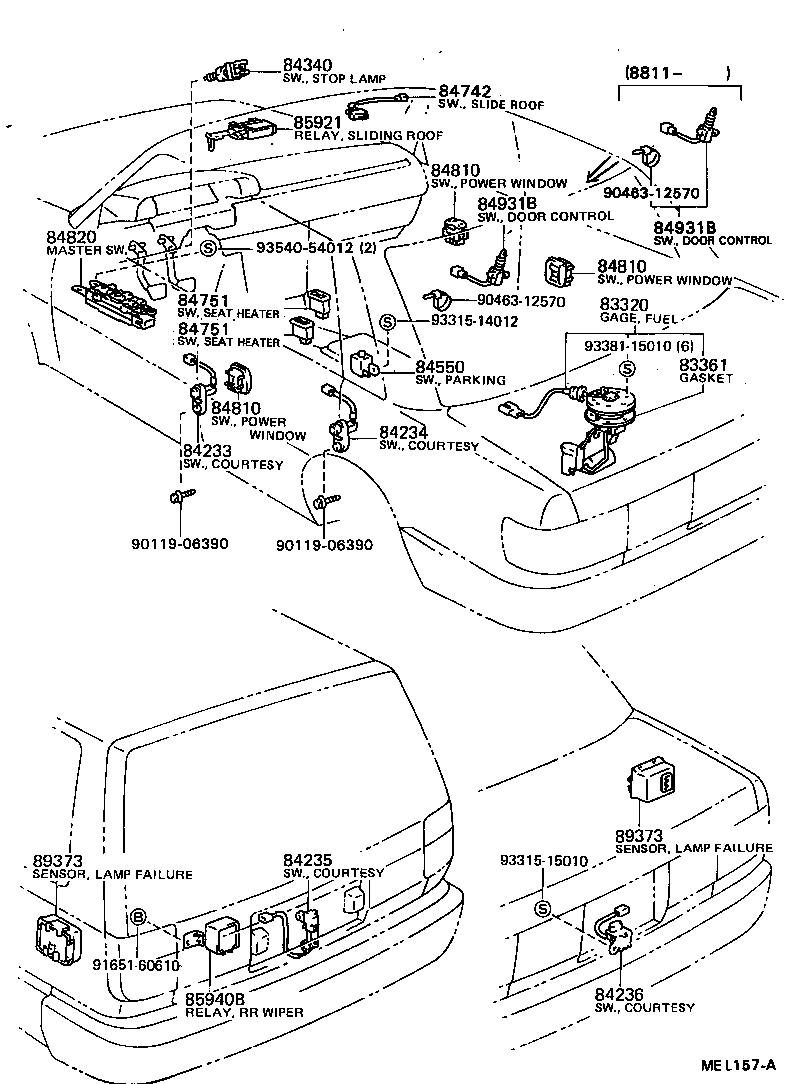

ILLUST NO. 7 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39785 |
SV21,VZV21 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
CV20,SV21,VZV21 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32020 |
CV20,SV2#,VZV21 |
2 | ||
| 84231-32070 |
CV20,SV2#,VZV21 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
CV20,SV2#,VZV21 |
2 | ||
| 84231-12070 |
CV20,SV2#,VZV21 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
VZV21;CV20,SV2#..SED |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
CV20,SV2#,VZV21 |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-32010 |
CV20,SV2#;VZV21..SED |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-32010 |
CV20,SV2#,VZV21..LHD |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-32010 |
CV20,SV2#,VZV21..LHD |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4#,REAR |
2 | ||
| 84810-32060B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060 |
CV20,SV21..LHD..(XL,XLI) REAR |
2 | ||
| 84810-32060J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
CV20,SV2#,VZV21 FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4#,REAR |
2 | ||
| 84810-32060B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060 |
CV20,SV21..LHD..(XL,XLI) REAR |
2 | ||
| 84810-32060J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
CV20,SV2#,VZV21 FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4#,REAR |
2 | ||
| 84810-32060B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060 |
CV20,SV21..LHD..(XL,XLI) REAR |
2 | ||
| 84810-32060J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
CV20,SV2#,VZV21 FRONT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32150 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-32040 |
CV20,SV2#,VZV21 |
2 | ||
| 84931-39015 |
CV20,SV2#,VZV21 |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-32040 |
CV20,SV2#,VZV21 |
2 | ||
| 84931-39015 |
CV20,SV2#,VZV21 |
2 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-32010 |
CV20,SV2#;VZV21..SED |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32151 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 89373-32180 |
SV25..LHD..EUR;CV20,SV21,VZV21..LHD *FRG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32151 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 89373-32180 |
SV25..LHD..EUR;CV20,SV21,VZV21..LHD *FRG |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90463-12570 | ||||
| 91651-60610 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
