SV21L-UEPDKG (1988)
Toyota Camry

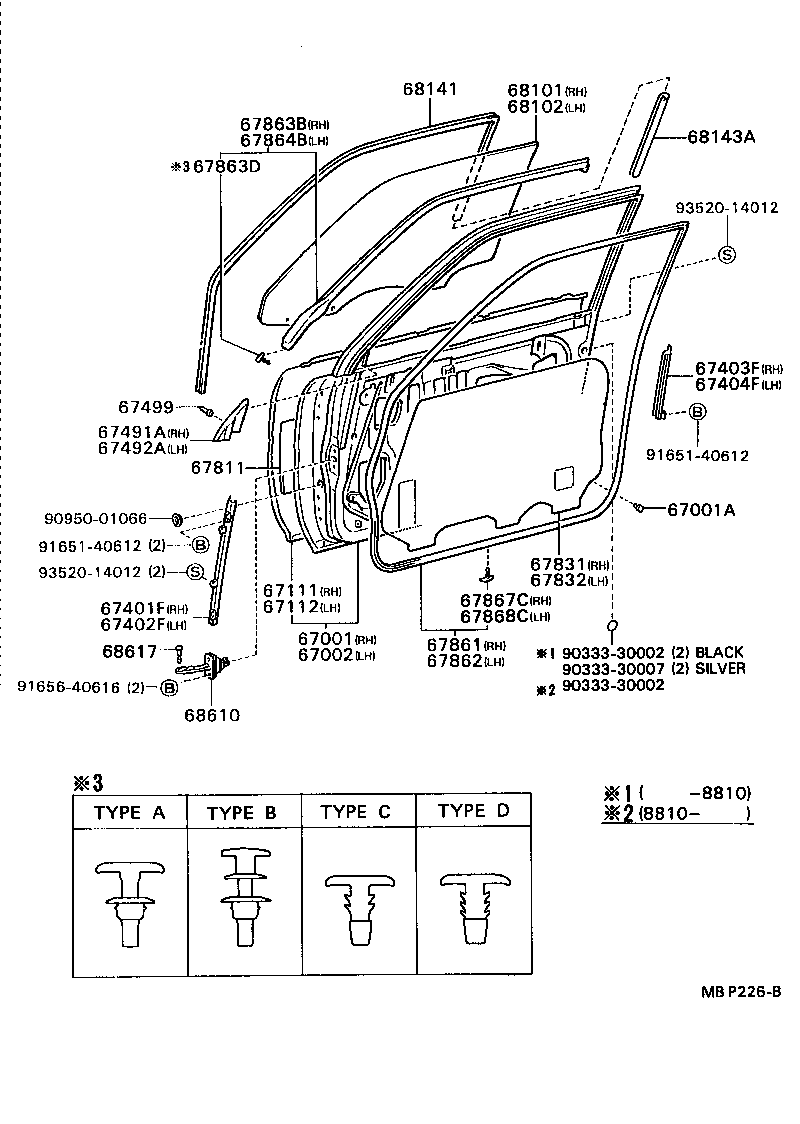

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32200 |
CV20,SV2#,VZV21 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV20,SV2#,VZV21 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32190 |
CV20,SV2#,VZV21 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32040 |
CV20,SV2#,VZV21 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32040 |
CV20,SV2#,VZV21 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32080 |
CV20,SV2#,VZV21 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32080 |
CV20,SV2#,VZV21 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-32040 |
CV20,SV2#,VZV21 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-32040 |
CV20,SV2#,VZV21 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32080 |
CV20,SV21..XL,XLI |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32080 |
CV20,SV21..XL,XLI |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
CV20,SV2#,VZV21 |
2 | ||
| 67499-30020 |
CV20,SV2#,VZV21 |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
CV20,SV2#,VZV21 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32050 |
CV20,SV2#,VZV21 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32050 |
CV20,SV2#,VZV21 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32110 |
CV20,SV2#,VZV21 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32110 |
CV20,SV2#,VZV21 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67868-32030 |
CV20,SV2#,VZV21 TYPE A |
1 | ||
| 67868-22010 |
CV20,SV2#,VZV21 TYPE C |
2 | ||
| 67869-20020 |
CV20,SV2#,VZV21 TYPE B |
2 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-32030 |
CV20,SV2#,VZV21 |
21 | ||
| 67868-30040 |
CV20,SV2#,VZV21 |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-32030 |
CV20,SV2#,VZV21 |
21 | ||
| 67867-20010 |
CV20,SV2#,VZV21 |
21 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32100 |
CV20,SV2#,VZV21 *TT,T=4.0,BLUE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32100 |
CV20,SV2#,VZV21 *TT,T=4.0,BLUE |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-32070 |
CV20,SV2#,VZV21 RH |
1 | ||
| 68151-32010 |
CV20,SV2#,VZV21 LH |
1 | ||
| 68151-32011 |
CV20,SV2#,VZV21 LH |
1 | ||
| 68141-32071 |
CV20,SV2#,VZV21 RH |
1 | ||
| 68143A - RUN, FRONT DOOR GLASS, NO.2 | ||||
| 68143-32040 |
CV20,SV2#,VZV21 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32041 |
CV20,SV2#,VZV21 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-32010 |
CV20,SV2#,VZV21 |
2 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90333-30007 | ||||
| 90950-01066 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93520-14012 | ||||

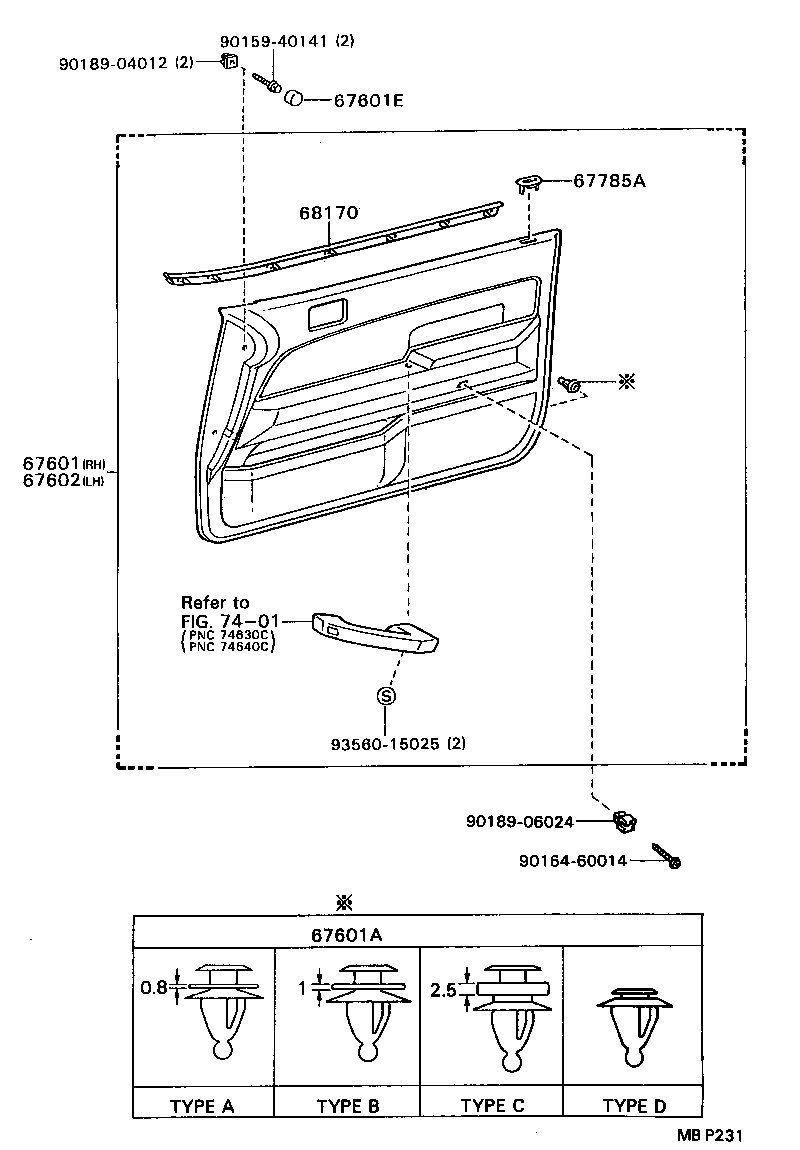

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3233004 |
CV20,SV21..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 67650-3233003 |
CV20,SV21..LHD..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3233006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 67650-32330B0 |
CV20,SV21..LHD..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3234004 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67650-32340E0 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67650-32340B0 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3234003 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-32340J0 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67650-32330E0 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 67650-3234006 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67650-32330J0 |
CV20,SV21..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 67650-3233106 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 67650-3234106 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67650-3234104 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67650-3233104 |
CV20,SV21..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 67650-3233103 |
CV20,SV21..LHD..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3234103 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14030 |
CV20,SV2#,VZV21 TYPE B |
2 | ||
| 67771-32040 |
CV20,SV21..LHD..(XL,XLI) TYPE D |
5 | ||
| 67771-14040 |
CV20,SV21..LHD..(XL,XLI) TYPE A |
5 | ||
| 67771-32060 |
CV20,SV2#,VZV21 TYPE C |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-10002E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
4 | ||
| 90339-10002J1 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
4 | ||
| 90339-10002B2 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3H16003 |
CV20,SV21..LHD..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H16006 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 67620-3H17004 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-3H17006 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67620-3H17003 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H16004 |
CV20,SV21..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 67620-3H17104 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-3H16103 |
CV20,SV21..LHD..(XL,XLI) MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H17103 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H16104 |
CV20,SV21..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 67620-3H16106 |
CV20,SV21..LHD..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 67620-3H17106 |
CV20,SV21..LHD..(XL,XLI) W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-3201003 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 69751-12040J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 69751-3201004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 69751-12040E1 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
2 | ||
| 69751-3201016 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 69751-32010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204013 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32040 |
CV20,SV2#,VZV21 |
2 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04012 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 3 OF 3(8808-9008)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9008- )
| Part # | Description | Qty | Price |
|---|
