SV21L-UEPDKG (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )SV21,25

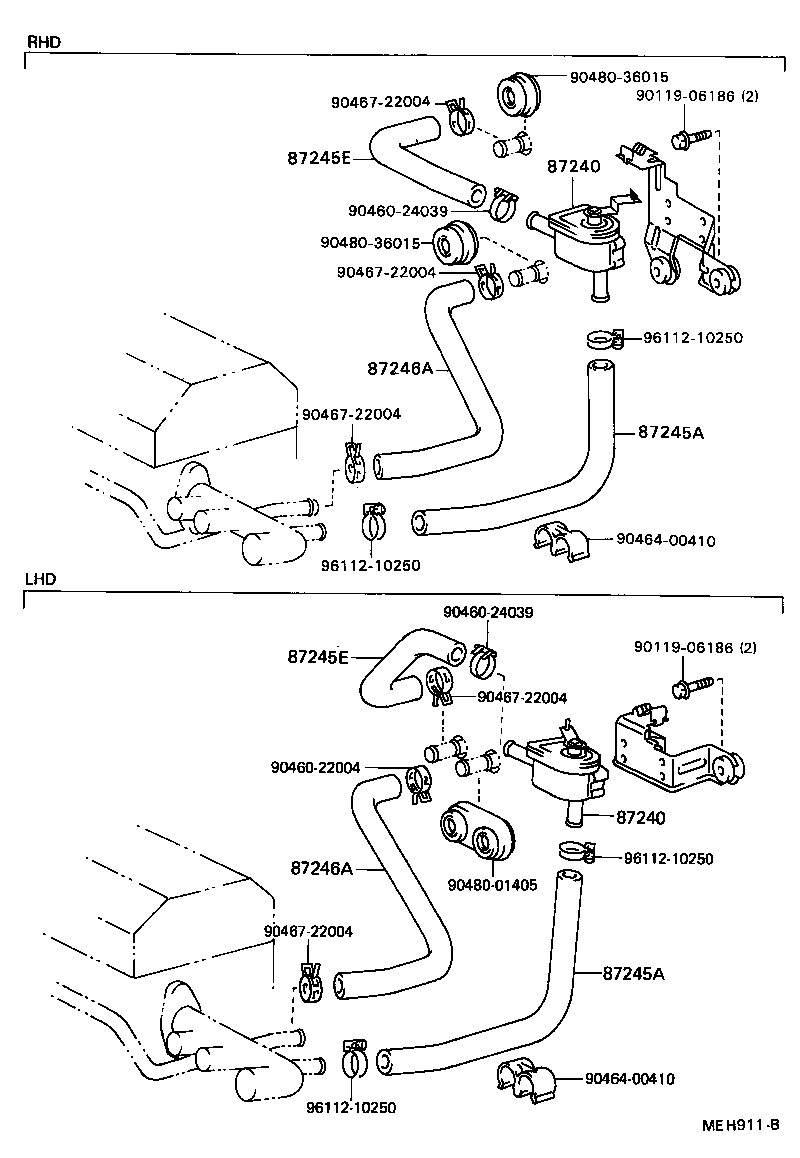

Click highlighted areas on diagram

diagram 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906186 9011906186 9046022004 9046024039 9046024039 9046400410 9046400410 9046722004 9046722004 9046722004 9046722004 9046722004 9048001405 9048036015 9048036015 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-32030

CV20,SV2#..LHD

 1
87240-32030

CV20,SV2#,VZV21..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-32030

CV20,SV2#..LHD

 1
87240-32030

CV20,SV2#,VZV21..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32160

CV20,SV21,25

 1
87245-32160

CV20,SV21

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32160

CV20,SV21,25

 1
87245-32160

CV20,SV21

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32080

CV20,SV2#..LHD

 1
87245-32080

CV20,SV2#,VZV21..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32080

CV20,SV2#..LHD

 1
87245-32080

CV20,SV2#,VZV21..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32100

SV21..LHD

 1
87245-32100

SV21,25..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32100

SV21..LHD

 1
87245-32100

SV21,25..LHD

 1
Common parts
90119-06186
90460-22004
90460-24039
90464-00410
90467-22004
90480-01405
90480-36015
96112-10250
