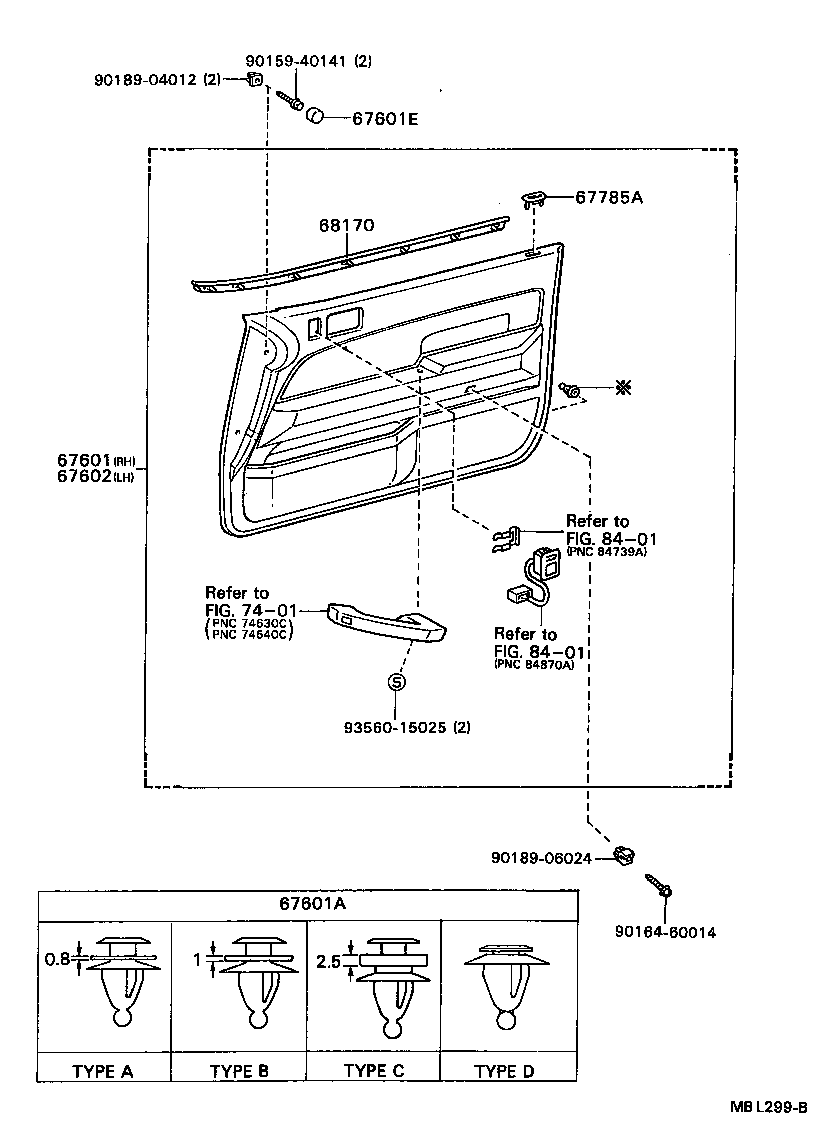

SV21L-UEPDKA (1986)
Toyota Camry
ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3255003 |
SV21..SED..DX BASE GRADE,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-3249003 |
SV21..DX W/O *PW,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-3249005 |
SV21..DX W/O *PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-3255005 |
SV21..SED..DX BASE GRADE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-3249002 |
SV21..DX..USA W/O *PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67610-3249004 |
SV21..DX W/O *PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-3255002 |
SV21..SED..DX..USA BASE GRADE,MAROON,MAROON,TRIM3# |
1 | ||
| 67610-3286002 |
SV21..DX..USA W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67610-3255004 |
SV21..SED..DX BASE GRADE,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-3286005 |
SV21..DX W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-3249002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
1 | ||
| 67610-3249004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67610-3286004 |
SV21..DX W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-3286003 |
SV21..DX W/*PW,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 67610-3249003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-3286003 |
SV2#,VZV21..DX MIDIUM GRAY,TRIM1# |
1 | ||
| 67610-3286002 |
SV2#,VZV21..DX..USA W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67610-3249005 |
SV21,VZV21..DX DARK BEIGE,TRIM4# |
1 | ||
| 67610-3286004 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-3286005 |
SV21,VZV21..DX W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-32060 |
SV21 TYPE C |
2 | ||
| 67771-14040 |
SV2#,VZV21..DX,LE TYPE A |
1 | ||
| 67771-32040 |
SV21 TYPE D |
10 | ||
| 67771-14040 |
SV21 TYPE A |
8 | ||
| 67771-14030 |
SV21 TYPE B |
4 | ||
| 67771-32060 |
SV2#,VZV21 TYPE C |
1 | ||
| 67771-14030 |
SV2#,VZV21 TYPE B |
2 | ||
| 67771-14040 |
SV2#,VZV21 TYPE A |
8 | ||
| 67771-32040 |
SV2#,VZV21..DX,LE TYPE D |
5 | ||
| 67771-14040 |
SV2#,VZV21 TYPE A |
4 | ||
| 67771-14040 |
SV21 TYPE A |
4 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000205 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000203 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000203 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000202 |
SV2#,VZV21..USA MAROON,TRIM3# |
4 | ||
| 90339-1000204 |
SV2#,VZV21 DARK BLUE,TRIM8# |
4 | ||
| 90339-1000205 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000202 |
SV21..USA MAROON,MAROON,TRIM3# |
4 | ||
| 90339-1000204 |
SV21 BLUE,DARK BLUE,TRIM8# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3251004 |
SV21..SED..DX BASE GRADE,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-3251003 |
SV21..SED..DX BASE GRADE,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3251005 |
SV21..SED..DX BASE GRADE,BEIGE,DARK BROWN,TRIM4# |
1 | ||
| 67620-3251002 |
SV21..SED..DX..USA BASE GRADE,MAROON,MAROON,TRIM3# |
1 | ||
| 67620-3269002 |
SV21..DX..USA W/O *PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67620-3241002 |
SV21..DX..USA W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67620-3269004 |
SV21..DX W/O *PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-3241004 |
SV21..DX W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-3269005 |
SV21..DX W/O *PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-3241003 |
SV21..DX W/*PW,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 67620-3241005 |
SV21..DX W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-3269003 |
SV21..DX W/O *PW,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3241004 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-3274003 |
SV2#,VZV21..DX MEDIUM GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3241005 |
SV21,VZV21..DX W(POWER WINDOW),DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-3269002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
1 | ||
| 67620-3241003 |
SV2#,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 67620-3274005 |
SV21,VZV21..DX DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-3241002 |
SV2#,VZV21..DX..USA W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67620-3274004 |
SV2#,VZV21..DX DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-3201004 |
SV21 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69751-3201003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 69751-3201002 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 69751-3201002 |
SV21..USA MAROON,MAROON,TRIM3# |
2 | ||
| 69751-3201005 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201003 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-3201004 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32040 |
SV2#,VZV21 |
2 | ||
| 68170-32040 |
SV21 |
2 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04012 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
| 8401 | ||||

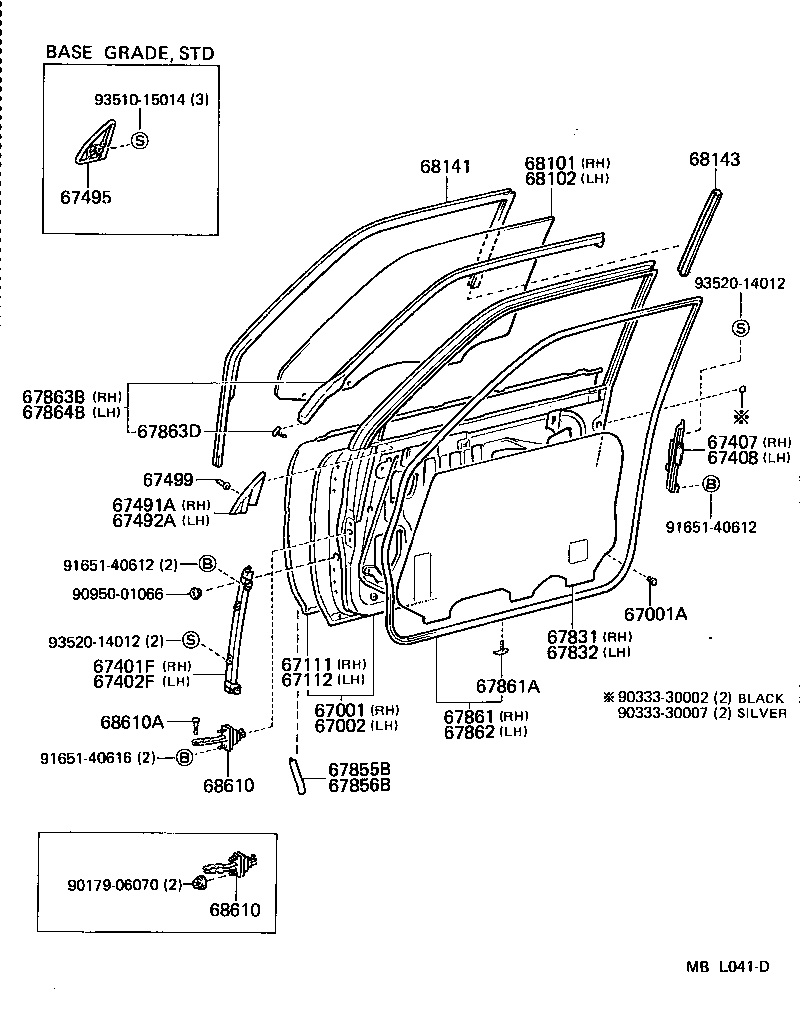

ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32160 |
SV2#,VZV21 |
1 | ||
| 67001-32160 |
SV21 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
SV2#,VZV21 |
4 | ||
| 90541-09006 |
SV21 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32170 |
SV2#,VZV21 |
1 | ||
| 67002-32170 |
SV21 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32040 |
SV2#,VZV21 |
1 | ||
| 67111-32040 |
SV21 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32040 |
SV2#,VZV21 |
1 | ||
| 67112-32040 |
SV21 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32080 |
SV21 |
1 | ||
| 67401-32080 |
SV2#,VZV21 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32080 |
SV21..SED |
1 | ||
| 67402-32080 |
SV2#,VZV21 |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-32040 |
SV21 |
1 | ||
| 67403-32040 |
SV2#,VZV21 |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-32040 |
SV21 |
1 | ||
| 67404-32040 |
SV2#,VZV21 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32080 |
SV21..DX |
1 | ||
| 67491-32070 |
SV21..SED..DX BASE GRADE |
1 | ||
| 67491-32080 |
SV2#,VZV21..DX |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32070 |
SV21..SED..DX BASE GRADE |
1 | ||
| 67492-32080 |
SV21..DX |
1 | ||
| 67492-32080 |
SV2#,VZV21..DX,STD |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-32040 |
SV21..SED..DX BASE GRADE |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
SV2#,VZV21 |
2 | ||
| 67499-32010 |
SV21 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32050 |
SV21 |
1 | ||
| 67831-32050 |
SV2#,VZV21 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32050 |
SV2#,VZV21 |
1 | ||
| 67832-32050 |
SV21 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 58741-12060 |
SV2#,VZV21 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 58741-12060 |
SV2#,VZV21 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32090 |
SV2#,VZV21 |
1 | ||
| 67861-32090 |
SV21 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-32010 |
SV21 LH |
21 | ||
| 67868-32010 |
SV2#,VZV21 LH |
21 | ||
| 67868-30040 |
SV2#,VZV21 RH |
21 | ||
| 67868-30040 |
SV21 RH |
21 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32090 |
SV2#,VZV21 |
1 | ||
| 67862-32090 |
SV21 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-32010 |
SV2#,VZV21 |
1 | ||
| 67863-32010 |
SV21 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67868-30040 |
SV2#,VZV21 RH |
2 | ||
| 67868-22010 |
SV2#,VZV21 LH |
2 | ||
| 67868-22010 |
SV21 LH |
2 | ||
| 67868-30040 |
SV21 RH |
2 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-32010 |
SV2#,VZV21 |
1 | ||
| 67864-32010 |
SV21 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32100 |
SV2#,VZV21 *TT,T=4.0,BLUE |
1 | ||
| 68111-32100 |
SV21 *TT,T=4.0,BLUE,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32100 |
SV21 *TT,T=4.0,BLUE,*TT,T=4.0 |
1 | ||
| 68112-32100 |
SV2#,VZV21 *TT,T=4.0,BLUE |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68151-32010 |
SV2#,VZV21 LH |
1 | ||
| 68141-32070 |
SV2#,VZV21 RH |
1 | ||
| 68151-32010 |
SV21 LH |
1 | ||
| 68141-32070 |
SV21 RH |
1 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-32040 |
SV21 |
2 | ||
| 68143-32040 |
SV2#,VZV21 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32041 |
SV2#,VZV21 |
2 | ||
| 68610-32040 |
SV21 |
2 | ||
| 68610-32040 |
SV2# |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32041 |
SV2#,VZV21 |
2 | ||
| 68610-32040 |
SV21 |
2 | ||
| 68610-32040 |
SV2# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-32010 |
SV2#,VZV21 |
2 | ||
| 68617-32010 |
SV21 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90333-30007 | ||||
| 90950-01066 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93510-15014 | ||||
| 93520-14012 | ||||

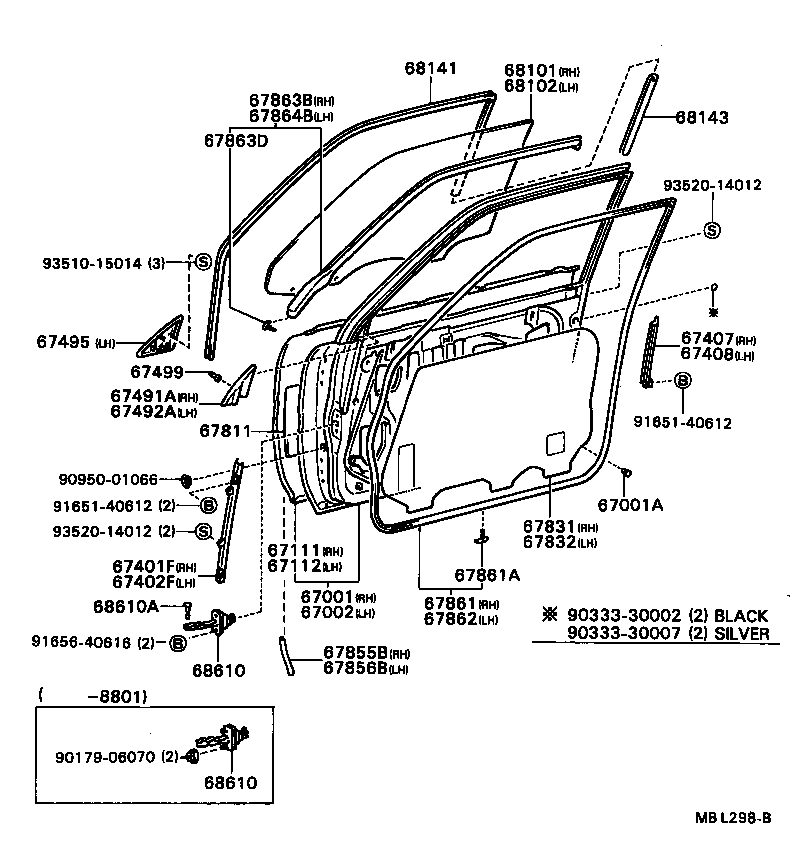

ILLUST NO. 1 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90333-30007 | ||||
| 90950-01066 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93510-15014 | ||||
| 93520-14012 | ||||

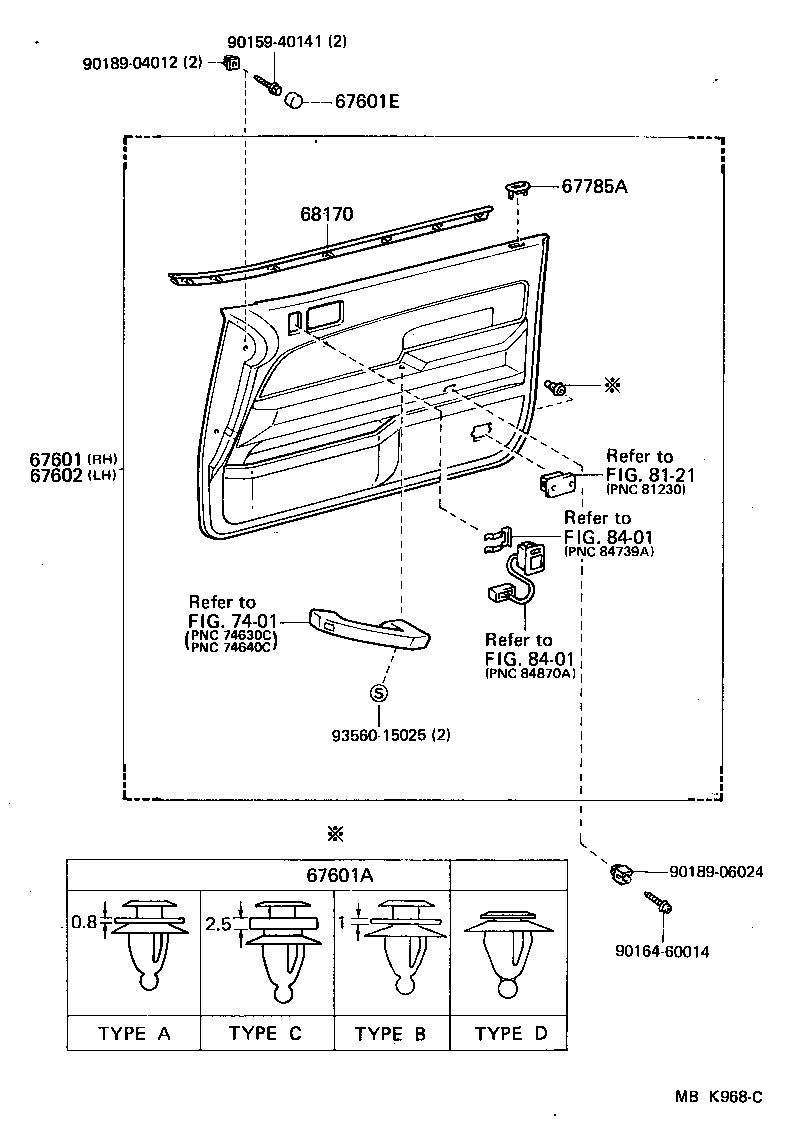

ILLUST NO. 2 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04012 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(8808-9008)
| Part # | Description | Qty | Price |
|---|
