SV21L-UEPDKA (1986)

Toyota Camry

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

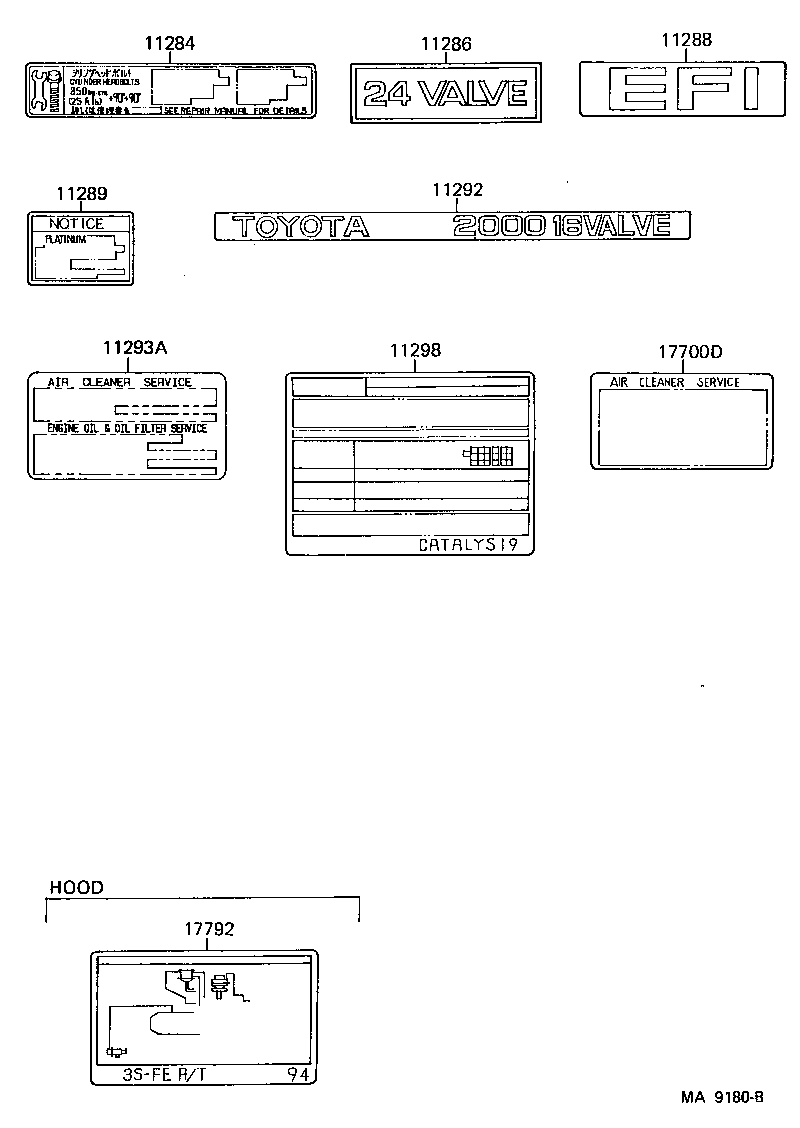

diagram 11284 11286 11288 11289 11292 11293A 11298 17700D 17792
Part # Description Qty Price
11288 - PLATE, ENGINE SYSTEM
11288-74020

3SFE..SV2#

 1
11288-74020

3SFE..SV21

 1
11292 - PLATE, ENGINE NAME, NO.2
11292-74021

3SFE..SV2#

 1
11292-74020

3SFE..SV2#

 1
11292-74020

3SFE..SV21

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-74320

3SFE..SV21

 1
11298-74330

3SFE..SV21..USA

CALIFORNIA SPEC

 1
11298-74330

3SFE..SV21..USA

CALIFORNIA SPEC

 1
11298-74230

3SFE..SV21

 1
11298-74240

3SFE..SV21..USA

CALIFORNIA SPEC

 1
17700D - PLATE, ENGINE CAUTION
11293-74070

3SFE..SV21

 1
11293-74070

3SFE..SV2#

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-74130

3SFE..SV21..4FC

 1

(8610- )

Click highlighted areas on diagram

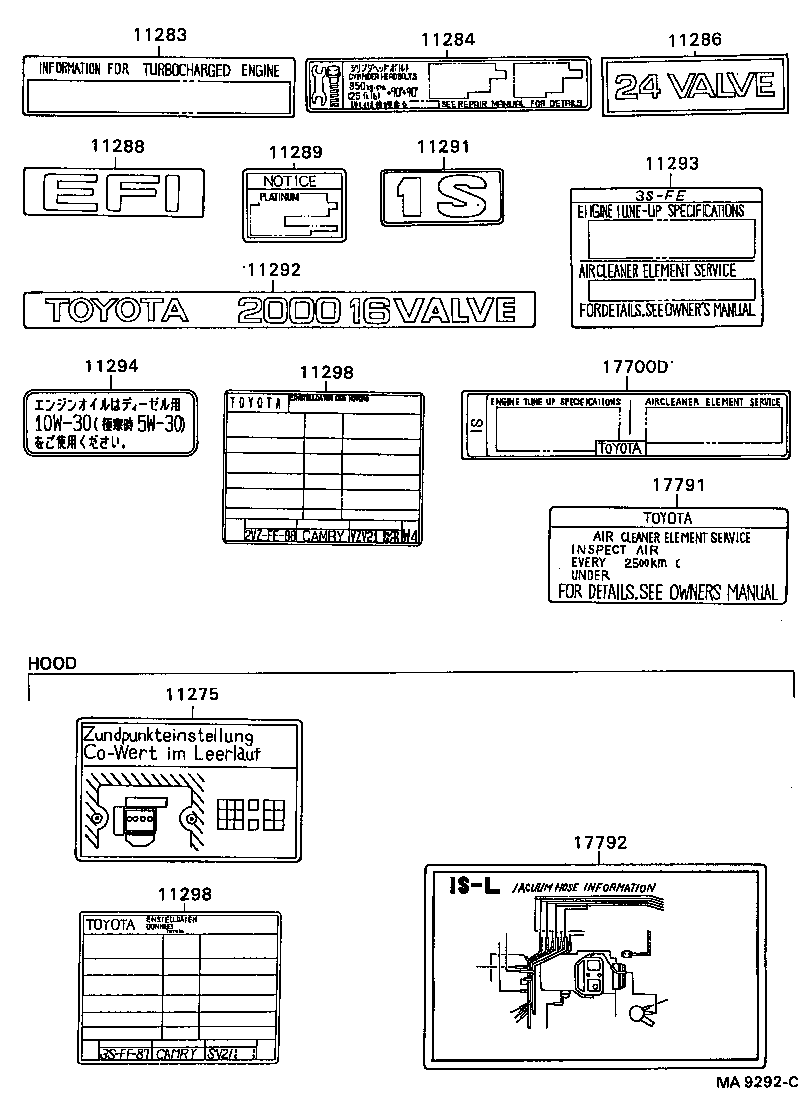

diagram 11275 11283 11284 11286 11288 11289 11291 11292 11293 11294 11298 11298 17700D 17791 17792
Part # Description Qty Price
