SV21L-UEMNKW (1988)
Toyota Camry
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

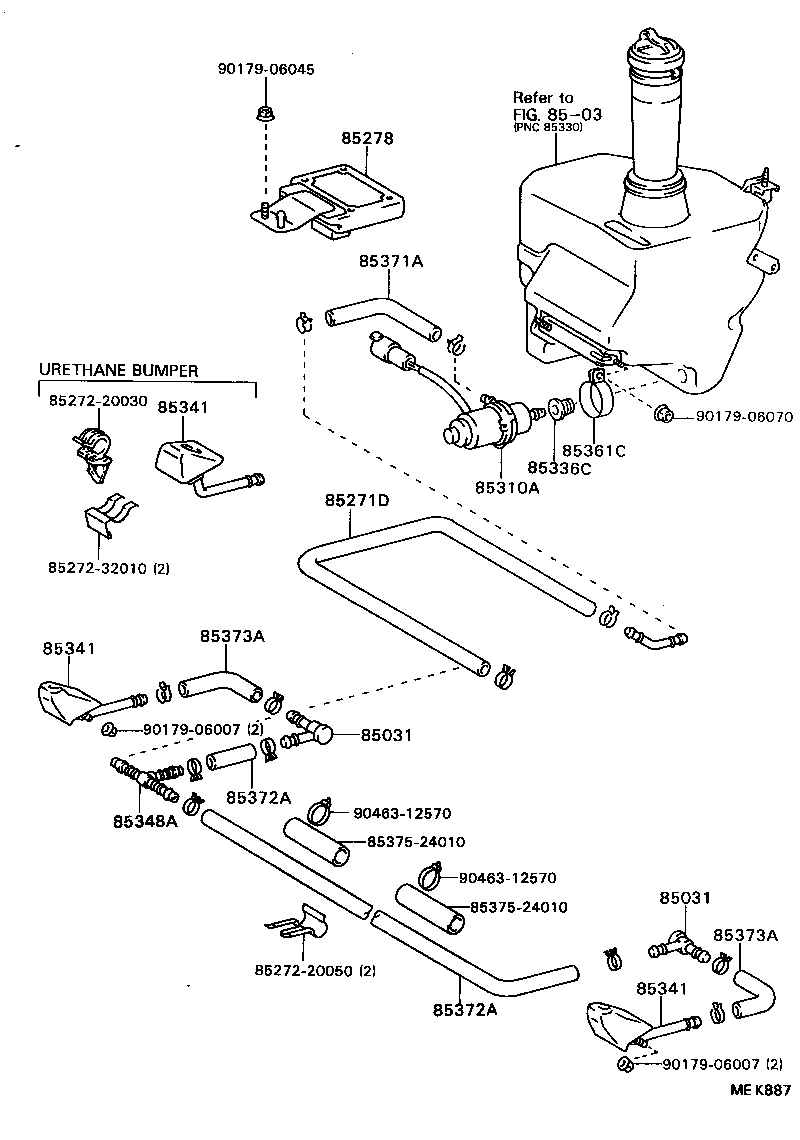

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
CV20,SV2# |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
CV20,SV2# |
2 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 85375-32080 |
CV20,SV2# |
1 | ||
| 85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-32011 |
CV20,SV2#,VZV21 |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85310-12160 |
CV20,SV2#,VZV21 |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
CV20,SV2#,VZV21 |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-32060 |
CV20,SV2#..GL,GLI |
2 | ||
| 85035-32050 |
CV20,SV2# W(P.P. BUBPER) |
2 | ||
| 85035-32060 |
CV20,SV2# W(URETHANE BUMPER & *HC) |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-32050 |
CV20,SV2# W(P.P. BUBPER) |
2 | ||
| 85035-32060 |
CV20,SV2# W(URETHANE BUMPER & *HC) |
2 | ||
| 85035-32060 |
CV20,SV2#..GL,GLI |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-32060 |
CV20,SV2#..GL,GLI |
2 | ||
| 85035-32050 |
CV20,SV2# W(P.P. BUBPER) |
2 | ||
| 85035-32060 |
CV20,SV2# W(URETHANE BUMPER & *HC) |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
CV20,SV2# |
1 | ||
| 85361C - BRACKET, WASHER | ||||
| 85361-90K02 |
CV20,SV2#,VZV21 |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 85375-32180 |
CV20,SV2#,VZV21 L=70 |
1 | ||
| 85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 85376-32080 |
CV20,SV2# LH |
1 | ||
| 90445-14071 |
CV20,SV2# L=50,RH |
1 | ||
| 85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 85376-32080 |
CV20,SV2# LH |
1 | ||
| 90445-14071 |
CV20,SV2# L=50,RH |
1 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32011 |
CV20,SV2# L=35 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32011 |
CV20,SV2# L=35 |
2 | ||
| Common parts | ||||
| 85272-20030 | ||||
| 85272-20050 | ||||
| 85272-32010 | ||||
| 85375-24010 | ||||
| 90179-06007 | ||||
| 90179-06045 | ||||
| 90179-06070 | ||||
| 90463-12570 | ||||
| Linked diagrams | ||||
| 8503 | ||||
