SV21L-UEMNKG (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )

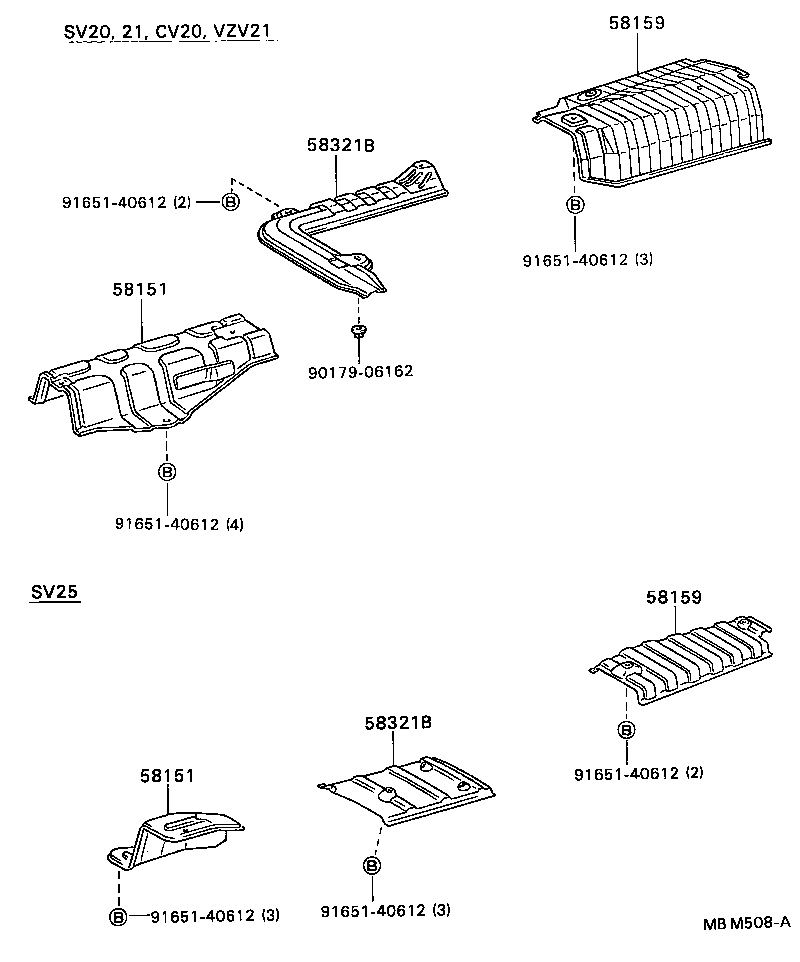

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58152-32020 |
SV21..FRG |
1 | ||
| 58152-32020 |
SV21,VZV21..FRG |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58152-32020 |
SV21..FRG |
1 | ||
| 58152-32020 |
SV21,VZV21..FRG |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-32020 |
CV20,SV2# |
1 | ||
| 58327-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-32020 |
CV20,SV2# |
1 | ||
| 58327-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 58321B - INSULATOR, REAR FLOOR HEAT, NO.1 | ||||
| 58321-32010 |
SV21..FRG |
1 | ||
| 58321-32010 |
SV21,VZV21..FRG |
1 | ||
| 58321B - INSULATOR, REAR FLOOR HEAT, NO.1 | ||||
| 58321-32010 |
SV21..FRG |
1 | ||
| 58321-32010 |
SV21,VZV21..FRG |
1 | ||
| Common parts | ||||
| 90179-06162 | ||||
| 91651-40612 | ||||
