SV21L-UEMNKA (1986)
Toyota Camry

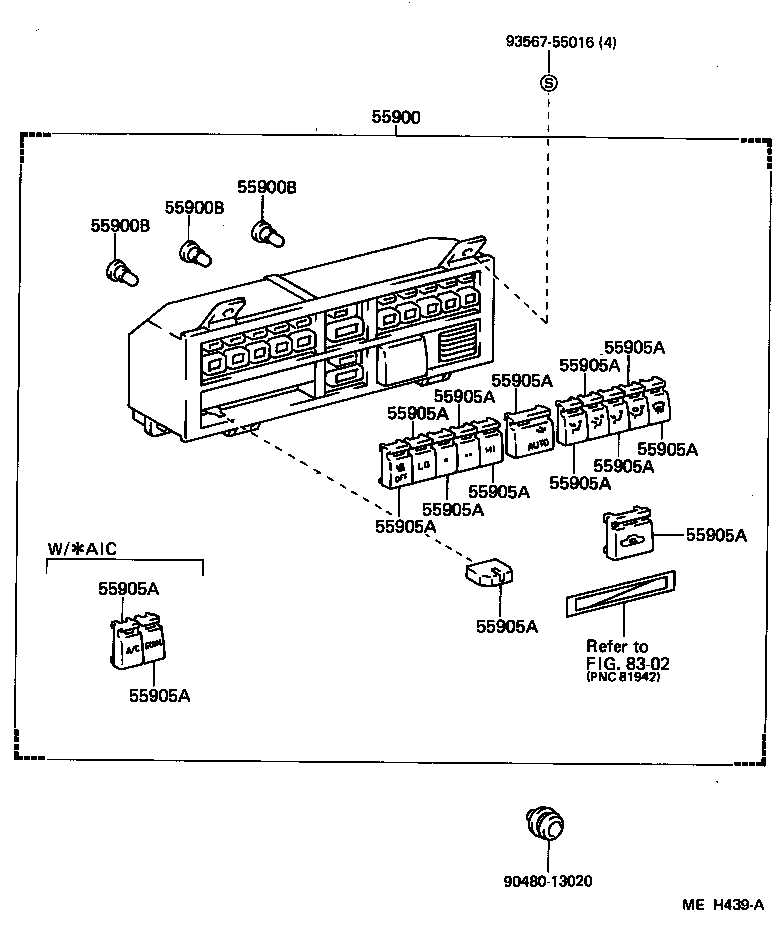

ILLUST NO. 1 OF 2(8608- )LE
PUSH HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-32130 |
SV21..LE |
1 | ||
| 55900-32120 |
SV21..LE W/*AIC |
1 | ||
| 55900-32130 |
SV2#..LE |
1 | ||
| 55900-32120 |
SV2#..LE W(AIR CONDITIONER) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-32150 |
SV21..LE |
3 | ||
| 81850-32150 |
SV2#,VZV21..LE |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-32150 |
SV21..LE |
3 | ||
| 81850-32150 |
SV2#,VZV21..LE |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-32150 |
SV21..LE |
3 | ||
| 81850-32150 |
SV2#,VZV21..LE |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||

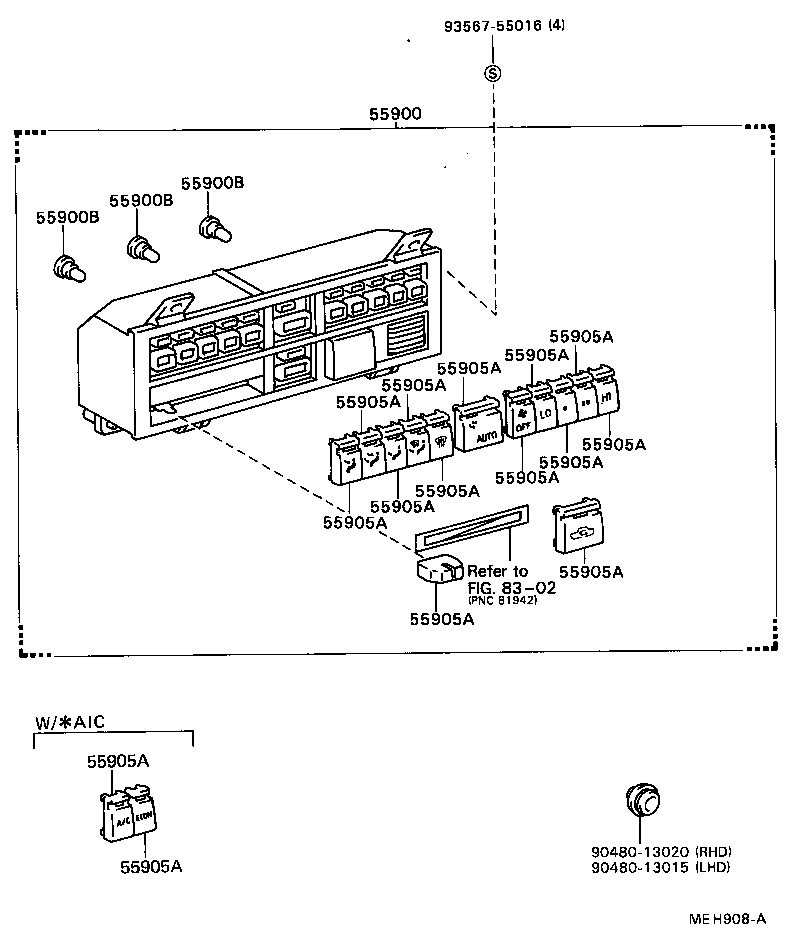

| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
SV21 |
4 | ||
| 55905-32060 |
SV21..LE W/*PHC,MODE AUTO |
1 | ||
| 55905-32100 |
SV21..LE W/*PHC,FAN M2 |
1 | ||
| 55905-32030 |
SV21..LE W/*PHC,FOOT |
1 | ||
| 55905-32010 |
SV21..LE W/*PHC,FACE |
1 | ||
| 55905-32080 |
SV21..LE W/*PHC,FAN LO |
1 | ||
| 55905-32110 |
SV21..LE W/*PHC,FAN HI |
1 | ||
| 55905-32140 |
SV21..LE W/*PHC,ECON |
1 | ||
| 55905-32070 |
SV21..LE W/*PHC,FAN OFF |
1 | ||
| 55905-32130 |
SV21..LE W/*PHC,A/C |
1 | ||
| 55905-32020 |
SV21..LE W/*PHC,BI-LEVEL |
1 | ||
| 55905-32030 |
SV2#,VZV21..LE FOOT |
1 | ||
| 55905-32040 |
SV21..LE W/*PHC,FOOT/DEF |
1 | ||
| 55905-32090 |
SV21..LE W/*PHC,FAN M1 |
1 | ||
| 55905-32150 |
SV21..LE W/*PHC,TENP |
1 | ||
| 55905-32020 |
SV2#,VZV21..LE BI-LEVEL |
1 | ||
| 55905-32120 |
SV21..LE W/*PHC,RECIRCU |
1 | ||
| 55905-32040 |
SV2#,VZV21..LE FOOT/DEF |
1 | ||
| 55905-32050 |
SV21..LE W/*PHC,DEF |
1 | ||
| 55905-32100 |
SV2#,VZV21..LE FAN M2 |
1 | ||
| 55905-32050 |
SV2#,VZV21..LE DEF |
1 | ||
| 55905-32060 |
SV2#,VZV21..LE MODE AUTO |
1 | ||
| 55905-32070 |
SV2#,VZV21..LE FAN OFF |
1 | ||
| 55905-32140 |
SV2#..LE ECON |
1 | ||
| 55905-32120 |
SV2#,VZV21..LE RECIRCU |
1 | ||
| 55905-32090 |
SV2#,VZV21..LE FAN M1 |
1 | ||
| 55905-32010 |
SV2#,VZV21..LE FACE |
1 | ||
| 55905-32080 |
SV2#,VZV21..LE FAN LO |
1 | ||
| 55905-32130 |
SV2#..LE A/C |
1 | ||
| 55905-32150 |
SV2#,VZV21..LE TEMP |
1 | ||
| 55905-32110 |
SV2#,VZV21..LE FAN HI |
1 | ||
| Common parts | ||||
| 90480-13020 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-32150 |
SV21 |
1 | ||
| 87201-32150 |
SV2#,VZV21 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87220-32020 |
SV21 |
1 | ||
| 87220-32020 |
SV2# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-32170 |
SV21 |
1 | ||
| 87201-32171 |
SV2#,VZV21 |
1 | ||
| 87201-32170 |
SV2#,VZV21 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-32040 |
SV2#,VZV21 |
1 | ||
| 87211-32040 |
SV21 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-32010 |
SV21,VZV21 |
1 | ||
| 87212-32010 |
SV21 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-32010 |
SV21 |
1 | ||
| 87213-32010 |
SV2#,VZV21 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55086-32040 |
SV21 |
1 | ||
| 55086-32041 |
SV2#,VZV21 |
1 | ||
| 55086-32041 |
SV21 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55084-32050 |
SV21 |
1 | ||
| 55084-32050 |
SV2#,VZV21 |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55085-32100 |
SV21 W/*AIC |
1 | ||
| 55085-32080 |
SV21 |
1 | ||
| 55085-32100 |
SV2#,VZV21 W(AIR CONDITIONER) |
1 | ||
| 55085-32080 |
SV2#,VZV21 |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 55088-32050 |
SV2#,VZV21 |
1 | ||
| 55088-32050 |
SV21 |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-32030 |
SV2#;VZV21..DX |
1 | ||
| 88539-32030 |
SV21 |
1 | ||
| Common parts | ||||
| 88688-32180 | ||||
| 90159-60025 | ||||
| 90159-60125 | ||||
| 90467-10015 | ||||
| 90480-26022 | ||||
| 93540-15012 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

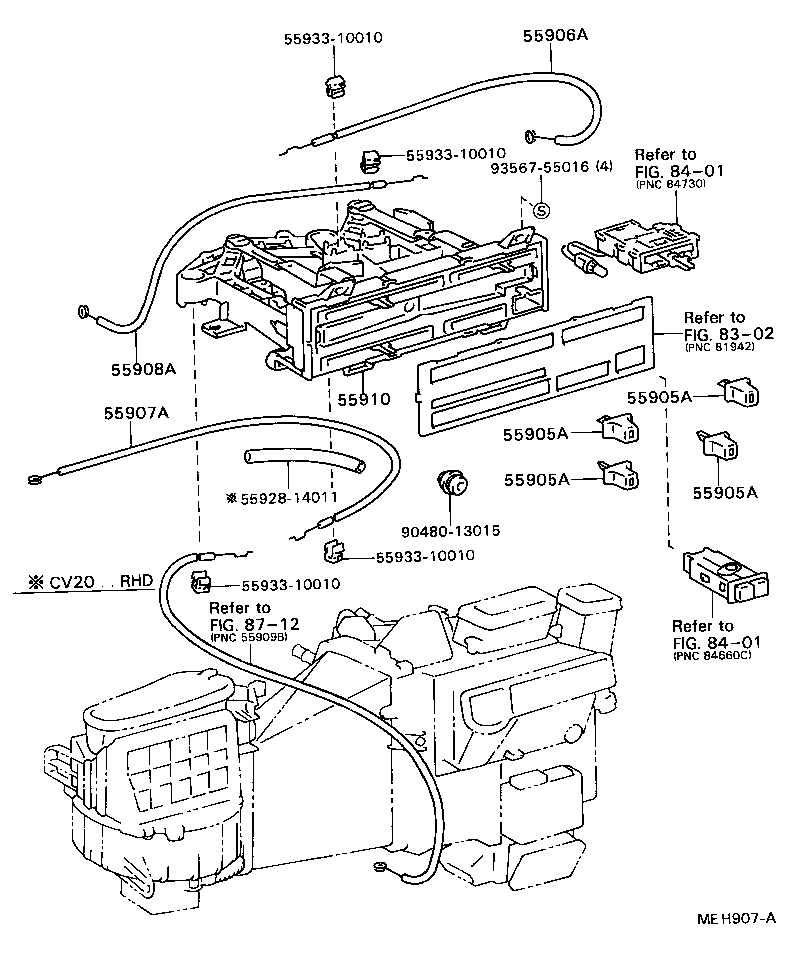

ILLUST NO. 1 OF 2(8610- )CV20,SV2#
LEVER HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55928-14011 | ||||
| 55933-10010 | ||||
| 90480-13015 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
| 8712 | ||||
ILLUST NO. 1 OF 2(8610- )SV21,VZV21
PUSH HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90480-13015 | ||||
| 90480-13020 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
