SV21L-UEMDKW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )SED

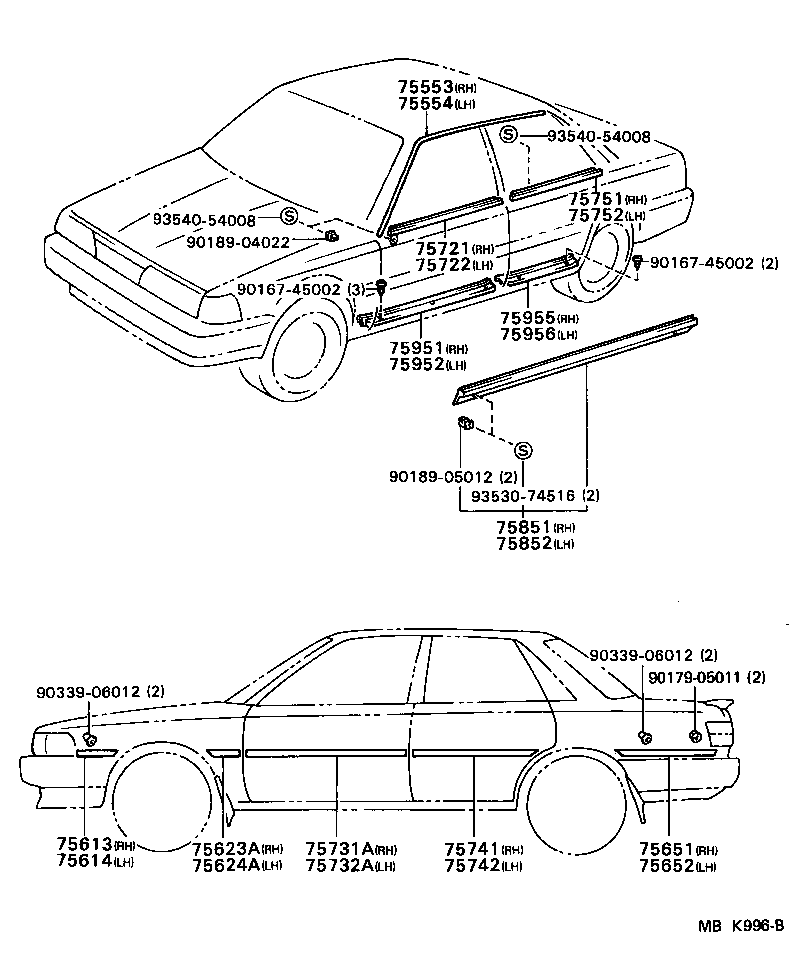

Click highlighted areas on diagram

diagram 75553 75554 75613 75614 75623A 75624A 75651 75652 75721 75722 75731A 75732A 75741 75742 75751 75752 75851 75852 75951 75952 75955 75956 9016745002 9016745002 9017905011 9018904022 9018905012 9033906012 9033906012 9353074516 9354054008 9354054008
Part # Description Qty Price
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-32030

CV20,SV2#..SED

 1
75551-32030

CV20,SV2#,VZV21..SED

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-32030

CV20,SV2#..SED

 1
75552-32030

CV20,SV2#,VZV21..SED

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75613-32020

CV20,SV2#

 1
75613-32020

CV20,SV2#,VZV21

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75614-32020

CV20,SV2#,VZV21

 1
75614-32020

CV20,SV2#

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-32060

CV20,SV2#,VZV21

 1
75623-32060

CV20,SV2#

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-32060

CV20,SV2#,VZV21

 1
75624-32060

CV20,SV2#

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-32020

CV20,SV2#,VZV21..SED

 1
75651-32020

CV20,SV2#..SED

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-32020

CV20,SV2#,VZV21..SED

 1
75652-32020

CV20,SV2#..SED

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-32030

CV20,SV2#,VZV21

 1
75710-32030

CV20,SV2#

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-32030

CV20,SV2#

 1
75720-32030

CV20,SV2#,VZV21

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-32140

CV20,SV2#,VZV21

 1
75731-32140

CV20,SV2#

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-32140

CV20,SV2#

 1
75732-32140

CV20,SV2#,VZV21

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-32170

CV20,SV2#,VZV21

 1
75741-32170

CV20,SV2#

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-32170

CV20,SV2#

 1
75742-32170

CV20,SV2#,VZV21

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-32020

CV20,SV2#,VZV21

 1
75730-32020

CV20,SV2#

 1
75752 - MOULDING, REAR DOOR BELT, LH
75740-32020

CV20,SV2#,VZV21

 1
75740-32020

CV20,SV2#

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-39075

CV20,SV2#

 1
75850-39075

CV20,SV2#,VZV21

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-39075

CV20,SV2#,VZV21

 1
75850-39075

CV20,SV2#

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-3202005

CV20,SV2#

BEIGE,DARK BEIGE,TRIM4#

 1
67913-3202003

CV20,SV2#,VZV21..LHD

MEDIUM GRAY,TRIM1#

 1
67913-3202003

CV20,SV2#..LHD

GRAY,MEDIUM GRAY,TRIM1#

 1
67913-3202004

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
67913-3202004

CV20,SV2#

BLUE,DARK BLUE,TRIM8#

 1
67913-3202005

CV20,SV2#,VZV21

DARK BEIGE,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-3202003

CV20,SV2#..LHD

GRAY,MEDIUM GRAY,TRIM1#

 1
67913-3202004

CV20,SV2#

BLUE,DARK BLUE,TRIM8#

 1
67913-3202005

CV20,SV2#,VZV21

DARK BEIGE,TRIM4#

 1
67913-3202005

CV20,SV2#

BEIGE,DARK BEIGE,TRIM4#

 1
67913-3202004

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
67913-3202003

CV20,SV2#,VZV21..LHD

MEDIUM GRAY,TRIM1#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-3202003

CV20,SV2#..LHD

GRAY,MEDIUM GRAY,TRIM1#

 1
67917-3202004

CV20,SV2#

BLUE,DARK BLUE,TRIM8#

 1
67917-3202005

CV20,SV2#

BEIGE,DARK BEIGE,TRIM4#

 1
67917-3202005

CV20,SV2#,VZV21

DARK BEIGE,TRIM4#

 1
67917-3202003

CV20,SV2#,VZV21..LHD

MEDIUM GRAY,TRIM1#

 1
67917-3202004

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917-3202003

CV20,SV2#..LHD

GRAY,MEDIUM GRAY,TRIM1#

 1
67917-3202004

CV20,SV2#

BLUE,DARK BLUE,TRIM8#

 1
67917-3202004

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
67917-3202003

CV20,SV2#,VZV21..LHD

MEDIUM GRAY,TRIM1#

 1
67917-3202005

CV20,SV2#

BEIGE,DARK BEIGE,TRIM4#

 1
67917-3202005

CV20,SV2#,VZV21

DARK BEIGE,TRIM4#

 1
Common parts
90167-45002
90179-05011
90189-04022
90189-05012
90339-06012
93530-74516
93540-54008
