SV21L-UEMDKG (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV2#

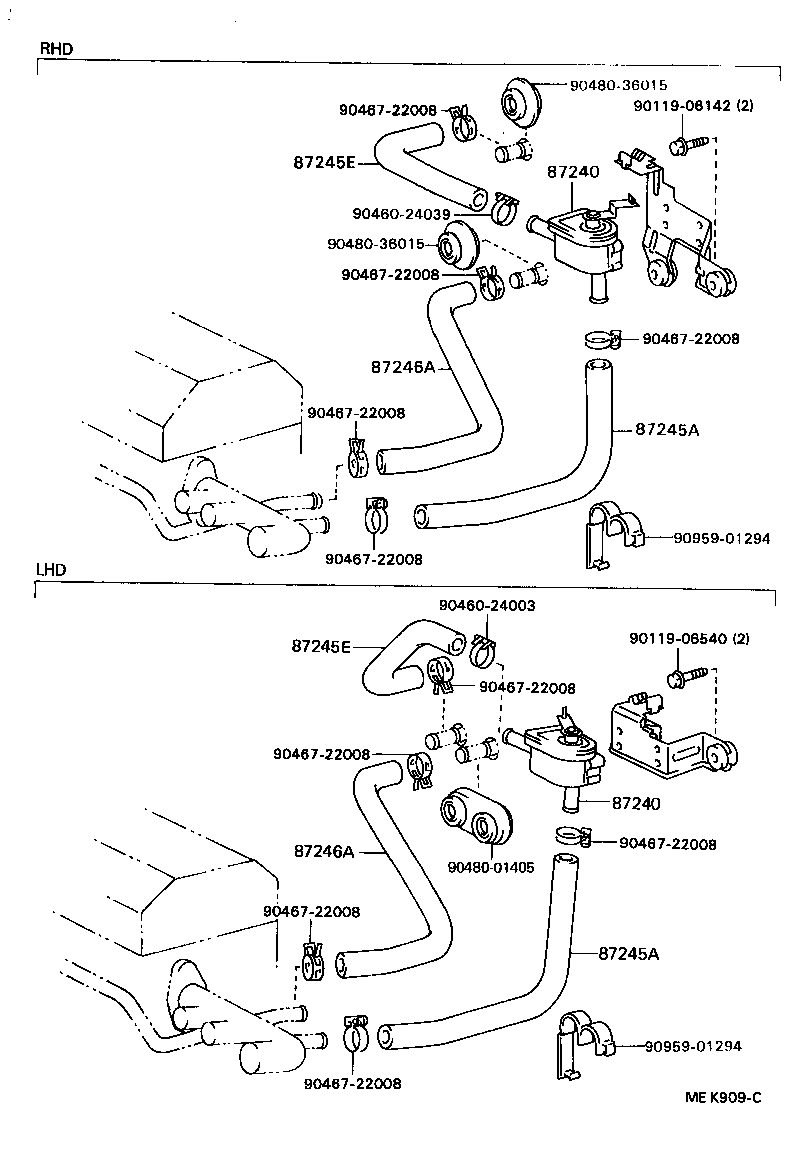

Click highlighted areas on diagram

diagram 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906142 9011906540 9046024003 9046024039 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9048001405 9048036015 9048036015 9095901294 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-32030

CV20,SV2#,VZV21..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-32030

CV20,SV2#,VZV21..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32160

CV20,SV2#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32160

CV20,SV2#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32080

CV20,SV2#,VZV21..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32080

CV20,SV2#,VZV21..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32100

SV2#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32100

SV2#..LHD

 1
Common parts
90119-06142
90119-06540
90460-24003
90460-24039
90467-22008
90480-01405
90480-36015
90959-01294
