SV21L-UEMDKG (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

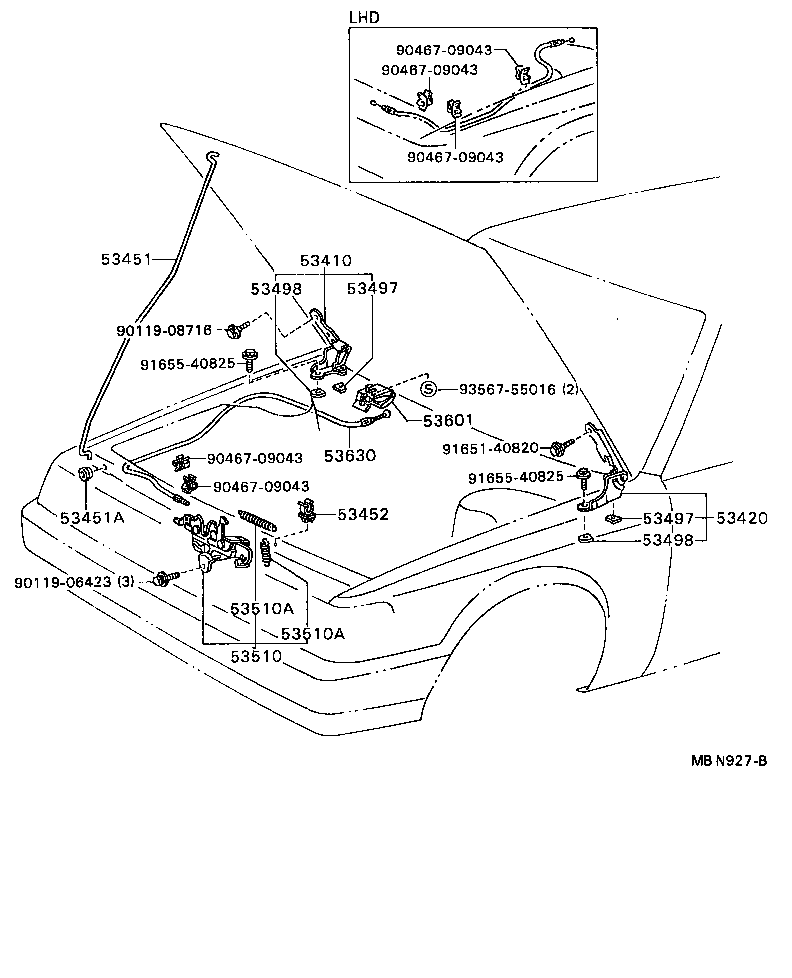

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53498 53498 53510 53510A 53510A 53601 53630 9011906423 9011908716 9046709043 9046709043 9046709043 9046709043 9046709043 9165140820 9165540825 9165540825 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-32031

CV20,SV2#,VZV21

 1
53420 - HINGE ASSY, HOOD, LH
53420-32031

CV20,SV2#,VZV21

 1
53451 - ROD, HOOD SUPPORT
53451-32030

CV20,SV2#,VZV21

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15011

CV20,SV2#,VZV21

 1
53452 - HOLDER, HOOD STAY
53452-32010

CV20,SV2#,VZV21

 1
53497 - PAD, HOOD HINGE, NO.1
53497-17011

CV20,SV2#,VZV21

 1
53497 - PAD, HOOD HINGE, NO.1
53497-17011

CV20,SV2#,VZV21

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12011

CV20,SV2#,VZV21

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12011

CV20,SV2#,VZV21

 1
53510 - LOCK ASSY, HOOD
53510-32050

CV20,SV2#,VZV21..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

CV20,SV2#,VZV21

WD=0.9,L=39.6,WD=9.0

 1
90506-20054

CV20,SV2#,VZV21

WD=2.0,CW=17,L=60,WD=14.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

CV20,SV2#,VZV21

WD=0.9,L=39.6,WD=9.0

 1
90506-20054

CV20,SV2#,VZV21

WD=2.0,CW=17,L=60,WD=14.5

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1002026

CV20,SV2#,VZV21..LHD

BROWN,TRIM4#

 1
53601-1002024

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
53601-1002013

CV20,SV2#,VZV21

MEDIUM GRAY,TRIM1#

 1
53601-10020J0

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
53601-10020E2

CV20,SV2#,VZV21..LHD

BROWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-32060

CV20,SV2#,VZV21..LHD

 1
Common parts
90119-06423
90119-08716
90467-09043
91651-40820
91655-40825
93567-55016
