SV21L-UEMDKG (1988)
Toyota Camry
ILLUST NO. 1 OF 2(8808- )LHD
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-32072 |
CV20,SV2#..LHD |
1 | ||
| 44250-32070 |
CV20,SV2#..LHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
CV20,SV2#,VZV21 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV20,SV2#,VZV21 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
CV20,SV2#,VZV21 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-32060 |
SV21..XLI |
1 | ||
| 45514-32090 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45514-32092 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45514-32091 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45514-32092 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45514-32091 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45514-32090 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-32080 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45515-32070 |
SV21..XLI |
1 | ||
| 45515-32080 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-32030 |
SV21..XLI |
1 | ||
| 45516-32040 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45516-32020 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45516-32020 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45516-32040 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32030 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517-32030 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45517-32050 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517-32060 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45517-32060 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517-32020 |
SV21..XLI |
1 | ||
| 45517-32050 |
SV21..XLI W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
ILLUST NO. 2 OF 2(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-32040 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV20,SV2#,VZV21 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV20,SV2#,VZV21 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV20,SV2#,VZV21 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV20,SV2#,VZV21 |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
CV20,SV2#,VZV21 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-13002 |
CV20,SV2#,VZV21 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-32041 |
CV20,SV2#..LHD |
1 | ||
| 44203-32043 |
CV20,SV2#..LHD |
1 | ||
| 44203-32042 |
CV20,SV2#..LHD |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-32050 |
CV20,SV2#..LHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40002 |
CV20,SV2#,VZV21 OUTER |
1 | ||
| 90301-36004 |
CV20,SV2#,VZV21 INNER |
1 | ||
| 90562-40001 |
CV20,SV2#,VZV21 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40002 |
CV20,SV2#,VZV21 OUTER |
1 | ||
| 90301-36004 |
CV20,SV2#,VZV21 INNER |
1 | ||
| 90562-40001 |
CV20,SV2#,VZV21 OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25013 |
CV20,SV2#,VZV21 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25011 |
CV20,SV2#,VZV21 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26009 |
CV20,SV2#,VZV21 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26009 |
CV20,SV2#,VZV21 |
1 | ||
| 90560-26008 |
CV20,SV2#,VZV21 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-32060 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
CV20,SV2#,VZV21 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
CV20,SV2#,VZV21 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-32040 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-28001 |
CV20,SV2#,VZV21 |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-04006 |
SV21..XLI |
2 | ||
| 90410-04006 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
2 | ||
| 90410-06002 |
CV20,SV2#,VZV21 |
2 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-32011 |
CV20,SV2#,VZV21 |
1 | ||
| 44275-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
CV20,SV2#,VZV21 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 44277-20030 |
SV21..XLI |
1 | ||
| 44277-24010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 45524-16010 |
CV20,SV2#,VZV21 |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90179-36002 |
CV20,SV2#,VZV21 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-32060 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV20,SV2#,VZV21 HOUSING SIDE |
2 | ||
| 96390-71200 |
CV20,SV2#,VZV21 CONTROL VALVE SIDE |
2 | ||
| 96390-71200 |
CV20,SV2#..LHD CONRTOL VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV20,SV2#,VZV21 HOUSING SIDE |
2 | ||
| 96390-71200 |
CV20,SV2#,VZV21 CONTROL VALVE SIDE |
2 | ||
| 96390-71200 |
CV20,SV2#..LHD CONRTOL VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV20,SV2#,VZV21 HOUSING SIDE |
2 | ||
| 96390-71200 |
CV20,SV2#,VZV21 CONTROL VALVE SIDE |
2 | ||
| 96390-71200 |
CV20,SV2#..LHD CONRTOL VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-32060 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45222-20010 |
SV21..XLI |
1 | ||
| 45222-32010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39025 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
2 | ||
| 45503-39025 |
SV21..XLI W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39025 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
2 | ||
| 45503-39025 |
SV21..XLI W(POWER STEERING) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14004 |
SV21..XLI END NO.2 |
1 | ||
| 90214-14002 |
SV21..XLI OD=37,END NO.1 |
1 | ||
| 90214-14002 |
CV20,SV2#,VZV21 OD=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14004 |
SV21..XLI END NO.2 |
1 | ||
| 90214-14002 |
SV21..XLI OD=37,END NO.1 |
1 | ||
| 90214-14002 |
CV20,SV2#,VZV21 OD=37 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-22020 |
SV21..XLI |
1 | ||
| 45523-24010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45523-24010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23023 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 90501-23023 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 90501-32023 |
SV21..XLI |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45524-22010 |
SV21..XLI |
1 | ||
| 45524-16010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
CV20,SV2#,VZV21 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-32060 |
SV21..XLI |
1 | ||
| 45535-20050 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45535-20050 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45535-32050 |
SV21..XLI |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
SV21..XLI BOOT NO.2 |
1 | ||
| 90949-01021 |
SV21..XLI BOOT NO.1 |
1 | ||
| 90461-10709 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.2 |
1 | ||
| 90949-01082 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.1 |
1 | ||
| 90461-10709 |
SV21..XLI W(POWER STEERING),BOOT NO.2 |
1 | ||
| 90949-01082 |
SV21..XLI W(POWER STEERING),BOOT NO.1 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
SV21..XLI BOOT NO.2 |
1 | ||
| 90949-01021 |
SV21..XLI BOOT NO.1 |
1 | ||
| 90461-10709 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.2 |
1 | ||
| 90949-01082 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.1 |
1 | ||
| 90461-10709 |
SV21..XLI W(POWER STEERING),BOOT NO.2 |
1 | ||
| 90949-01082 |
SV21..XLI W(POWER STEERING),BOOT NO.1 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
2 | ||
| 90467-18003 |
SV21..XLI |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
2 | ||
| 90467-18003 |
SV21..XLI |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-32030 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45535-32030 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45536-14020 |
SV21..XLI |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-61028 | ||||

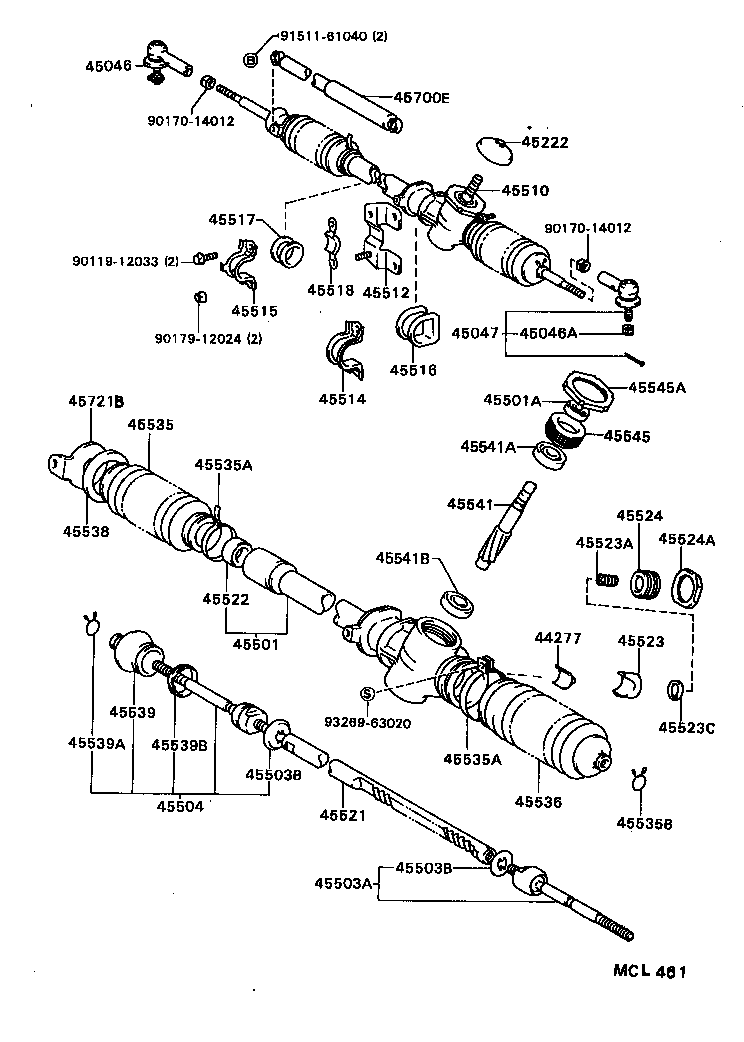

(8808- )XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 44277-20030 |
SV21..XLI |
1 | ||
| 44277-24010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
CV20,SV2#,VZV21 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV20,SV2#,VZV21 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
CV20,SV2#,VZV21 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45222-20010 |
SV21..XLI |
1 | ||
| 45222-32010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-32070 |
SV21..XLI |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
SV21..XLI |
1 | ||
| 90311-15002 |
SV21..XLI |
1 | ||
| 45503A - END SUB-ASSY, STEERING RACK, NO.1 | ||||
| 45503-29105 |
SV21..XLI |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14004 |
SV21..XLI END NO.2 |
1 | ||
| 90214-14002 |
SV21..XLI OD=37,END NO.1 |
1 | ||
| 90214-14002 |
CV20,SV2#,VZV21 OD=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14004 |
SV21..XLI END NO.2 |
1 | ||
| 90214-14002 |
SV21..XLI OD=37,END NO.1 |
1 | ||
| 90214-14002 |
CV20,SV2#,VZV21 OD=37 |
2 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45504-39015 |
SV21..XLI |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-32070 |
SV21..XLI |
1 | ||
| 45512 - ADAPTER, STEERING RACK HOUSING | ||||
| 45512-32020 |
SV21..XLI |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-32060 |
SV21..XLI |
1 | ||
| 45514-32090 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45514-32092 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45514-32091 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45514-32092 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45514-32091 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45514-32090 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-32080 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45515-32070 |
SV21..XLI |
1 | ||
| 45515-32080 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-32030 |
SV21..XLI |
1 | ||
| 45516-32040 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45516-32020 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45516-32020 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45516-32040 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32030 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517-32030 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45517-32060 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45517-32060 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517-32020 |
SV21..XLI |
1 | ||
| 45517-32050 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45517-32050 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-32040 |
SV21..XLI |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-32061 |
SV21..XLI |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22011 |
SV21..XLI |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-24010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45523-22020 |
SV21..XLI |
1 | ||
| 45523-24010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23023 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 90501-23023 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 90501-32023 |
SV21..XLI |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23007 |
SV21..XLI |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45524-22010 |
SV21..XLI |
1 | ||
| 45524-16010 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
CV20,SV2#,VZV21 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-32060 |
SV21..XLI |
1 | ||
| 45535-20050 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45535-20050 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45535-32050 |
SV21..XLI |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
SV21..XLI BOOT NO.2 |
1 | ||
| 90949-01021 |
SV21..XLI BOOT NO.1 |
1 | ||
| 90461-10709 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.2 |
1 | ||
| 90949-01082 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.1 |
1 | ||
| 90461-10709 |
SV21..XLI W(POWER STEERING),BOOT NO.2 |
1 | ||
| 90949-01082 |
SV21..XLI W(POWER STEERING),BOOT NO.1 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
SV21..XLI BOOT NO.2 |
1 | ||
| 90949-01021 |
SV21..XLI BOOT NO.1 |
1 | ||
| 90461-10709 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.2 |
1 | ||
| 90949-01082 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL BOOT NO.1 |
1 | ||
| 90461-10709 |
SV21..XLI W(POWER STEERING),BOOT NO.2 |
1 | ||
| 90949-01082 |
SV21..XLI W(POWER STEERING),BOOT NO.1 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
2 | ||
| 90467-18003 |
SV21..XLI |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-32030 |
SV21..XLI W(POWER STEERING) |
1 | ||
| 45535-32030 |
CV20,SV2#,VZV21..GL,GLI,GXI,XL |
1 | ||
| 45536-14020 |
SV21..XLI |
1 | ||
| 45538 - RETAINER, STEERING RACK BOOT | ||||
| 45538-32010 |
SV21..XLI |
1 | ||
| 45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1 | ||||
| 45539-32020 |
SV21..XLI |
1 | ||
| 45539A - CLIP(FOR RACK END DUST SEAL) | ||||
| 90467-18003 |
SV21..XLI |
1 | ||
| 45539B - RING, SET(FOR RACK END DUST SEAL) | ||||
| 90522-32011 |
SV21..XLI |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-32060 |
SV21..XLI |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
SV21..XLI |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
SV21..XLI |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22020 |
SV21..XLI |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
SV21..XLI |
1 | ||
| 45700E - DAMPER ASSY, STEERING | ||||
| 45700-32030 |
SV21..XLI |
1 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-32040 |
SV21..XLI |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91511-61040 | ||||
| 93269-63020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
