Toyota Camry SV21 BRAKE MASTER CYLINDER

Manufacturers Home
Toyota
EU
CAMRY
SV21L-UEMDKG (1986)
4702 - BRAKE MASTER CYLINDER

SV21L-UEMDKG (1986)

Toyota Camry

Production Oct 1986 - Aug 1988

Engine 3SFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

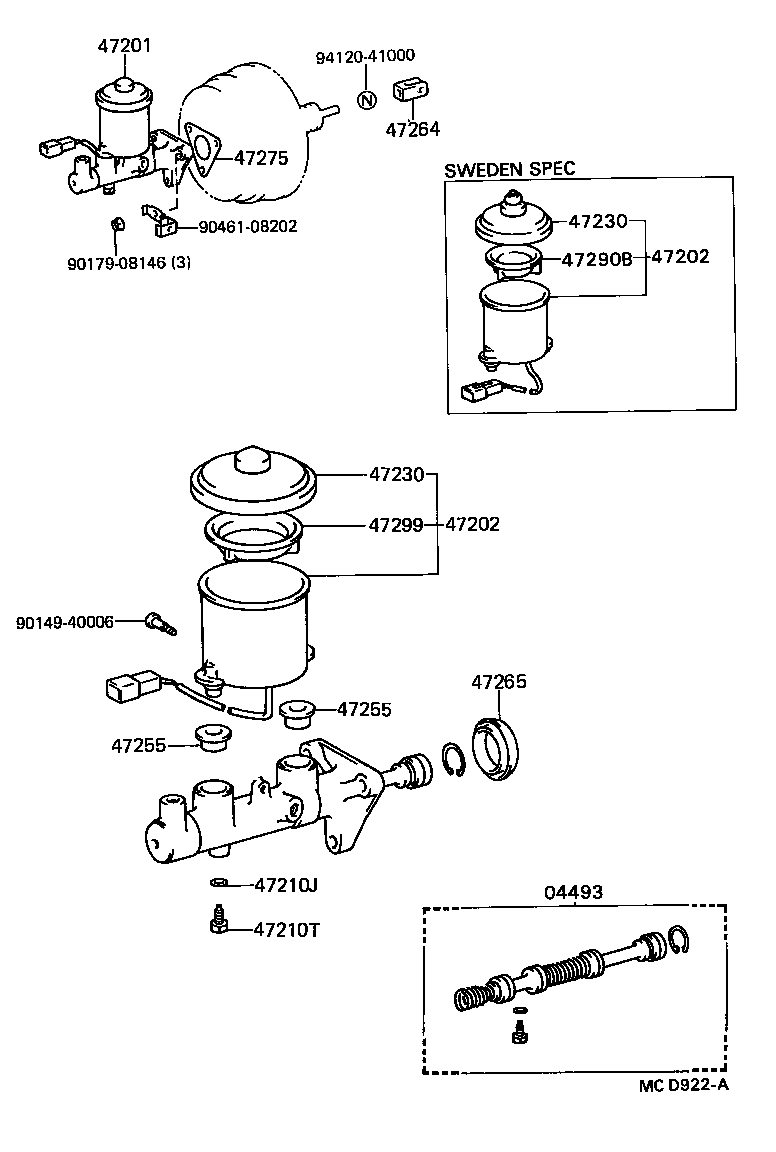

(8610- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-32061	SV25..RHD;SV21,VZV21 W(ANTI-LOCK BRAKE SYSTEM)	02/1988 - 08/1988	1
04493-32050	SV21	10/1986 - 08/1988	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-32170	SV21..LHD	10/1986 - 08/1988	1
47201-32190	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47201-32210	SV21,25..LHD W(ANTI-LOCK BRAKE SYSTEM)	10/1987 - 01/1988	1
47201-32210	SV21,25,VZV21..LHD W(ANTI-LOCK BRAKE SYSTEM)	02/1988 - 08/1988	1
47201-32210	SV21..LHD W/*66	08/1987 - 10/1987	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-32010	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47220-32020	CV20,SV2#..LHD	10/1986 - 10/1987	1
47220-32020	CV20,SV20,21..LHD	10/1987 - 08/1988	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-32010	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47220-32020	CV20,SV2#..LHD	10/1986 - 10/1987	1
47220-32020	CV20,SV20,21..LHD	10/1987 - 08/1988	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	CV20,SV2#	10/1986 - 10/1987	1
90430-06104	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	CV20,SV2#	10/1986 - 10/1987	1
90109-06008	SV21 W/*66	08/1987 - 10/1987	1
90109-06144	SV21,25..LHD W(ANTI-LOCK BRAKE SYSTEM)	10/1987 - 01/1988	1
90109-06144	SV21,25,VZV21..LHD W(ANTI-LOCK BRAKE SYSTEM)	02/1988 - 08/1988	1
90109-06077	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-16010	CV20,SV20,21..LHD	10/1987 - 08/1988	1
47230-32010	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47230-16010	CV20,SV2#..LHD	10/1986 - 10/1987	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-16010	CV20,SV20,21..LHD	10/1987 - 08/1988	1
47230-32010	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47230-16010	CV20,SV2#..LHD	10/1986 - 10/1987	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	SV25..RHD;CV20,SV20,21	10/1987 - 08/1988	2
47255-16010	CV20,SV2#	10/1986 - 10/1987	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	SV25..RHD;CV20,SV20,21	10/1987 - 08/1988	2
47255-16010	CV20,SV2#	10/1986 - 10/1987	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20040	SV21	10/1986 - 10/1987	1
47264-20040	SV21,25,VZV21	10/1987 - 08/1988	1
47265 - BOOT, MASTER CYLINDER
47265-20050	CV20,SV2#	10/1986 - 10/1987	1
47265-20050	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010	CV20,SV2#	10/1986 - 10/1987	1
47275-32010	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47290B - STRAINER ASSY, BRAKE MASTER CYLINDER RESERVOIR
47290-32010	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-16010	CV20,SV2#..LHD	10/1986 - 08/1988	1
Common parts
90149-40006
90179-08146
90461-08202
94120-41000

(8708- )SV21,25

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-32061	SV25..RHD;SV21,VZV21 W(ANTI-LOCK BRAKE SYSTEM)	02/1988 - 08/1988	1
04493-32050	SV21	10/1986 - 08/1988	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-32170	SV21..LHD	10/1986 - 08/1988	1
47201-32190	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47201-32210	SV21,25..LHD W(ANTI-LOCK BRAKE SYSTEM)	10/1987 - 01/1988	1
47201-32210	SV21,25,VZV21..LHD W(ANTI-LOCK BRAKE SYSTEM)	02/1988 - 08/1988	1
47201-32210	SV21..LHD W/*66	08/1987 - 10/1987	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-32010	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47220-32020	CV20,SV2#..LHD	10/1986 - 10/1987	1
47220-32020	CV20,SV20,21..LHD	10/1987 - 08/1988	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	CV20,SV2#	10/1986 - 10/1987	1
90430-06104	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	CV20,SV2#	10/1986 - 10/1987	1
90109-06008	SV21 W/*66	08/1987 - 10/1987	1
90109-06144	SV21,25..LHD W(ANTI-LOCK BRAKE SYSTEM)	10/1987 - 01/1988	1
90109-06144	SV21,25,VZV21..LHD W(ANTI-LOCK BRAKE SYSTEM)	02/1988 - 08/1988	1
90109-06077	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-16010	CV20,SV20,21..LHD	10/1987 - 08/1988	1
47230-32010	SV21..FRG SWEDEN SPEC	10/1986 - 06/1987	1
47230-16010	CV20,SV2#..LHD	10/1986 - 10/1987	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	SV25..RHD;CV20,SV20,21	10/1987 - 08/1988	2
47255-16010	CV20,SV2#	10/1986 - 10/1987	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	SV25..RHD;CV20,SV20,21	10/1987 - 08/1988	2
47255-16010	CV20,SV2#	10/1986 - 10/1987	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20040	SV21	10/1986 - 10/1987	1
47264-20040	SV21,25,VZV21	10/1987 - 08/1988	1
47265 - BOOT, MASTER CYLINDER
47265-20050	CV20,SV2#	10/1986 - 10/1987	1
47265-20050	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010	CV20,SV2#	10/1986 - 10/1987	1
47275-32010	CV20,SV2#,VZV21	10/1987 - 08/1988	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-16010	CV20,SV2#..LHD	10/1986 - 08/1988	1
Common parts
90149-40006
90179-08146
90461-08202
94120-41000

SV21L-UEMDKG (1986)

(8610- )LHD

(8708- )SV21,25
