SV20LG-UWMDSW (1986)
Toyota Camry
ILLUST NO. 3 OF 6(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39385 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84112-39385 |
CV20,SV2#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32070 |
CV20,SV2#..LHD |
1 | ||
| 84140-32070 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32490 |
CV20,SV2#..LHD |
1 | ||
| 84310-32520 |
CV20,SV2#,VZV21..LHD W(INT.TIME) |
1 | ||
| 84310-32490 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84310-32520 |
CV20,SV2#..LHD W/INT.TIME |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
CV20,SV2#..LHD |
1 | ||
| 84312-32020 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-32490 |
CV20,SV2#..LHD |
1 | ||
| 84652-32520 |
CV20,SV2#..LHD W/INT.TIME |
1 | ||
| 84652-32490 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84652-32520 |
CV20,SV2#,VZV21..LHD W/INT.TIME |
1 | ||
| Common parts | ||||
| 90463-15402 | ||||
| 93319-15012 | ||||

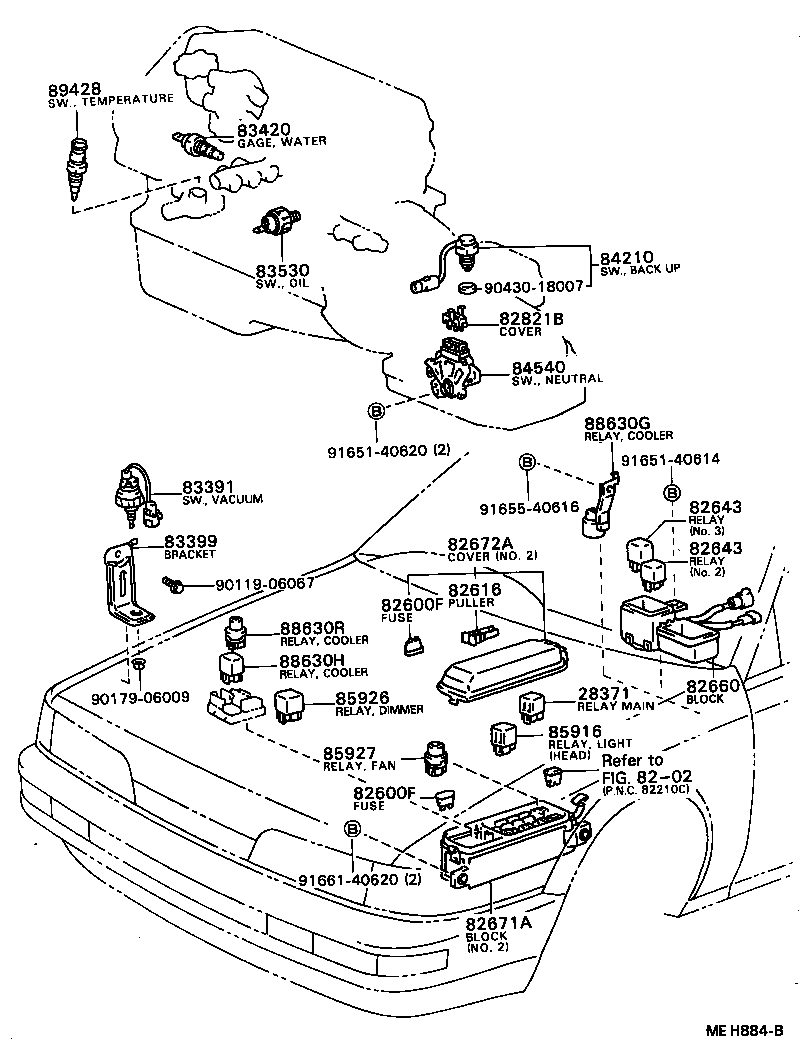

ILLUST NO. 1 OF 6(8610- )SV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
2CT,1S,3SFE,2VZFE..CV20,SV2#,VZV21 |
1 | ||
| 90987-04002 |
2CT,1S,3SFE..CV20,SV2# |
1 | ||
| 85913-30020 |
2CT,1S,3SFE..CV20,SV2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
CV20,SV2# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
1 | ||
| 90982-09002 |
CV20,SV2# 10A,10A |
4 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21..LHD 10A |
3 | ||
| 90982-09005 |
CV20,SV2# 7.5A,7.5A |
7 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
3 | ||
| 90982-09003 |
CV20,SV20,21,VZV21..LHD 15A |
2 | ||
| 90982-09003 |
CV20,SV2# 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
SV2#,VZV21..LHD 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
5 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
CV20,SV2# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
1 | ||
| 90982-09002 |
CV20,SV2# 10A,10A |
4 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21..LHD 10A |
3 | ||
| 90982-09005 |
CV20,SV2# 7.5A,7.5A |
7 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
3 | ||
| 90982-09003 |
CV20,SV20,21,VZV21..LHD 15A |
2 | ||
| 90982-09003 |
CV20,SV2# 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
SV2#,VZV21..LHD 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
5 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV20,SV2#,VZV21 |
1 | ||
| 82616-12010 |
CV20,SV2# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
CV20,SV2# NO.1 |
1 | ||
| 82671-32030 |
CV20,SV2#,VZV21 NO.2 |
1 | ||
| 82671-32030 |
CV20,SV2# NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV21 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32030 |
CV20,SV2#..LHD NO.1 |
1 | ||
| 82672-32070 |
SV2#..LHD NO.2 |
1 | ||
| 82672-32031 |
CV20,SV2#..LHD NO.1 |
1 | ||
| 82672-32071 |
SV2#,VZV21..LHD NO.2 |
1 | ||
| 82672-32031 |
CV20,SV2#,VZV21..LHD NO.1 |
1 | ||
| 82672-32071 |
SV2#..LHD NO.2 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32030 |
SV20..5F |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-32040 |
SV20..5F |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CV20,SV20,VZV21 |
1 | ||
| 83420-20020 |
CV20,SV20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
SV2# |
1 | ||
| 83530-30080 |
SV2#,VZV21 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
CV20,SV2#..5F |
1 | ||
| 84210-60021 |
CV20,SV2#,VZV21..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2# HEADLAMP |
1 | ||
| 90987-02002 |
CV20,SV2# TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2# TAIL LAMP,DENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV21 TAIL LAMP,DENSO |
1 | ||
| 90987-02006 |
CV20,SV2#,VZV21 HEADLAMP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
CV20,SV2# |
1 | ||
| 85926-30020 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV20,SV2# |
1 | ||
| 90987-03001 |
CV20,SV2#,VZV21 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32020 |
CV20,SV2# |
1 | ||
| 88630-32020 |
SV21..WG;SV21..SED..5F;CV20,SV20,25,VZV21;SV21..SED..LHD..4FC |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-32010 |
SV20,25;SV21..WG;SV21..SED..5F;SV21..SED..LHD..4FC |
1 | ||
| 88630-32010 |
SV2# |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02004 |
CV20,SV2# |
1 | ||
| 90987-02004 |
SV21..WG;CV20,SV20,25;SV21..SED..5F;SV21..SED..LHD..4FC |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
SV2# |
1 | ||
| 89428-20060 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90179-06009 | ||||
| 90430-18007 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 6(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
CV20,SV2# |
1 | ||
| 84118-20011 |
CV20,SV2#,VZV21 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
CV20,SV2#,VZV21 |
1 | ||
| 84119-20082 |
CV20,SV2# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
CV20,SV2#,VZV21 |
1 | ||
| 90170-09167 |
CV20,SV2# |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-32050 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84160-32050 |
CV20,SV2#..LHD |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10190 |
CV20,SV2# 12V 0.87W,12V 0.87W |
1 | ||
| 84999-10190 |
CV20,SV2#,VZV21 12V 0.87W |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
CV20,SV2# |
1 | ||
| 84242-20030 |
CV20,SV2#,VZV21 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-32130 |
CV20,SV2#..LHD |
1 | ||
| 84332-32131 |
CV20,SV2#..LHD |
1 | ||
| 84332-32131 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10090 |
CV20,SV2#..LHD 12V 1.8W,12V 1.8W |
1 | ||
| 84999-10090 |
CV20,SV2#,VZV21..LHD 12V 1.8W |
1 | ||
| 84999-10190 |
CV20,SV2#,VZV21 12V 0.87W |
1 | ||
| 84999-10190 |
CV20,SV2# 12V 0.87W,12V 0.87W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-17020 |
CV20,SV2#..LHD |
1 | ||
| 84450-17020 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-32030 |
CV20,SV2#..WG |
1 | ||
| 84653-32030 |
CV20,SV20,21..WG |
1 | ||
| 84653B - BULB, REAR WIPER SWITCH | ||||
| 84999-10170 |
CV20,SV20,21..WG 12V 1.12W |
1 | ||
| 84999-10170 |
CV20,SV2#..WG 12V 1.12W,12V 1.12W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
CV20,SV2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32080 |
CV20,SV2#..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 81850-32160 |
CV20,SV2# 12V 1.2W GREEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20130 |
CV20,SV2#,VZV21 |
1 | ||
| 84790-20130 |
CV20,SV2# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20130 |
CV20,SV2# |
1 | ||
| 84790-20130 |
CV20,SV2#,VZV21 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10130 |
CV20,SV2#,VZV21 12V 0.56W |
2 | ||
| 84999-10130 |
CV20,SV2# 12V 0.56W,12V 0.56W |
2 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-32020 |
CV20,SV2#..WG |
1 | ||
| 84930-32020 |
CV20,SV20,21..WG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32050 |
CV20,SV2#,VZV21 |
1 | ||
| 85500-32050 |
CV20,SV2# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2# 14V 1.4W,12V 1.4W |
2 | ||
| 90981-11014 |
CV20,SV2#,VZV21 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2# 14V 1.4W,12V 1.4W |
2 | ||
| 90981-11014 |
CV20,SV2#,VZV21 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
CV20,SV2#,VZV21 |
1 | ||
| 85533-20011 |
CV20,SV2# |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
ILLUST NO. 4 OF 6(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
CV20,SV2# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
1 | ||
| 90982-09002 |
CV20,SV2# 10A,10A |
4 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21..LHD 10A |
3 | ||
| 90982-09005 |
CV20,SV2# 7.5A,7.5A |
7 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
3 | ||
| 90982-09003 |
CV20,SV20,21,VZV21..LHD 15A |
2 | ||
| 90982-09003 |
CV20,SV2# 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
SV2#,VZV21..LHD 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
5 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 82650-20011 |
CV20,SV2# 30A,30A |
3 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CV20,SV2# |
1 | ||
| 90987-04002 |
CV20,SV2#,VZV21 |
1 | ||
| 90987-04002 |
CV20,SV2# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
CV20,SV2#,VZV21 DENSO |
1 | ||
| 90987-02004 |
CV20,SV2# DENSO |
1 | ||
| 90987-02002 |
CV20,SV2# MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| 89279-32070 |
CV20,SV20 NO.1 |
1 | ||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| 89279-32070 |
CV20,SV20 NO.1 |
1 | ||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-32090 |
SV20..5F |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89667-32020 |
SV20 NO.2 |
1 | ||
| 89667-32020 |
SV20 NO.2 |
1 | ||
| 28529-64101 |
SV20 NO.1 |
1 | ||
| 89669-32040 |
SV20 NO.3 |
1 | ||
| 28529-64101 |
SV20 NO.1 |
1 | ||
| 89669-32040 |
SV20 NO.3 |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89667-32020 |
SV20 NO.2 |
1 | ||
| 89667-32020 |
SV20 NO.2 |
1 | ||
| 28529-64101 |
SV20 NO.1 |
1 | ||
| 89669-32040 |
SV20 NO.3 |
1 | ||
| 28529-64101 |
SV20 NO.1 |
1 | ||
| 89669-32040 |
SV20 NO.3 |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89667-32020 |
SV20 NO.2 |
1 | ||
| 89667-32020 |
SV20 NO.2 |
1 | ||
| 28529-64101 |
SV20 NO.1 |
1 | ||
| 89669-32040 |
SV20 NO.3 |
1 | ||
| 28529-64101 |
SV20 NO.1 |
1 | ||
| 89669-32040 |
SV20 NO.3 |
1 | ||
| Common parts | ||||
| 90159-50070 | ||||
| 91651-40612 | ||||
| 93560-55014 | ||||
ILLUST NO. 5 OF 6(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CV20,SV2# |
1 | ||
| 81980-16010 |
CV20,SV2#,VZV21 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
CV20,SV2# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
1 | ||
| 90982-09002 |
CV20,SV2# 10A,10A |
4 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21..LHD 10A |
3 | ||
| 90982-09005 |
CV20,SV2# 7.5A,7.5A |
7 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
3 | ||
| 90982-09003 |
CV20,SV20,21,VZV21..LHD 15A |
2 | ||
| 90982-09003 |
CV20,SV2# 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
SV2#,VZV21..LHD 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
5 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
CV20,SV2# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
1 | ||
| 90982-09002 |
CV20,SV2# 10A,10A |
4 | ||
| 90982-09002 |
CV20,SV2#,VZV21 10A |
1 | ||
| 90982-09002 |
CV20,SV2#,VZV21..LHD 10A |
3 | ||
| 90982-09005 |
CV20,SV2# 7.5A,7.5A |
7 | ||
| 90982-09003 |
CV20,SV2#,VZV21..LHD 15A |
3 | ||
| 90982-09003 |
CV20,SV20,21,VZV21..LHD 15A |
2 | ||
| 90982-09003 |
CV20,SV2# 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
1 | ||
| 90982-09003 |
SV2#,VZV21..LHD 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV21 7.5A |
5 | ||
| 90982-09004 |
CV20,SV2#,VZV21 20A,YELLOW |
2 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-32010 |
CV20,SV2# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-32020 |
CV20,SV2# |
1 | ||
| 82641-20110 |
CV20,SV2# |
1 | ||
| 82641-20110 |
CV20,SV2#,VZV21 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 82650-20011 |
CV20,SV2# 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 82650-20011 |
CV20,SV2# 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV21 30A |
1 | ||
| 82650-20011 |
CV20,SV2# 30A,30A |
3 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
CV20,SV2# NO.1 |
1 | ||
| 82671-32030 |
CV20,SV2#,VZV21 NO.2 |
1 | ||
| 82671-32030 |
CV20,SV2# NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV21 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32030 |
CV20,SV2#..LHD NO.1 |
1 | ||
| 82672-32070 |
SV2#..LHD NO.2 |
1 | ||
| 82672-32031 |
CV20,SV2#..LHD NO.1 |
1 | ||
| 82672-32071 |
SV2#,VZV21..LHD NO.2 |
1 | ||
| 82672-32031 |
CV20,SV2#,VZV21..LHD NO.1 |
1 | ||
| 82672-32071 |
SV2#..LHD NO.2 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CV20,SV2# DENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2# MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV21 DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2# HEADLAMP |
1 | ||
| 90987-02002 |
CV20,SV2# TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2# TAIL LAMP,DENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV21 TAIL LAMP,DENSO |
1 | ||
| 90987-02006 |
CV20,SV2#,VZV21 HEADLAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
CV20,SV2# MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV21 MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV21 DENSO |
1 | ||
| 90987-02004 |
CV20,SV2# DENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV20,SV2# W/*SNR,DENSO |
1 | ||
| 90987-02002 |
CV20,SV2# W/*SNR,MARUKO |
1 | ||
| 90987-02004 |
SV21..WG..XLI;CV20,SV20..LHD..XL;SV21..SED..XLI..EUG DENSO |
1 | ||
| 90987-02002 |
SV21..WG..XLI;CV20,SV20..LHD..XL;SV21..SED..XLI..EUG MARUKO |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| 89279-32070 |
CV20,SV20 NO.1 |
1 | ||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| 89279-32070 |
CV20,SV20 NO.1 |
1 | ||
| 89279-32110 |
CV20,SV20..LHD NO.2 |
1 | ||
| Common parts | ||||
| 90159-50070 | ||||
| 90159-50112 | ||||
| 91651-40612 | ||||
ILLUST NO. 6 OF 6(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39785 |
SV2# |
1 | ||
| 83320-39785 |
SV20,21,VZV21 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
CV20,SV2# |
1 | ||
| 83361-32020 |
CV20,SV20,21,VZV21 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32020 |
CV20,SV2# |
2 | ||
| 84231-32020 |
CV20,SV2#,VZV21 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
CV20,SV2# |
2 | ||
| 84231-24010 |
CV20,SV2#,VZV21 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-16020 |
CV20,SV2#..WG |
1 | ||
| 84230-16020 |
CV20,SV20,21..WG |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
CV20,SV2# TOKAIRIKA |
1 | ||
| 84340-30030 |
CV20,SV2#,VZV21 MATSUSHITA |
1 | ||
| 84340-32010 |
CV20,SV2# TOKAIRIKA |
1 | ||
| 84340-30030 |
CV20,SV2# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
CV20,SV2#,VZV21 |
1 | ||
| 84550-12060 |
CV20,SV2# |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-32010 |
CV20,SV2# |
1 | ||
| 84742-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-32010 |
CV20,SV2#..LHD |
2 | ||
| 84751-32010 |
CV20,SV2#,VZV21..LHD |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-32010 |
CV20,SV2#..LHD |
2 | ||
| 84751-32010 |
CV20,SV2#,VZV21..LHD |
2 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-32010 |
CV20,SV2# |
1 | ||
| 85921-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-32060 |
CV20,SV20,21..WG |
1 | ||
| 85940-32060 |
CV20,SV2#..WG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32151 |
CV20,SV2#..LHD |
1 | ||
| 89373-32151 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 89373-32150 |
CV20,SV2#..LHD |
1 | ||
| 89373-32180 |
CV20,SV2#..LHD *FRG |
1 | ||
| 89373-32180 |
SV25..LHD..EUG;CV20,SV20,21,VZV21..LHD *FRG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32151 |
CV20,SV2#..LHD |
1 | ||
| 89373-32151 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 89373-32150 |
CV20,SV2#..LHD |
1 | ||
| 89373-32180 |
CV20,SV2#..LHD *FRG |
1 | ||
| 89373-32180 |
SV25..LHD..EUG;CV20,SV20,21,VZV21..LHD *FRG |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90463-12570 | ||||
| 90468-05014 | ||||
| 91651-60610 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
ILLUST NO. 4 OF 6(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-28010 |
CV20,SV2#..LHD |
1 | ||
| 82642-32030 |
CV20,SV2#..LHD..EUG |
1 | ||
| 82642-32030 |
CV20,SV2#..LHD |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-32030 |
CV20,SV2#..LHD..EUG |
1 | ||
| 82642-28010 |
CV20,SV2#..LHD |
1 | ||
| 82642-32030 |
CV20,SV2#..LHD |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-32110 |
CV20,SV2#..LHD FINLAND OR NORWAY SPEC |
2 | ||
| 85999-32110 |
CV20,SV2#..LHD..EUG |
2 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-32110 |
CV20,SV2#..LHD FINLAND OR NORWAY SPEC |
2 | ||
| 85999-32110 |
CV20,SV2#..LHD..EUG |
2 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-32110 |
CV20,SV2#..LHD FINLAND OR NORWAY SPEC |
2 | ||
| 85999-32110 |
CV20,SV2#..LHD..EUG |
2 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90168-50031 | ||||
| 90179-06132 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
