Toyota Camry SV20 WIRING & CLAMP

SV20LG-UWMDSW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988

Engine 1S

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(8610- )

Click highlighted areas on diagram

CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-14350
82711-1A040
82711-1A150
82711-1A300
82711-20410
82711-20850
82711-22220
82711-22270
82711-24070
82711-32070
82711-32100
82711-32501
82711-32511
82711-32520
82711-32540
82711-32600
82711-32620
82711-32640
82711-32650
82711-32660
82711-32670
82711-32720
82711-32730
82711-32780

ILLUST NO. 3 OF 5(8610- )

Click highlighted areas on diagram

CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-14110
82711-20880
82711-22140
82711-32810
82711-32830
82711-32840
82711-3H030
82711-3H090
90461-08066
90461-08202
90464-00248

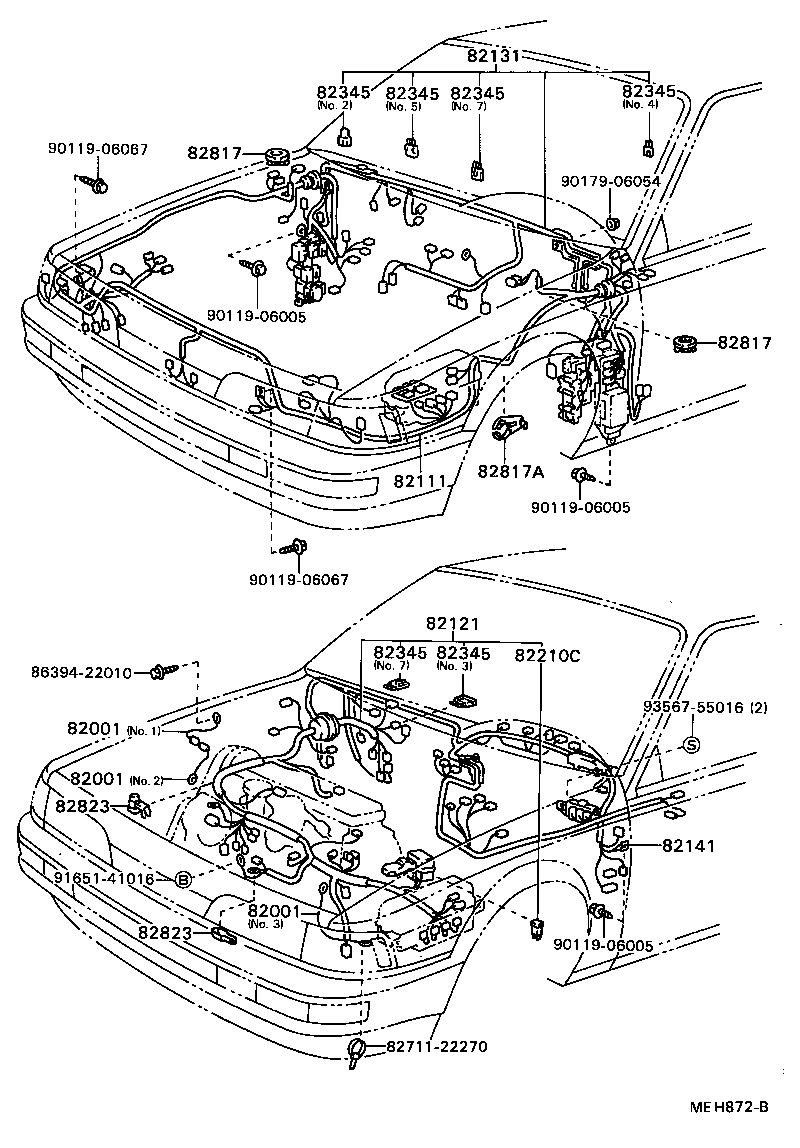

ILLUST NO. 1 OF 5(8610- )SV20

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07206	SV2# NO.1	10/1986 - 04/1987	1
90980-07205	SV20 NO.2	10/1987 - 08/1988	1
90980-07205	SV20 NO.2	10/1986 - 10/1987	1
90980-07136	SV2# NO.3	10/1987 - 08/1988	1
90980-07287	SV2# NO.1	04/1987 - 10/1987	1
90980-07287	SV2#,VZV21 NO.1	10/1987 - 08/1988	1
90980-07136	SV2# NO.3	10/1986 - 10/1987	1
82001 - CABLE, BOND, NO.1
90980-07206	SV2# NO.1	10/1986 - 04/1987	1
90980-07205	SV20 NO.2	10/1987 - 08/1988	1
90980-07205	SV20 NO.2	10/1986 - 10/1987	1
90980-07136	SV2# NO.3	10/1987 - 08/1988	1
90980-07287	SV2# NO.1	04/1987 - 10/1987	1
90980-07287	SV2#,VZV21 NO.1	10/1987 - 08/1988	1
90980-07136	SV2# NO.3	10/1986 - 10/1987	1
82001 - CABLE, BOND, NO.1
90980-07206	SV2# NO.1	10/1986 - 04/1987	1
90980-07205	SV20 NO.2	10/1987 - 08/1988	1
90980-07205	SV20 NO.2	10/1986 - 10/1987	1
90980-07136	SV2# NO.3	10/1987 - 08/1988	1
90980-07287	SV2# NO.1	04/1987 - 10/1987	1
90980-07287	SV2#,VZV21 NO.1	10/1987 - 08/1988	1
90980-07136	SV2# NO.3	10/1986 - 10/1987	1
82111 - WIRE, ENGINE ROOM MAIN
82111-32090	SV2#..LHD	10/1986 - 08/1987	1
82111-32091	SV20,21,VZV21..LHD	10/1987 - 03/1988	1
82111-32091	SV2#..LHD	08/1987 - 10/1987	1
82111-32092	SV20,21,VZV21..LHD	03/1988 - 08/1988	1
82121 - WIRE, ENGINE
82121-32681	SV20..5F	10/1986 - 08/1988	1
82131 - WIRE, COWL
82131-3H270	CV20,SV2#..LHD..EUG FINLAND OR NORWAY SPEC	10/1986 - 08/1987	1
82131-3H271	CV20,SV2#..LHD..EUG FINLAND OR NORWAY SPEC	08/1987 - 10/1987	1
82131-3H241	CV20,SV2#..LHD	08/1987 - 02/1988	1
82131-3H271	CV20,SV20,21..LHD..(XL,XLI)..EUG FINLAND OR NORWAY SPEC	10/1987 - 02/1988	1
82131-3H240	CV20,SV2#..LHD	10/1986 - 08/1987	1
82131-3H242	CV20,SV2#..LHD	02/1988 - 08/1988	1
82131-3H272	CV20,SV20,21..LHD..(XL,XLI)..EUG FINLAND OR NORWAY SPEC	02/1988 - 08/1988	1
82141 - WIRE, INSTRUMENT PANEL
82141-32101	CV20,SV2#..LHD	08/1987 - 02/1988	1
82141-32100	CV20,SV2#..LHD	10/1986 - 08/1987	1
82141-32102	CV20,SV2#,VZV21..LHD	02/1988 - 08/1988	1
82210C - FUSIBLE LINK
90982-08188	CV20,SV2# 30A,TERM.:FEMALE,PNK,30A	10/1986 - 10/1987	4
90982-08189	CV20,SV2#,VZV21 40A,TERM.:FEMALE,GRN	10/1987 - 08/1988	1
90982-08203	CV20,SV2# 80A,TERM.:MALE,BLK,80A	10/1986 - 10/1987	1
90982-08203	CV20,SV2#,VZV21 80A,TERM.:MALE,BLK	10/1987 - 08/1988	1
90982-08189	CV20,SV2# 40A,TERM.:FEMALE,GRN,40A	10/1986 - 10/1987	1
90982-08188	CV20,SV2#,VZV21 30A,TERM.:FEMALE,PNK	10/1987 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32420	CV20,SV2#	10/1986 - 10/1987	1
82817-32420	CV20,SV20,21,VZV21	10/1987 - 08/1988	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32420	CV20,SV2#	10/1986 - 10/1987	1
82817-32420	CV20,SV20,21,VZV21	10/1987 - 08/1988	2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32310	CV20,SV2#	10/1986 - 10/1987	1
82817-32310	CV20,SV20,21,VZV21	10/1987 - 03/1988	1
82823 - CAP, TERMINAL, NO.1
82823-22050	SV2# ALTERNATOR	10/1986 - 10/1987	1
82823-20030	SV2# STARTER	10/1986 - 10/1987	1
82823-20030	SV2# ST	10/1987 - 08/1988	1
82823-22050	SV2# ALTERNATOR	10/1987 - 08/1988	1
82823 - CAP, TERMINAL, NO.1
82823-22050	SV2# ALTERNATOR	10/1986 - 10/1987	1
82823-20030	SV2# STARTER	10/1986 - 10/1987	1
82823-20030	SV2# ST	10/1987 - 08/1988	1
82823-22050	SV2# ALTERNATOR	10/1987 - 08/1988	1
Common parts
82711-22270
86394-22010
90119-06005
90119-06067
90179-06054
91651-41016
93567-55016

ILLUST NO. 2 OF 5(8610- )WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-32390	CV20,SV2#..WG..LHD	10/1986 - 08/1987	1
82161-32391	CV20,SV2#..WG..LHD	08/1987 - 10/1987	1
82161-32391	CV20,SV20,21..WG..LHD	10/1987 - 08/1988	1
82163 - WIRE, FLOOR, NO.3
82163-32060	CV20,SV20,21,VZV21..LHD	10/1987 - 08/1988	1
82163-32060	CV20,SV2#..LHD	10/1986 - 10/1987	1
82171 - WIRE, ROOF, NO.1
82171-32100	CV20,SV2#..LHD..(XL,XLI)	10/1986 - 10/1987	1
82171-32100	CV20,SV20,21..LHD..(XL,XLI)	10/1987 - 08/1988	1
82171-32120	CV20,SV2#,VZV21..LHD W(MOON ROOF)	10/1987 - 08/1988	1
82171-32120	CV20,SV2#..LHD W/*SNR	08/1987 - 10/1987	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-32200	CV20,SV2#..WG	10/1986 - 10/1987	1
82181-32200	CV20,SV20,21..WG	10/1987 - 08/1988	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-32020	CV20,SV2#..WG W/REAR SPEAKER	10/1986 - 10/1987	1
82183-32020	CV20,SV20,21..WG W(REAR SPEAKER)	10/1987 - 08/1988	1
82183-32030	CV20,SV2#..WG	10/1986 - 10/1987	1
82183-32030	CV20,SV20,21..WG	10/1987 - 08/1988	1
82184 - WIRE, BACK DOOR, NO.1
82184-32030	CV20,SV20,21..WG	10/1987 - 08/1988	1
82184-32030	CV20,SV2#..WG	10/1986 - 10/1987	1
82185 - WIRE, BACK DOOR, NO.2
82185-32060	CV20,SV20,21..WG..LHD	10/1987 - 08/1988	1
82185-32060	CV20,SV2#..WG..LHD	10/1986 - 10/1987	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-32050	CV20,SV2#..WG	10/1986 - 10/1987	1
82817-32050	CV20,SV20,21..WG	10/1987 - 08/1988	1
Common parts
90119-06067

ILLUST NO. 4 OF 5(8610- )

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-20010	CV20,SV2#	10/1986 - 10/1987	1
82981-20010	CV20,SV2#,VZV21	10/1987 - 08/1988	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-22050	CV20,SV2#,VZV21	10/1987 - 08/1988	1
82982-22050	CV20,SV2#	10/1986 - 10/1987	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-32010	CV20,SV2#	10/1986 - 10/1987	1
82983-32010	CV20,SV2#,VZV21	10/1987 - 08/1988	1
82984 - WIRE, HORN REPAIR
82984-20010	CV20,SV2#	10/1986 - 10/1987	1
82984-20010	CV20,SV2#,VZV21	10/1987 - 08/1988	1
82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR
82985-20010	CV20,SV2#	10/1986 - 10/1987	1
82985-20010	CV20,SV2#,VZV21	10/1987 - 08/1988	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20050	SV2#,VZV21 NO.2	10/1987 - 08/1988	1
82991-20050	CV20,SV2# NO.2	10/1986 - 10/1987	1
Common parts
82981-20010
82982-22050
82983-32010
82984-20010
82985-20010
82991-20010

ILLUST NO. 4 OF 5(8610- )

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20050	SV2#,VZV21 NO.2	10/1987 - 08/1988	1
82991-20050	CV20,SV2# NO.2	10/1986 - 10/1987	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20050	SV2#,VZV21 NO.2	10/1987 - 08/1988	1
82991-20050	CV20,SV2# NO.2	10/1986 - 10/1987	1
Common parts
82911-20050
82991-32060

ILLUST NO. 5 OF 5(8610- )

Click highlighted areas on diagram

DIODE

Part #	Description	Period	Qty
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
82345 - DIODE
82345-20040	CV20,SV2# COWL WIRE,NO.2	10/1986 - 10/1987	2
82345-20060	CV20,SV2# COWL WIRE,NO.4	10/1986 - 10/1987	1
82345-20040	CV20,SV2#,VZV21..LHD COWL WIRE,NO.2	10/1987 - 08/1988	1
82345-20060	CV20,SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20040	CV20,SV2#,VZV21..LHD FLOOR,NO,2	03/1988 - 08/1988	1
Common parts
82345-12050
82345-20040
82345-20050
82345-20060
82345-22051
82345-32010
82345-32020

SV20LG-UWMDSW (1986)

ILLUST NO. 3 OF 5(8610- )

ILLUST NO. 3 OF 5(8610- )

ILLUST NO. 1 OF 5(8610- )SV20

ILLUST NO. 2 OF 5(8610- )WG

ILLUST NO. 4 OF 5(8610- )

ILLUST NO. 4 OF 5(8610- )

ILLUST NO. 5 OF 5(8610- )

Part Price Details
