SV20LG-UWMDSW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 1S
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

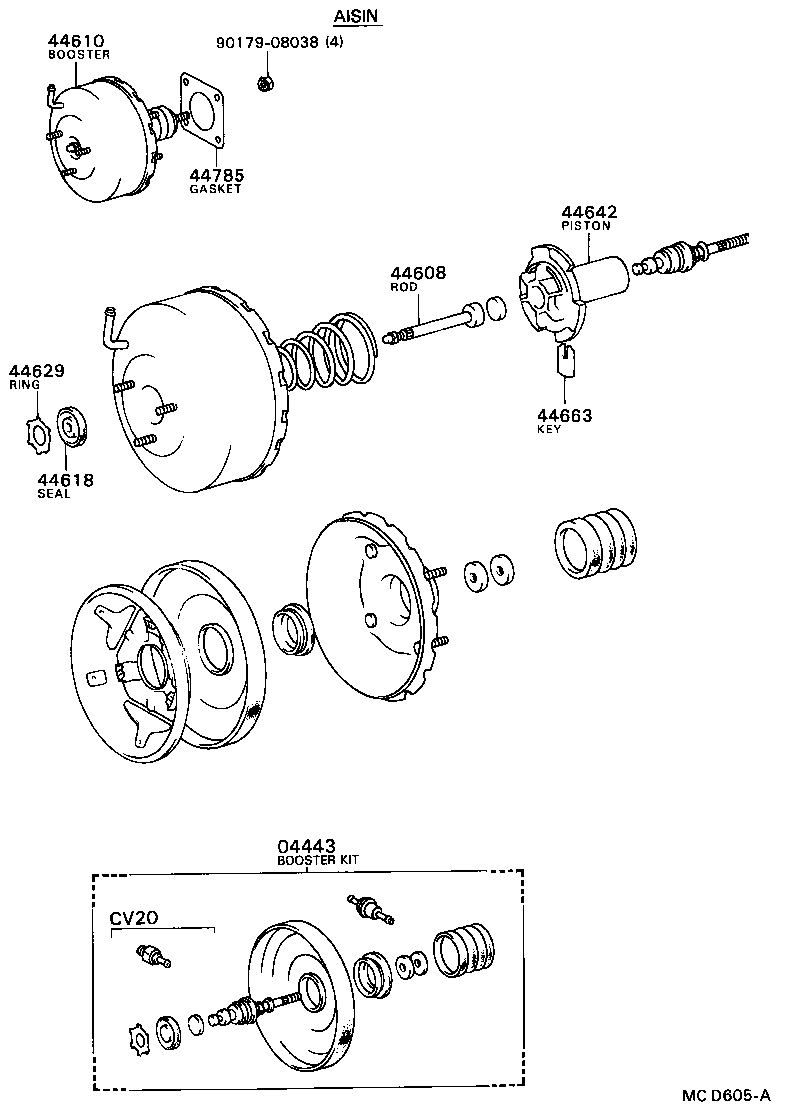

ILLUST NO. 1 OF 2(8610- )CV20,SV20

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-32210

SV20

 1
04443-32210

SV20

AISIN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

CV20,SV20

 1
44610 - BOOSTER ASSY, BRAKE
44610-32200

CV20,SV20..LHD

 1
44618 - SEAL, BOOSTER BODY
44621-28120

CV20,SV20

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

CV20,SV20

 1
44642 - PISTON, BRAKE BOOSTER
44642-32030

CV20,SV20

 1
44663 - KEY, VALVE STOPPER
44635-28120

CV20,SV20

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CV20,SV2#,VZV21

 1
44785-32010

CV20,SV2#

 1
Common parts
90179-08038

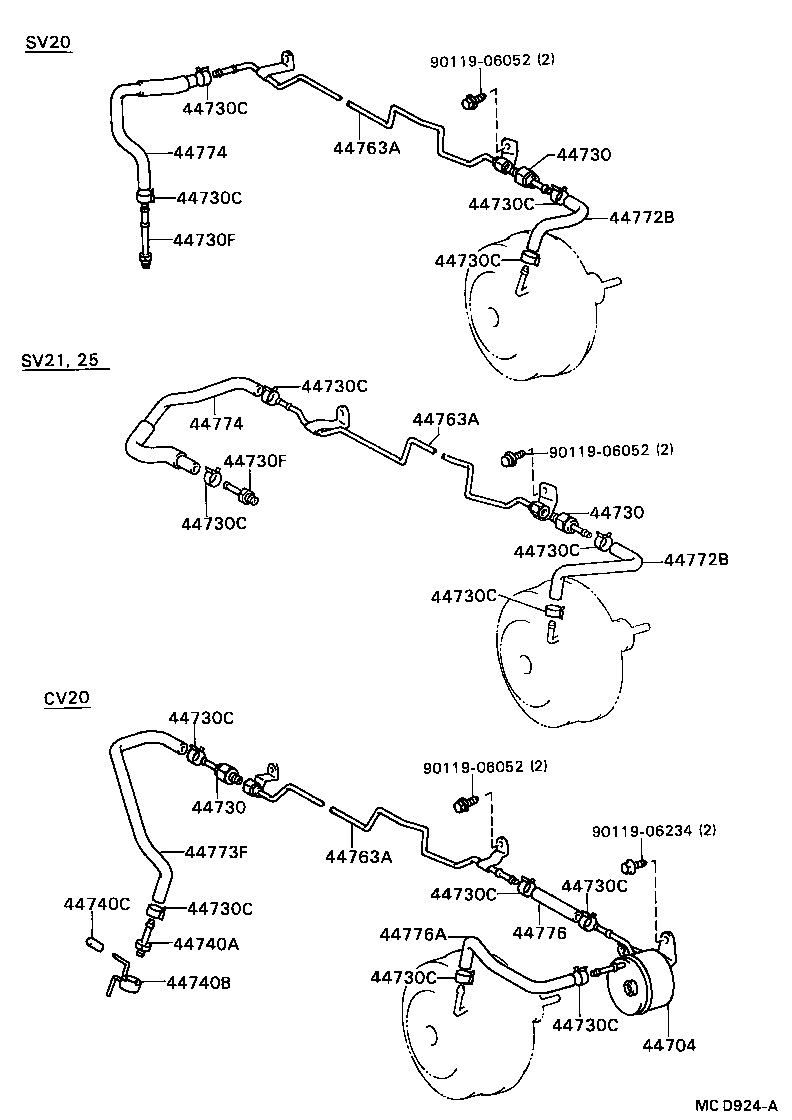

ILLUST NO. 2 OF 2(8610- )CV20,SV2#..LHD

Click highlighted areas on diagram

diagram 44704 44730 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44740A 44740B 44740C 44763A 44763A 44763A 44772B 44772B 44773F 44774 44774 44776 44776A 9011906052 9011906052 9011906052 9011906234
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

SV2#,VZV21..LHD

 1
44580-22030

SV2#..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

SV2#,VZV21..LHD

 1
44580-22030

SV2#..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

SV2#,VZV21..LHD

 1
44580-22030

SV2#..LHD

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21..LHD

 4
90467-16002

CV20,SV2#

 6
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

SV20

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

SV20

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-32060

SV20

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-32060

SV20

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-32060

SV20

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-32040

SV20

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-32040

SV20

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-32050

SV20

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-32050

SV20

 1
Common parts
90119-06052
90119-06234
