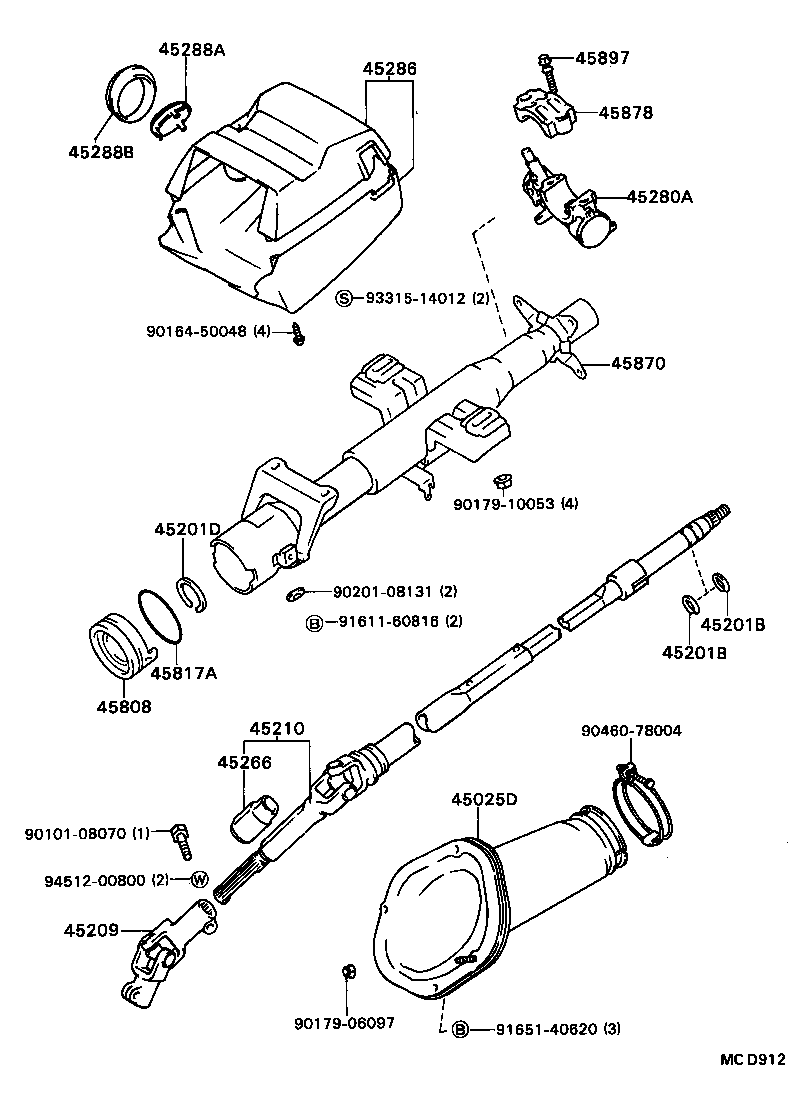

SV20LG-UWMDSW (1986)
Toyota Camry
(8610- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-32060 |
CV20,SV2#..LHD |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-26016 |
CV20,SV2#..LHD |
2 | ||
| 90506-26016 |
SV20 |
2 | ||
| 90506-26016 |
SV20,21..LHD |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
CV20,SV2#..LHD L=122,L=124.75 |
2 | ||
| 90945-02052 |
SV20 L=122 |
2 | ||
| 90945-02078 |
CV20,SV2#..LHD L=123,L=133.25 |
2 | ||
| 90945-02078 |
SV20 L=123 |
2 | ||
| 90945-02052 |
SV20,21..LHD L=122 |
2 | ||
| 90945-02078 |
SV20,21..LHD L=123 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-32040 |
CV20,SV2#..LHD |
1 | ||
| 45082-32040 |
SV20,21..LHD |
1 | ||
| 45082-32040 |
SV20 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
CV20,SV2#..LHD |
1 | ||
| 90363-28001 |
SV20,21..LHD |
1 | ||
| 90363-28001 |
SV20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV20,SV2# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV20,SV2# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
SV20 T=1.20 |
1 | ||
| 90520-17196 |
CV20,SV2# T=1.35-1.45 |
2 | ||
| 90520-17042 |
SV20,21..LHD T=1.20 |
1 | ||
| 90520-17042 |
CV20,SV2# T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 90520-28061 |
CV20,SV2# |
1 | ||
| 96152-00300 |
SV20 W(TILT STEERING) |
1 | ||
| 96152-00300 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CV20,SV2#..LHD |
1 | ||
| 90501-45011 |
SV20 |
1 | ||
| 90501-45011 |
SV20,21..LHD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-32080 |
CV20,SV2#..LHD |
1 | ||
| 45205-32080 |
SV20 |
1 | ||
| 45205-32080 |
SV20,21..LHD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
SV2#..LHD |
1 | ||
| 45209-32020 |
CV20,SV2# W/POWER STEERING |
1 | ||
| 45209-32020 |
SV20,21..LHD W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-32010 |
SV20,21..LHD |
1 | ||
| 45209-32020 |
SV20 W(TILT STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-32120 |
SV2#..LHD |
1 | ||
| 45210-32140 |
SV20 W(TILT STEERING) |
1 | ||
| 45210-32140 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45210-32140 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45210-32120 |
SV20,21..LHD |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CV20,SV2#..LHD |
1 | ||
| 45215-22011 |
SV20,21..LHD |
1 | ||
| 45215-22011 |
SV20 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-32060 |
SV20,21..LHD W(TILT STEERING & POWER STEERING) |
1 | ||
| 45220-32050 |
SV2#..LHD |
1 | ||
| 45220-32060 |
SV20 W(TILT STEERING & POWER STEERING) |
1 | ||
| 45220-32050 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45220-32060 |
CV20,SV2#..LHD W/POWER STEERING |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
CV20,SV2# |
1 | ||
| 45266-20010 |
SV20,21..LHD |
1 | ||
| 45266-20010 |
SV20 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-32110 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45280-32110 |
SV20 W(TILT STEERING) |
1 | ||
| 45280-32110 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45280-32100 |
CV20,SV2#..LHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3291301 |
CV20,SV2#..LHD BLACK,W/TILT STEERING,BLACK |
1 | ||
| 45286-3291001 |
CV20,SV2#..LHD BLACK,BLACK |
1 | ||
| 45286-3291701 |
CV20,SV20,21,VZV21..LHD BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-32040 |
SV25..LHD;CV20,SV20,21..LHD..(XL,XLI) |
1 | ||
| 45288-32040 |
CV20,SV2#..LHD..(XL,XLI) |
1 | ||
| 45288B - COVER, STEERING COLUMN, UPPER | ||||
| 45288-3203101 |
CV20,SV2#..LHD BLACK,TRIM1#,4#,8# |
1 | ||
| 45288-3203001 |
CV20,SV2#..LHD BLACK,BLACK |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-32020 |
SV20,21..LHD |
1 | ||
| 45289-32020 |
CV20,SV2#..LHD |
1 | ||
| 45289-32020 |
SV20 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-32020 |
SV20,21..LHD |
1 | ||
| 45804-32020 |
CV20,SV2#..LHD |
1 | ||
| 45804-32020 |
SV20 |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90506-13001 |
SV20 |
1 | ||
| 90506-13001 |
SV20,21..LHD |
1 | ||
| 90506-13001 |
CV20,SV2#..LHD |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 45808-32010 |
CV20,SV2# |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-32010 |
SV20,21..LHD |
1 | ||
| 45809-32010 |
CV20,SV2#..LHD |
1 | ||
| 45809-32010 |
SV20 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-30010 |
CV20,SV2#..LHD OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-30020 |
CV20,SV2#..LHD OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45813-30050 |
CV20,SV2#..LHD OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45813-30030 |
CV20,SV2#..LHD OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-30040 |
SV20 OD=18.017-18.024 |
1 | ||
| 45813-30011 |
SV20 OD=17.996-18.003 |
1 | ||
| 45813-30020 |
SV20 OD=18.003-18.010 |
1 | ||
| 45813-30040 |
CV20,SV2#..LHD OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45813-30050 |
SV20 OD=17.989-17.996 |
1 | ||
| 45813-30030 |
SV20 OD=18.010-18.017 |
1 | ||
| 45813-30030 |
SV20,21..LHD OD=18.010-18.017 |
1 | ||
| 45813-30011 |
SV20,21..LHD OD=17.996-18.003 |
1 | ||
| 45813-30050 |
SV20,21..LHD OD=17.989-17.996 |
1 | ||
| 45813-30020 |
SV20,21..LHD OD=18.003-18.010 |
1 | ||
| 45813-30040 |
SV20,21..LHD OD=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-32010 |
CV20,SV2#..LHD OD=18.000-17.993,OD=17.993-18.000 |
1 | ||
| 45814-32020 |
SV20 OD=18.018-18.011 |
1 | ||
| 45814-32010 |
SV20 OD=18.000-17.993 |
1 | ||
| 45814-32020 |
CV20,SV2#..LHD OD=18.018-18.011,OD=18.011-18.018 |
1 | ||
| 45814-32020 |
SV20,21..LHD OD=18.018-18.011 |
1 | ||
| 45814-32010 |
SV20,21..LHD OD=18.000-17.993 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22100 |
CV20,SV2#..LHD T=1.8,T=1.8 |
2 | ||
| 45815-22090 |
CV20,SV2#..LHD T=1.4,T=1.4 |
2 | ||
| 45815-22080 |
CV20,SV2#..LHD T=0.8,T=0.8 |
2 | ||
| 45815-22070 |
SV20 T=0.5 |
1 | ||
| 45815-22090 |
SV20 T=1.4 |
1 | ||
| 45815-22070 |
CV20,SV2#..LHD T=0.5,T=0.5 |
2 | ||
| 45815-22080 |
SV20 T=0.8 |
1 | ||
| 45815-22100 |
SV20 T=1.8 |
1 | ||
| 45815-22060 |
SV20 T=0.2 |
1 | ||
| 45815-22060 |
CV20,SV2#..LHD T=0.2,T=0.2 |
2 | ||
| 45815-22090 |
SV20,21..LHD T=1.4 |
1 | ||
| 45815-22060 |
SV20,21..LHD T=0.2 |
1 | ||
| 45815-22100 |
SV20,21..LHD T=1.8 |
1 | ||
| 45815-22080 |
SV20,21..LHD T=0.8 |
1 | ||
| 45815-22070 |
SV20,21..LHD T=0.5 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
CV20,SV2#,VZV21 |
1 | ||
| 90301-54002 |
CV20,SV2# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-32010 |
SV20 |
1 | ||
| 45819-32010 |
SV20,21..LHD |
1 | ||
| 45819-32010 |
CV20,SV2#..LHD |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
SV20 |
1 | ||
| 90387-08046 |
CV20,SV2#..LHD |
1 | ||
| 90387-08046 |
SV20,21..LHD |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
SV20,21..LHD |
1 | ||
| 90540-11007 |
SV20 |
1 | ||
| 90540-11007 |
CV20,SV2#..LHD |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-32030 |
CV20,SV2#..LHD |
1 | ||
| 45826-32030 |
SV20 |
1 | ||
| 45826-32030 |
SV20,21..LHD |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
CV20,SV2#..LHD |
1 | ||
| 90507-10011 |
SV20 |
1 | ||
| 90507-10011 |
SV20,21..LHD |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
SV20 |
1 | ||
| 72538-12010 |
CV20,SV2#..LHD |
1 | ||
| 72538-12010 |
SV20,21..LHD |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-32110 |
SV20 W(TILT STEERING) |
1 | ||
| 45870-32110 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45870-32110 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45870-32070 |
CV20,SV2#..LHD |
1 | ||
| 45876 - GUIDE, TURN SIGNAL CORD | ||||
| 45876-32020 |
SV20 |
1 | ||
| 45876-32020 |
SV20,21..LHD |
1 | ||
| 45876-32020 |
CV20,SV2#..LHD |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-32010 |
SV20 |
1 | ||
| 45890-32010 |
CV20,SV2#..LHD |
1 | ||
| 45890-32010 |
SV20,21..LHD |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
CV20,SV2#..LHD |
1 | ||
| 90560-13008 |
SV20 |
1 | ||
| 90560-13008 |
SV20,21..LHD |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22020 |
SV20 |
1 | ||
| 45898-22020 |
CV20,SV2#..LHD |
1 | ||
| 45898-22020 |
SV20,21..LHD |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-22060 |
CV20,SV2#..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CV20,SV2# |
2 | ||
| 45897-32010 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45897-32010 |
SV20 W(TILT STEERING) |
1 | ||
| 45897-32010 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
SV20 |
1 | ||
| 45899-22020 |
CV20,SV2#..LHD |
1 | ||
| 45899-22020 |
SV20,21..LHD |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90109-08104 | ||||
| 90114-08013 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 91651-40620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
(8610- )CV20,SV2#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-32060 |
CV20,SV2#..LHD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV20,SV2# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV20,SV2# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
SV20 T=1.20 |
1 | ||
| 90520-17196 |
CV20,SV2# T=1.35-1.45 |
2 | ||
| 90520-17042 |
SV20,21..LHD T=1.20 |
1 | ||
| 90520-17042 |
CV20,SV2# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV20,SV2# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV20,SV2# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
SV20 T=1.20 |
1 | ||
| 90520-17196 |
CV20,SV2# T=1.35-1.45 |
2 | ||
| 90520-17042 |
SV20,21..LHD T=1.20 |
1 | ||
| 90520-17042 |
CV20,SV2# T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 90520-28061 |
CV20,SV2# |
1 | ||
| 96152-00300 |
SV20 W(TILT STEERING) |
1 | ||
| 96152-00300 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
SV2#..LHD |
1 | ||
| 45209-32020 |
CV20,SV2# W/POWER STEERING |
1 | ||
| 45209-32020 |
SV20,21..LHD W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-32010 |
SV20,21..LHD |
1 | ||
| 45209-32020 |
SV20 W(TILT STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-32120 |
SV2#..LHD |
1 | ||
| 45210-32140 |
SV20 W(TILT STEERING) |
1 | ||
| 45210-32140 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45210-32140 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45210-32120 |
SV20,21..LHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
SV20,21..LHD |
1 | ||
| 45266-20010 |
CV20,SV2# |
1 | ||
| 45266-20010 |
SV20 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-32110 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45280-32110 |
SV20 W(TILT STEERING) |
1 | ||
| 45280-32110 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45280-32100 |
CV20,SV2#..LHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3291301 |
CV20,SV2#..LHD BLACK,W/TILT STEERING,BLACK |
1 | ||
| 45286-3291001 |
CV20,SV2#..LHD BLACK,BLACK |
1 | ||
| 45286-3291701 |
CV20,SV20,21,VZV21..LHD BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-32040 |
SV25..LHD;CV20,SV20,21..LHD..(XL,XLI) |
1 | ||
| 45288-32040 |
CV20,SV2#..LHD..(XL,XLI) |
1 | ||
| 45288B - COVER, STEERING COLUMN, UPPER | ||||
| 45288-3203101 |
CV20,SV2#..LHD BLACK,TRIM1#,4#,8# |
1 | ||
| 45288-3203001 |
CV20,SV2#..LHD BLACK,BLACK |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 45808-32010 |
CV20,SV2# |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
CV20,SV2#,VZV21 |
1 | ||
| 90301-54002 |
CV20,SV2# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-32110 |
SV20 W(TILT STEERING) |
1 | ||
| 45870-32110 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45870-32110 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| 45870-32070 |
CV20,SV2#..LHD |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-32040 |
CV20,SV2#..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CV20,SV2# |
2 | ||
| 45897-32010 |
CV20,SV2#..LHD W/TILT STEERING |
1 | ||
| 45897-32010 |
SV20 W(TILT STEERING) |
1 | ||
| 45897-32010 |
SV20,21..LHD W(TILT STEERING) |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10053 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-60816 | ||||
| 91651-40620 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
