SV20LG-UWMDSW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
1S
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )CV20,SV2#..LHD..5F

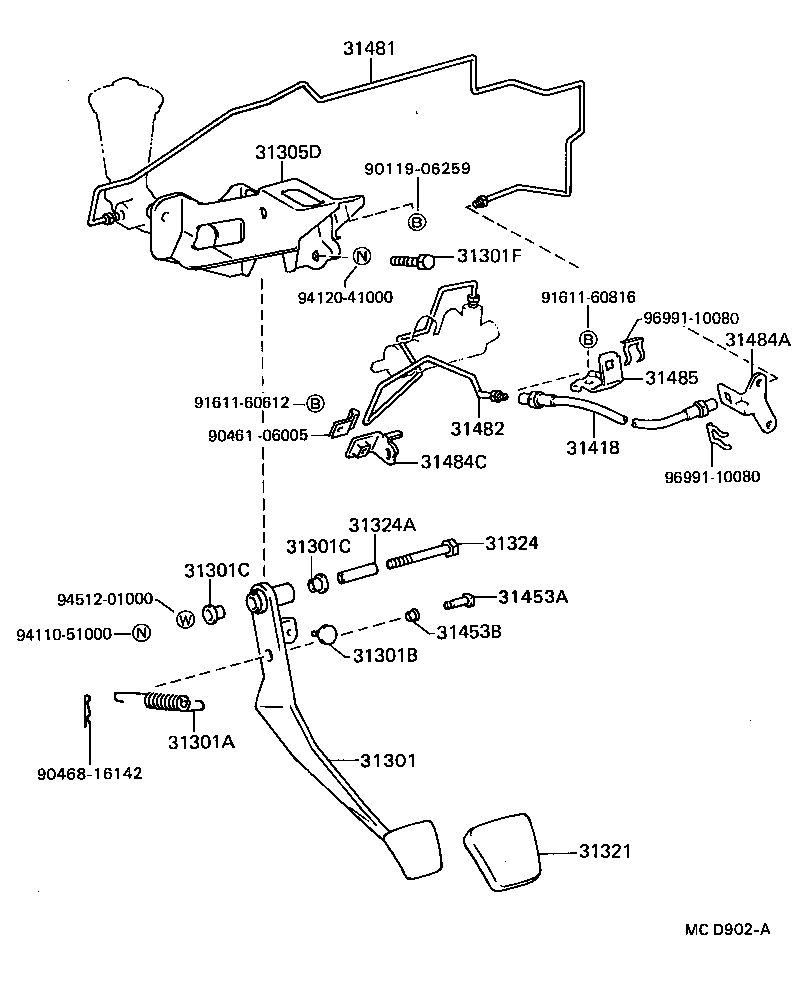

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-32081 |
CV20,SV2#..LHD..5F |
1 | ||
| 31301-32080 |
CV20,SV2#..LHD..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14024 |
CV20,SV2#..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
CV20,SV2#..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CV20,SV2#,VZV21..5F |
2 | ||
| 90386-13015 |
CV20,SV2#..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CV20,SV2#,VZV21..5F |
2 | ||
| 90386-13015 |
CV20,SV2#..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
CV20,SV2#,VZV21..5F |
1 | ||
| 90101-10369 |
CV20,SV2#..5F |
1 | ||
| 31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-32070 |
CV20,SV2#..LHD..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
CV20,SV2#..5F |
1 | ||
| 31321-14020 |
CV20,SV2#,VZV21..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
CV20,SV2#..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
CV20,SV2#,VZV21..5F |
1 | ||
| 90387-10003 |
CV20,SV2#..5F |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 96816-50395 |
SV2#..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08143 |
CV20,SV2#,VZV21..5F L=30 |
1 | ||
| 90249-08143 |
CV20,SV2#..5F L=30 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08036 |
CV20,SV2#..5F |
1 | ||
| 90386-08036 |
CV20,SV2#,VZV21..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-32060 |
CV20,SV2#..LHD..5F |
1 | ||
| 31481-32062 |
CV20,SV2#,VZV21..LHD..5F |
1 | ||
| 31481-32061 |
CV20,SV2#..LHD..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-32030 |
CV20,SV20..5F |
1 | ||
| 31482-32030 |
CV20,SV20..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-32060 |
CV20,SV2#,VZV21..5F |
1 | ||
| 31484-32060 |
CV20,SV2#..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CV20,SV2#..5F |
1 | ||
| 31484-32050 |
CV20,SV20,21..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-32070 |
CV20,SV2#..5F |
1 | ||
| 31484-32070 |
CV20,SV2#,VZV21..5F |
1 | ||
| Common parts | ||||
| 90119-06259 | ||||
| 90461-06005 | ||||
| 90468-16142 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 96991-10080 | ||||
