SV20LG-UWMDSW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
1S
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )1S

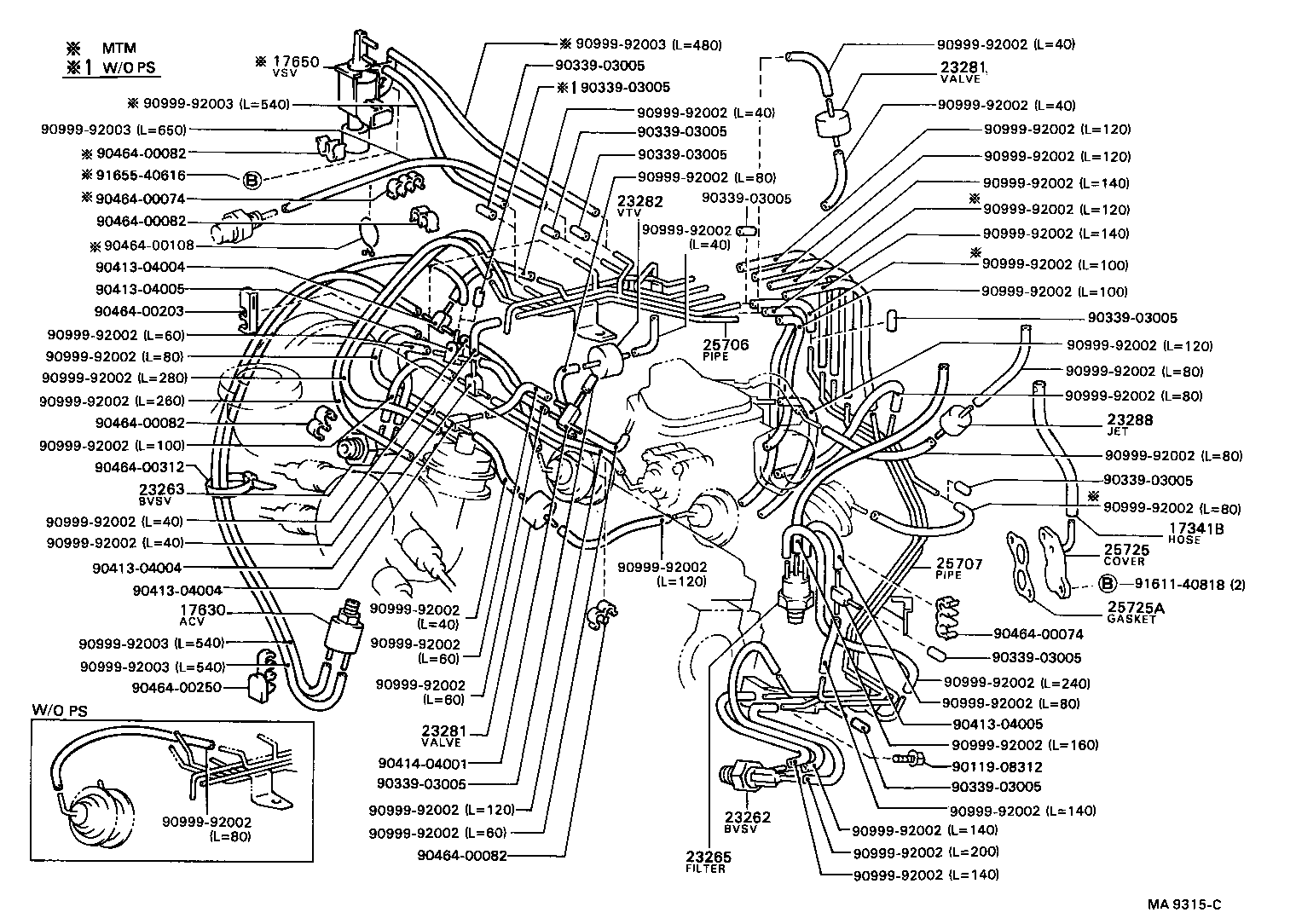

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 90445-11040 |
1S..SV20 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1S..SV20 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12050 |
1S..SV20..5F |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
1S..SV20 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05056 |
1S..SV20 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1S..SV20 |
1 | ||
| 90917-11024 |
1S..SV20 ND |
1 | ||
| 90917-11027 |
1S..SV20 AISAN |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01062 |
1S..SV20 |
1 | ||
| 90925-01062 |
1S..SV20 |
2 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01062 |
1S..SV20 |
1 | ||
| 90925-01062 |
1S..SV20 |
2 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01092 |
1S..SV20 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
1S..SV20 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-63090 |
1S..SV20 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-63100 |
1S..SV20 |
1 | ||
| 25725 - COVER, EMISSION CONTROL VALVE | ||||
| 25725-63021 |
1S..SV20 |
1 | ||
| 25725A - GASKET, EMISSION CONTROL VALVE COVER | ||||
| 25627-63020 |
1S..SV20 |
1 | ||
| Common parts | ||||
| 90119-08312 | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90464-00203 | ||||
| 90464-00250 | ||||
| 90464-00312 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-40818 | ||||
| 91655-40616 | ||||
(8610- )1S,3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
