SV20LG-UWMDSW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 1S
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )1S

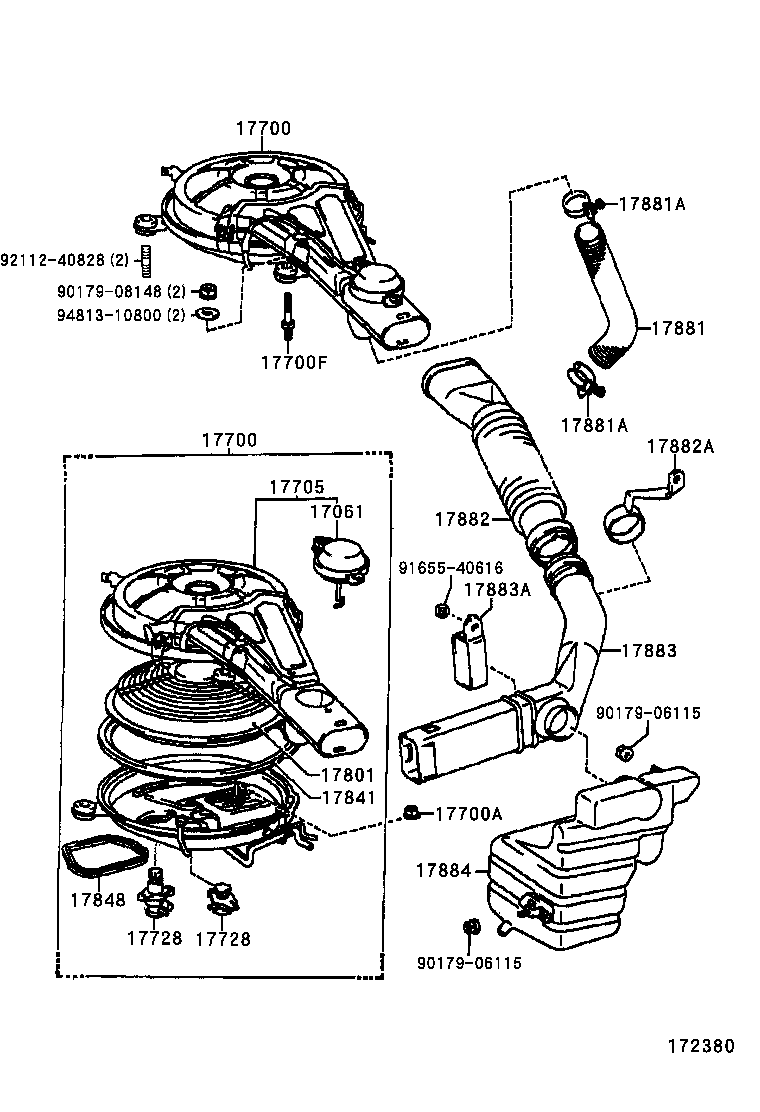

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17705 17728 17728 17801 17841 17848 17881 17881A 17881A 17882 17882A 17883 17883A 17884 9017906115 9017906115 9017908148 9165540616 9211240828 9481310800
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-63030

1S..SV20

 1
17700 - CLEANER ASSY, AIR
17700-63150

1S..SV20

 1
17700 - CLEANER ASSY, AIR
17700-63150

1S..SV20

 1
17700A - NUT, WING(FOR AIR CLEANER)
90179-06060

1S..SV20

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06019

1S..SV20

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63080

1S..SV20

 1
17728 - VALVE, THERMOSTATIC
17728-63040

1S..SV20

HAI

 1
17728-63030

1S..SV20

ITC

 1
17728-63040

1S..SV20

HAI

 1
17728-63030

1S..SV20

ITC

 1
17728 - VALVE, THERMOSTATIC
17728-63040

1S..SV20

HAI

 1
17728-63030

1S..SV20

ITC

 1
17728-63040

1S..SV20

HAI

 1
17728-63030

1S..SV20

ITC

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-63020

1S..SV20

 1
17841 - GASKET, FILTER ELEMENT
17841-63010

1S..SV20

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

1S..SV20

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13120

1S..SV20

 1
17881-74040

1S..SV20

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

1S..SV20

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

1S..SV20

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-32010

1S..SV20

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-60002

1S..SV20

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-63100

1S..SV20

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01047

1S..SV20

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-63030

1S,3SFE..SV2#

 1
Common parts
90179-06115
90179-08148
91655-40616
92112-40828
94813-10800
