SV20LG-UWMDSW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 1S
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

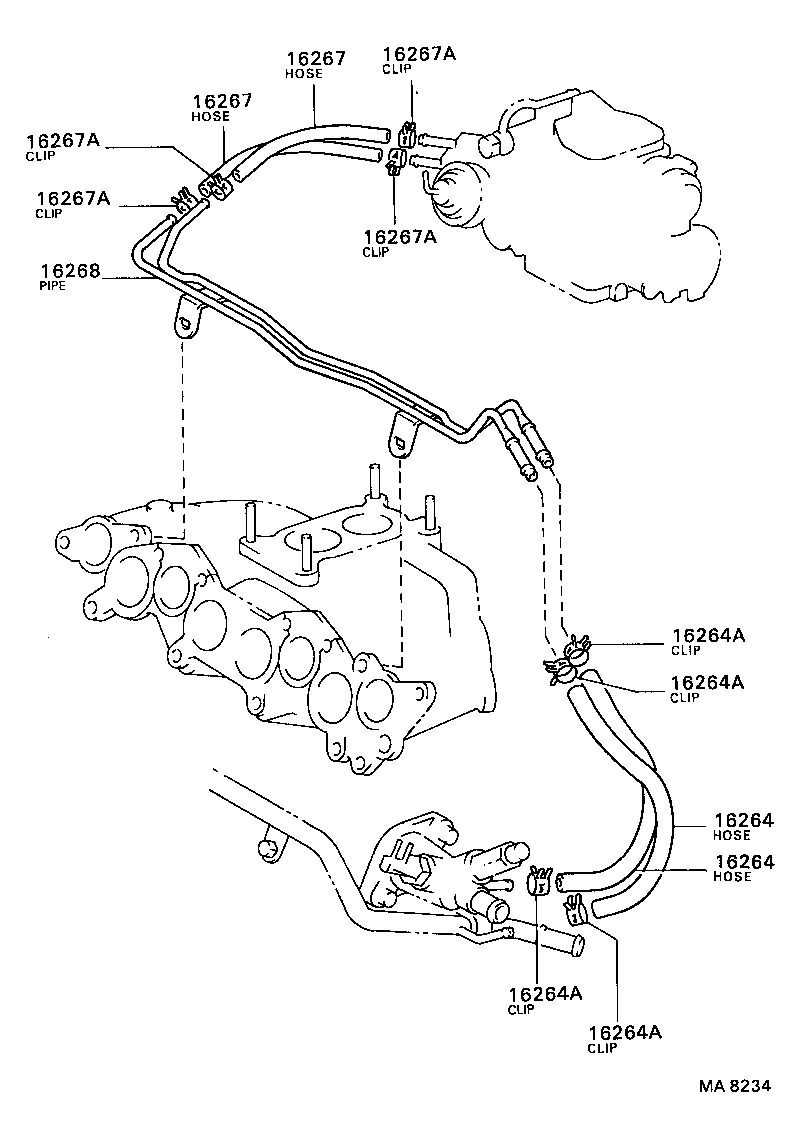

ILLUST NO. 2 OF 3(8610- )1S

Click highlighted areas on diagram

diagram 16264 16264 16264A 16264A 16264A 16264A 16267 16267 16267A 16267A 16267A 16267A 16268
Part # Description Qty Price
16264 - HOSE, WATER BY-PASS, NO.2
99555-10230

1S..SV20

*H,L=230

 2
16264 - HOSE, WATER BY-PASS, NO.2
99555-10230

1S..SV20

*H,L=230

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13001

1S..SV20

 4
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13001

1S..SV20

 4
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13001

1S..SV20

 4
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13001

1S..SV20

 4
16267 - HOSE, WATER BY-PASS, NO.3
99555-00140

1S..SV20

*H,L=140

 2
16267 - HOSE, WATER BY-PASS, NO.3
99555-00140

1S..SV20

*H,L=140

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

1S..SV20

 4
90467-11009

1S..SV20

 4
90467-11049

1S..SV20

 4
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

1S..SV20

 4
90467-11009

1S..SV20

 4
90467-11049

1S..SV20

 4
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

1S..SV20

 4
90467-11009

1S..SV20

 4
90467-11049

1S..SV20

 4
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

1S..SV20

 4
90467-11009

1S..SV20

 4
90467-11049

1S..SV20

 4
16268 - PIPE, WATER BY-PASS, NO.1
16268-63020

1S..SV20

 1
16268-63010

1S..SV20

 1

ILLUST NO. 3 OF 3(8610- )1S,3SFE

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16443 16451 16452 16461 16462 16463 16491 16491A 16491B 16491C 16491D 16495 16535
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-74120

1S,3SFE..SV2#..5F

 1
16400-74120

1S,3SFE..SV2#..5F

 1
16400-74120

1S,3SFE..SV20,21..5F

 1
16400-74120

1S,3SFE..SV20,21..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1S,3SFE..SV2#

 1
23322-54010

1S,3SFE..SV2#

 1
23322-54010

1S,3SFE..SV2#

 1
23322-54010

1S,3SFE..SV2#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

1S,3SFE..SV2#

 1
96711-19007

1S,3SFE..SV2#

 1
96711-19007

1S,3SFE..SV2#

 1
96711-19007

1S,3SFE..SV2#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1S,3SFE..SV2#

 1
16401-63010

1S,3SFE..SV2#

 1
16401-63010

1S,3SFE..SV2#

 1
16401-63010

1S,3SFE..SV2#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-74120

1S,3SFE..SV2#..5F

 1
16403-74120

1S,3SFE..SV2#..5F

 1
16403-74120

1S,3SFE..SV20,21..5F

 1
16403-74120

1S,3SFE..SV20,21..5F

 1
16441 - TANK, RADIATOR, UPPER
16441-74040

1S,3SFE..SV2#

 1
16441-74040

1S,3SFE..SV2#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-63030

1S,3SFE..SV2#

 1
16442-63030

1S,3SFE..SV2#

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-15321

1S,3SFE..SV2#

 2
16443-15321

1S,3SFE..SV2#

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-63030

1S,3SFE..SV2#

 1
16451-63030

1S,3SFE..SV2#

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-63030

1S,3SFE..SV2#

 1
16452-63030

1S,3SFE..SV2#

 1
16461 - TANK, RADIATOR, LOWER
16461-74120

1S,3SFE..SV2#..5F

 1
16461-74120

1S,3SFE..SV2#..5F

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-63030

1S,3SFE..SV2#

 1
16462-63030

1S,3SFE..SV2#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-15320

1S,3SFE..SV2#

 2
16463-15320

1S,3SFE..SV2#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74030

1S,3SFE..SV2#

 2
16535-74030

1S,3SFE..SV2#

 2

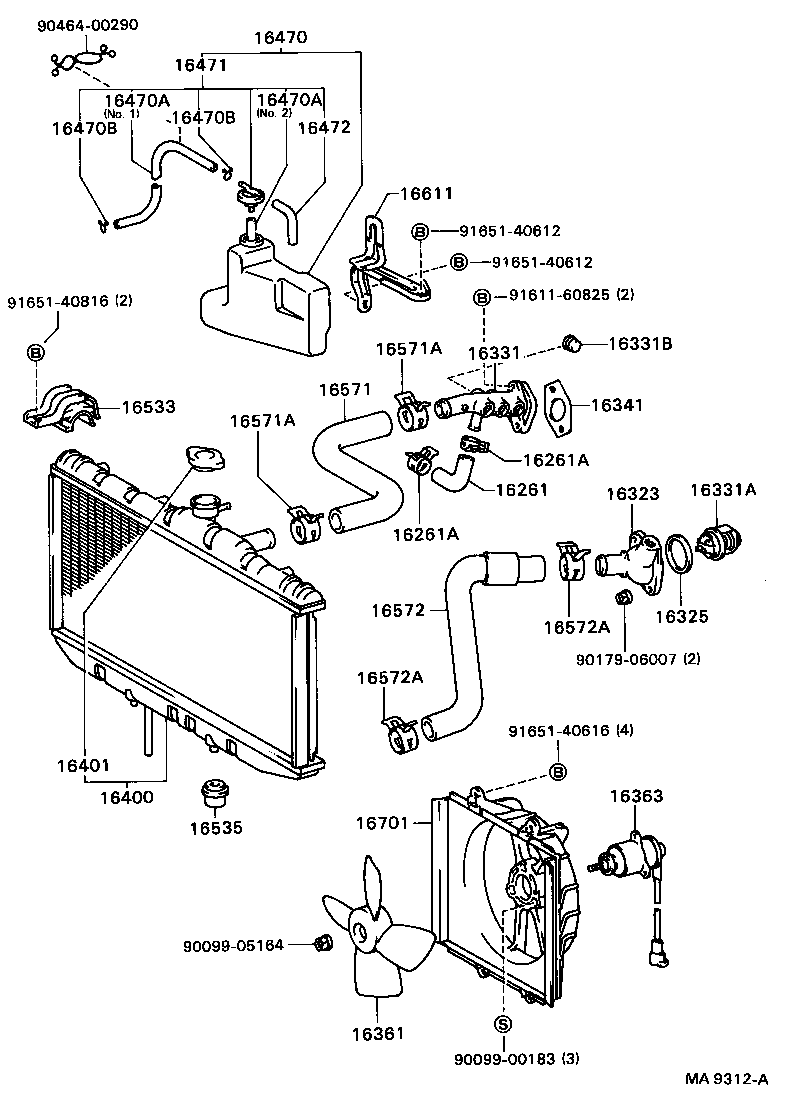

ILLUST NO. 1 OF 3(8610- )1S

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16323 16325 16331 16331A 16331B 16341 16361 16363 16400 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16611 16701 9009900183 9009905164 9017906007 9046400290 9161160825 9165140612 9165140612 9165140616 9165140816
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-63010

1S..SV20

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-21001

1S..SV20

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-21001

1S..SV20

 2
16323 - HOUSING, WATER INLET
16323-63020

1S..SV20

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1S,3SFE..SV2#

 1
16331 - OUTLET, WATER
16331-63070

1S..SV20

 1
16331A - THERMOSTAT
90916-03046

1S,3SFE..SV2#

*WAX 82-95

 1
90916-03046

1S,3SFE..SV2#

*WAX 82-95

 1
16331B - PLUG(FOR WATER OUTLET)
90344-53011

1S..SV20..5F

 1
90344-53011

1S..SV20..5F;3SFE..SV21,25..5F..FRG

 1
90344-53011

1S..SV20..5F

 1
16341 - GASKET, WATER OUTLET
16341-63010

1S,3SFE..SV2#

 1
16361 - FAN
16361-63040

1S,3SFE..SV2#..5F

 1
16361-63040

3SFE..SV25..EUG;1S,3SFE..SV20,21..5F

 1
16363 - MOTOR, COOLING FAN
16363-10010

1S,3SFE..SV2#..5F

 1
16400 - RADIATOR ASSY
16400-74120

1S,3SFE..SV2#..5F

 1
16400-74120

1S,3SFE..SV20,21..5F

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1S,3SFE..SV2#

 1
16401-63010

1S,3SFE..SV2#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-74040

1S,3SFE..SV2#

 1
16470-74041

1S,3SFE..SV2#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

1S,3SFE..SV2#

L=600,NO.1,NO.2

 1
90445-12078

1S,3SFE..SV2#

*H,L=170,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

1S,3SFE..SV2#

L=600,NO.1,NO.2

 1
90445-12078

1S,3SFE..SV2#

*H,L=170,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1S,3SFE..SV2#

 2
90467-11085

1S,3SFE..SV2#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1S,3SFE..SV2#

 2
90467-11085

1S,3SFE..SV2#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-74030

1S,3SFE..SV2#

 1
16405-74031

1S,3SFE..SV2#

 1
16472 - HOSE, BREATHER
85338-10020

1S,3SFE..SV2#

 1
85338-74040

1S,3SFE..SV2#

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-74040

1S,3SFE..SV2#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74030

1S,3SFE..SV2#

 2
16571 - HOSE, RADIATOR, INLET
16571-63050

1S..SV20

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

1S,3SFE..SV2#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

1S,3SFE..SV2#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-74050

1S,3SFE..SV2#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

1S,3SFE..SV2#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

1S,3SFE..SV2#

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-74030

1S,3SFE..SV2#

 1
16611-74030

1S,3SFE..SV2#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-74070

1S,3SFE..SV2#..5F

 1
16711-74070

3SFE..SV25..EUG;1S,3SFE..SV20,21..5F

 1
Common parts
90099-00183
90099-05164
90179-06007
90464-00290
91611-60825
91651-40612
91651-40616
91651-40816
