SV20LG-UWMDSW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
1S
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )1S

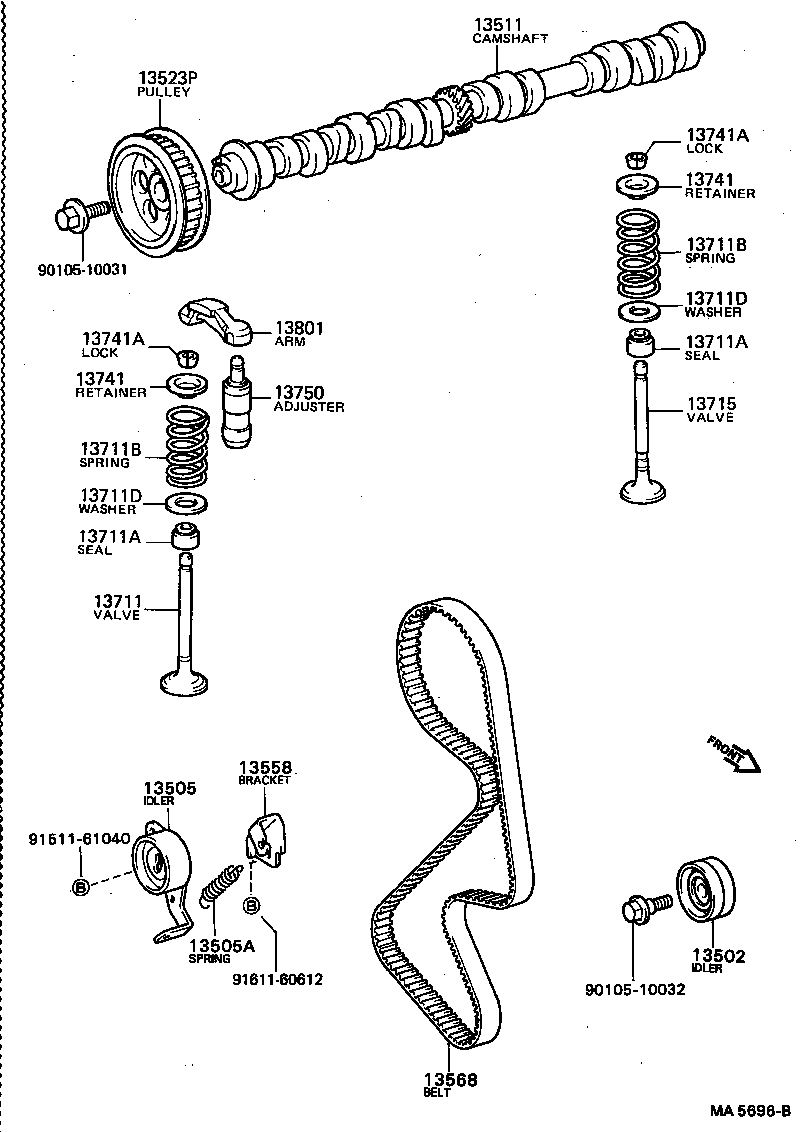

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-63010 |
1S,3SFE..SV2# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-63010 |
1S..SV20 |
1 | ||
| 13505-63021 |
1S..SV20 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-20039 |
1S..SV20 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-63010 |
1S..SV20 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-63021 |
1S..SV20 |
1 | ||
| 13523-63020 |
1S..SV20 |
1 | ||
| 13558 - BRACKET, SPRING(FOR IDLER) | ||||
| 13558-63010 |
1S..SV20 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-63020 |
1S..SV20 |
1 | ||
| 13568-63021 |
1S..SV20 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-63010 |
1S..SV20 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02075 |
1S..SV20 |
8 | ||
| 90913-02057 |
1S..SV20 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02075 |
1S..SV20 |
8 | ||
| 90913-02057 |
1S..SV20 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45014 |
1S..SV20 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45014 |
1S..SV20 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-21002 |
1S..SV20 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-21002 |
1S..SV20 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-63011 |
1S..SV20 |
4 | ||
| 13715-63011 |
1S..SV20 AISAN |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-63010 |
1S..SV20 INTAKE SIDE |
4 | ||
| 13740-43010 |
1S..SV20 EXHAUST SIDE |
4 | ||
| 13741-63010 |
1S..SV20 INTAKE SIDE |
4 | ||
| 13740-43010 |
1S..SV20 EXHAUST SIDE |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-63010 |
1S..SV20 INTAKE SIDE |
4 | ||
| 13740-43010 |
1S..SV20 EXHAUST SIDE |
4 | ||
| 13741-63010 |
1S..SV20 INTAKE SIDE |
4 | ||
| 13740-43010 |
1S..SV20 EXHAUST SIDE |
4 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
1S..SV20 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
1S..SV20 |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70010 |
1S..SV20 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-63020 |
1S..SV20 |
8 | ||
| Common parts | ||||
| 90105-10031 | ||||
| 90105-10032 | ||||
| 91511-61040 | ||||
| 91611-60612 | ||||
