SV11R-UHMEEQ (1983)

Toyota Camry

Production Mar 1983 - Oct 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8406)1SL,2SE# ; (8406- )2SEL

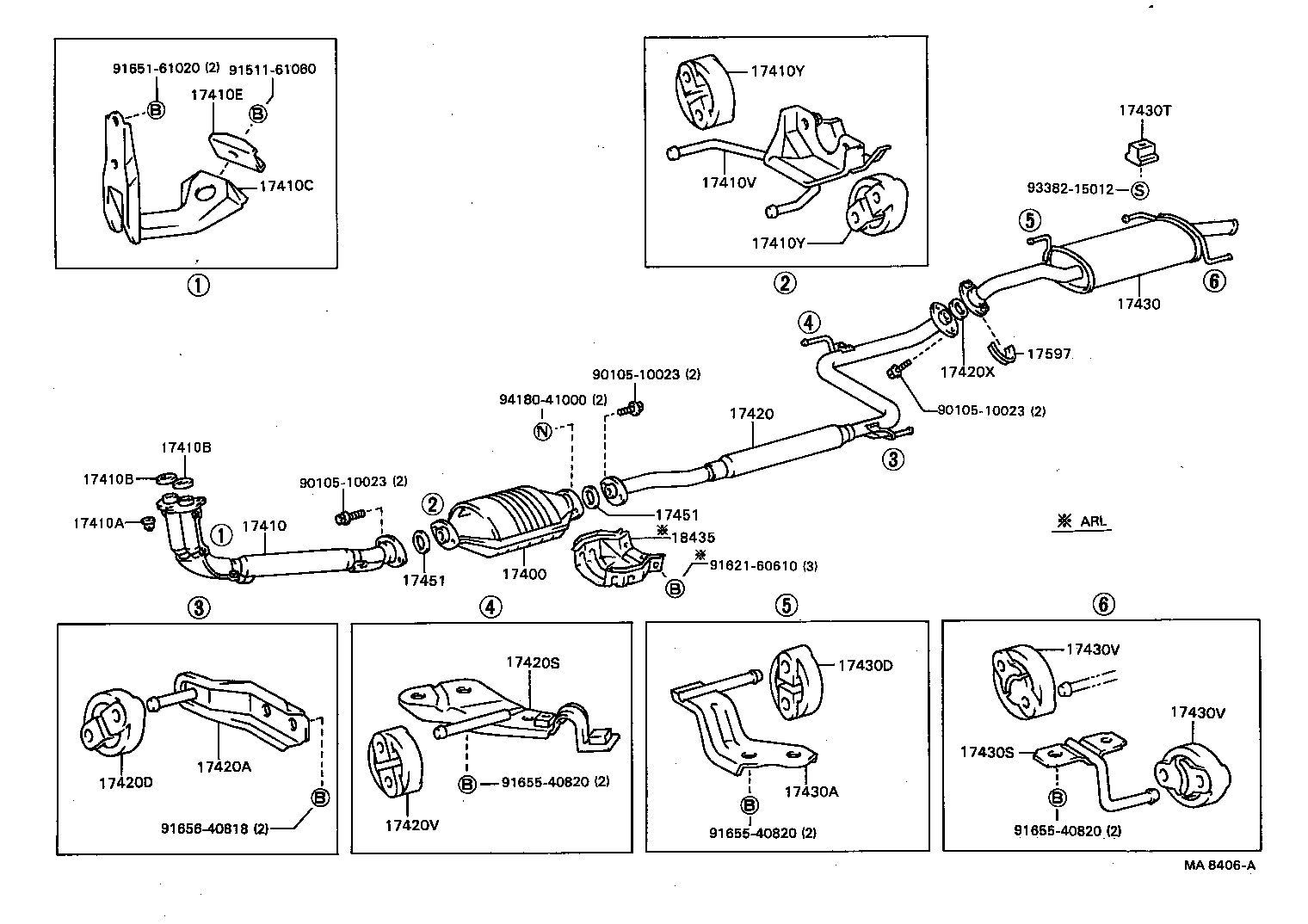

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410E 17410Y 17410Y 17420 17420A 17420D 17420S 17420S 17420V 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17597 9010510023 9010510023 9151161060 9151560825 9165161020 9165540820 9165540820 9165540820 9165640818 9165640820 9338215012
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-63080

1SL,2SELC..SV1#

 1
17410-63081

1SL,2SELC..SV1#

 1
17410-63030

1SL,2SE#..SV1#

 1
17410-63030

2SEL..SV11

 1
17410-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

1CTL,1SL,2SE#..CV10,SV1#

 3
90179-10070

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63030

1SL,2SELC..SV1#

NO.1

 1
17571-63020

2SEL..SV11

 1
17572-63040

1SL,2SELC..SV1#

NO.2

 1
17571-63020

1SL,2SELC..SV1#

 1
17571-63020

1SL,2SE#..SV1#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04058

1SL,2SELC..SV1#

 1
90917-04054

1SL,2SE#..SV1#

 1
90917-04054

2SEL..SV11

 1
90917-04054

1SL,2SELC..SV1#

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 2
17565-63020

1CTL,1SL,2SE#..CV10,SV1#

 2
17565-63020

2SEL..SV11

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 2
17565-63020

1CTL,1SL,2SE#..CV10,SV1#

 2
17565-63020

2SEL..SV11

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-63030

1SL,2SELC..SV1#

 1
17420-63100

1SL,2SELC..SV1#

 1
17420-63031

1SL,2SE#..SV1#

 1
17420-63031

2SEL..SV11

 1
17420-74050

2SELC..SV11..ARL

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-63010

2SEL..SV11

 1
17506-63010

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 1
17506-63010

1CTL,1SL,2SE#..CV10,SV1#

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-63020

1CTL,1SL,2SE#..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#..5F

 1
17565-63020

2SEL..SV11..5F

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17507-63020

2SELC..SV11..ARL

 1
17507-63010

2SEL..SV11

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17507-63020

2SELC..SV11..ARL

 1
17507-63010

2SEL..SV11

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63020

1CTL,1SL,2SE#..CV10,SV1#..5F

 1
17565-63020

2SEL..SV11..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#..5F

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63020

1CTL,1SL,2SE#..CV10,SV1#..5F

 1
17565-63020

2SEL..SV11..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#..5F

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

2SEL..SV11

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74040

2SEL..SV11

 1
17430-63030

1SL,2SELC..SV1#

 1
17430-74060

2SELC..SV11..ARL

 1
17430-74041

1SL,2SE#..SV1#

 1
17430-63032

1SL,2SELC..SV1#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

1SL,2SE#..SV1#

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1SL,2SE#..SV1#

 1
90917-06020

2SELC..SV11..FRG;2SELC..SV11..ARL

RR

 1
90917-06023

2SELC..SV11..FRG;2SELC..SV11..ARL

FR

 1
17597 - PROTECTOR, EXHAUST PIPE SPLASH
17597-74020

1SL,2SE#..SV1#

 1
Common parts
90105-10023
91511-61060
91515-60825
91651-61020
91655-40820
91656-40818
91656-40820
93382-15012

(8406-8409)1SL,2SELC

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410C 17410E 17410F 17410F 17410H 17410T 17410V 17410Y 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17597 9010510023 9165161020 9165161025 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-63080

1SL,2SELC..SV1#

 1
17410-63081

1SL,2SELC..SV1#

 1
17410-63030

1SL,2SE#..SV1#

 1
17410-63030

2SEL..SV11

 1
17410-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

1CTL,1SL,2SE#..CV10,SV1#

 3
90179-10070

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63030

1SL,2SELC..SV1#

NO.1

 1
17571-63020

2SEL..SV11

 1
17572-63040

1SL,2SELC..SV1#

NO.2

 1
17571-63020

1SL,2SELC..SV1#

 1
17571-63020

1SL,2SE#..SV1#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63030

1SL,2SELC..SV1#

NO.1

 1
17571-63020

2SEL..SV11

 1
17572-63040

1SL,2SELC..SV1#

NO.2

 1
17571-63020

1SL,2SELC..SV1#

 1
17571-63020

1SL,2SE#..SV1#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04058

1SL,2SELC..SV1#

 1
90917-04054

1SL,2SE#..SV1#

 1
90917-04054

2SEL..SV11

 1
90917-04054

1SL,2SELC..SV1#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#

 2
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#

 2
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17506-63010

1CTL,1SL,2SELC..CV10,SV1#

 1
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-63010

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17507-63020

2SELC..SV11..ARL

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 2
17565-63020

1CTL,1SL,2SE#..CV10,SV1#

 2
17565-63020

2SEL..SV11

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74040

2SEL..SV11

 1
17430-63030

1SL,2SELC..SV1#

 1
17430-74060

2SELC..SV11..ARL

 1
17430-74041

1SL,2SE#..SV1#

 1
17430-63032

1SL,2SELC..SV1#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

1SL,2SE#..SV1#

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1SL,2SE#..SV1#

 1
90917-06020

2SELC..SV11..FRG;2SELC..SV11..ARL

RR

 1
90917-06023

2SELC..SV11..FRG;2SELC..SV11..ARL

FR

 1
17597 - PROTECTOR, EXHAUST PIPE SPLASH
17597-74020

1SL,2SE#..SV1#

 1
Common parts
90105-10023
91651-61020
91651-61025
91655-40820
91656-40818
93382-15012
94180-41000

(8409-8508)1SL,2SELC ; (8508- )1SL,2SELC..EUG,SDZ

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410E 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17597 9010510023 9010510023 9151161060 9165161020 9165540820 9165540820 9165540820 9165640818 9338215012
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-63080

1SL,2SELC..SV1#

 1
17410-63081

1SL,2SELC..SV1#

 1
17410-63030

1SL,2SE#..SV1#

 1
17410-63030

2SEL..SV11

 1
17410-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

1CTL,1SL,2SE#..CV10,SV1#

 3
90179-10070

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63030

1SL,2SELC..SV1#

NO.1

 1
17571-63020

2SEL..SV11

 1
17572-63040

1SL,2SELC..SV1#

NO.2

 1
17571-63020

1SL,2SELC..SV1#

 1
17571-63020

1SL,2SE#..SV1#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04058

1SL,2SELC..SV1#

 1
90917-04054

1SL,2SE#..SV1#

 1
90917-04054

2SEL..SV11

 1
90917-04054

1SL,2SELC..SV1#

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 2
17565-63020

1CTL,1SL,2SE#..CV10,SV1#

 2
17565-63020

2SEL..SV11

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 2
17565-63020

1CTL,1SL,2SE#..CV10,SV1#

 2
17565-63020

2SEL..SV11

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-63030

1SL,2SELC..SV1#

 1
17420-63100

1SL,2SELC..SV1#

 1
17420-63031

1SL,2SE#..SV1#

 1
17420-63031

2SEL..SV11

 1
17420-74050

2SELC..SV11..ARL

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-63010

2SEL..SV11

 1
17506-63010

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 1
17506-63010

1CTL,1SL,2SE#..CV10,SV1#

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-63020

1CTL,1SL,2SE#..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#..5F

 1
17565-63020

2SEL..SV11..5F

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17507-63020

2SELC..SV11..ARL

 1
17507-63010

2SEL..SV11

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63020

1CTL,1SL,2SE#..CV10,SV1#..5F

 1
17565-63020

2SEL..SV11..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#..5F

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

2SEL..SV11

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74040

2SEL..SV11

 1
17430-63030

1SL,2SELC..SV1#

 1
17430-74060

2SELC..SV11..ARL

 1
17430-74041

1SL,2SE#..SV1#

 1
17430-63032

1SL,2SELC..SV1#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

1SL,2SE#..SV1#

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1SL,2SE#..SV1#

 1
90917-06020

2SELC..SV11..FRG;2SELC..SV11..ARL

RR

 1
90917-06023

2SELC..SV11..FRG;2SELC..SV11..ARL

FR

 1
17597 - PROTECTOR, EXHAUST PIPE SPLASH
17597-74020

1SL,2SE#..SV1#

 1
Common parts
90105-10023
91511-61060
91651-61020
91655-40820
91656-40818
93382-15012

(8508- )2SELC..FRG ; (8508- )2SELC..ARL

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17451 17597 18435 9010510023 9010510023 9010510023 9151161060 9162160610 9165161020 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74040

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
18450-74011

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-63080

1SL,2SELC..SV1#

 1
17410-63081

1SL,2SELC..SV1#

 1
17410-63030

1SL,2SE#..SV1#

 1
17410-63030

2SEL..SV11

 1
17410-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

1CTL,1SL,2SE#..CV10,SV1#

 3
90179-10070

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

1SL,2SE#..SV1#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63030

1SL,2SELC..SV1#

NO.1

 1
17571-63020

2SEL..SV11

 1
17572-63040

1SL,2SELC..SV1#

NO.2

 1
17571-63020

1SL,2SELC..SV1#

 1
17571-63020

1SL,2SE#..SV1#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04058

1SL,2SELC..SV1#

 1
90917-04054

1SL,2SE#..SV1#

 1
90917-04054

2SEL..SV11

 1
90917-04054

1SL,2SELC..SV1#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-63010

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17507-63020

2SELC..SV11..ARL

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 2
17565-63020

1CTL,1SL,2SE#..CV10,SV1#

 2
17565-63020

2SEL..SV11

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SL,2SELC..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 2
17565-63020

1CTL,1SL,2SE#..CV10,SV1#

 2
17565-63020

2SEL..SV11

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-63030

1SL,2SELC..SV1#

 1
17420-63100

1SL,2SELC..SV1#

 1
17420-63031

1SL,2SE#..SV1#

 1
17420-63031

2SEL..SV11

 1
17420-74050

2SELC..SV11..ARL

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-63010

2SEL..SV11

 1
17506-63010

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 1
17506-63010

1CTL,1SL,2SE#..CV10,SV1#

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-63020

1CTL,1SL,2SE#..CV10,SV1#..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#..5F

 1
17565-63020

2SEL..SV11..5F

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63020

2SELC..SV11..FRG;2SELC..SV11..ARL

 1
17507-63020

2SELC..SV11..ARL

 1
17507-63010

2SEL..SV11

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63020

1CTL,1SL,2SE#..CV10,SV1#..5F

 1
17565-63020

2SEL..SV11..5F

 1
17565-63020

1CTL,2CTL,1SL,2SELC..CV1#,SV1#..5F

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

2SEL..SV11

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1CTL,2CTL,1SL,2SELC..CV1#,SV1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74040

2SEL..SV11

 1
17430-63030

1SL,2SELC..SV1#

 1
17430-74060

2SELC..SV11..ARL

 1
17430-74041

1SL,2SE#..SV1#

 1
17430-63032

1SL,2SELC..SV1#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

1SL,2SE#..SV1#

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1SL,2SE#..SV1#

 1
90917-06020

2SELC..SV11..FRG;2SELC..SV11..ARL

RR

 1
90917-06023

2SELC..SV11..FRG;2SELC..SV11..ARL

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

1SL,2SE#..SV1#

 1
90917-06004

1CTL,1SL,2SE#..CV10,SV1#

 1
90917-06004

1SL,2SE#..SV1#

 1
90917-06020

2SELC..SV11..FRG;2SELC..SV11..ARL

RR

 1
90917-06023

2SELC..SV11..FRG;2SELC..SV11..ARL

FR

 1
17597 - PROTECTOR, EXHAUST PIPE SPLASH
17597-74020

1SL,2SE#..SV1#

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18436-63010

2SELC..SV11..ARL

 1
Common parts
90105-10023
91511-61060
91621-60610
91651-61020
91655-40820
91656-40818
93382-15012
94180-41000

(8301-8308) ; (8308- )2SELC..USA

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410Y 17410Y 17420 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17448 17451 17451 17597 9010510023 9010510023 9010510023 9010510023 9151161060 9151560825 9165161020 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
Common parts
90105-10023
91511-61060
91515-60825
91651-61020
91655-40820
91656-40818
93382-15012
94180-41000
