SV11L-UHPEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8303- )

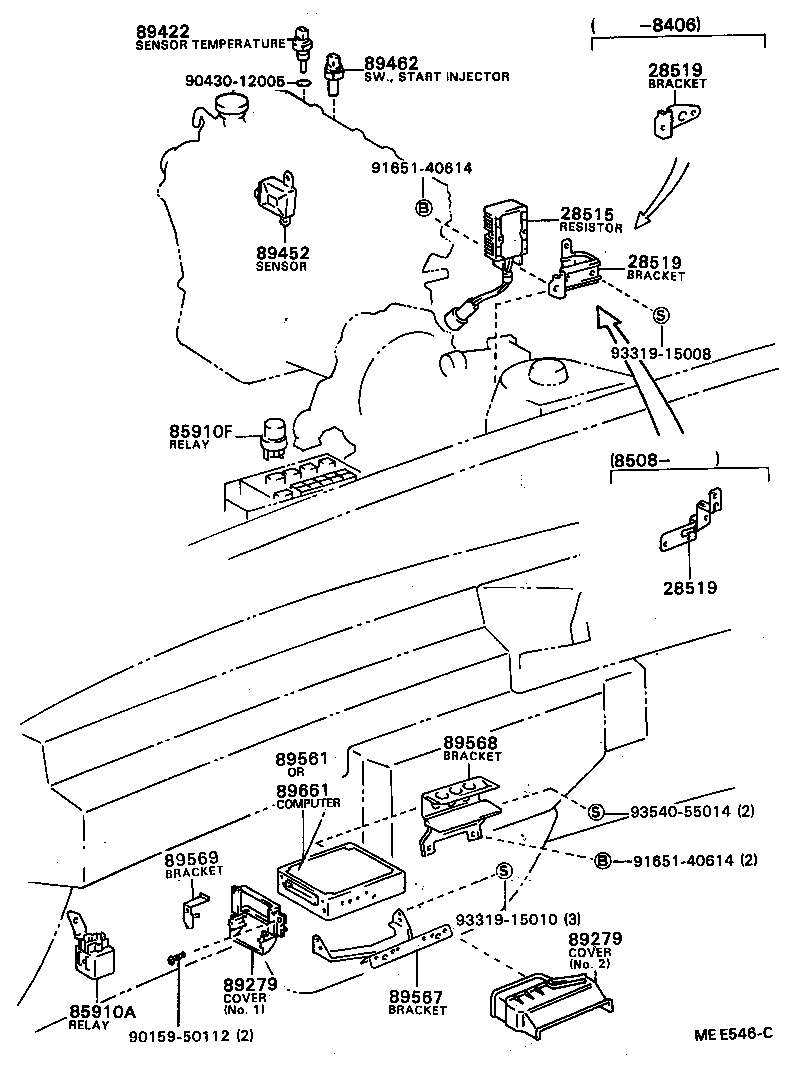

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50112 | ||||
| 90430-12005 | ||||
| 91651-40614 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93540-55014 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-52010 |
2SELC..SV11 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-63010 |
2SELC..SV11 |
1 | ||
| 28519-32010 |
2SELC..SV11 |
1 | ||
| 28519-74010 |
2SELC..SV11 |
1 | ||
| 28519-63010 |
2SELC..SV11..CND |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-63010 |
2SELC..SV11 |
1 | ||
| 28519-32010 |
2SELC..SV11 |
1 | ||
| 28519-74010 |
2SELC..SV11 |
1 | ||
| 28519-63010 |
2SELC..SV11..CND |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-63010 |
2SELC..SV11 |
1 | ||
| 28519-32010 |
2SELC..SV11 |
1 | ||
| 28519-74010 |
2SELC..SV11 |
1 | ||
| 28519-63010 |
2SELC..SV11..CND |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-32020 |
SV11 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
SV11 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32010 |
SV11..CND NO.1 |
1 | ||
| 89279-32050 |
SV11 NO.2 |
1 | ||
| 89279-32010 |
SV11 NO.1 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32010 |
SV11..CND NO.1 |
1 | ||
| 89279-32050 |
SV11 NO.2 |
1 | ||
| 89279-32010 |
SV11 NO.1 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
SV11 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-32030 |
SV11..4FC |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
SV11 |
1 | ||
| 89561 - COMPUTER, FUEL INJECTION | ||||
| 89561-32020 |
SV11..4FC |
1 | ||
| 89561-32080 |
SV11..CND |
1 | ||
| 89561-32081 |
SV11..CND |
1 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89567-32030 |
SV11 |
1 | ||
| 89567-32020 |
SV11 |
1 | ||
| 89568 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89559-32010 |
SV11 |
1 | ||
| 89569 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89569-32010 |
SV11 |
1 | ||
| 89569-32010 |
SV11..CND |
1 | ||
| Common parts | ||||
| 90159-50112 | ||||
| 90430-12005 | ||||
| 91651-40614 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93540-55014 | ||||
