SV11L-UHPEEK (1983)
Toyota Camry

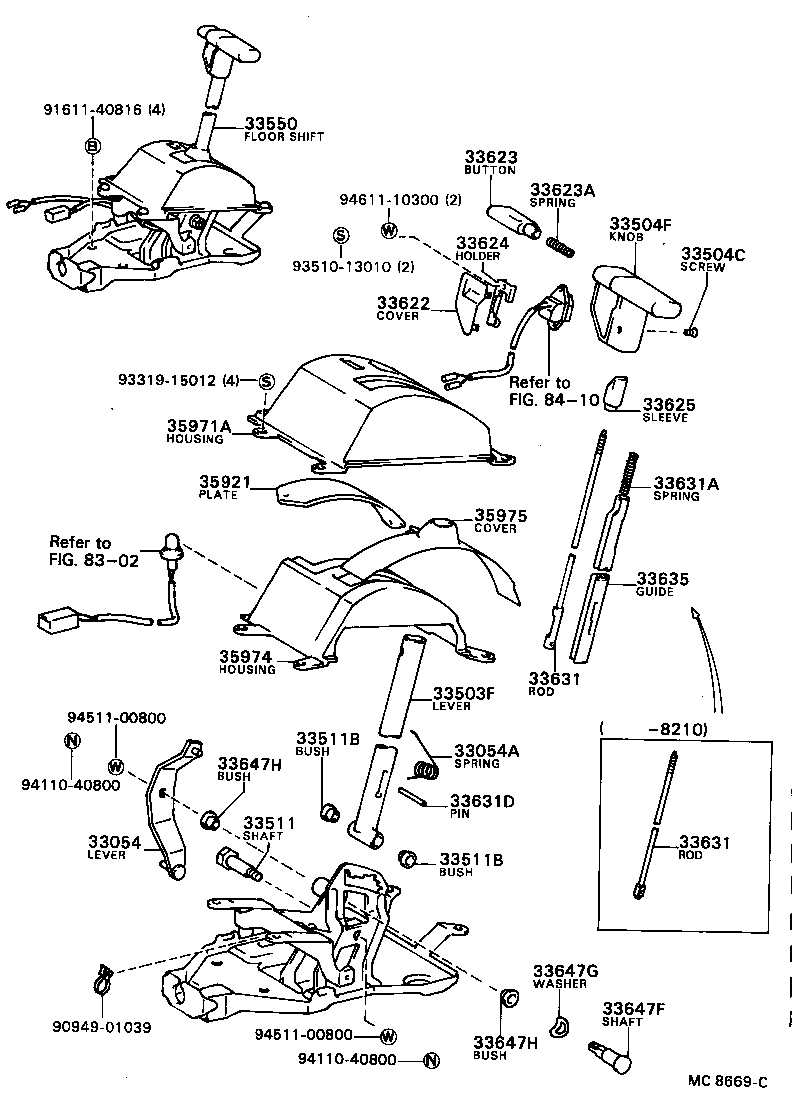

(8210-8406)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90949-01039 | ||||
| 91611-40816 | ||||
| 93319-15012 | ||||
| 93510-13010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||

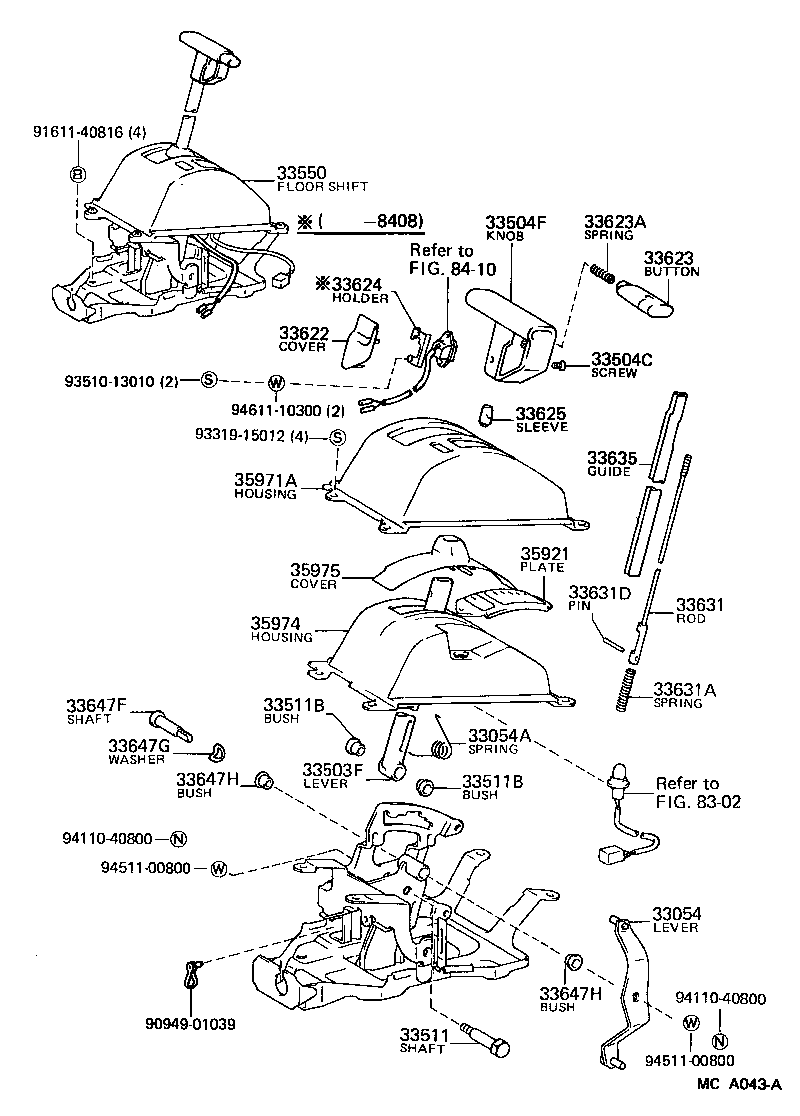

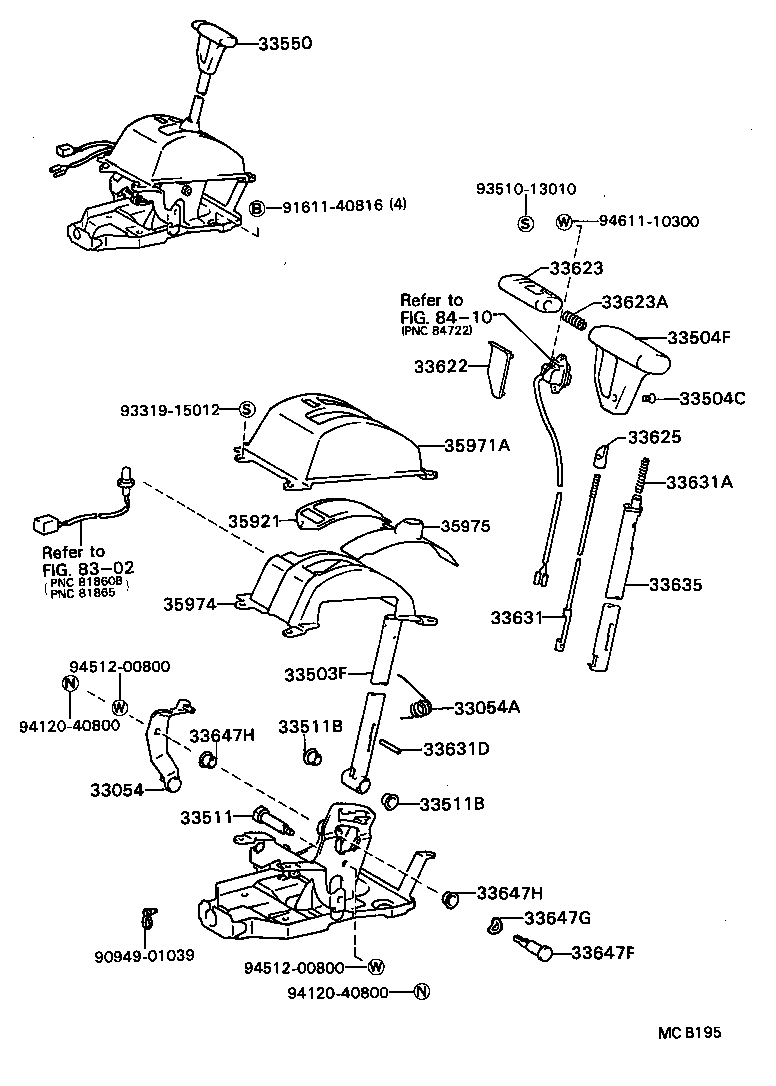

(8406- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90949-01039 | ||||
| 91611-40816 | ||||
| 93319-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||

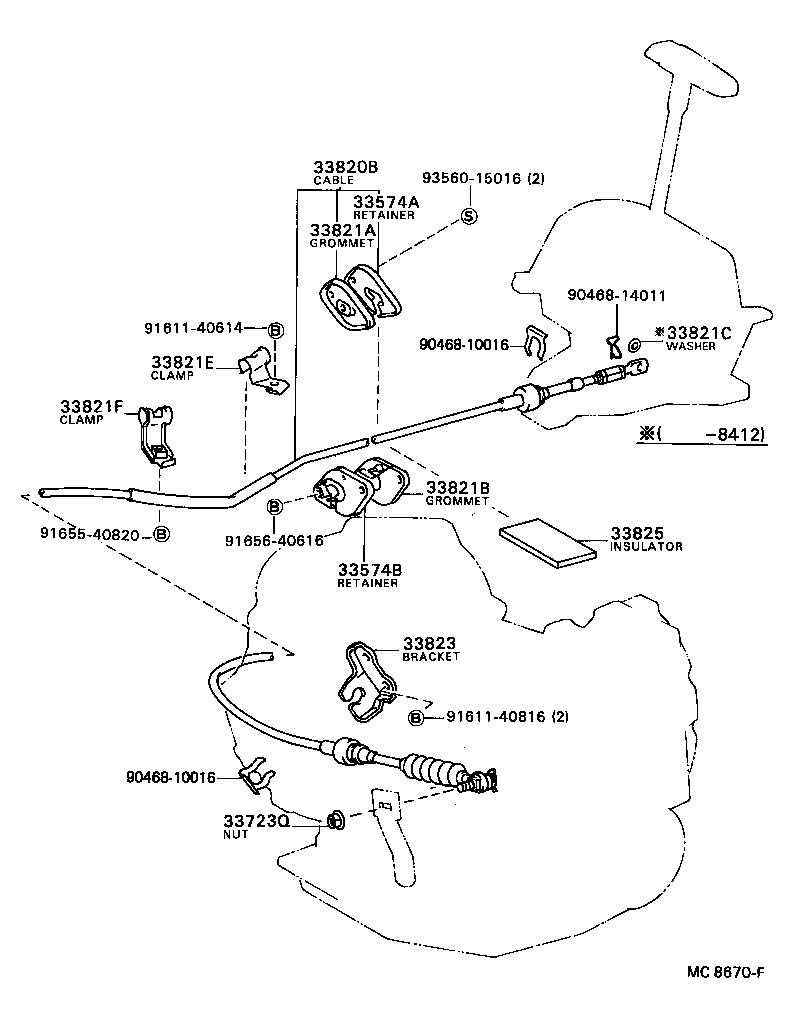

(8301- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32010 |
CV1#,SV11 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-32020 |
CV1#,SV11 |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
CV1#,SV11..4FC |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-32030 |
SV11..4FC |
1 | ||
| 33820-32110 |
CV1#,SV11..4FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01212 |
CV1#,SV11..4FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01155 |
CV1#,SV11..4FC |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV10,SV11..4FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01022 |
CV1#,SV11..4FC |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01023 |
CV1#,SV11..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-32011 |
CV11,SV11..4FC |
1 | ||
| 33823-32010 |
CV1#,SV11..4FC |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-32010 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90468-10016 | ||||
| 90468-14011 | ||||
| 91611-40614 | ||||
| 91611-40816 | ||||
| 91655-40820 | ||||
| 91656-40616 | ||||
| 93560-15016 | ||||

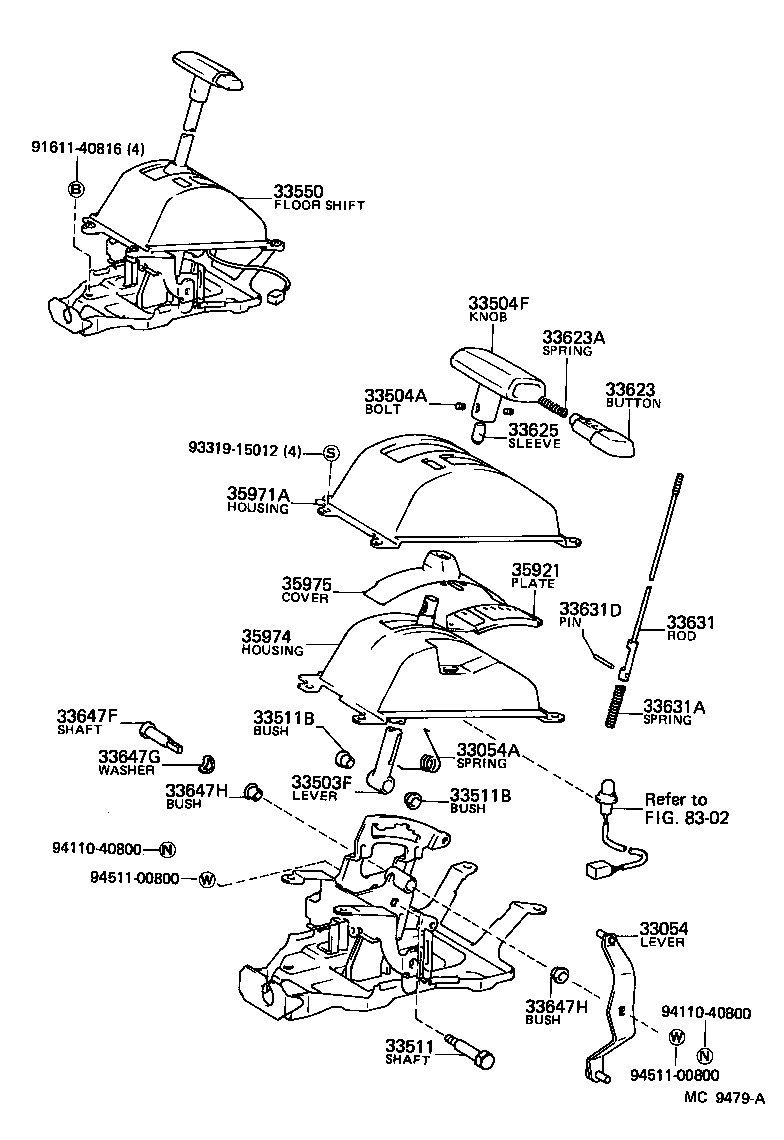

(8301-8308)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-32030 |
CV10,SV11..4FC |
1 | ||
| 33054-32011 |
SV11..4FC |
1 | ||
| 33054-32060 |
CV1#,SV11..4FC |
1 | ||
| 33054A - SPRING, TORSION(FOR SHIFT LEVER NO.2) | ||||
| 90508-18045 |
CV1#,SV11..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-32070 |
SV11..4FC |
1 | ||
| 33503-12280 |
CV1#,SV11..4FC |
1 | ||
| 33503-32020 |
SV11..4FC |
1 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
SV11..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 33542-2403043 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33542-2403026 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 33542-2403006 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33542-3203004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3203013 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33542-3205003 |
CV1#,SV11..4FC SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 33542-3205005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33542-2403004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3205004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3203016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
CV1#,SV11..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
CV1#,SV11..4FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
CV1#,SV11..4FC |
2 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-3204003 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33550-3204006 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 33550-3204004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-3203016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33550-3206005 |
CV10,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33550-3209005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33550-3206003 |
CV10,SV11..4FC SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 33550-3206004 |
CV10,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-3203003 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33550-3204001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 33550-3209003 |
CV1#,SV11..4FC SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 33550-3203004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-3203016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33550-3209004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22060 |
SV11..4FC BLACK |
1 | ||
| 33623-3202016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33623-3202004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004046 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 33623-3202013 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004014 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-1602013 |
CV1#,SV11..4FC SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004006 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33623-1602044 |
CV11,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004043 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602033 |
CV11,SV11..4FC SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33623-1602004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
CV1#,SV11..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
SV11..4FC |
1 | ||
| 33625-32010 |
CV1#,SV11..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-32011 |
CV1#,SV11..4FC |
1 | ||
| 33631-32021 |
SV11..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
SV11..4FC |
1 | ||
| 90501-07005 |
CV1#,SV11..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
CV1#,SV11..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
CV1#,SV11..4FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
CV1#,SV11..4FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
CV1#,SV11..4FC |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
CV1#,SV11..4FC |
2 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-32040 |
SV11..4FC |
1 | ||
| 35921-32020 |
CV1#,SV11..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-3202003 |
CV1#,SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 35971-3202016 |
CV1#,SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 35971-3202001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 35971-3202004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 35971-3202006 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 35971-3202005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-32020 |
CV1#,SV11..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-3204001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 35975-3204004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 35975-3204006 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 35975-3204016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 35975-3201103 |
CV1#,SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 35975-3204003 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 35975-3201105 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 35975-3201104 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 35975-3201116 |
CV1#,SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 93319-15012 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8308- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-32030 |
CV10,SV11..4FC |
1 | ||
| 33054-32011 |
SV11..4FC |
1 | ||
| 33054-32060 |
CV1#,SV11..4FC |
1 | ||
| 33054A - SPRING, TORSION(FOR SHIFT LEVER NO.2) | ||||
| 90508-18045 |
CV1#,SV11..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-32070 |
SV11..4FC |
1 | ||
| 33503-12280 |
CV1#,SV11..4FC |
1 | ||
| 33503-32020 |
SV11..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90149-40004 |
CV1#,SV11..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 33542-2403043 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33542-2403026 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 33542-2403006 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33542-3203004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3203013 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33542-3205003 |
CV1#,SV11..4FC SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 33542-3205005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33542-2403004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3205004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3203016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
CV1#,SV11..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
CV1#,SV11..4FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
CV1#,SV11..4FC |
2 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-3204003 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33550-3204006 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 33550-3204004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-3203016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33550-3206005 |
CV10,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33550-3209005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33550-3206003 |
CV10,SV11..4FC SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 33550-3206004 |
CV10,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-3203003 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33550-3204001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 33550-3209003 |
CV1#,SV11..4FC SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 33550-3203004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-3203016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33550-3209004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3201003 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33622-1602004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622-1602013 |
CV1#,SV11..4FC SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 33622-3201004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622-1602005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33622-3201016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33622-1602034 |
CV11,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22060 |
SV11..4FC BLACK |
1 | ||
| 33623-3202016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33623-3202004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004046 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 33623-3202013 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004014 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-1602013 |
CV1#,SV11..4FC SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004006 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33623-1602044 |
CV11,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004043 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602033 |
CV11,SV11..4FC SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33623-1602004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
CV1#,SV11..4FC |
1 | ||
| 33624 - HOLDER, KNOB COVER | ||||
| 33624-32020 |
SV11..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
SV11..4FC |
1 | ||
| 33625-32010 |
CV1#,SV11..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-32011 |
CV1#,SV11..4FC |
1 | ||
| 33631-32021 |
SV11..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
SV11..4FC |
1 | ||
| 90501-07005 |
CV1#,SV11..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
CV1#,SV11..4FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-12020 |
CV1#,SV11..4FC |
1 | ||
| 33635-32011 |
SV11..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
CV1#,SV11..4FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
CV1#,SV11..4FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
CV1#,SV11..4FC |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
CV1#,SV11..4FC |
2 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-32040 |
SV11..4FC |
1 | ||
| 35921-32020 |
CV1#,SV11..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-3202003 |
CV1#,SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 35971-3202016 |
CV1#,SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 35971-3202001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 35971-3202004 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 35971-3202006 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 35971-3202005 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-32020 |
CV1#,SV11..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-3204001 |
SV11..4FC BLACK,BLACK,TRIM1#,8# |
1 | ||
| 35975-3204004 |
SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 35975-3204006 |
SV11..4FC DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 35975-3204016 |
SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 35975-3201103 |
CV1#,SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 35975-3204003 |
SV11..4FC DARK GRAY,GRAY,TRIM1# |
1 | ||
| 35975-3201105 |
CV1#,SV11..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 35975-3201104 |
CV1#,SV11..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 35975-3201116 |
CV1#,SV11..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90949-01039 | ||||
| 91611-40816 | ||||
| 93319-15012 | ||||
| 93510-13010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
