SV11L-UHMEEK (1983)
Toyota Camry
(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-40614 | ||||

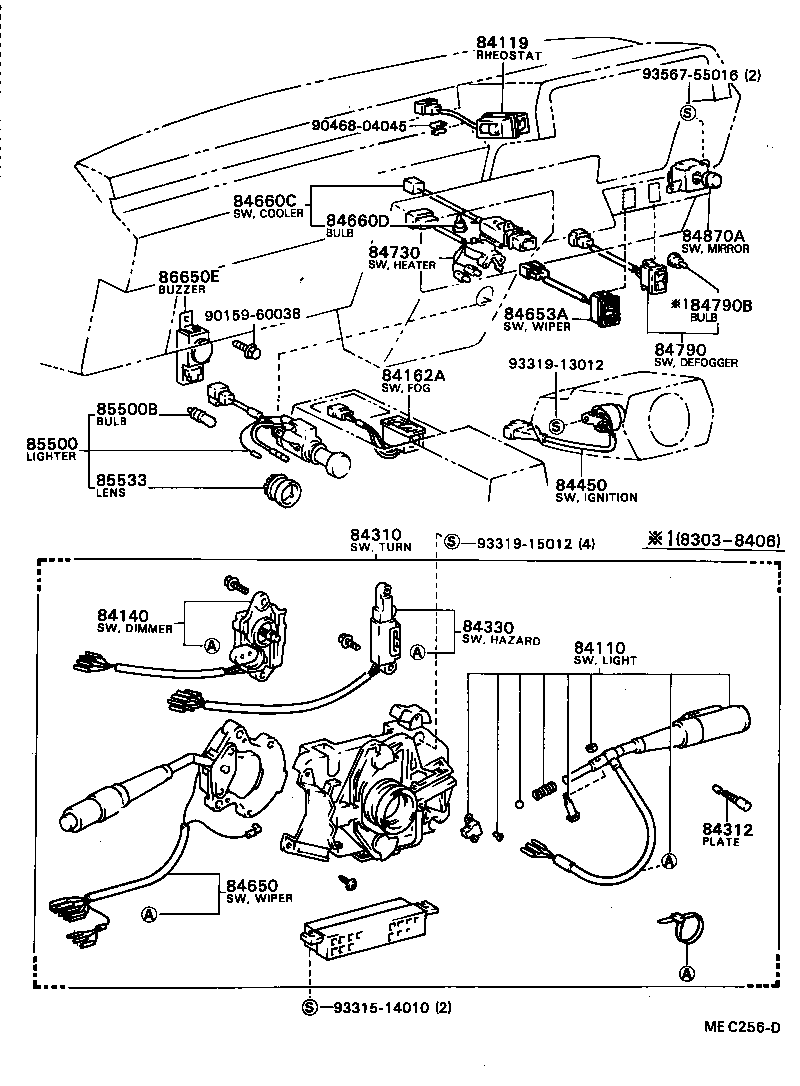

(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60038 | ||||
| 90468-04045 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||

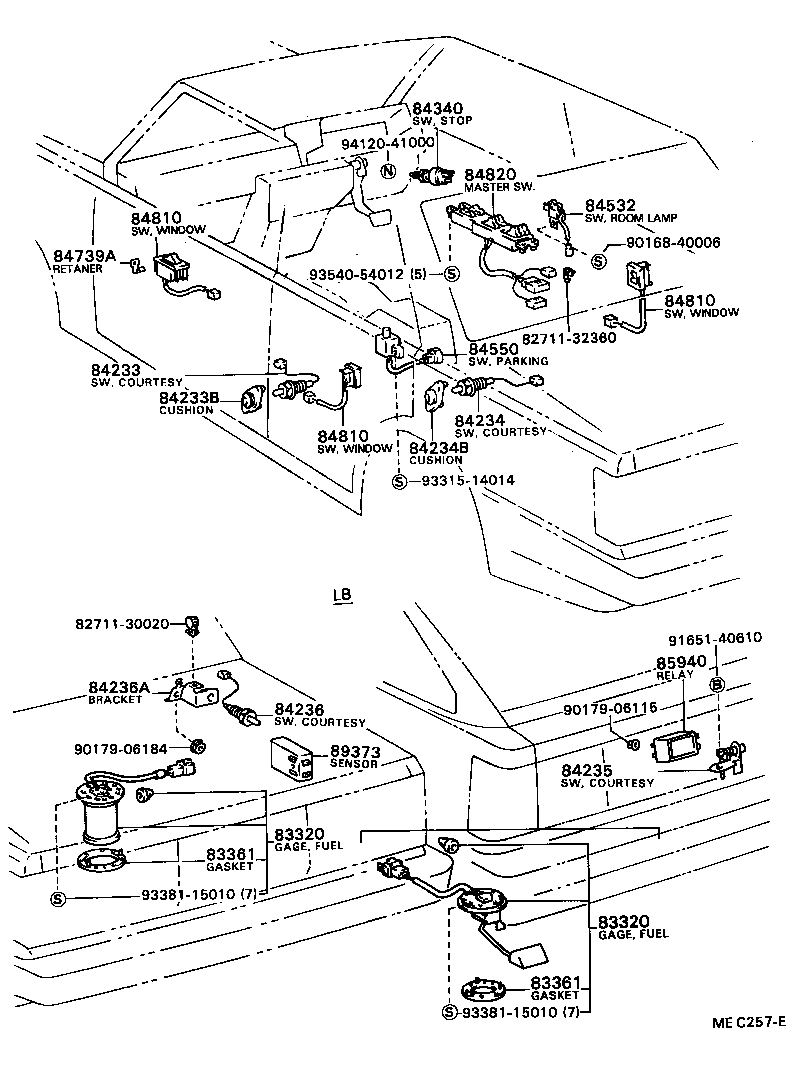

(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30020 | ||||
| 82711-32360 | ||||
| 90168-40006 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 91651-40610 | ||||
| 93315-14014 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||

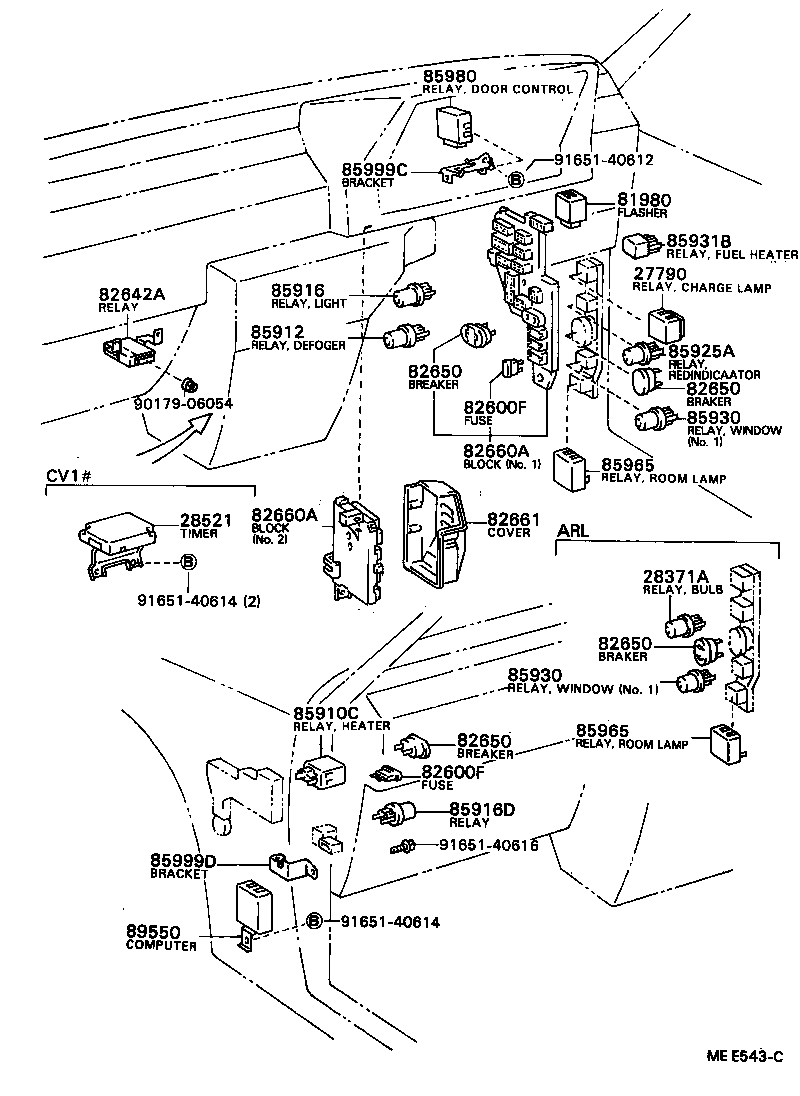

(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06054 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||

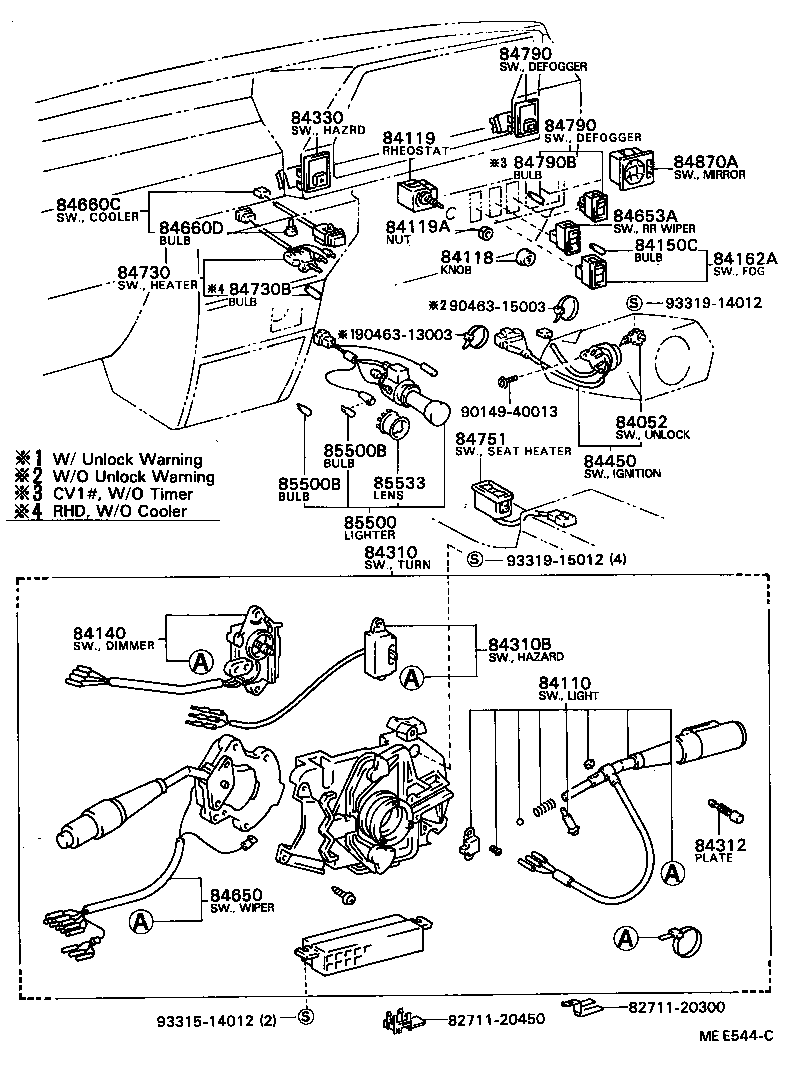

(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20300 | ||||
| 82711-20450 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

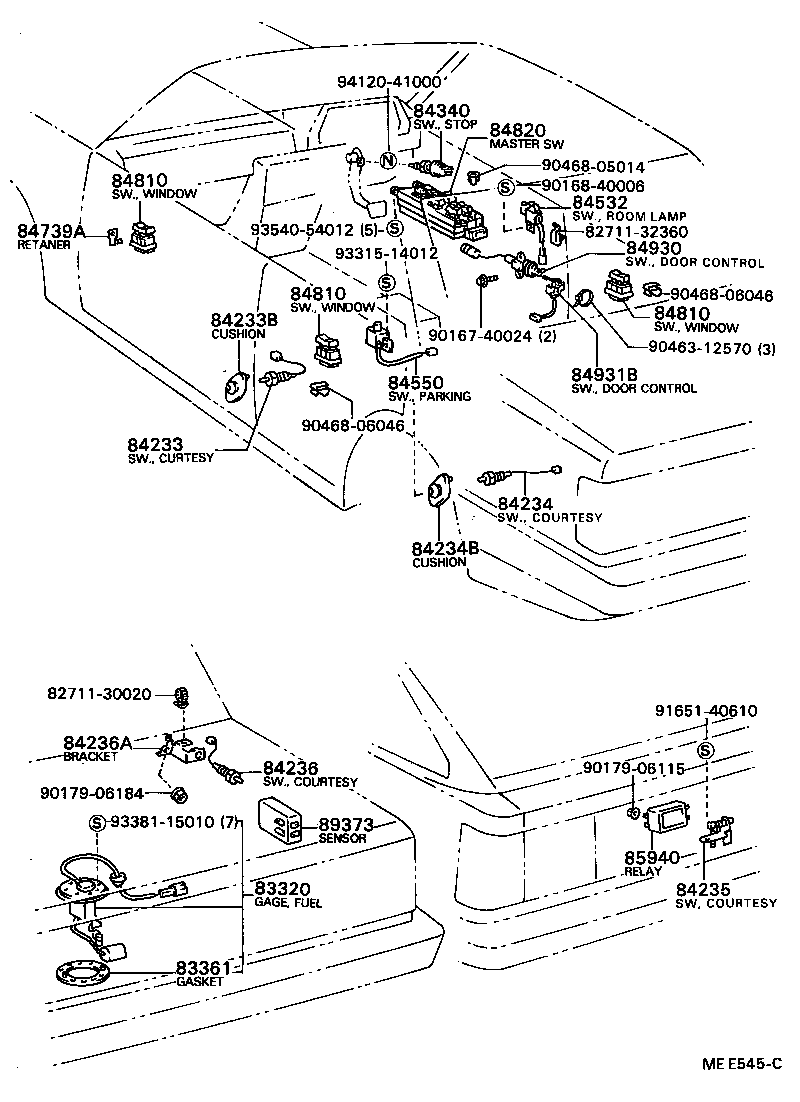

(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30020 | ||||
| 82711-32360 | ||||
| 90167-40024 | ||||
| 90168-40006 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 90463-12570 | ||||
| 90468-05014 | ||||
| 90468-06046 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
(8301- )SV11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV11 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV11 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV1#,SV11 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV11 7.5A,7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV11 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV11 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV1#,SV11 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV11 7.5A,7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV1#,SV11 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-32040 |
CV10,SV11 |
1 | ||
| 82660-32160 |
CV10,SV11 W/COOLER |
1 | ||
| 82660-32040 |
SV11 |
1 | ||
| 82660-32160 |
SV11 W/COOLER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV11 ENGINE ROOM,UPR |
1 | ||
| 82661-32010 |
SV11 ENGINE ROOM,UPR |
1 | ||
| 82661-32040 |
CV1#,SV11 COWL SIDE |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CV1#,SV11 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
SV11 |
1 | ||
| 83530-14020 |
SV11 |
1 | ||
| 83530-10020 |
SV11 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
CV10,SV11..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
CV1#,SV11 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV11 |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV10,SV11 |
1 | ||
| 90987-03001 |
SV11 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
CV1#,SV11 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CV10,SV11 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
SV11 |
1 | ||
| 89428-15011 |
SV11 |
1 | ||
| 89428-32010 |
SV11 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39105 |
SV11 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
SV11 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90464-00095 | ||||
| 90464-00102 | ||||
| 90464-00174 | ||||
| 91651-40620 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

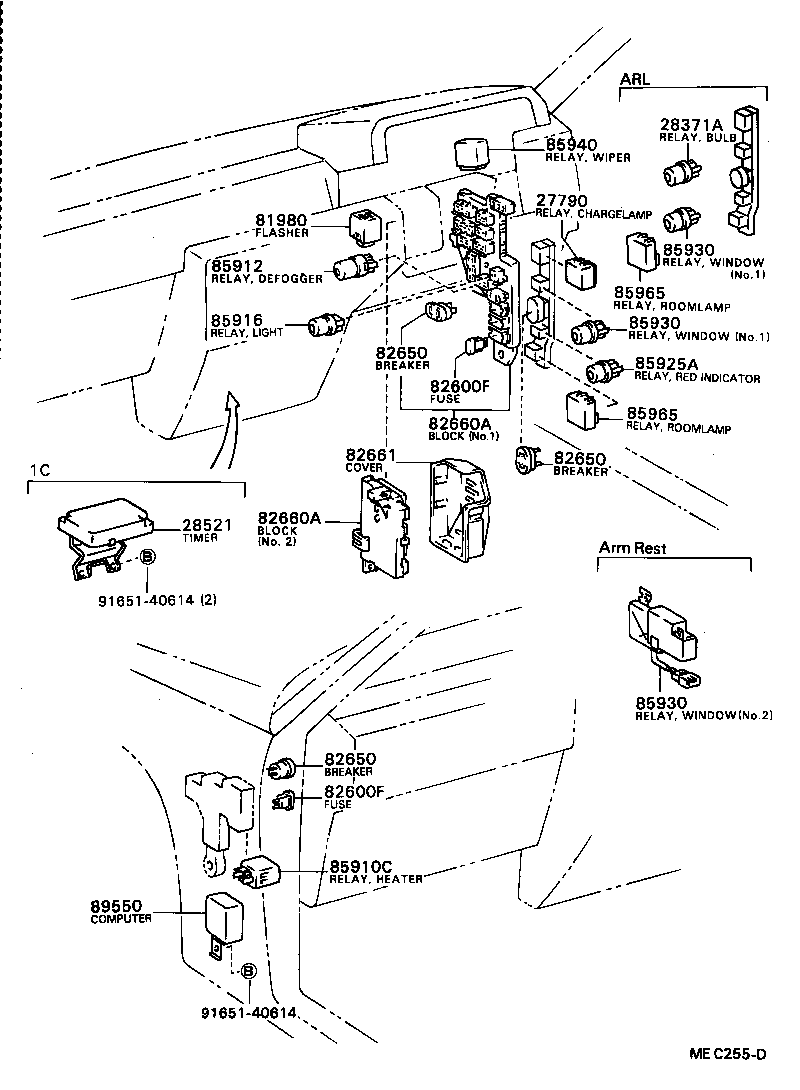

(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CV11,SV11 |
1 | ||
| 81980-22070 |
CV1#,SV11 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV11 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV11 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV1#,SV11 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV11 7.5A,7.5A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV11 30A,30A,MATSUSHITA |
3 | ||
| 82650-35010 |
CV1#,SV11 20A,20A |
1 | ||
| 82650-32020 |
CV1#,SV11 30A,30A,TOKAIRIKA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV11 30A,30A,MATSUSHITA |
3 | ||
| 82650-35010 |
CV1#,SV11 20A,20A |
1 | ||
| 82650-32020 |
CV1#,SV11 30A,30A,TOKAIRIKA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV11 30A,30A,MATSUSHITA |
3 | ||
| 82650-35010 |
CV1#,SV11 20A,20A |
1 | ||
| 82650-32020 |
CV1#,SV11 30A,30A,TOKAIRIKA |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32070 |
CV10,SV11 NO.2 |
1 | ||
| 82660-32120 |
CV11,SV11 NO.1 |
1 | ||
| 82660-32020 |
CV10,SV11 NO.1 |
1 | ||
| 82660-32071 |
CV1#,SV11 NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32070 |
CV10,SV11 NO.2 |
1 | ||
| 82660-32120 |
CV11,SV11 NO.1 |
1 | ||
| 82660-32020 |
CV10,SV11 NO.1 |
1 | ||
| 82660-32071 |
CV1#,SV11 NO.2 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV11 ENGINE ROOM,UPR |
1 | ||
| 82661-32010 |
SV11 ENGINE ROOM,UPR |
1 | ||
| 82661-32040 |
CV1#,SV11 COWL SIDE |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CV1#,SV11 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CV1#,SV11 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV11 |
2 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
SV11..LE NO.1(POWER WINDOW OR SUN ROOF) |
1 | ||
| 85930-32020 |
SV11..LE NO.2(POWER WINDOW) |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
SV11..LE NO.1(POWER WINDOW OR SUN ROOF) |
1 | ||
| 85930-32020 |
SV11..LE NO.2(POWER WINDOW) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32030 |
SV11..5D RR WIPER |
1 | ||
| 85940-32050 |
SV11..LE FR WIPER |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
SV11..LE |
1 | ||
| 85965-32010 |
SV11..LE |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-32010 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90189-05024 | ||||
| 91651-40614 | ||||
| 93560-55014 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
CV10,SV11 |
1 | ||
| 84052-10010 |
CV1#,SV11 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39205 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84112-29385 |
CV1#,SV11 |
1 | ||
| 84112-39215 |
CV10,SV11..5F;SV11..4FC..DLX |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-32060 |
CV1#,SV11 |
1 | ||
| 84119-3203104 |
CV10,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 84119-3203116 |
CV10,SV11 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 84119-3203101 |
SV11 BLACK,BLACK,TRIM1#,8# |
1 | ||
| 84119-3203103 |
CV10,SV11 DARK GRAY,GRAY,TRIM1# |
1 | ||
| 84119-3203106 |
SV11 DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 84119-32070 |
SV11..LE W/DIGITAL SPEEDOMETER |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-39095 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84140-29225 |
CV1#,SV11 |
1 | ||
| 84140-39105 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32090 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84310-32180 |
SV11..LE W/*CRC |
1 | ||
| 84310-32070 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84310-32160 |
SV11..LE |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84312-32010 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84312-32010 |
CV1#,SV11 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39175 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84332-3205004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 84332-3205003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84332-39185 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84332-3205005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27040 |
CV10,SV11 |
1 | ||
| 84450-32010 |
CV1#,SV11 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39275 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84652-39385 |
SV11..LE |
1 | ||
| 84652-39405 |
SV11..LE W/*CRC |
1 | ||
| 84652-39255 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-32020 |
SV11..5D |
1 | ||
| 84653-32010 |
SV11..5D |
1 | ||
| 84653-14020 |
SV11..5D |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-32020 |
CV1#,SV11 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
CV1#,SV11 |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32010 |
CV1#,SV11 |
1 | ||
| 84732-32030 |
CV1#,SV11 W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32070 |
SV11 W/TIMER |
1 | ||
| 84790-3205004 |
SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 84790-32020 |
CV10,SV11 |
1 | ||
| 84790-3205003 |
SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790-3205005 |
SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 84790-32010 |
SV11 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
CV10,SV11 12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
SV11..LE |
1 | ||
| 84870-32020 |
SV11..LE |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32040 |
CV1#,SV11 |
1 | ||
| 85500-32020 |
CV10,SV11 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV1#,SV11 14V 1.4W |
2 | ||
| 90981-11014 |
CV10,SV11 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-14030 |
CV1#,SV11 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90179-60038 | ||||
| 90463-15003 | ||||
| 90468-04045 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29885 |
SV11..LE W/DIGITAL SPEEDOMETER |
1 | ||
| 83320-39327 |
SV11 |
1 | ||
| 83320-39325 |
SV11 |
1 | ||
| 83320-39326 |
SV11 |
1 | ||
| 83320-39625 |
SV11 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29885 |
SV11..LE W/DIGITAL SPEEDOMETER |
1 | ||
| 83320-39327 |
SV11 |
1 | ||
| 83320-39325 |
SV11 |
1 | ||
| 83320-39326 |
SV11 |
1 | ||
| 83320-39625 |
SV11 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV11 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV11 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
CV1#,SV11 |
2 | ||
| 84231-20080 |
CV10,SV11 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
CV1#,SV11 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
CV1#,SV11 |
2 | ||
| 84231-20080 |
CV10,SV11 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
CV1#,SV11 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-32010 |
SV11..5D |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22110 |
CV1#,SV11 W/*CRC,TOKAIRIKA |
1 | ||
| 84340-30030 |
CV1#,SV11 MATSUSHITA |
1 | ||
| 84340-22100 |
CV1#,SV11 W/*CRC,MATSUSHITA |
1 | ||
| 84340-32010 |
CV1#,SV11 TOKAIRIKA |
1 | ||
| 84340-32010 |
CV10,SV11 |
1 | ||
| 84340-20030 |
CV10,SV11 W/*CRC |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-32020 |
CV10;SV11..LE |
1 | ||
| 84532-32020 |
SV11..LE |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
CV1#,SV11 |
1 | ||
| 84550-24010 |
CV10,SV11 |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-30020 |
SV11..LE |
6 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-30020 |
SV11..LE |
6 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-30020 |
SV11..LE |
6 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32040 |
SV11..LE FR(RH) |
1 | ||
| 84810-32020 |
SV11..LE RR |
2 | ||
| 84810-32050 |
SV11..LE RR,FR(RH) |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32040 |
SV11..LE FR(RH) |
1 | ||
| 84810-32020 |
SV11..LE RR |
2 | ||
| 84810-32050 |
SV11..LE RR,FR(RH) |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32040 |
SV11..LE FR(RH) |
1 | ||
| 84810-32020 |
SV11..LE RR |
2 | ||
| 84810-32050 |
SV11..LE RR,FR(RH) |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32040 |
SV11..LE FR(LH) |
1 | ||
| 84820-32042 |
SV11..LE FR(LH) |
1 | ||
| 84820-32070 |
SV11..LE FR(LH) |
1 | ||
| 84820-32041 |
SV11..LE FR(LH) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32030 |
SV11..5D RR WIPER |
1 | ||
| 85940-32050 |
SV11..LE FR WIPER |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32090 |
SV11..LE..5D |
1 | ||
| 89373-32130 |
SV11..LE..5D |
1 | ||
| 89373-32040 |
SV11..LE..5D |
1 | ||
| Common parts | ||||
| 82711-30020 | ||||
| 82711-32360 | ||||
| 90168-40006 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 90468-06046 | ||||
| 91651-40610 | ||||
| 93315-14014 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
2SELC..SV11..5F NO.2 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CV11,SV11 |
1 | ||
| 81980-22070 |
CV1#,SV11 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV11 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV11 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV1#,SV11 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV11 7.5A,7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV11 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV11 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CV1#,SV11 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV11 7.5A,7.5A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV11 30A,30A,MATSUSHITA |
3 | ||
| 82650-35010 |
CV1#,SV11 20A,20A |
1 | ||
| 82650-32020 |
CV1#,SV11 30A,30A,TOKAIRIKA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV11 30A,30A,MATSUSHITA |
3 | ||
| 82650-35010 |
CV1#,SV11 20A,20A |
1 | ||
| 82650-32020 |
CV1#,SV11 30A,30A,TOKAIRIKA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV11 30A,30A,MATSUSHITA |
3 | ||
| 82650-35010 |
CV1#,SV11 20A,20A |
1 | ||
| 82650-32020 |
CV1#,SV11 30A,30A,TOKAIRIKA |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32070 |
CV10,SV11 NO.2 |
1 | ||
| 82660-32120 |
CV11,SV11 NO.1 |
1 | ||
| 82660-32020 |
CV10,SV11 NO.1 |
1 | ||
| 82660-32071 |
CV1#,SV11 NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32070 |
CV10,SV11 NO.2 |
1 | ||
| 82660-32120 |
CV11,SV11 NO.1 |
1 | ||
| 82660-32020 |
CV10,SV11 NO.1 |
1 | ||
| 82660-32071 |
CV1#,SV11 NO.2 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV11 ENGINE ROOM,UPR |
1 | ||
| 82661-32010 |
SV11 ENGINE ROOM,UPR |
1 | ||
| 82661-32040 |
CV1#,SV11 COWL SIDE |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CV1#,SV11 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CV1#,SV11 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV11 |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV10,SV11 |
1 | ||
| 90987-03001 |
SV11 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
SV11..LE NO.1(POWER WINDOW OR SUN ROOF) |
1 | ||
| 85930-32020 |
SV11..LE NO.2(POWER WINDOW) |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-24010 |
CV1#,SV11 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
SV11..LE |
1 | ||
| 85965-32010 |
SV11..LE |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-32040 |
SV11..LE |
1 | ||
| 85980-32041 |
SV11..LE |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-32010 |
CV1#,SV11 |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-32080 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90159-50112 | ||||
| 90179-06115 | ||||
| 90189-05024 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93319-15010 | ||||
| 93540-55014 | ||||
| 93560-55014 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
CV10,SV11 |
1 | ||
| 84052-10010 |
CV1#,SV11 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39205 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84112-29385 |
CV1#,SV11 |
1 | ||
| 84112-39215 |
CV10,SV11..5F;SV11..4FC..DLX |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
CV1#,SV11 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-32060 |
CV1#,SV11 |
1 | ||
| 84119-3203104 |
CV10,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 84119-3203116 |
CV10,SV11 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 84119-3203101 |
SV11 BLACK,BLACK,TRIM1#,8# |
1 | ||
| 84119-3203103 |
CV10,SV11 DARK GRAY,GRAY,TRIM1# |
1 | ||
| 84119-3203106 |
SV11 DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 84119-32070 |
SV11..LE W/DIGITAL SPEEDOMETER |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
CV1#,SV11 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-39095 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84140-29225 |
CV1#,SV11 |
1 | ||
| 84140-39105 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32090 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84310-32180 |
SV11..LE W/*CRC |
1 | ||
| 84310-32070 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84310-32160 |
SV11..LE |
1 | ||
| 84310B - SWITCH, TURN SIGNAL | ||||
| 84332-39225 |
CV1#,SV11 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84312-32010 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84312-32010 |
CV1#,SV11 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39175 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84332-3205004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 84332-3205003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84332-39185 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84332-3205005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27040 |
CV10,SV11 |
1 | ||
| 84450-32010 |
CV1#,SV11 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39275 |
SV11..5F;SV11..4FC..DLX |
1 | ||
| 84652-39385 |
SV11..LE |
1 | ||
| 84652-39405 |
SV11..LE W/*CRC |
1 | ||
| 84652-39255 |
SV11..LE W/INTERLOCK TIMER |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-32020 |
SV11..5D |
1 | ||
| 84653-32010 |
SV11..5D |
1 | ||
| 84653-14020 |
SV11..5D |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-32020 |
CV1#,SV11 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
CV1#,SV11 |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32010 |
CV1#,SV11 |
1 | ||
| 84732-32030 |
CV1#,SV11 W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32070 |
SV11 W/TIMER |
1 | ||
| 84790-3205004 |
SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 84790-32020 |
CV10,SV11 |
1 | ||
| 84790-3205003 |
SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790-3205005 |
SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 84790-32010 |
SV11 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32070 |
SV11 W/TIMER |
1 | ||
| 84790-3205004 |
SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 84790-32020 |
CV10,SV11 |
1 | ||
| 84790-3205003 |
SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790-3205005 |
SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 84790-32010 |
SV11 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
CV10,SV11 12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
SV11..LE |
1 | ||
| 84870-32020 |
SV11..LE |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32040 |
CV1#,SV11 |
1 | ||
| 85500-32020 |
CV10,SV11 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV1#,SV11 14V 1.4W |
2 | ||
| 90981-11014 |
CV10,SV11 14V 1.4W |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV1#,SV11 14V 1.4W |
2 | ||
| 90981-11014 |
CV10,SV11 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-14030 |
CV1#,SV11 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 82711-20450 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29885 |
SV11..LE W/DIGITAL SPEEDOMETER |
1 | ||
| 83320-39327 |
SV11 |
1 | ||
| 83320-39325 |
SV11 |
1 | ||
| 83320-39326 |
SV11 |
1 | ||
| 83320-39625 |
SV11 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV11 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
CV1#,SV11 |
2 | ||
| 84231-20080 |
CV10,SV11 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
CV1#,SV11 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
CV1#,SV11 |
2 | ||
| 84231-20080 |
CV10,SV11 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
CV1#,SV11 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-32010 |
SV11..5D |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22110 |
CV1#,SV11 W/*CRC,TOKAIRIKA |
1 | ||
| 84340-30030 |
CV1#,SV11 MATSUSHITA |
1 | ||
| 84340-22100 |
CV1#,SV11 W/*CRC,MATSUSHITA |
1 | ||
| 84340-32010 |
CV1#,SV11 TOKAIRIKA |
1 | ||
| 84340-32010 |
CV10,SV11 |
1 | ||
| 84340-20030 |
CV10,SV11 W/*CRC |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-12010 |
SV11..5F |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-32020 |
CV10;SV11..LE |
1 | ||
| 84532-32020 |
SV11..LE |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
CV1#,SV11 |
1 | ||
| 84550-24010 |
CV10,SV11 |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-30020 |
SV11..LE |
6 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32040 |
SV11..LE FR(RH) |
1 | ||
| 84810-32020 |
SV11..LE RR |
2 | ||
| 84810-32050 |
SV11..LE RR,FR(RH) |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32040 |
SV11..LE FR(RH) |
1 | ||
| 84810-32020 |
SV11..LE RR |
2 | ||
| 84810-32050 |
SV11..LE RR,FR(RH) |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32040 |
SV11..LE FR(RH) |
1 | ||
| 84810-32020 |
SV11..LE RR |
2 | ||
| 84810-32050 |
SV11..LE RR,FR(RH) |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32040 |
SV11..LE FR(LH) |
1 | ||
| 84820-32042 |
SV11..LE FR(LH) |
1 | ||
| 84820-32070 |
SV11..LE FR(LH) |
1 | ||
| 84820-32041 |
SV11..LE FR(LH) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-32010 |
SV11..LE |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-32020 |
SV11..LE |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32030 |
SV11..5D RR WIPER |
1 | ||
| 85940-32050 |
SV11..LE FR WIPER |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32090 |
SV11..LE..5D |
1 | ||
| 89373-32130 |
SV11..LE..5D |
1 | ||
| 89373-32040 |
SV11..LE..5D |
1 | ||
| Common parts | ||||
| 82711-30020 | ||||
| 90167-40024 | ||||
| 90168-40006 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 90463-12570 | ||||
| 90468-06046 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
