SV11L-UHMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8301- )5D

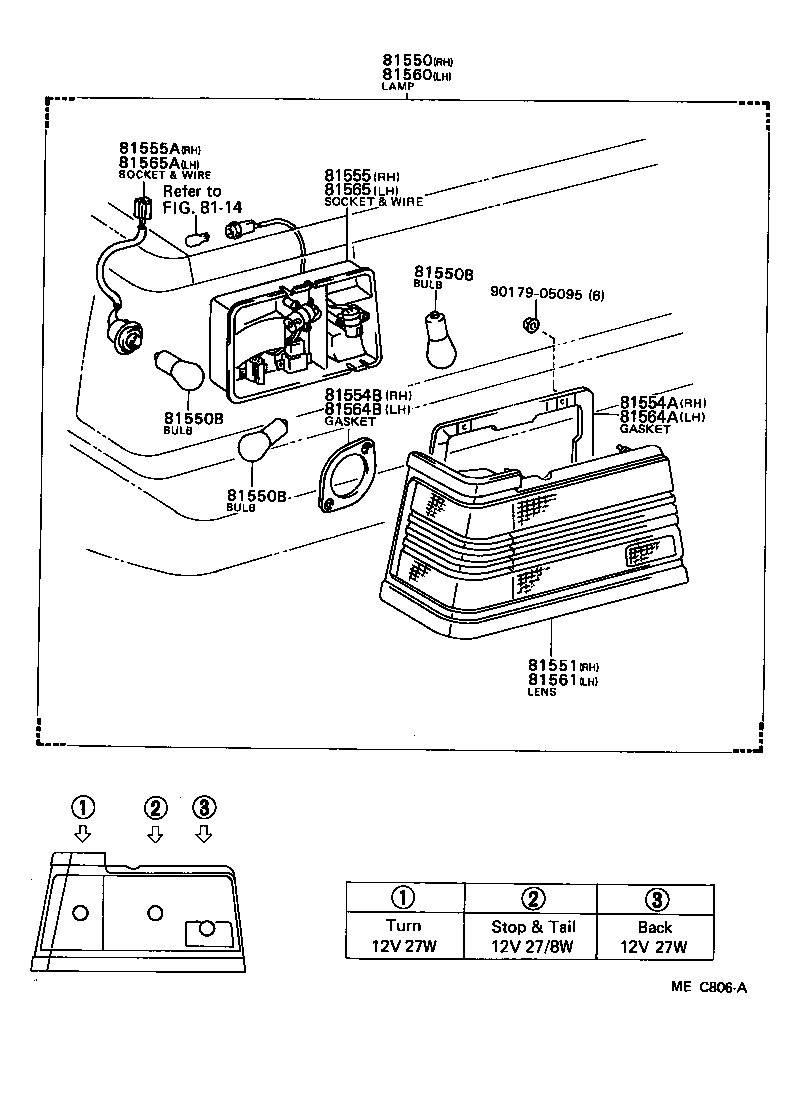

Click highlighted areas on diagram

diagram 8114 81550 81550B 81550B 81550B 81551 81554A 81554B 81555 81555A 81560 81561 81564A 81564B 81565 81565A 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80226

SV11..5D

 1
81550-39755

SV11..5D

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

CV1#,SV11

12V 27W,12V 27W

 4
99132-21270

CV1#,SV11

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

CV1#,SV11

12V 27W,12V 27W

 4
99132-21270

CV1#,SV11

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

CV1#,SV11

12V 27W,12V 27W

 4
99132-21270

CV1#,SV11

12V 27/8W,12V 27/8W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-32081

SV11..5D

 1
81551-32080

SV11..5D

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554-32090

SV11..5D

 1
81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81552-32090

SV11..5D

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-32080

SV11..5D

 1
81555-32081

SV11..5D

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81558-32080

SV11..5D

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-39715

SV11..5D

 1
81560-80231

SV11..5D

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-32080

SV11..5D

 1
81561-32081

SV11..5D

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81554-32090

SV11..5D

 1
81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81552-32090

SV11..5D

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-32081

SV11..5D

 1
81565-32080

SV11..5D

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81558-32080

SV11..5D

 1
Common parts
90179-05095
Linked diagrams
8114
