SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8406)

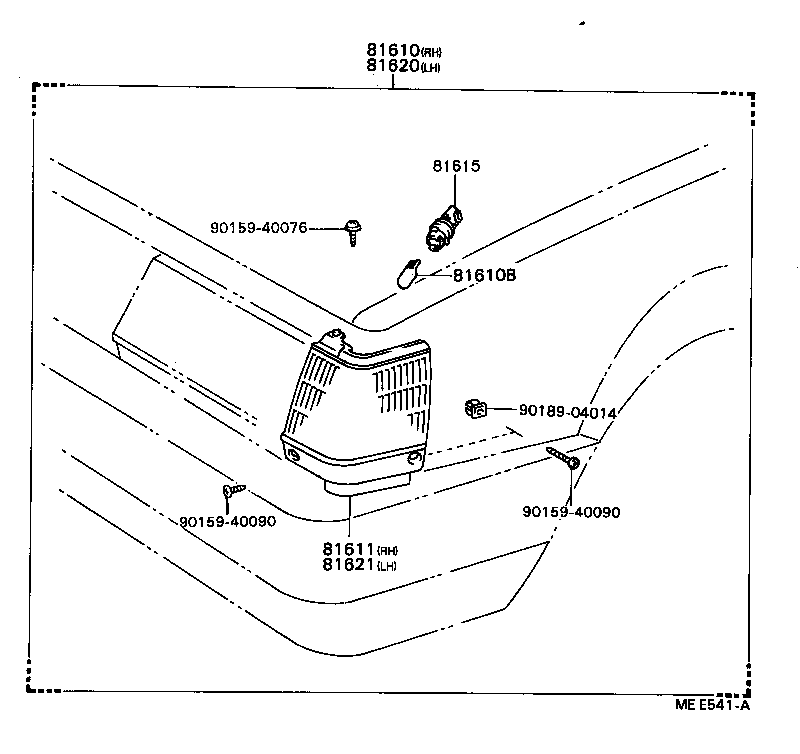

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81279-95700 | ||||
| 81612-32030 | ||||
| 81617-32020 | ||||
| 90159-40076 | ||||
| 90189-04014 | ||||
| 93540-64020 | ||||
(8406- )

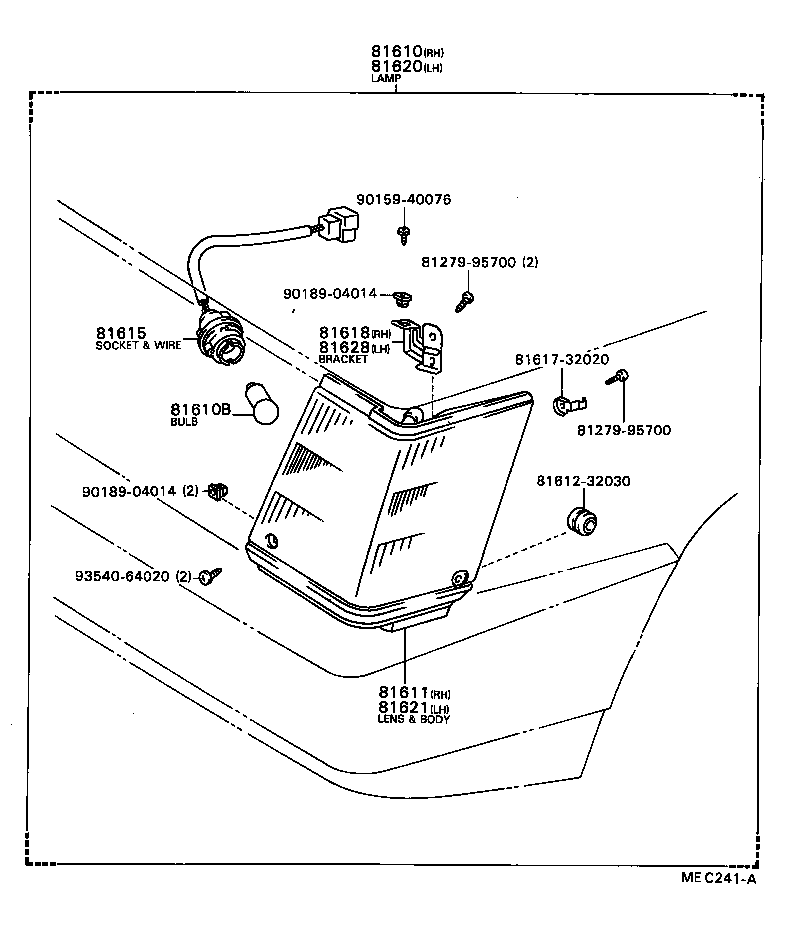

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40076 | ||||
| 90159-40090 | ||||
| 90189-04014 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-39735 |
CV10,SV11 |
1 | ||
| 81610-39736 |
CV1#,SV11 |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-39735 |
CV10,SV11 |
1 | ||
| 81610-39736 |
CV1#,SV11 |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-11020 |
CV10,SV11 12V 3.8W,12V 3.8W |
2 | ||
| 90981-11020 |
CV1#,SV11 12V 3.8W,12V 3.8W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-11020 |
CV10,SV11 12V 3.8W,12V 3.8W |
2 | ||
| 90981-11020 |
CV1#,SV11 12V 3.8W,12V 3.8W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-11020 |
CV10,SV11 12V 3.8W,12V 3.8W |
2 | ||
| 90981-11020 |
CV1#,SV11 12V 3.8W,12V 3.8W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-32050 |
CV10,SV11 |
1 | ||
| 81611-32051 |
CV1#,SV11 |
1 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-32050 |
CV10,SV11 |
1 | ||
| 81611-32051 |
CV1#,SV11 |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-32051 |
CV1#,SV11 |
2 | ||
| 81615-32050 |
CV10,SV11 |
2 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-32051 |
CV1#,SV11 |
2 | ||
| 81615-32050 |
CV10,SV11 |
2 | ||
| 81618 - BRACKET, PARKING AND CLEARANCE LAMP, RH | ||||
| 81618-32050 |
CV10,SV11 |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-39735 |
CV10,SV11 |
1 | ||
| 81620-39736 |
CV1#,SV11 |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-39735 |
CV10,SV11 |
1 | ||
| 81620-39736 |
CV1#,SV11 |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-32051 |
CV1#,SV11 |
1 | ||
| 81621-32050 |
CV10,SV11 |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-32051 |
CV1#,SV11 |
1 | ||
| 81621-32050 |
CV10,SV11 |
1 | ||
| 81628 - BRACKET, PARKING AND CLEARANCE LAMP, LH | ||||
| 81628-32050 |
CV10,SV11 |
1 | ||
| Common parts | ||||
| 81279-95700 | ||||
| 81518-14270 | ||||
| 81617-32050 | ||||
| 81619-32050 | ||||
| 90159-40076 | ||||
| 90159-40080 | ||||
| 90189-04014 | ||||
| 90189-04022 | ||||
| 93540-64020 | ||||
