SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8406)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06162 | ||||
| 90159-50047 | ||||
| 90159-60025 | ||||
| 90159-60060 | ||||
| 90179-06007 | ||||
| 90179-10033 | ||||
| 90189-06006 | ||||
| 90201-10038 | ||||
| 90460-55001 | ||||
| 90468-14004 | ||||
| 90959-01088 | ||||
| 91511-40610 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93385-15014 | ||||
| 96112-10240 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 8401 | ||||

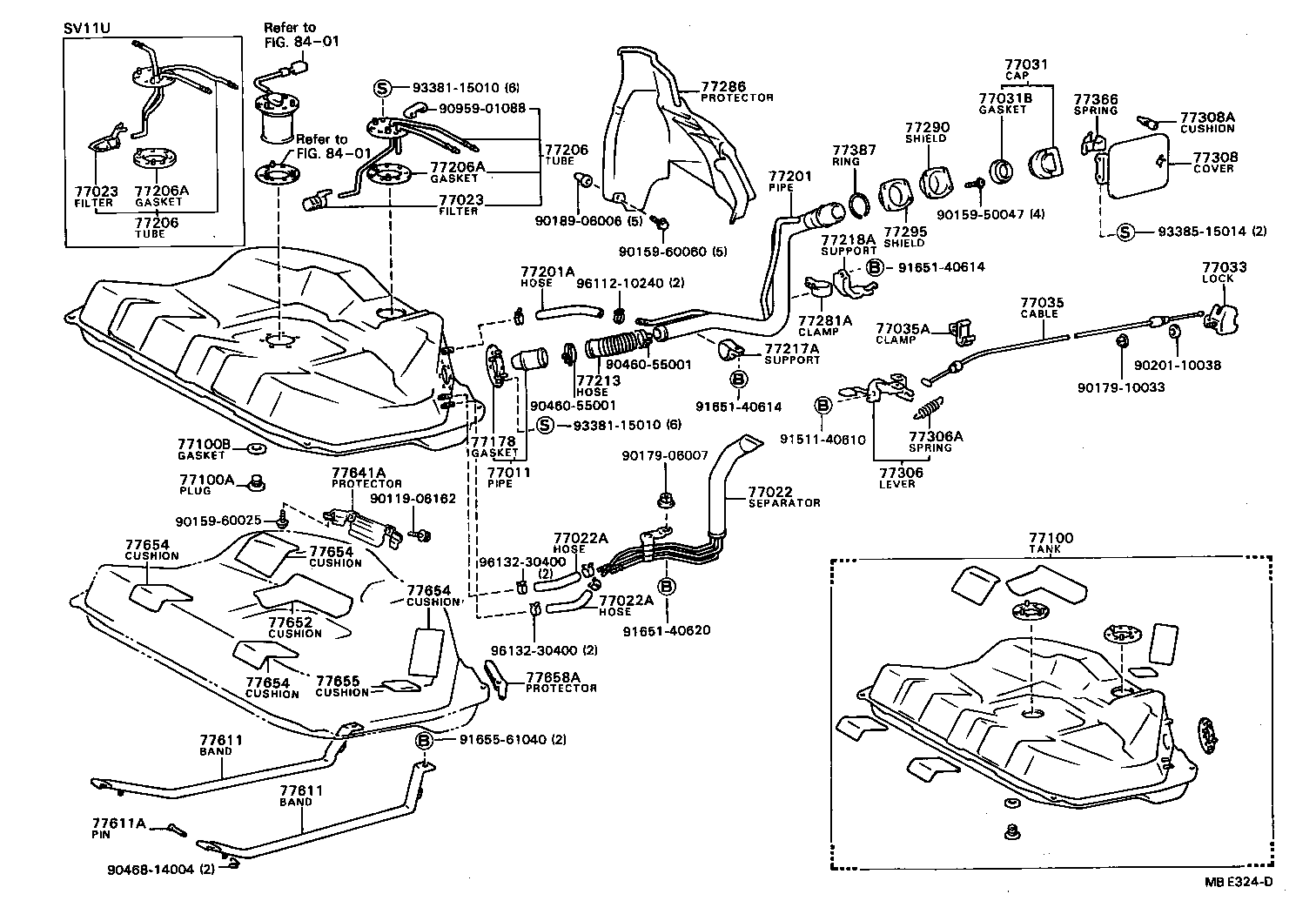

(8210-8406)SV11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 59999-32010 | ||||
| 90464-00107 | ||||
| 90467-11009 | ||||
| 90467-18001 | ||||
| 90480-01062 | ||||
| 90480-01144 | ||||
| 90480-01170 | ||||
| 90480-17002 | ||||
| 90480-17011 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 90959-01124 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
(8406- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50047 | ||||
| 90159-60060 | ||||
| 90179-05020 | ||||
| 90179-06007 | ||||
| 90179-10074 | ||||
| 90189-06006 | ||||
| 90460-22002 | ||||
| 90460-55001 | ||||
| 90460-55003 | ||||
| 90468-14004 | ||||
| 90959-01088 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93381-15016 | ||||
| 93385-15014 | ||||
| 96112-10240 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||
(8406- )SV11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90464-00107 | ||||
| 90467-11009 | ||||
| 90480-01062 | ||||
| 90480-01144 | ||||
| 90480-01170 | ||||
| 90480-17002 | ||||
| 90480-17011 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 90959-01124 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||

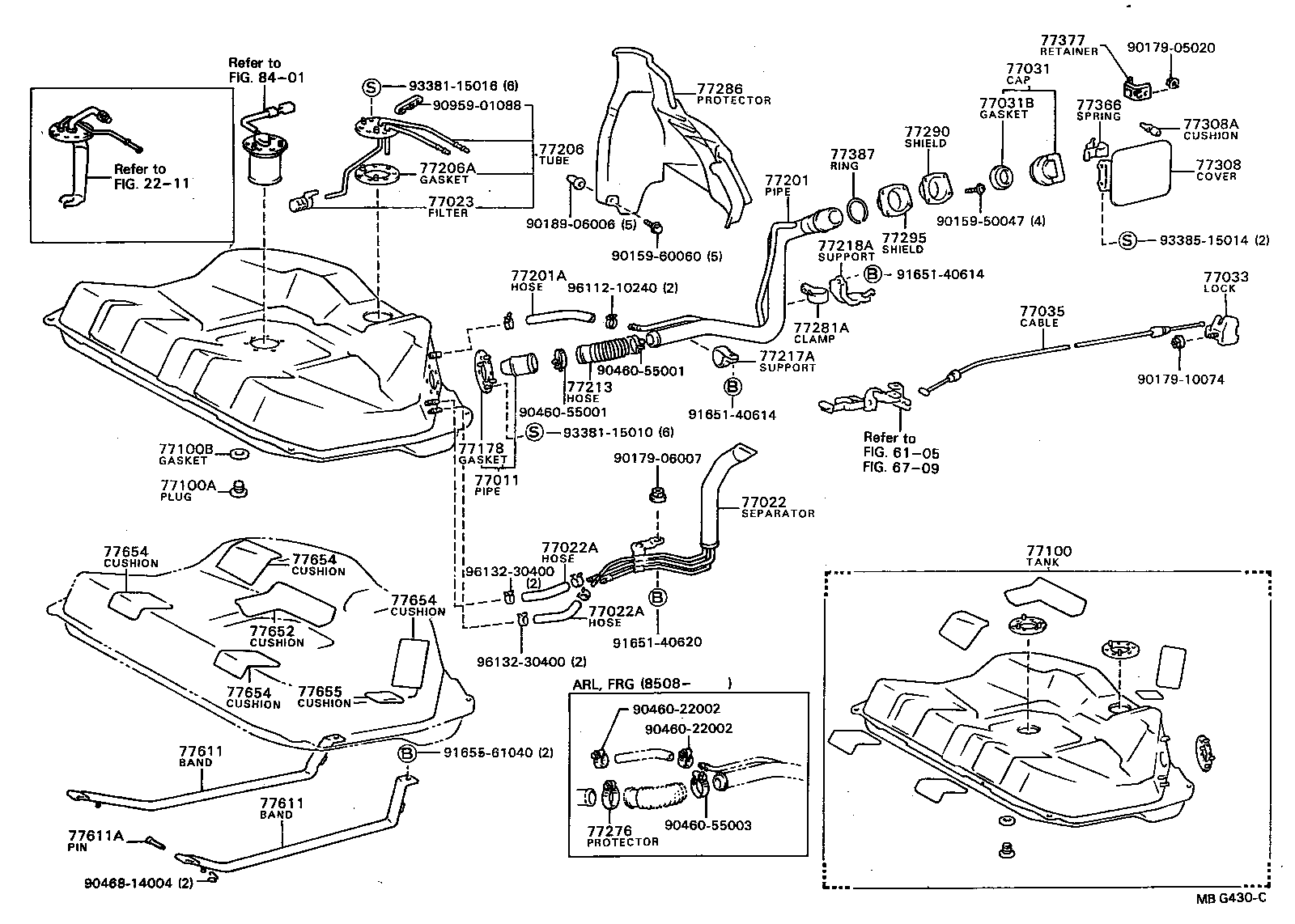

(8301-8408)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16030 |
CV1#,SV11 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77022-32011 |
CV1#,SV11 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-04030 |
CV1#,SV11 *H,L=220 |
2 | ||
| 95333-04022 |
CV11,SV11 *H,L=220 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-04030 |
CV1#,SV11 *H,L=220 |
2 | ||
| 95333-04022 |
CV11,SV11 *H,L=220 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
SV11 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
SV11 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-16010 |
SV11 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
SV11 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12040 |
CV1#,SV11 |
1 | ||
| 77037-32010 |
CV10,SV11 |
1 | ||
| 77037-24010 |
SV11 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32030 |
CV1#,SV11 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39205 |
CV1#,SV11 |
1 | ||
| 77001-39115 |
CV10,SV11 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
CV1#,SV11 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
CV1#,SV11 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
CV1#,SV11 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-32020 |
SV11 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22021 |
CV10,SV11 L=230 |
1 | ||
| 90445-22011 |
CV1#,SV11 L=220 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-32021 |
SV11 |
1 | ||
| 77017-32022 |
SV11 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-32021 |
SV11 |
1 | ||
| 77017-32022 |
SV11 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-32010 |
CV10,SV11 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-32010 |
CV10,SV11 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-32010 |
CV1#,SV11 L=248 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32010 |
CV1#,SV11 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-32010 |
CV1#,SV11 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77606-32010 |
CV1#,SV11 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-32010 |
CV1#,SV11 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-32010 |
CV1#,SV11 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-32010 |
CV1#,SV11 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-32010 |
CV1#,SV11 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-32010 |
CV10,SV11 |
1 | ||
| 77350-32020 |
CV1#,SV11 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05009 |
CV10,SV11 |
2 | ||
| 90541-05013 |
CV1#,SV11 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
CV1#,SV11 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
CV1#,SV11 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-32020 |
CV1#,SV11 LH |
1 | ||
| 77601-32030 |
CV1#,SV11 RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-32020 |
CV1#,SV11 LH |
1 | ||
| 77601-32030 |
CV1#,SV11 RH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CV1#,SV11 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-32021 |
CV1#,SV11 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32020 |
CV1#,SV11 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32010 |
CV1#,SV11 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32010 |
CV1#,SV11 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32010 |
CV1#,SV11 |
4 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-14060 |
CV1#,SV11 |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-32010 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90159-50047 | ||||
| 90159-60060 | ||||
| 90179-06007 | ||||
| 90179-10033 | ||||
| 90189-06006 | ||||
| 90201-10038 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90467-10005 | ||||
| 90468-14004 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93385-15014 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||
(8301-8308) ; (8308-8408)SV11..USA
Click highlighted areas on diagram

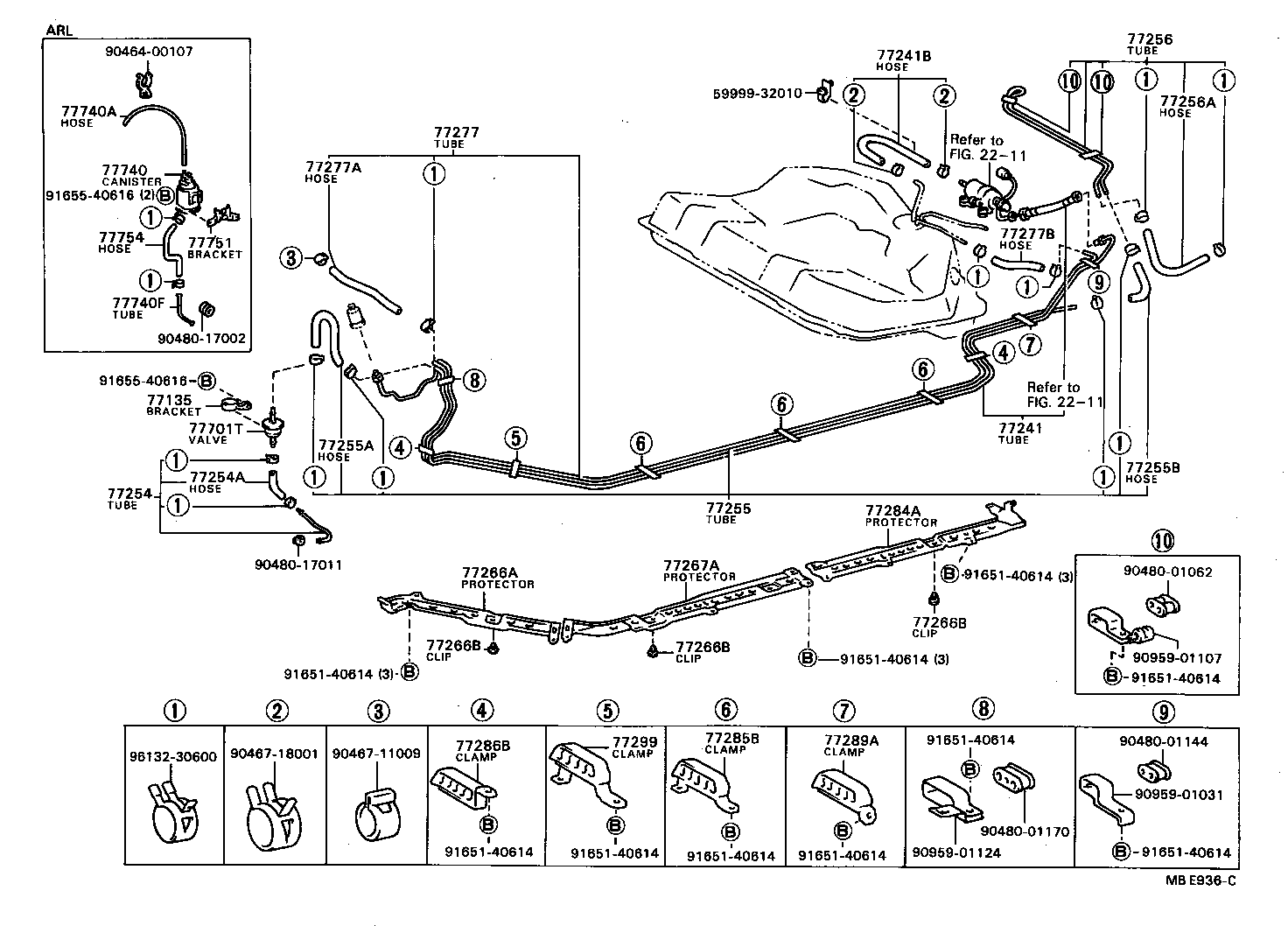

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-32020 |
SV11 |
1 | ||
| 77205-32041 |
SV11 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77409-32010 |
SV11 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77019-32041 |
SV11 |
1 | ||
| 77019-32010 |
SV11 |
1 | ||
| 77019-32040 |
SV11 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=240 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=260 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77028-32020 |
CV1#,SV11 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=260 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-32010 |
CV1#,SV11 |
1 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-32010 |
CV1#,SV11 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-32030 |
SV11 |
1 | ||
| 77207-32020 |
SV11 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-64020 |
SV11 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
CV10,SV11 *H,L=180 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32010 |
CV1#,SV11 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-32020 |
CV1#,SV11 |
3 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-32020 |
CV1#,SV11 |
2 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-32020 |
SV11 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-32020 |
CV1#,SV11 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-32010 |
SV11 |
1 | ||
| 77704-32010 |
SV11..CND |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
SV11 *H,L=650,MARK=#* |
1 | ||
| 95411-19960 |
SV11..CND *H,L=390,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-32010 |
SV11 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 95332-08020 |
SV11 *H,L=160,ID=7.6 |
1 | ||
| 77754-32010 |
SV11..CND |
1 | ||
| Common parts | ||||
| 59999-32010 | ||||
| 90464-00107 | ||||
| 90467-11009 | ||||
| 90467-18001 | ||||
| 90480-01062 | ||||
| 90480-01144 | ||||
| 90480-01170 | ||||
| 90480-17002 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 90959-01124 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||

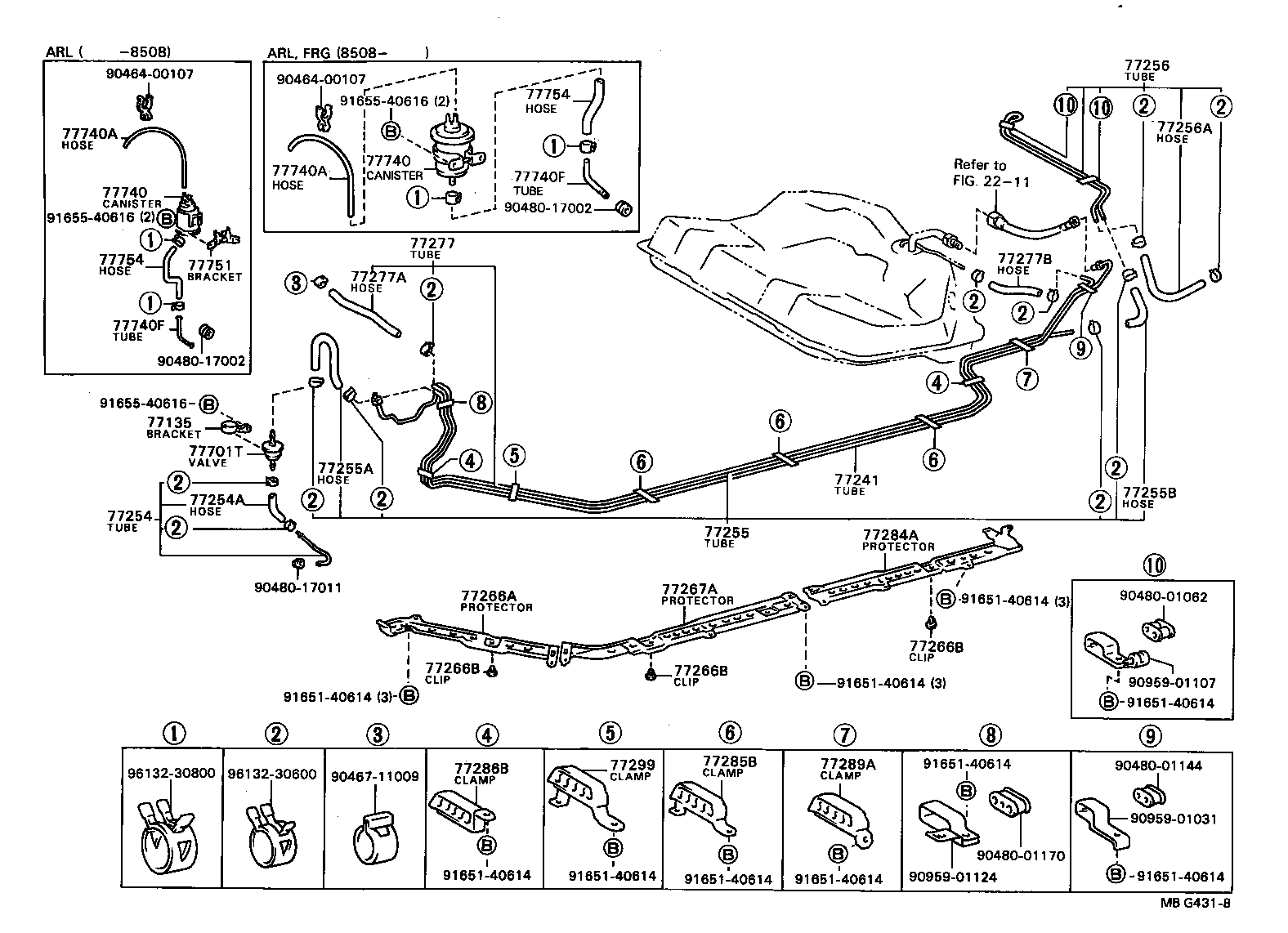

(8308-8408)CND
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-32020 |
SV11 |
1 | ||
| 77205-32041 |
SV11 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77409-32010 |
SV11 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77019-32041 |
SV11 |
1 | ||
| 77019-32010 |
SV11 |
1 | ||
| 77019-32040 |
SV11 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=240 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=260 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77028-32020 |
CV1#,SV11 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=260 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-32010 |
CV1#,SV11 |
1 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-32010 |
CV1#,SV11 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-32030 |
SV11 |
1 | ||
| 77207-32020 |
SV11 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-64020 |
SV11 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
CV10,SV11 *H,L=180 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32010 |
CV1#,SV11 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-32020 |
CV1#,SV11 |
3 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-32020 |
CV1#,SV11 |
2 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-32020 |
SV11 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-32020 |
CV1#,SV11 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-32010 |
SV11 |
1 | ||
| 77704-32010 |
SV11..CND |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
SV11 *H,L=650,MARK=#* |
1 | ||
| 95411-19960 |
SV11..CND *H,L=390,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-32010 |
SV11 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-32010 |
SV11..CND |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 95332-08020 |
SV11 *H,L=160,ID=7.6 |
1 | ||
| 77754-32010 |
SV11..CND |
1 | ||
| Common parts | ||||
| 59999-32010 | ||||
| 90464-00107 | ||||
| 90467-11009 | ||||
| 90467-18001 | ||||
| 90480-01062 | ||||
| 90480-01144 | ||||
| 90480-01170 | ||||
| 90480-17002 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 90959-01124 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
(8408- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16030 |
CV1#,SV11 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77022-32011 |
CV1#,SV11 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-04030 |
CV1#,SV11 *H,L=220 |
2 | ||
| 95333-04022 |
CV11,SV11 *H,L=220 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-04030 |
CV1#,SV11 *H,L=220 |
2 | ||
| 95333-04022 |
CV11,SV11 *H,L=220 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
SV11 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-16010 |
SV11 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
SV11 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12040 |
CV1#,SV11 |
1 | ||
| 77037-32010 |
CV10,SV11 |
1 | ||
| 77037-24010 |
SV11 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32030 |
CV1#,SV11 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39205 |
CV1#,SV11 |
1 | ||
| 77001-39115 |
CV10,SV11 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
CV1#,SV11 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
CV1#,SV11 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
CV1#,SV11 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-32020 |
SV11 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22021 |
CV10,SV11 L=230 |
1 | ||
| 90445-22011 |
CV1#,SV11 L=220 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-32021 |
SV11 |
1 | ||
| 77017-32022 |
SV11 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-32010 |
CV10,SV11 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-32010 |
CV1#,SV11 L=248 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32010 |
CV1#,SV11 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-32010 |
CV1#,SV11 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77606-32010 |
CV1#,SV11 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-32010 |
CV1#,SV11 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-32010 |
CV1#,SV11 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-32010 |
CV1#,SV11 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-32010 |
CV1#,SV11 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-32010 |
CV10,SV11 |
1 | ||
| 77350-32020 |
CV1#,SV11 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05009 |
CV10,SV11 |
2 | ||
| 90541-05013 |
CV1#,SV11 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
CV1#,SV11 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
CV1#,SV11 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
CV1#,SV11 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-32020 |
CV1#,SV11 LH |
1 | ||
| 77601-32030 |
CV1#,SV11 RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-32020 |
CV1#,SV11 LH |
1 | ||
| 77601-32030 |
CV1#,SV11 RH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CV1#,SV11 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-32021 |
CV1#,SV11 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32020 |
CV1#,SV11 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32010 |
CV1#,SV11 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32010 |
CV1#,SV11 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32010 |
CV1#,SV11 |
4 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-14060 |
CV1#,SV11 |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-32010 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90159-50047 | ||||
| 90159-60060 | ||||
| 90179-05020 | ||||
| 90179-06007 | ||||
| 90179-10074 | ||||
| 90189-06006 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90467-09006 | ||||
| 90468-14004 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93385-15014 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||
(8408- )CND
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-32020 |
SV11 |
1 | ||
| 77205-32041 |
SV11 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77019-32041 |
SV11 |
1 | ||
| 77019-32010 |
SV11 |
1 | ||
| 77019-32040 |
SV11 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=240 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=260 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77028-32020 |
CV1#,SV11 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06030 |
CV1#,SV11 *H,L=260 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-32010 |
CV1#,SV11 |
1 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77266B - CLIP (FOR FUEL TUBE PROTECTOR) | ||||
| 90467-1000501 |
CV1#,SV11 BLACK |
4 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-32010 |
CV1#,SV11 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-32030 |
SV11 |
1 | ||
| 77207-32020 |
SV11 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-64020 |
SV11 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
CV10,SV11 *H,L=180 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32010 |
CV1#,SV11 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-32020 |
CV1#,SV11 |
3 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-32020 |
CV1#,SV11 |
2 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-32020 |
SV11 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-32020 |
CV1#,SV11 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-32010 |
SV11 |
1 | ||
| 77704-32010 |
SV11..CND |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
SV11 *H,L=650,MARK=#* |
1 | ||
| 95411-19960 |
SV11..CND *H,L=390,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-32010 |
SV11 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 95332-08020 |
SV11 *H,L=160,ID=7.6 |
1 | ||
| 77754-32010 |
SV11..CND |
1 | ||
| Common parts | ||||
| 90464-00107 | ||||
| 90467-11009 | ||||
| 90480-01062 | ||||
| 90480-01144 | ||||
| 90480-01170 | ||||
| 90480-17002 | ||||
| 90950-01124 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 91661-40614 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
