SV11L-UHMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8301- )5D

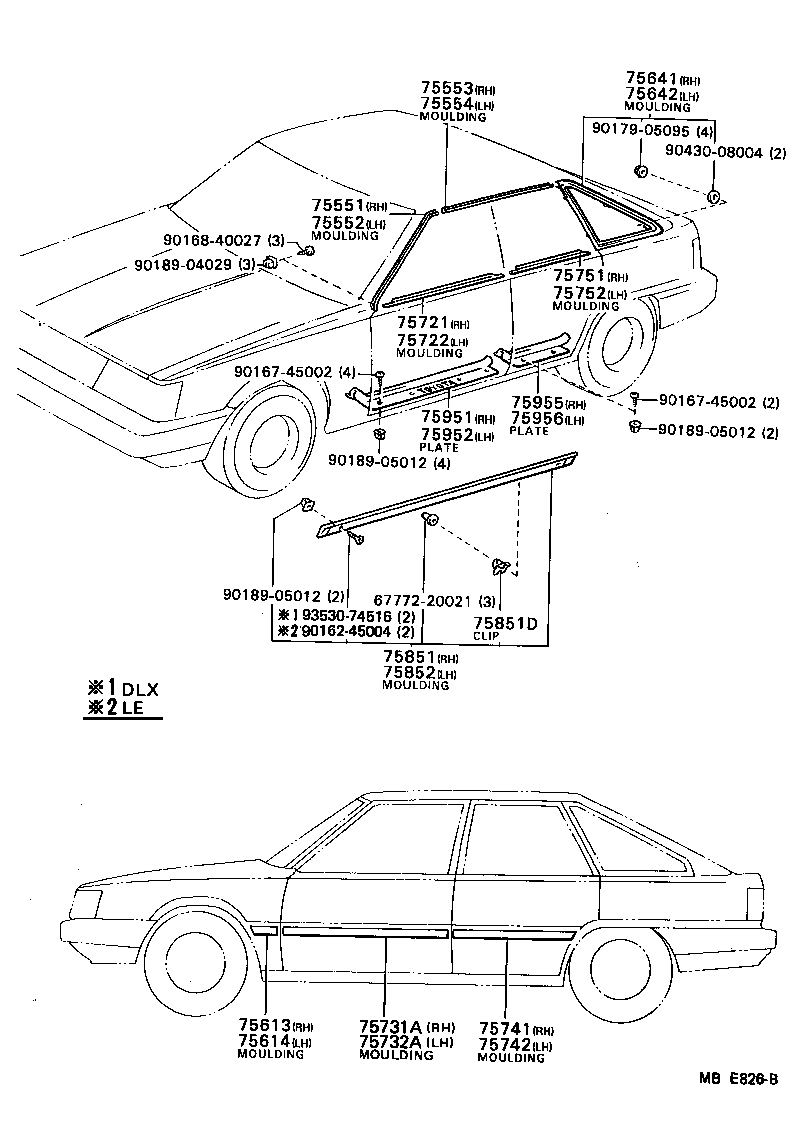

Click highlighted areas on diagram

diagram 6777220021 75551 75552 75553 75554 75613 75614 75641 75642 75721 75722 75731A 75732A 75741 75742 75751 75752 75851 75851D 75852 75951 75952 75955 75956 9016245004 9016745002 9016745002 9016840027 9017905095 9018904029 9018905012 9018905012 9018905012 9043008004 9353074516
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-32020

SV11..5D

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-32020

SV11..5D

 1
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75553-32020

SV11..5D

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75554-32020

SV11..5D

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-3203001

CV10,SV11

BLACK,BLACK

 1
75611-32070

CV1#,SV11

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75612-3203001

CV10,SV11

BLACK,BLACK

 1
75612-32070

CV1#,SV11

 1
75641 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH
68153-39035

SV11..5D

 1
75642 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH
68154-39035

SV11..5D

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-32020

CV1#,SV11

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-32020

CV1#,SV11

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-3203001

CV10,SV11

BLACK,BLACK

 1
75731-32070

CV1#,SV11

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-32070

CV1#,SV11

 1
75732-3203001

CV10,SV11

BLACK,BLACK

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-3203001

CV10,SV11

BLACK,BLACK

 1
75741-32090

CV1#,SV11

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-3203001

CV10,SV11

BLACK,BLACK

 1
75742-32090

CV1#,SV11

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-32010

CV1#,SV11

 1
75752 - MOULDING, REAR DOOR BELT, LH
75740-32010

CV1#,SV11

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-39055

SV11..LE

 1
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75867-32010

CV1#,SV11

 6
75852 - MOULDING, ROCKER PANEL, LH
75850-39055

SV11..LE

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-3201003

CV10,SV11

GRAY,GRAY,TRIM1#

 1
67913-3201005

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 1
67913-3201004

CV1#,SV11

BLUE,BLUE,TRIM8#

 1
67913-3201013

CV1#,SV11

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67913-3201006

CV10,SV11

BROWN,BROWN,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-3201013

CV1#,SV11

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67913-3201006

CV10,SV11

BROWN,BROWN,TRIM4#

 1
67913-3201004

CV1#,SV11

BLUE,BLUE,TRIM8#

 1
67913-3201003

CV10,SV11

GRAY,GRAY,TRIM1#

 1
67913-3201005

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-3201006

CV10,SV11

BROWN,BROWN,TRIM4#

 1
67917-3201005

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 1
67917-3201013

CV1#,SV11

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67917-3201003

CV10,SV11

GRAY,GRAY,TRIM1#

 1
67917-3201004

CV1#,SV11

BLUE,BLUE,TRIM8#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917-3201004

CV1#,SV11

BLUE,BLUE,TRIM8#

 1
67917-3201006

CV10,SV11

BROWN,BROWN,TRIM4#

 1
67917-3201005

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 1
67917-3201003

CV10,SV11

GRAY,GRAY,TRIM1#

 1
67917-3201013

CV1#,SV11

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
Common parts
67772-20021
90162-45004
90167-45002
90168-40027
90179-05095
90189-04029
90189-05012
90430-08004
93530-74516
