SV11L-UHMEEK (1983)
Toyota Camry
(8210-8406)

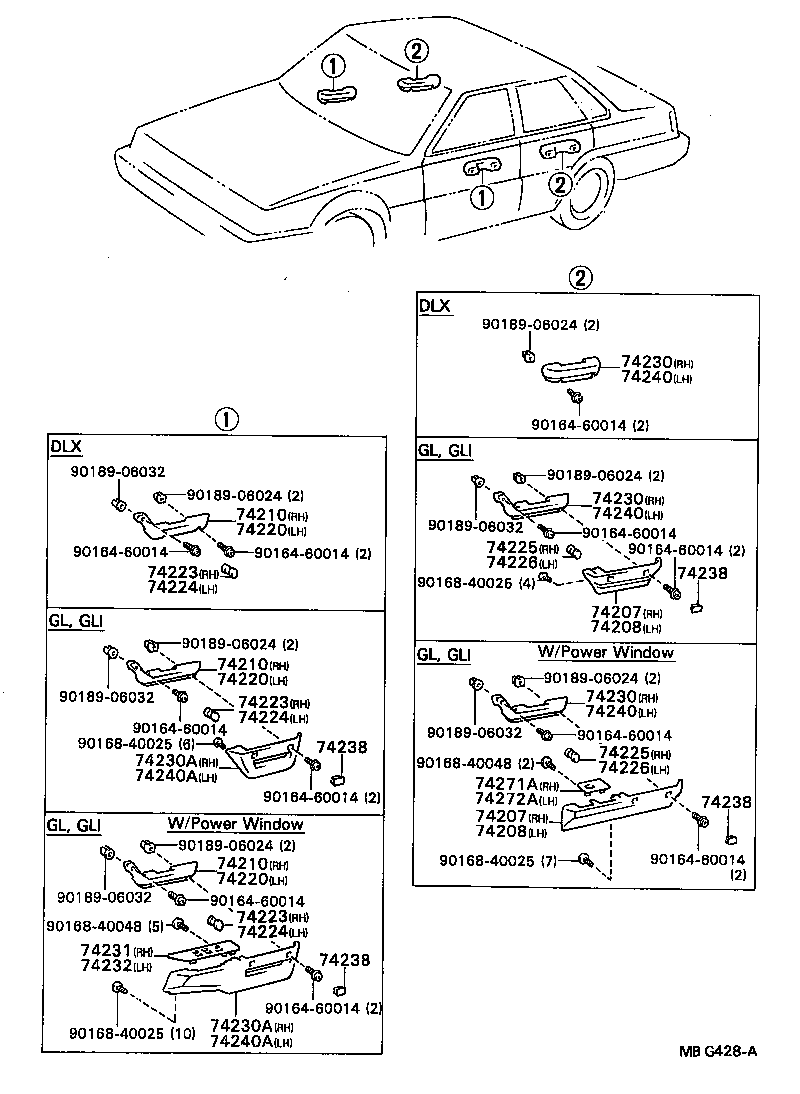

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74207 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH | ||||
| 74207-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH | ||||
| 74208-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74210-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74210-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74220-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74220-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHAD0W GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHAD0W GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74224-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74224-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74224-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74224-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74225 - CAP, DOOR ARMREST, REAR RH | ||||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74226 - CAP, DOOR ARMREST, REAR LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74250-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74250-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74230-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74230-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74230-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74231-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74231-3204005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74231-3202001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74231-3204004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74231-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74231-3204003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74232-3204003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74232-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74232-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74232-3204005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74232-3202001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74232-3204004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74260-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74260-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74260-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74260-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-3201103 |
SV11..LE W/*PW,GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74240-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74240-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74271-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74271-3201001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74271-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74271-3202005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74271-3202003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74271-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74272-3201001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74272-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74272-3202005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74272-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74272-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74272-3202003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| Common parts | ||||
| 90164-60006 | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 90189-06032 | ||||
(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-60014 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 90189-06024 | ||||
| 90189-06032 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74207 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH | ||||
| 74207-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH | ||||
| 74208-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74210-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74210-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74220-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74220-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHAD0W GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHAD0W GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74224-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74224-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74224-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74224-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74225 - CAP, DOOR ARMREST, REAR RH | ||||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74226 - CAP, DOOR ARMREST, REAR LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74250-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74250-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74230-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74230-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74230-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74231-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74231-3204005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74231-3202001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74231-3204004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74231-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74231-3204003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74232-3204003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74232-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74232-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74232-3204005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74232-3202001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74232-3204004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74260-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74260-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74260-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74260-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-3201103 |
SV11..LE W/*PW,GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74240-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74240-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74271-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74271-3201001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74271-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74271-3202005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74271-3202003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74271-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74272-3201001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74272-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74272-3202005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74272-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74272-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74272-3202003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| Common parts | ||||
| 90164-60006 | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 90189-06032 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-3211003 |
SV11..LE GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74310-3220005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74310-3205003 |
SV11..LE GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74310-3211005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74310-3220003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74310-3205005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-3208005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74320-3218005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74320-3208003 |
SV11..LE GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74320-3218003 |
SV11..LE GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74320-3216003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74320-3216005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74320-3215003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74320-3215005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3201003 |
CV1#,SV11 GRAY,LIGHT GRAY,TRIM1#,8# |
2 | ||
| 74348-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-2003015 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 74610-2003024 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 74610-2003033 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74610-2003006 |
CV10,SV11 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 74610-2003023 |
CV10,SV11 DARK GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-0602903 |
CV1#,SV11 GRAY,GRAY,TRIM1#,8# |
2 | ||
| 90467-0602905 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-2003015 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 74610-2003006 |
CV10,SV11 DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74610-2003023 |
CV10,SV11 DARK GRAY,GRAY,TRIM1#,8# |
2 | ||
| 74610-2003033 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
2 | ||
| 74610-2003024 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-2003015 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 74610-2003006 |
CV10,SV11 DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74610-2003023 |
CV10,SV11 DARK GRAY,GRAY,TRIM1#,8# |
2 | ||
| 74610-2003033 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
2 | ||
| 74610-2003024 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-1401023 |
CV10,SV11 DARK GRAY,GRAY,TRIM1#,8# |
6 | ||
| 74617-1401015 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
6 | ||
| 74617-1401016 |
CV10,SV11 DARK BROWN,BROWN,TRIM4# |
6 | ||
| 74617-1401043 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
6 | ||
| 74617-1401024 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
6 | ||
| 74631 - HOOK, COAT, A | ||||
| 74631-1401033 |
CV10,SV11 GRAY,GRAY,TRIM1#,8# |
2 | ||
| 74631-1401025 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 74631-1401024 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 74631-1401016 |
CV10,SV11 DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74631-1401043 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
2 | ||
| Common parts | ||||
| 90149-50025 | ||||
| 90159-60085 | ||||
| 90189-06014 | ||||
| 90189-06028 | ||||
| 90201-05007 | ||||
| 90541-06017 | ||||
| 93530-45020 | ||||
| 93560-56014 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74207 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH | ||||
| 74207-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH | ||||
| 74207-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74207-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74207-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74207-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74207-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74207-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH | ||||
| 74208-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208 - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH | ||||
| 74208-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3201103 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74208-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74208-3203005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74208-3203003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74208-3201106 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74208-3203004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74210-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74210-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74210-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74220-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74220-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201006 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3201003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74220-3203003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74220-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3201004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74220-3203005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHAD0W GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHAD0W GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHAD0W GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74224-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74224-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74224-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74224-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74224-2001004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74224-2001003 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74225 - CAP, DOOR ARMREST, REAR RH | ||||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74225 - CAP, DOOR ARMREST, REAR RH | ||||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74226 - CAP, DOOR ARMREST, REAR LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74226 - CAP, DOOR ARMREST, REAR LH | ||||
| 74223-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74223-3201013 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74223-3201005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74223-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74223-3201004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74223-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74250-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74250-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74250-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74250-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74230-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74230-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74230-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74230-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74230-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74230-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74230-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74230-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74231-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74231-3204005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74231-3202001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74231-3204004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74231-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74231-3204003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-3202003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74232-3204003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74232-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74232-3202006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74232-3204005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74232-3202001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74232-3204004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74238 - CAP, DOOR ARMREST BASE | ||||
| 74237-2401006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
8 | ||
| 74237-2401014 |
SV11..LE BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401014 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
8 | ||
| 74237-2401015 |
SV11..LE BEIGE,BEIGE,TRIM4# |
8 | ||
| 74237-2401023 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
8 | ||
| 74237-2401013 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
8 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74260-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74260-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74260-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74260-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206016 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206106 |
CV10,SV11 W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206133 |
CV10,SV11 W/O *PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74260-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74260-3202004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206104 |
CV10,SV11 W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74260-3202005 |
SV11..LE BEIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3202003 |
SV11..LE SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-3201103 |
SV11..LE W/*PW,GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74240-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74240-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-3201103 |
SV11..LE W/*PW,GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74240-3201105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74240-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74240-3201104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74240-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74240-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74271-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74271-3201001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74271-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74271-3202005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74271-3202003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 74271-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-3201003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1#,8# |
1 | ||
| 74272-3201001 |
SV11..LE W/*PW,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 74272-3201004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74272-3202005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74272-3201006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 74272-3202004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 74272-3202003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#,8# |
1 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 90189-06024 | ||||
| 90189-06032 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
