SV11L-UHMEEK (1983)
Toyota Camry

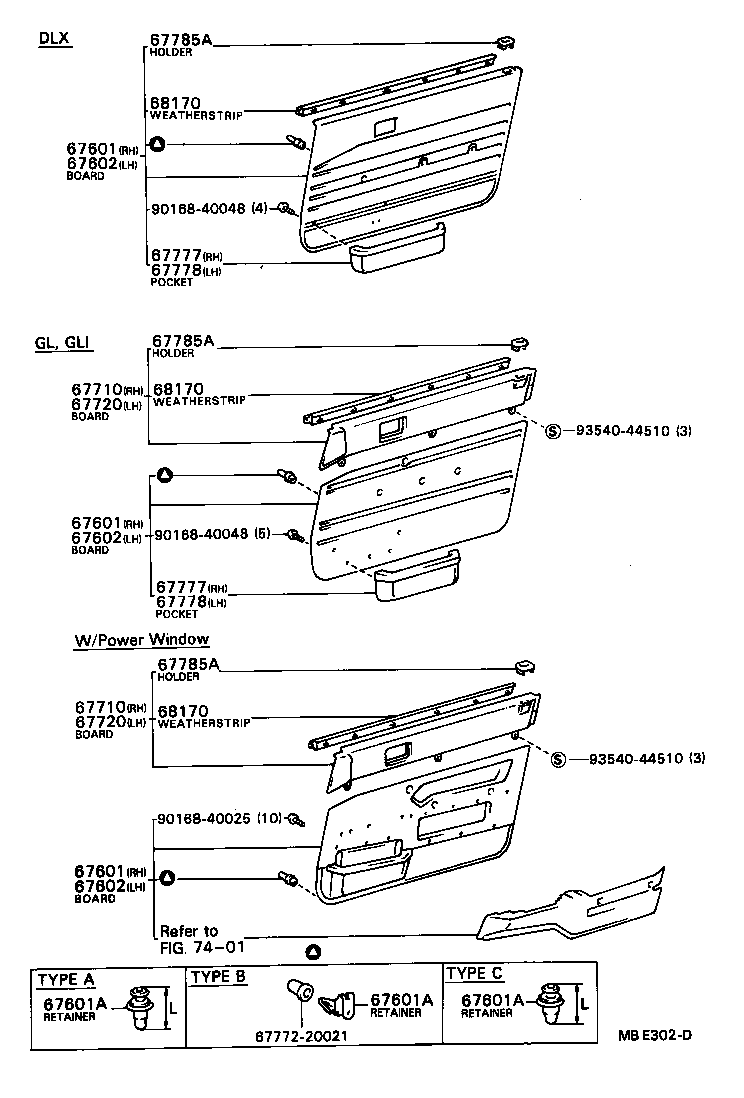

(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67772-20021 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 93540-44510 | ||||
| Linked diagrams | ||||
| 7401 | ||||

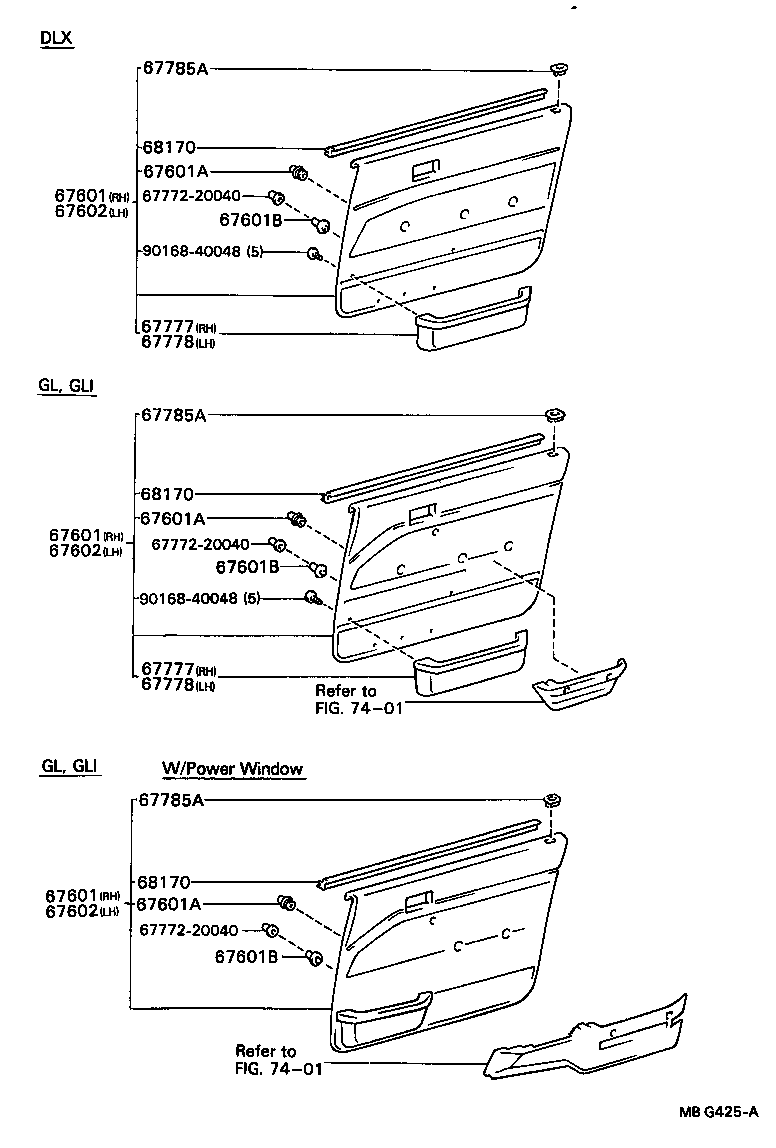

(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67772-20040 | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 7401 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32090 |
SV11..5D |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV1#,SV11 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32090 |
SV11..5D |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32020 |
CV1#,SV11 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32020 |
CV1#,SV11 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32031 |
SV11..5D |
1 | ||
| 67401-32030 |
SV11..5D |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32030 |
SV11..5D |
1 | ||
| 67402-32031 |
SV11..5D |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67433-32010 |
CV10,SV11 |
1 | ||
| 67403-32010 |
CV1#,SV11 |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67434-32010 |
CV10,SV11 |
1 | ||
| 67404-32010 |
CV1#,SV11 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32040 |
SV11..5D TYPE A |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32040 |
SV11..5D TYPE A |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32040 |
SV11..LE..5D TYPE A |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32040 |
SV11..LE..5D TYPE A |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
CV1#,SV11 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32020 |
CV1#,SV11 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32020 |
CV1#,SV11 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32030 |
SV11..5D |
1 | ||
| 67861-32070 |
SV11..5D |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CV1#,SV11 |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32070 |
SV11..5D |
1 | ||
| 67862-32030 |
SV11..5D |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32080 |
SV11..LE..5D BRONZE,*TT,T=4.0 |
1 | ||
| 68111-32070 |
SV11..5D *TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32070 |
SV11..5D *TT,T=4.0 |
1 | ||
| 68112-32080 |
SV11..LE..5D BRONZE,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-32060 |
SV11..5D LONG |
2 | ||
| 68143-32020 |
CV10,SV11 SHORT |
2 | ||
| 68143-14020 |
CV10,SV11 SHORT |
2 | ||
| 68143-32030 |
CV1#,SV11 SHORT |
2 | ||
| 68141-32040 |
SV11..5D LONG |
2 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-32060 |
SV11..5D LONG |
2 | ||
| 68143-32020 |
CV10,SV11 SHORT |
2 | ||
| 68143-14020 |
CV10,SV11 SHORT |
2 | ||
| 68143-32030 |
CV1#,SV11 SHORT |
2 | ||
| 68141-32040 |
SV11..5D LONG |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32030 |
CV1#,SV11 |
2 | ||
| 68610-32010 |
CV10,SV11 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-12010 |
CV10,SV11 |
2 | ||
| 68617-22010 |
CV10,SV11 |
2 | ||
| 68617-90A00 |
CV1#,SV11 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91651-40612 | ||||
| 93510-15014 | ||||
| 93520-14010 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3210003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3210004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3210006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3239004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3240003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291703 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3209004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291804 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291805 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291704 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291705 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291803 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3292505 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292503 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3210003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3210004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3210006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3239004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3240003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291703 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3209004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291804 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291805 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291704 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291705 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291803 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3292505 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292503 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3210003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3210004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3210006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3239004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3240003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291703 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3209004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291804 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291805 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291704 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291705 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291803 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3292505 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292503 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV11..LE TYPE C |
16 | ||
| 67771-22010 |
CV1#,SV11 TYPE A |
20 | ||
| 67771-14010 |
CV10,SV11 TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV11..LE TYPE C |
16 | ||
| 67771-22010 |
CV1#,SV11 TYPE A |
20 | ||
| 67771-14010 |
CV10,SV11 TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV11..LE TYPE C |
16 | ||
| 67771-22010 |
CV1#,SV11 TYPE A |
20 | ||
| 67771-14010 |
CV10,SV11 TYPE B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3209006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3209003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3208004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3209004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3230005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291304 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3229003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3229004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291303 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3229005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3292103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291305 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3209006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3209003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3208004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3209004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3230005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291304 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3229003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3229004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291303 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3229005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3292103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291305 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3209006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3209003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3208004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3209004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3230005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291304 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3229003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3229004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291303 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3229005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3292103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291305 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-3203016 |
SV11..LE BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3203003 |
SV11..LE GRAY,GRAY,TRIM1# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-3203016 |
SV11..LE BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3203003 |
SV11..LE GRAY,GRAY,TRIM1# |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-3203016 |
SV11..LE BROWN,BROWN,TRIM4# |
1 | ||
| 67720-3203003 |
SV11..LE GRAY,GRAY,TRIM1# |
1 | ||
| 67720-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-3203016 |
SV11..LE BROWN,BROWN,TRIM4# |
1 | ||
| 67720-3203003 |
SV11..LE GRAY,GRAY,TRIM1# |
1 | ||
| 67720-3203004 |
SV11..LE BLUE,BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV11 |
2 | ||
| 69751-2006004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV11 |
2 | ||
| 69751-2006004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV11 |
2 | ||
| 69751-2006004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32020 |
CV1#,SV11 RH |
1 | ||
| 68220-32020 |
CV10,SV11 LH |
1 | ||
| 68170-32030 |
CV10,SV11 RH |
1 | ||
| 68220-32020 |
CV1#,SV11 LH |
1 | ||
| 68220-32040 |
CV10,SV11 LH |
1 | ||
| 68170-32020 |
CV10,SV11 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32020 |
CV1#,SV11 RH |
1 | ||
| 68220-32020 |
CV10,SV11 LH |
1 | ||
| 68170-32030 |
CV10,SV11 RH |
1 | ||
| 68220-32020 |
CV1#,SV11 LH |
1 | ||
| 68220-32040 |
CV10,SV11 LH |
1 | ||
| 68170-32020 |
CV10,SV11 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32020 |
CV1#,SV11 RH |
1 | ||
| 68220-32020 |
CV10,SV11 LH |
1 | ||
| 68170-32030 |
CV10,SV11 RH |
1 | ||
| 68220-32020 |
CV1#,SV11 LH |
1 | ||
| 68220-32040 |
CV10,SV11 LH |
1 | ||
| 68170-32020 |
CV10,SV11 RH |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 93540-44510 | ||||
| Linked diagrams | ||||
| 7401 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3210003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3210004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3210006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3239004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3240003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291703 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3209004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291804 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291805 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291704 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291705 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291803 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3292505 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292503 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3210003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3210004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3210006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3239004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3240003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291703 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3209004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291804 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291805 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291704 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291705 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291803 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3292505 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292503 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3210003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3210004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3210006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3239004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3209003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3239005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3240003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3291703 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3240005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3209004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291804 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291805 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3291704 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291705 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3291803 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3292505 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292503 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV11..LE TYPE C |
16 | ||
| 67771-22010 |
CV1#,SV11 TYPE A |
20 | ||
| 67771-14010 |
CV10,SV11 TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV11..LE TYPE C |
16 | ||
| 67771-22010 |
CV1#,SV11 TYPE A |
20 | ||
| 67771-14010 |
CV10,SV11 TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV11..LE TYPE C |
16 | ||
| 67771-22010 |
CV1#,SV11 TYPE A |
20 | ||
| 67771-14010 |
CV10,SV11 TYPE B |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704305 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704303 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704304 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704305 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704303 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704304 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704305 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704303 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704304 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3209006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3209003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3208004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3209004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3230005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291304 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3229003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3229004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291303 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3229005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3292103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291305 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3209006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3209003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3208004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3209004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3230005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291304 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3229003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3229004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291303 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3229005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3292103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291305 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3209006 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3209003 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208003 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3208006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3208004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3209004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3230005 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230004 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291304 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290506 |
SV11..LE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3229003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291405 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291503 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291403 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3290504 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3229004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291303 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291603 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3229005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3230003 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291504 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290503 |
SV11..LE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3291604 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3291505 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3292103 |
SV11..LE W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3291605 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292104 |
SV11..LE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292105 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291404 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3292005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291305 |
SV11..LE W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-1402006 |
SV11..LE W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67770-3202004 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402014 |
SV11..LE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1402013 |
SV11..LE W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67770-3202003 |
SV11..LE W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67770-3202005 |
SV11..LE W/O *PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV11 |
2 | ||
| 69751-2006004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV11 |
2 | ||
| 69751-2006004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV11 |
2 | ||
| 69751-2006004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006003 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32020 |
CV1#,SV11 RH |
1 | ||
| 68220-32020 |
CV10,SV11 LH |
1 | ||
| 68170-32030 |
CV10,SV11 RH |
1 | ||
| 68220-32020 |
CV1#,SV11 LH |
1 | ||
| 68220-32040 |
CV10,SV11 LH |
1 | ||
| 68170-32020 |
CV10,SV11 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32020 |
CV1#,SV11 RH |
1 | ||
| 68220-32020 |
CV10,SV11 LH |
1 | ||
| 68170-32030 |
CV10,SV11 RH |
1 | ||
| 68220-32020 |
CV1#,SV11 LH |
1 | ||
| 68220-32040 |
CV10,SV11 LH |
1 | ||
| 68170-32020 |
CV10,SV11 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32020 |
CV1#,SV11 RH |
1 | ||
| 68220-32020 |
CV10,SV11 LH |
1 | ||
| 68170-32030 |
CV10,SV11 RH |
1 | ||
| 68220-32020 |
CV1#,SV11 LH |
1 | ||
| 68220-32040 |
CV10,SV11 LH |
1 | ||
| 68170-32020 |
CV10,SV11 RH |
1 | ||
| Common parts | ||||
| 67772-20040 | ||||
| 90168-40048 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
