SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8301- )5D

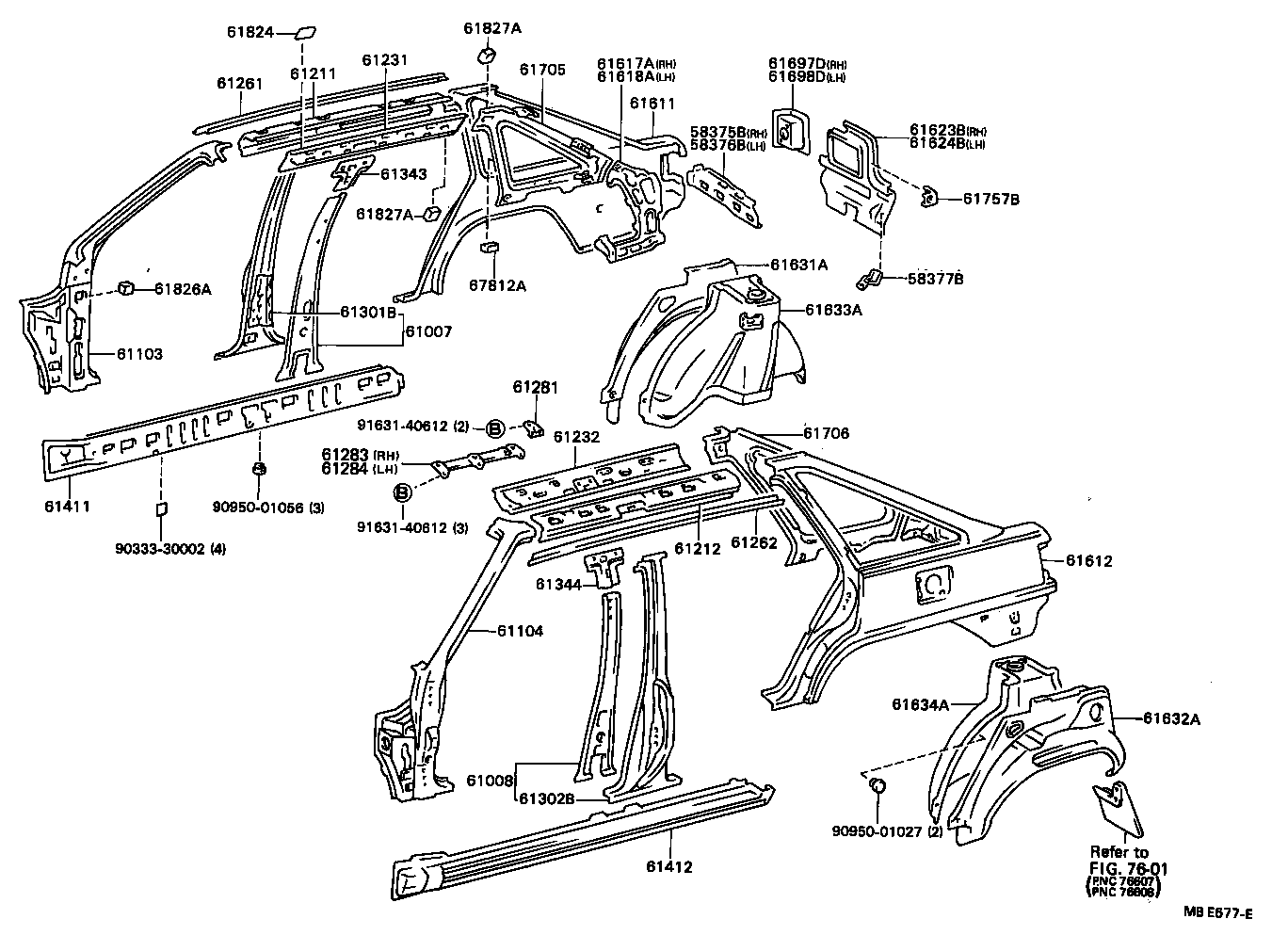

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58375B - REINFORCEMENT, BODY LOWER BACK PANEL, RH | ||||
| 58375-32020 |
SV11..5D |
1 | ||
| 58376B - REINFORCEMENT, BODY LOWER BACK PANEL, LH | ||||
| 58376-32010 |
SV11..5D |
1 | ||
| 58377B - RETAINER, LOWER BACK TRIM | ||||
| 58377-32020 |
SV11..5D |
2 | ||
| 61007 - PILLAR SUB-ASSY, CENTER, RH | ||||
| 61007-32904 |
SV11..5D |
1 | ||
| 61007-32901 |
SV11..5D |
1 | ||
| 61008 - PILLAR SUB-ASSY, CENTER, LH | ||||
| 61008-32904 |
SV11..5D |
1 | ||
| 61008-32901 |
SV11..5D |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-32150 |
SV11..5D |
1 | ||
| 61021-32151 |
SV11..5D |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-32160 |
SV11..5D |
1 | ||
| 61022-32181 |
SV11..5D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-32020 |
SV11..5D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-32020 |
SV11..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-32080 |
SV11..5D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-32080 |
SV11..5D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-32020 |
SV11..5D |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-32020 |
SV11..5D |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-32020 |
SV11..LE..5D |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-32020 |
SV11..LE..5D |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-32020 |
SV11..LE..5D |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-32050 |
SV11..5D |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-32050 |
SV11..5D |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-32020 |
SV11..5D |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-32020 |
SV11..5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-32020 |
CV1#,SV11 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-32020 |
CV1#,SV11 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-32040 |
SV11..5D |
1 | ||
| 61601-32901 |
SV11..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-32902 |
SV11..5D |
1 | ||
| 61602-32060 |
SV11..5D |
1 | ||
| 61617A - PANEL, QUARTER INNER, REAR RH | ||||
| 61617-32900 |
SV11..5D |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-32900 |
SV11..5D |
1 | ||
| 61623B - TROUGH, BACK DOOR OPENING, REAR RH | ||||
| 61623-32901 |
SV11..5D |
1 | ||
| 61623-32010 |
SV11..5D |
1 | ||
| 61624B - TROUGH, BACK DOOR OPENING, REAR LH | ||||
| 61624-32010 |
SV11..5D |
1 | ||
| 61624-32900 |
SV11..5D |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61603-32901 |
CV1#,SV11 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61604-32901 |
CV1#,SV11 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-32905 |
SV11..5D |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-32904 |
SV11..5D |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-32020 |
SV11..5D |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-32020 |
SV11..5D |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-32902 |
SV11..5D |
1 | ||
| 61705-32903 |
SV11..5D |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-32902 |
SV11..5D |
1 | ||
| 61706-32903 |
SV11..5D |
1 | ||
| 61757B - RETAINER, DECK SIDE TRIM, LOWER | ||||
| 61757-32010 |
SV11..5D |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-32010 |
CV1#,SV11 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-32010 |
CV1#,SV11 |
2 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-32010 |
CV1#,SV11 |
4 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-32010 |
CV1#,SV11 |
4 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-32010 |
CV1#,SV11 40X20 |
2 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 7601 | ||||
