SV11L-UHMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8406)

Click highlighted areas on diagram

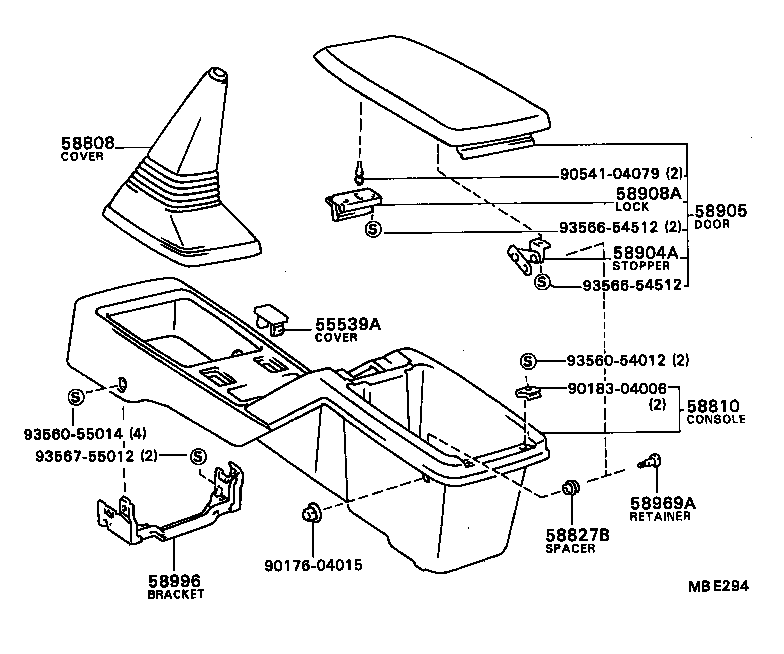

diagram 55539A 58808 58810 58827B 58904A 58905 58908A 58969A 58996 9017604015 9018304006 9054104079 9356054012 9356055014 9356654512 9356654512 9356755012
Part # Description Qty Price
Common parts
90176-04015
90183-04006
90541-04079
93560-54012
93560-55014
93566-54512
93567-55012

(8406- )

Click highlighted areas on diagram

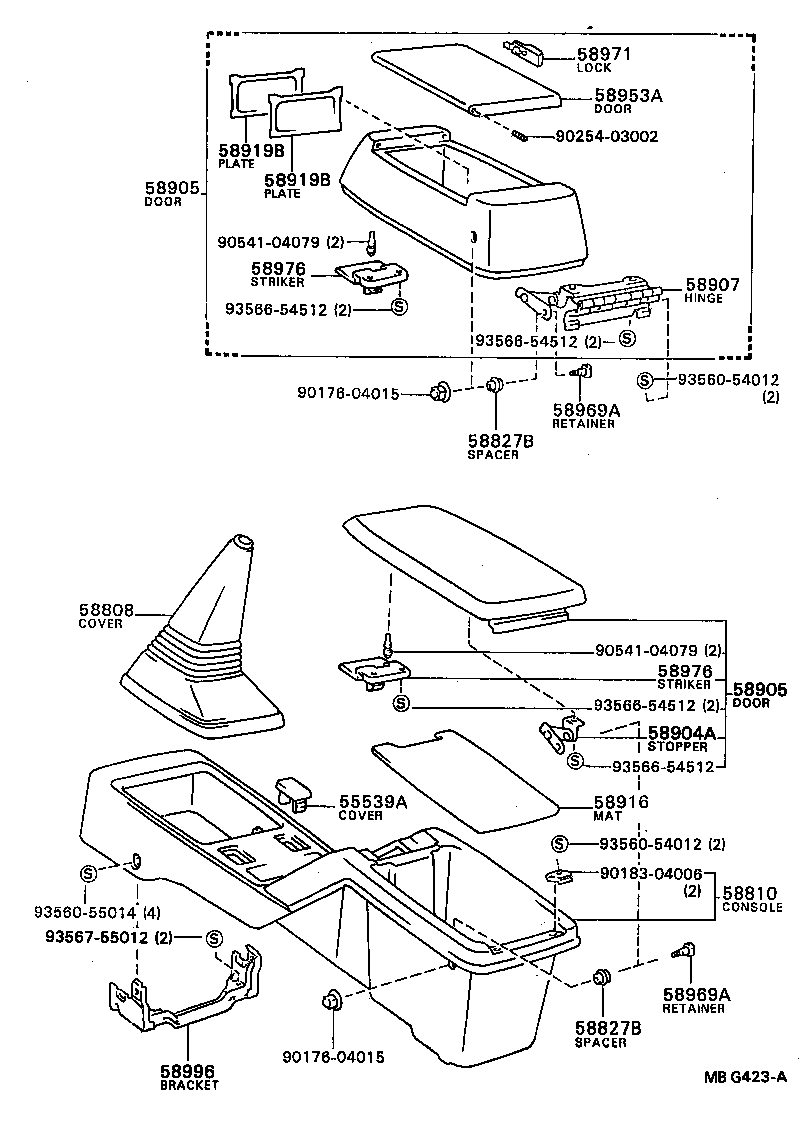

diagram 55539A 58808 58810 58827B 58827B 58904A 58905 58905 58907 58916 58919B 58919B 58953A 58969A 58969A 58971 58976 58976 58996 9017604015 9017604015 9018304006 9025403002 9054104079 9054104079 9356054012 9356054012 9356055014 9356654512 9356654512 9356654512 9356654512 9356755012
Part # Description Qty Price
Common parts
90176-04015
90183-04006
90254-03002
90541-04079
93560-54012
93560-55014
93566-54512
93567-55012

(8301-8408)

Click highlighted areas on diagram

diagram 55539A 58808 58810 58827B 58827B 58904A 58905 58905 58907 58908A 58908A 58916 58919B 58919B 58953A 58969A 58969A 58971 58996 9017604015 9017604015 9018304006 9025403002 9054104079 9054104079 9356054012 9356054012 9356055014 9356654512 9356654512 9356654512 9356654512 9356755012
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-3201001

SV11

BLACK,BLACK,TRIM1#,8#

 2
55539-3201004

CV10,SV11

BLUE,BLUE,TRIM8#

 2
55539-1403113

CV1#,SV11

SHADOW GRAY,GRAY,TRIM1#

 2
55539-3201026

CV10,SV11

DARK BROWN,BROWN,TRIM4#

 2
55539-3201023

CV10,SV11

DARK GRAY,GRAY,TRIM1#

 2
55539-1403115

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 2
55539-1403104

CV1#,SV11

BLUE,BLUE,TRIM8#

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-3201003

CV10,SV11..5F

DARK GRAY,GRAY,TRIM1#

 1
58808-3201016

CV10,SV11..5F

DARK BROWN,BROWN,TRIM4#

 1
58808-3201006

SV11..5F

DEEP BROWN,BROWN,TRIM4#

 1
58808-3201001

SV11..5F

BLACK,BLACK,TRIM1#,8#

 1
58808-3201004

CV10,SV11..5F

BLUE,BLUE,TRIM8#

 1
58808-3201013

SV11..5F

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58808-3201005

SV11..5F

BEIGE,BEIGE,TRIM4#

 1
58810 - CONSOLE ASSY
58801-3201004

SV11

BLUE,BLUE,TRIM8#

 1
58801-3201006

SV11

BROWN,BROWN,TRIM4#

 1
58801-3201016

CV10,SV11

BROWN,BROWN,TRIM4#

 1
58801-3201023

CV1#,SV11

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58801-3201013

CV10,SV11

GRAY,GRAY,TRIM1#

 1
58801-3201005

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 1
58801-3201003

SV11

GRAY,GRAY,TRIM1#

 1
58801-3201014

CV1#,SV11

BLUE,BLUE,TRIM8#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

CV1#,SV11

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

CV1#,SV11

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3203006

SV11..LE

BROWN,BROWN,TRIM4#

 1
58905-3206005

SV11..LE

BEIGE,BEIGE,TRIM4#

 1
58905-3206003

SV11..LE

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58905-3203004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3206004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3203003

SV11..LE

GRAY,GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3203006

SV11..LE

BROWN,BROWN,TRIM4#

 1
58905-3206005

SV11..LE

BEIGE,BEIGE,TRIM4#

 1
58905-3206003

SV11..LE

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58905-3203004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3206004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3203003

SV11..LE

GRAY,GRAY,TRIM1#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-32010

SV11..LE

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-22010

CV10,SV11

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-22010

CV10,SV11

 1
58916 - MAT, BOX BOTTOM
58916-32010

SV11..LE

 1
58919B - PLATE, CONSOLE BOX
58919-32010

SV11..LE

 2
58919B - PLATE, CONSOLE BOX
58919-32010

SV11..LE

 2
58953A - DOOR, CONSOLE COMPARTMENT, UPPER
58953-3204005

SV11..LE

BEIGE,BEIGE,TRIM4#

 1
58953-3204003

SV11..LE

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58953-3202006

SV11..LE

BROWN,BROWN,TRIM4#

 1
58953-3202003

SV11..LE

GRAY,GRAY,TRIM1#

 1
58953-3204004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58953-3202004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

CV1#,SV11

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

CV1#,SV11

 1
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58971-3201003

SV11..LE

GRAY,GRAY,TRIM1#

 1
58971-3201006

SV11..LE

BROWN,BROWN,TRIM4#

 1
58971-3201004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-32010

CV10,SV11..5F

 1
Common parts
90176-04015
90183-04006
90254-03002
90541-04079
93560-54012
93560-55014
93566-54512
93567-55012

(8408- )

Click highlighted areas on diagram

diagram 55539A 58808 58810 58827B 58827B 58904A 58905 58905 58907 58916 58919B 58919B 58953A 58968A 58969A 58969A 58976 58976 58996 9017604015 9017604015 9018304006 9025403002 9054104079 9054104079 9351014010 9356054012 9356054012 9356055014 9356654512 9356654512 9356654512 9356654512 9356755012
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-3201001

SV11

BLACK,BLACK,TRIM1#,8#

 2
55539-3201004

CV10,SV11

BLUE,BLUE,TRIM8#

 2
55539-1403113

CV1#,SV11

SHADOW GRAY,GRAY,TRIM1#

 2
55539-3201026

CV10,SV11

DARK BROWN,BROWN,TRIM4#

 2
55539-3201023

CV10,SV11

DARK GRAY,GRAY,TRIM1#

 2
55539-1403115

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 2
55539-1403104

CV1#,SV11

BLUE,BLUE,TRIM8#

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-3201003

CV10,SV11..5F

DARK GRAY,GRAY,TRIM1#

 1
58808-3201016

CV10,SV11..5F

DARK BROWN,BROWN,TRIM4#

 1
58808-3201006

SV11..5F

DEEP BROWN,BROWN,TRIM4#

 1
58808-3201001

SV11..5F

BLACK,BLACK,TRIM1#,8#

 1
58808-3201004

CV10,SV11..5F

BLUE,BLUE,TRIM8#

 1
58808-3201013

SV11..5F

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58808-3201005

SV11..5F

BEIGE,BEIGE,TRIM4#

 1
58810 - CONSOLE ASSY
58801-3201004

SV11

BLUE,BLUE,TRIM8#

 1
58801-3201006

SV11

BROWN,BROWN,TRIM4#

 1
58801-3201016

CV10,SV11

BROWN,BROWN,TRIM4#

 1
58801-3201023

CV1#,SV11

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58801-3201013

CV10,SV11

GRAY,GRAY,TRIM1#

 1
58801-3201005

CV1#,SV11

BEIGE,BEIGE,TRIM4#

 1
58801-3201003

SV11

GRAY,GRAY,TRIM1#

 1
58801-3201014

CV1#,SV11

BLUE,BLUE,TRIM8#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

CV1#,SV11

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

CV1#,SV11

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3203006

SV11..LE

BROWN,BROWN,TRIM4#

 1
58905-3206005

SV11..LE

BEIGE,BEIGE,TRIM4#

 1
58905-3206003

SV11..LE

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58905-3203004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3206004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3203003

SV11..LE

GRAY,GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3203006

SV11..LE

BROWN,BROWN,TRIM4#

 1
58905-3206005

SV11..LE

BEIGE,BEIGE,TRIM4#

 1
58905-3206003

SV11..LE

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58905-3203004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3206004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58905-3203003

SV11..LE

GRAY,GRAY,TRIM1#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-32010

SV11..LE

 1
58916 - MAT, BOX BOTTOM
58916-32010

SV11..LE

 1
58919B - PLATE, CONSOLE BOX
58919-32010

SV11..LE

 2
58919B - PLATE, CONSOLE BOX
58919-32010

SV11..LE

 2
58953A - DOOR, CONSOLE COMPARTMENT, UPPER
58953-3204005

SV11..LE

BEIGE,BEIGE,TRIM4#

 1
58953-3204003

SV11..LE

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58953-3202006

SV11..LE

BROWN,BROWN,TRIM4#

 1
58953-3202003

SV11..LE

GRAY,GRAY,TRIM1#

 1
58953-3204004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58953-3202004

SV11..LE

BLUE,BLUE,TRIM8#

 1
58968A - BRACKET, CONSOLE DOOR STOPPER
58968-32010

SV11..LE

 2
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

CV1#,SV11

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

CV1#,SV11

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

CV1#,SV11

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

CV1#,SV11

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-32010

CV10,SV11..5F

 1
Common parts
90176-04015
90183-04006
90254-03002
90541-04079
93510-14010
93560-54012
93560-55014
93566-54512
93567-55012
