SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8301- )5D

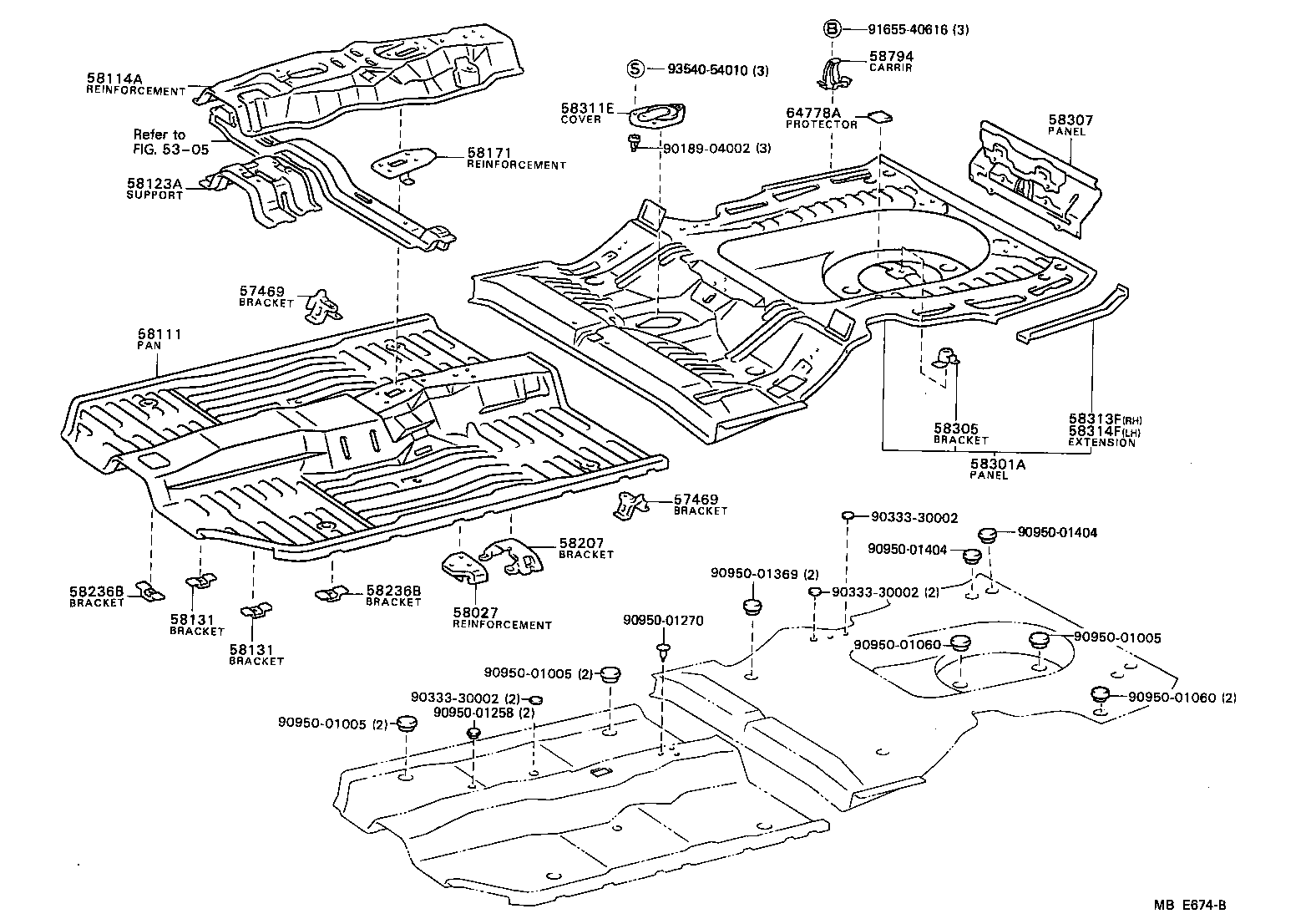

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57469 - BRACKET, FRONT SEAT, OUTSIDE | ||||
| 57469-32010 |
CV1#,SV11 LH |
1 | ||
| 57468-32010 |
CV1#,SV11 RH |
1 | ||
| 57469 - BRACKET, FRONT SEAT, OUTSIDE | ||||
| 57469-32010 |
CV1#,SV11 LH |
1 | ||
| 57468-32010 |
CV1#,SV11 RH |
1 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58027-32010 |
CV1#,SV11 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-32010 |
CV1#,SV11 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-32900 |
CV1#,SV11 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-32010 |
CV1#,SV11 |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-32010 |
CV1#,SV11 |
2 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-32010 |
CV1#,SV11 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-32010 |
CV1#,SV11 |
1 | ||
| 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-32010 |
CV1#,SV11 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
CV1#,SV11 |
2 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
CV1#,SV11 |
2 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-32060 |
SV11..5D |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
CV1#,SV11 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-32090 |
SV11..5D |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-32010 |
CV1#,SV11 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-32030 |
SV11..5D |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-32030 |
SV11..5D |
1 | ||
| 58794 - CARRIER, JACK | ||||
| 58791-32020 |
SV11..5D |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-14020 |
CV1#,SV11 |
3 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 90333-30002 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01258 | ||||
| 90950-01270 | ||||
| 90950-01369 | ||||
| 90950-01404 | ||||
| 91655-40616 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
