SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8406)

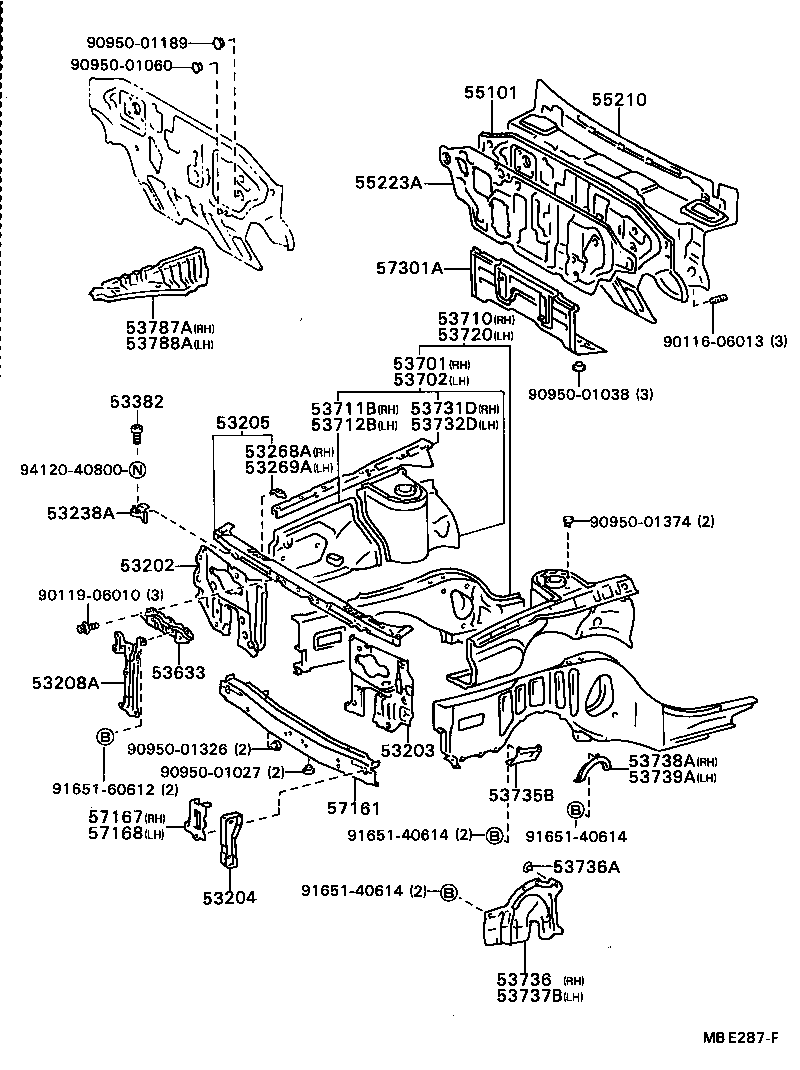

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06013 | ||||
| 90119-06010 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01060 | ||||
| 90950-01189 | ||||
| 90950-01326 | ||||
| 90950-01374 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| 94120-40800 | ||||
(8406- )

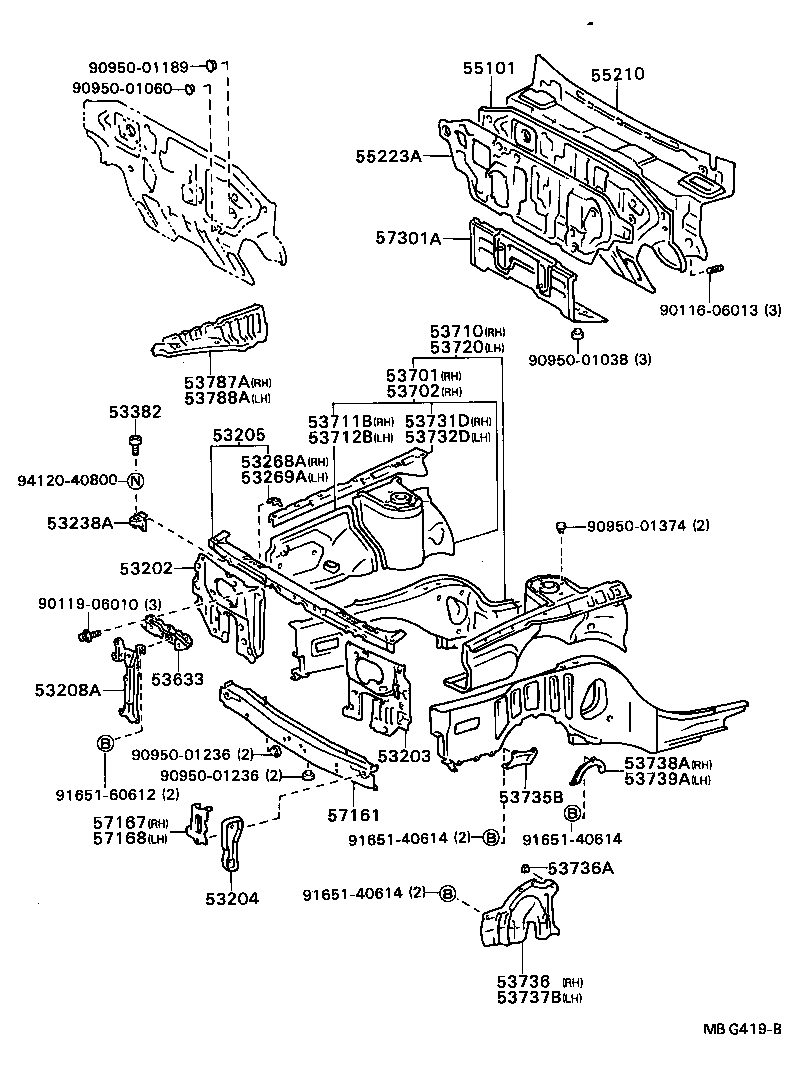

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06013 | ||||
| 90119-06010 | ||||
| 90950-01038 | ||||
| 90950-01060 | ||||
| 90950-01189 | ||||
| 90950-01236 | ||||
| 90950-01374 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| 94120-40800 | ||||
(8301-8408)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-32010 |
CV10,SV11 |
1 | ||
| 53202-32011 |
CV1#,SV11 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-32010 |
SV11 |
1 | ||
| 53203-32021 |
SV11 |
1 | ||
| 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER | ||||
| 53217-32020 |
CV1#,SV11 RH |
1 | ||
| 53218-32020 |
CV1#,SV11 LH |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-32020 |
CV1#,SV11 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-32021 |
CV1#,SV11 |
1 | ||
| 53208-32020 |
CV10,SV11 |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-32010 |
CV1#,SV11 |
2 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-32010 |
CV10,SV11 |
1 | ||
| 53268-32011 |
CV1#,SV11 |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-32010 |
CV1#,SV11 |
1 | ||
| 53268-32010 |
CV10,SV11 |
1 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20011 |
CV1#,SV11 |
2 | ||
| 53633 - SHIELD, HOOD LOCK CONTROL CABLE | ||||
| 53633-32020 |
CV1#,SV11 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-32901 |
CV10,SV11 |
1 | ||
| 53701-32904 |
SV11 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-32904 |
CV11,SV11 |
1 | ||
| 53702-32901 |
CV10,SV11 |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53701-32020 |
CV10,SV11 |
1 | ||
| 53701-32021 |
SV11 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-32020 |
CV1#,SV11 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-32020 |
CV1#,SV11 |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53702-32021 |
CV11,SV11 |
1 | ||
| 53702-32020 |
CV10,SV11 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-32010 |
CV1#,SV11 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-32010 |
CV1#,SV11 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-32010 |
CV1#,SV11 |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-09030 |
CV1#,SV11 |
4 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-32010 |
CV1#,SV11 |
1 | ||
| 53738A - SEAL, FRONT FENDER APRON, REAR RH | ||||
| 53738-32010 |
SV11 |
1 | ||
| 53739A - SEAL, FRONT FENDER APRON, REAR LH | ||||
| 53739-32010 |
CV1#,SV11 |
1 | ||
| 53787A - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53787-32010 |
CV1#,SV11 |
1 | ||
| 53788A - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53788-32010 |
CV1#,SV11 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-32904 |
CV1#;SV11..LE |
1 | ||
| 55101-32902 |
SV11 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-32021 |
CV1#,SV11 |
1 | ||
| 55210-32020 |
CV10,SV11 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-32021 |
CV1#;SV11..LE |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-32020 |
CV1#,SV11 |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-32020 |
CV1#,SV11 |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-32020 |
CV1#,SV11 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-32020 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90116-06013 | ||||
| 90119-06010 | ||||
| 90950-01038 | ||||
| 90950-01060 | ||||
| 90950-01189 | ||||
| 90950-01232 | ||||
| 90950-01326 | ||||
| 90950-01374 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| 94120-40800 | ||||
(8408- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-32010 |
CV10,SV11 |
1 | ||
| 53202-32011 |
CV1#,SV11 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-32010 |
SV11 |
1 | ||
| 53203-32021 |
SV11 |
1 | ||
| 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER | ||||
| 53217-32020 |
CV1#,SV11 RH |
1 | ||
| 53218-32020 |
CV1#,SV11 LH |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-32020 |
CV1#,SV11 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-32021 |
CV1#,SV11 |
1 | ||
| 53208-32020 |
CV10,SV11 |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-32010 |
CV1#,SV11 |
2 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-32010 |
CV10,SV11 |
1 | ||
| 53268-32011 |
CV1#,SV11 |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-32010 |
CV1#,SV11 |
1 | ||
| 53268-32010 |
CV10,SV11 |
1 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20011 |
CV1#,SV11 |
2 | ||
| 53633 - SHIELD, HOOD LOCK CONTROL CABLE | ||||
| 53633-32020 |
CV1#,SV11 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-32901 |
CV10,SV11 |
1 | ||
| 53701-32904 |
SV11 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-32904 |
CV11,SV11 |
1 | ||
| 53702-32901 |
CV10,SV11 |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53701-32020 |
CV10,SV11 |
1 | ||
| 53701-32021 |
SV11 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-32020 |
CV1#,SV11 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-32020 |
CV1#,SV11 |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53702-32021 |
CV11,SV11 |
1 | ||
| 53702-32020 |
CV10,SV11 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-32010 |
CV1#,SV11 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-32010 |
CV1#,SV11 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-32010 |
CV1#,SV11 |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-09030 |
CV1#,SV11 |
4 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-32010 |
CV1#,SV11 |
1 | ||
| 53738A - SEAL, FRONT FENDER APRON, REAR RH | ||||
| 53738-32010 |
SV11 |
1 | ||
| 53739A - SEAL, FRONT FENDER APRON, REAR LH | ||||
| 53739-32010 |
CV1#,SV11 |
1 | ||
| 53787A - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53787-32010 |
CV1#,SV11 |
1 | ||
| 53788A - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53788-32010 |
CV1#,SV11 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-32904 |
CV1#;SV11..LE |
1 | ||
| 55101-32902 |
SV11 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-32021 |
CV1#,SV11 |
1 | ||
| 55210-32020 |
CV10,SV11 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-32021 |
CV1#;SV11..LE |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-32020 |
CV1#,SV11 |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-32020 |
CV1#,SV11 |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-32020 |
CV1#,SV11 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-32020 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90116-06013 | ||||
| 90119-06010 | ||||
| 90950-01038 | ||||
| 90950-01060 | ||||
| 90950-01189 | ||||
| 90950-01326 | ||||
| 90950-01374 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| 94120-40800 | ||||
