SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8406)

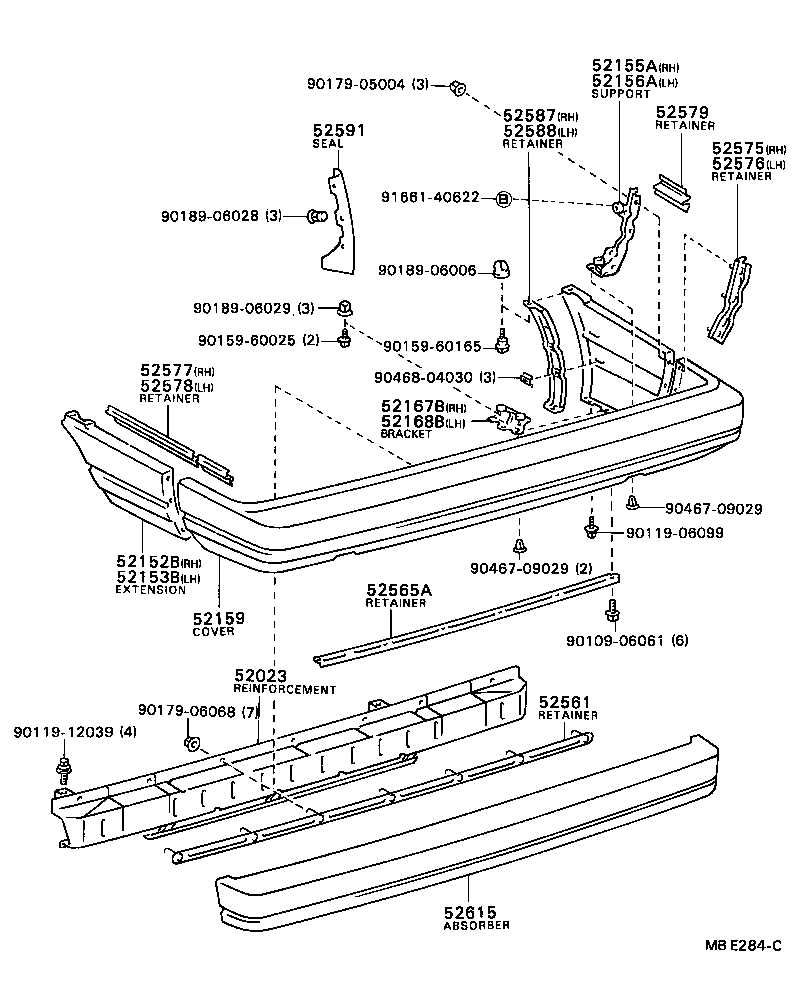

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06061 | ||||
| 90119-06099 | ||||
| 90119-12039 | ||||
| 90159-60025 | ||||
| 90159-60165 | ||||
| 90179-05004 | ||||
| 90179-06068 | ||||
| 90189-06006 | ||||
| 90189-06028 | ||||
| 90189-06029 | ||||
| 90467-09029 | ||||
| 90468-04030 | ||||
| 91661-40622 | ||||
(8406- )

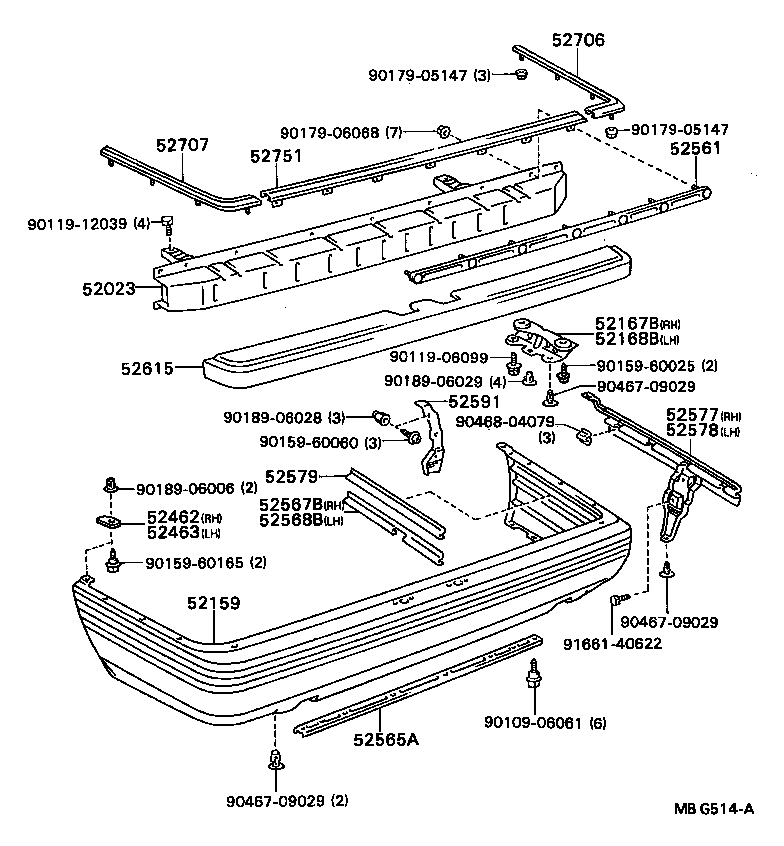

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06061 | ||||
| 90119-06099 | ||||
| 90119-12039 | ||||
| 90159-60025 | ||||
| 90159-60060 | ||||
| 90159-60165 | ||||
| 90179-05147 | ||||
| 90179-06068 | ||||
| 90189-06006 | ||||
| 90189-06028 | ||||
| 90189-06029 | ||||
| 90467-09029 | ||||
| 90468-04079 | ||||
| 91661-40622 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-32030 |
CV1#,SV11 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-32900 |
SV11..LE TWO TONE |
1 | ||
| 52152-32040 |
CV10,SV11 |
1 | ||
| 52152-32900 |
SV11..LE |
1 | ||
| 52152-32040 |
CV1#,SV11 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-32040 |
CV10,SV11 |
1 | ||
| 52153-32040 |
CV1#,SV11 |
1 | ||
| 52153-32900 |
SV11..LE |
1 | ||
| 52153-32900 |
SV11..LE TWO TONE |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-32020 |
CV1#,SV11 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-32010 |
CV1#,SV11 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-32905 |
SV11..LE |
1 | ||
| 52159-32060 |
CV10,SV11 |
1 | ||
| 52159-32905 |
SV11..LE TWO TONE |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-32010 |
CV1#,SV11 |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-32010 |
CV1#,SV11 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-32030 |
CV1#,SV11 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-32020 |
CV1#,SV11 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-32010 |
CV1#,SV11 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-32030 |
CV1#,SV11 |
1 | ||
| 52685 - SUPPORT, REAR BUMPER SIDE, NO.3 RH | ||||
| 52685-32010 |
CV1#,SV11 |
1 | ||
| 52686 - SUPPORT, REAR BUMPER SIDE, NO.3 LH | ||||
| 52686-32010 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90109-06070 | ||||
| 90109-06084 | ||||
| 90119-06099 | ||||
| 90119-06182 | ||||
| 90119-12039 | ||||
| 90159-60025 | ||||
| 90159-60060 | ||||
| 90179-06068 | ||||
| 90179-06095 | ||||
| 90189-06028 | ||||
| 90189-06029 | ||||
| 90189-06036 | ||||
| 90467-09029 | ||||
| 90468-04079 | ||||
