SV11L-UHMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8406)

Click highlighted areas on diagram

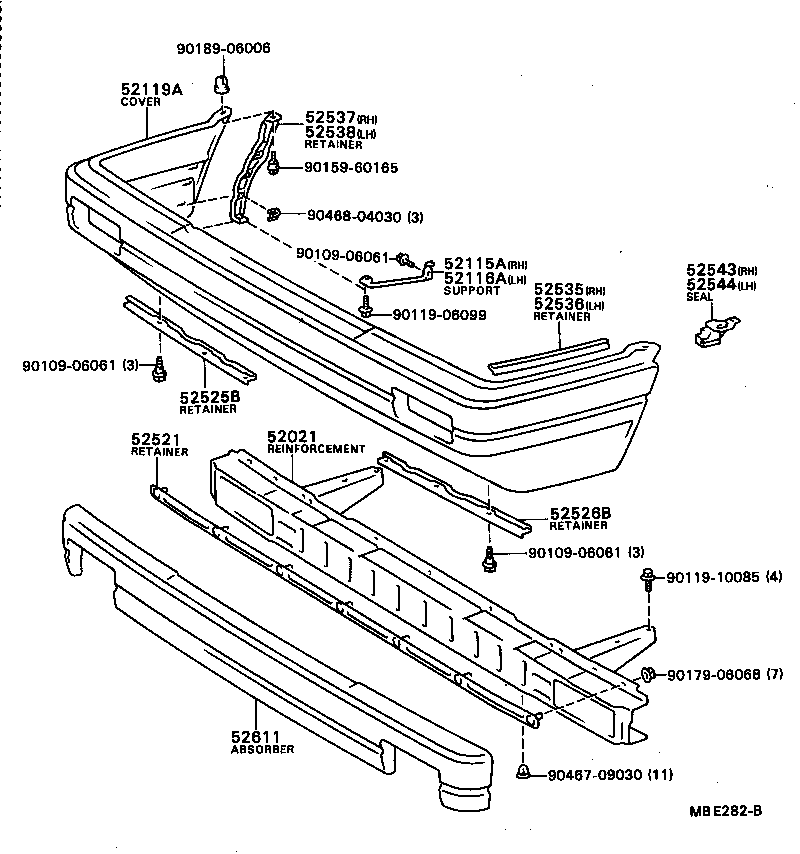

diagram 52021 52115A 52116A 52119A 52521 52525B 52526B 52535 52536 52537 52538 52543 52544 52611 9010906061 9010906061 9010906061 9011906099 9011910085 9015960165 9017906068 9018906006 9046709030 9046804030
Part # Description Qty Price
Common parts
90109-06061
90119-06099
90119-10085
90159-60165
90179-06068
90189-06006
90467-09030
90468-04030

(8406- )

Click highlighted areas on diagram

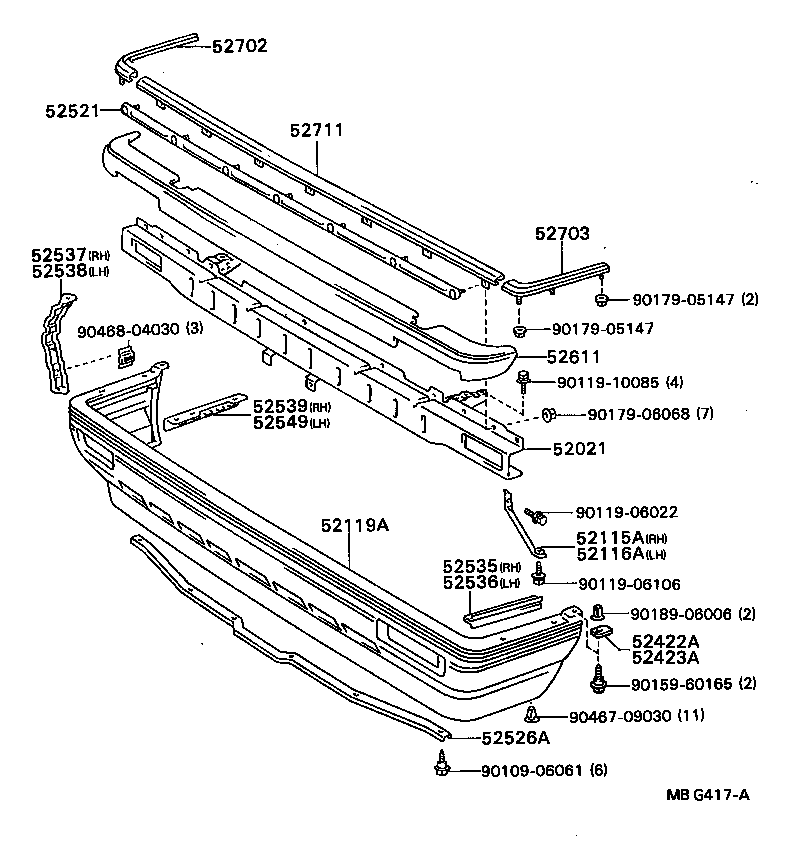

diagram 52021 52115A 52116A 52119A 52422A 52423A 52521 52526A 52535 52536 52537 52538 52539 52549 52611 52702 52703 52711 9010906061 9011906022 9011906106 9011910085 9015960165 9017905147 9017905147 9017906068 9018906006 9046709030 9046804030
Part # Description Qty Price
Common parts
90109-06061
90119-06022
90119-06106
90119-10085
90159-60165
90179-05147
90179-06068
90189-06006
90467-09030
90468-04030

(8301- )

Click highlighted areas on diagram

diagram 52021 52112D 52113D 52115A 52116A 52119A 52133B 52134B 52521 52525 52525B 52526B 52543 52544 52611 52677 52678 9010906084 9010906084 9011906022 9011906065 9011906106 9011910085 9011912039 9015960182 9015960182 9017906068 9018906036 9018906036 9046804057 9165640618
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-32020

CV1#,SV11

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-32010

CV1#,SV11

 1
52112-32010

CV10,SV11

 1
52112-32900

SV11..LE

TWO TONE

 1
52112-32900

SV11..LE

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-32010

CV10,SV11

 1
52113-32900

SV11..LE

TWO TONE

 1
52113-32010

CV1#,SV11

 1
52113-32900

SV11..LE

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32010

CV1#,SV11

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-32010

CV1#,SV11

 1
52119A - COVER, FRONT BUMPER
52119-32900

SV11..LE

 1
52119-32080

CV10,SV11

 1
52119-32900

SV11..LE

TWO TONE

 1
52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
52133-32020

CV1#,SV11

 1
52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
52134-32020

CV1#,SV11

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-32030

CV1#,SV11

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-32010

CV1#,SV11

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-32020

CV1#,SV11

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-32020

CV1#,SV11

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-32010

CV10,SV11

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-32010

CV10,SV11

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-32040

CV1#,SV11

 1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-32010

CV1#,SV11

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52678-32010

CV1#,SV11

 1
Common parts
90109-06084
90119-06022
90119-06065
90119-06106
90119-10085
90119-12039
90159-60182
90179-06068
90189-06036
90468-04057
91656-40618
