SV11L-UHMEEK (1983)
Toyota Camry
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06089 | ||||
| 90461-08594 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91651-60610 | ||||
| 91661-60612 | ||||
| Linked diagrams | ||||
| 4503 | ||||
(8301- )SV11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
SV11 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
SV11 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18003 |
SV11 |
1 | ||
| 90311-18008 |
SV11 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
SV11 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-22030 |
SV11 |
1 | ||
| 44324-32010 |
SV11 |
1 | ||
| 44324-16010 |
SV11 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-32011 |
SV11 |
1 | ||
| 44320-32013 |
SV11 |
1 | ||
| 44320-32012 |
SV11 |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-16011 |
SV11 |
1 | ||
| 04446-16010 |
SV11 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-32010 |
SV11 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CV1#,SV11 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12020 |
SV11 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
CV1#,SV11 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12020 |
CV1#,SV11 MARK 1,MARK 1 |
1 | ||
| 44313-12030 |
CV1#,SV11 MARK 2,MARK 2 |
1 | ||
| 44313-12050 |
CV1#,SV11 MARK 4,MARK 4 |
1 | ||
| 44313-12010 |
CV1#,SV11 NO MARK |
1 | ||
| 44313-12040 |
CV1#,SV11 MARK 3,MARK 3 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12080 |
SV11 MARK 2,MARK 2 |
1 | ||
| 44325-12070 |
SV11 MARK 1,MARK 1 |
1 | ||
| 44325-12090 |
SV11 MARK 3,MARK 3 |
1 | ||
| 44325-12100 |
SV11 MARK 4,MARK 4 |
1 | ||
| 44325-12060 |
SV11 NO MARK |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
SV11 L=25,OD=5.0,L=25 |
1 | ||
| 90250-05017 |
SV11 L=43.5,OD=5.0,L=43.5 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
SV11 L=25,OD=5.0,L=25 |
1 | ||
| 90250-05017 |
SV11 L=43.5,OD=5.0,L=43.5 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-14010 |
SV11 MARK A,MARK A |
1 | ||
| 44330-12150 |
CV10,SV11 MARK C,MARK C |
1 | ||
| 44330-12130 |
CV10,SV11 MARK A,MARK A |
1 | ||
| 44330-12160 |
CV10,SV11 MARK D,MARK D |
1 | ||
| 44330-12140 |
CV10,SV11 MARK B,MARK B |
1 | ||
| 44330-14030 |
SV11 MARK C,MARK C |
1 | ||
| 44330-14020 |
SV11 MARK B,MARK B |
1 | ||
| 44330-14040 |
SV11 MARK D,MARK D |
1 | ||
| 44330-12180 |
CV10,SV11 MARK F,MARK F |
1 | ||
| 44330-14060 |
SV11 MARK F,MARK F |
1 | ||
| 44330-12170 |
CV10,SV11 MARK E,MARK E |
1 | ||
| 44330-14050 |
SV11 MARK E,MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
CV11,SV11 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
SV11 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32010 |
SV11 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
SV11 |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-32011 |
SV11 |
1 | ||
| 44308-20012 |
SV11 |
1 | ||
| 44308-32012 |
SV11 |
1 | ||
| 44308-20011 |
SV11 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
SV11 OD=25.5,ID=22.5,OD=25.5 |
1 | ||
| 96711-19014 |
SV11 OD=17.0,ID=13.0,OD=17.6 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
SV11 OD=25.5,ID=22.5,OD=25.5 |
1 | ||
| 96711-19014 |
SV11 OD=17.0,ID=13.0,OD=17.6 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-12020 |
SV11 |
1 | ||
| 44341-12020 |
SV11 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
SV11 INNER |
1 | ||
| 90301-56002 |
SV11 OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
SV11 INNER |
1 | ||
| 90301-56002 |
SV11 OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-22010 |
SV11 |
1 | ||
| 44342-12010 |
SV11 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
SV11 OUTER |
1 | ||
| 90301-13004 |
SV11 INNER |
1 | ||
| 90301-37002 |
SV11 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
SV11 OUTER |
1 | ||
| 90301-13004 |
SV11 INNER |
1 | ||
| 90301-37002 |
SV11 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
SV11 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
SV11 |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12010 |
CV1#,SV11 L=14.997,L=14.996-14.998,ROTOR NO MARK |
10 | ||
| 44345-12040 |
CV1#,SV11 L=14.991,L=14.990-14.992,ROTOR MARK 3 |
10 | ||
| 44345-12020 |
CV1#,SV11 L=14.995,L=14.994-14.996,ROTOR MARK 1 |
10 | ||
| 44345-12050 |
CV1#,SV11 L=14.989,L=14.988-14.990,ROTOR MARK 4 |
10 | ||
| 44345-12030 |
CV1#,SV11 L=14.993,L=14.992-14.994,ROTOR MARK 2 |
10 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90179-12022 | ||||
| 90206-30001 | ||||
| 91611-60814 | ||||

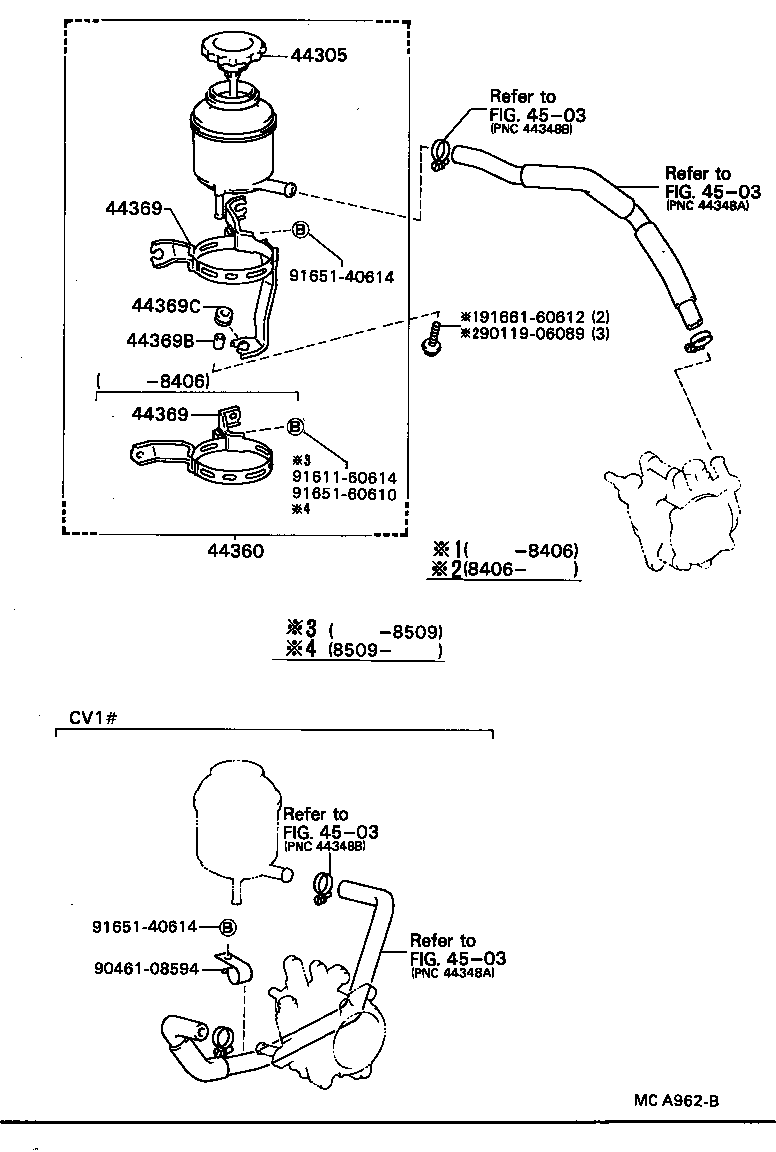

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
CV1#,SV11 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-32020 |
CV1#,SV11 |
1 | ||
| 44360-32010 |
CV10,SV11 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-32020 |
CV1#,SV11 |
1 | ||
| 44369-32010 |
CV10,SV11 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-32020 |
CV1#,SV11 |
1 | ||
| 44369-32010 |
CV10,SV11 |
1 | ||
| 44369B - SPACER(FOR OIL RESERVOIR BRACKET) | ||||
| 90560-08022 |
CV1#,SV11 OD=10.9 |
2 | ||
| 90560-06014 |
CV1#,SV11 OD=9.0 |
1 | ||
| 44369C - CUSHION(FOR OIL RESERVOIR BRACKET) | ||||
| 90540-10023 |
CV1#,SV11 OD=20,ID=10.9 |
2 | ||
| 90540-09015 |
CV1#,SV11 OD=20,ID=9 |
1 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90461-08594 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91651-60610 | ||||
| 91661-60612 | ||||
| Linked diagrams | ||||
| 4503 | ||||
