SV11L-UHMEEK (1983)
Toyota Camry
(8210-8406) ; (8406- )EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-08070 | ||||
| 90154-50011 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10053 | ||||
| 90460-69004 | ||||
| 91611-60818 | ||||
| 91651-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||

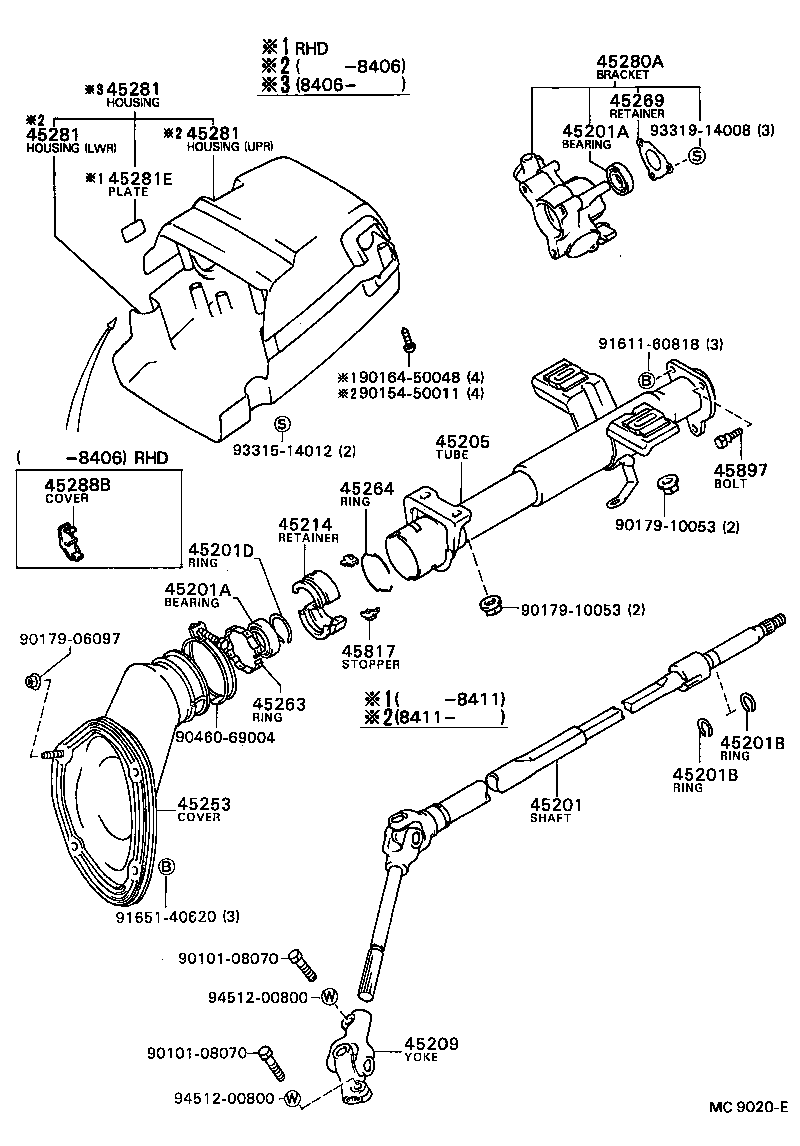

(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-08070 | ||||
| 90154-50011 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-08061 | ||||
| 90179-10053 | ||||
| 90460-69004 | ||||
| 90980-07232 | ||||
| 91611-60818 | ||||
| 91651-40620 | ||||
| 93219-55010 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-32030 |
CV10,SV11 W/POWER STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
CV1#,SV11 UPR |
1 | ||
| 90363-30007 |
CV1#,SV11 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
CV1#,SV11 UPR |
1 | ||
| 90363-30007 |
CV1#,SV11 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV1#,SV11 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV1#,SV11 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV1#,SV11 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV1#,SV11 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
CV1#,SV11 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-32010 |
CV10,SV11 |
1 | ||
| 45870-32050 |
CV1#,SV11 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-32010 |
CV1#,SV11 |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-32040 |
CV1#,SV11 |
1 | ||
| 45025-32020 |
CV10,SV11 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CV1#,SV11 |
1 | ||
| 45264 - RING, STEERING COLUMN, NO.2 | ||||
| 45264-32010 |
CV1#,SV11 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
CV1#,SV11 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45020-32020 |
CV10,SV11 |
1 | ||
| 45020-32100 |
CV1#,SV11 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3202001 |
SV11 UPR,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45286-3202023 |
CV10,SV11 UPR,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3290803 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-3202023 |
CV10,SV11 LWR,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3202006 |
SV11 LWR,DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45287-3202016 |
CV10,SV11 LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-3290805 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3202014 |
CV10,SV11 UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3202014 |
CV10,SV11 LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3202001 |
SV11 LWR,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45286-3290804 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3202006 |
SV11 UPR,DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45286-3202016 |
CV10,SV11 UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3202001 |
SV11 UPR,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45286-3202023 |
CV10,SV11 UPR,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3290803 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-3202023 |
CV10,SV11 LWR,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3202006 |
SV11 LWR,DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45287-3202016 |
CV10,SV11 LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-3290805 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3202014 |
CV10,SV11 UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3202014 |
CV10,SV11 LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3202001 |
SV11 LWR,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45286-3290804 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3202006 |
SV11 UPR,DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45286-3202016 |
CV10,SV11 UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-32010 |
CV1#,SV11 |
2 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10053 | ||||
| 90460-69004 | ||||
| 91611-60818 | ||||
| 91651-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||

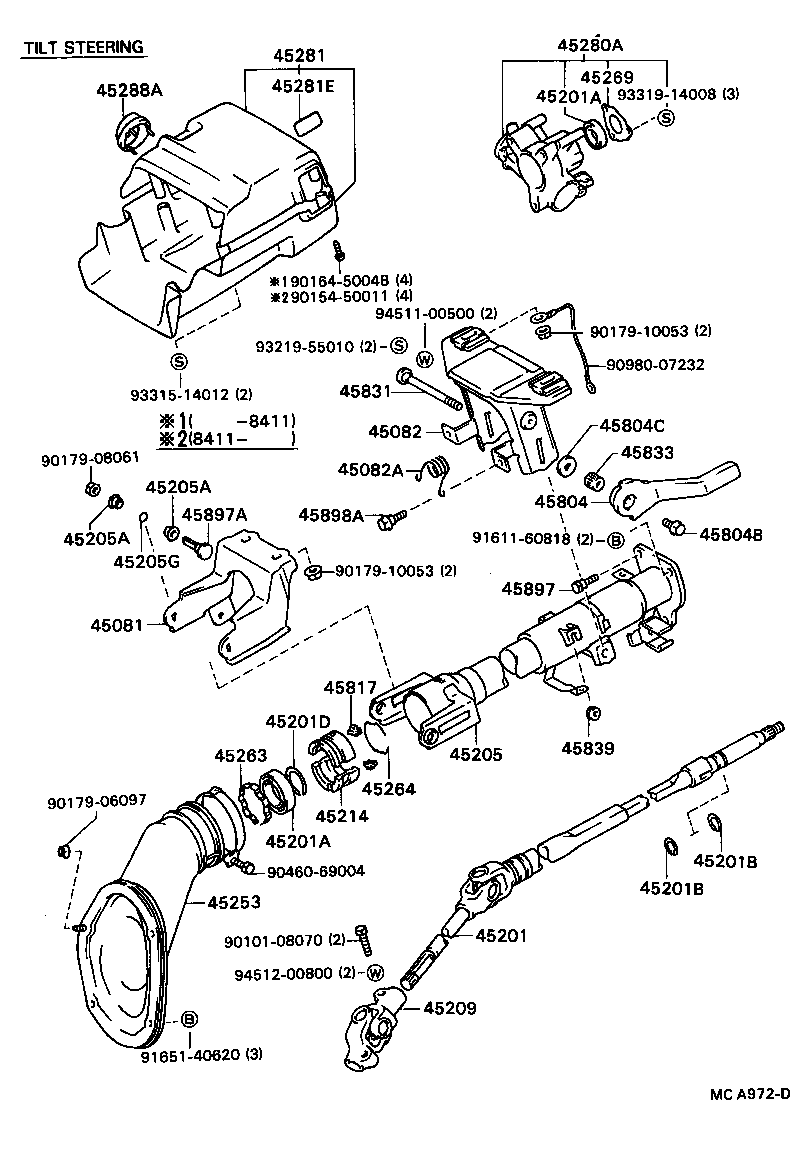

(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-32020 |
CV1#,SV11 |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-32010 |
CV1#,SV11 |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-29015 |
CV1#,SV11 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-32030 |
CV10,SV11 W/POWER STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
CV1#,SV11 UPR |
1 | ||
| 90363-30007 |
CV1#,SV11 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
CV1#,SV11 UPR |
1 | ||
| 90363-30007 |
CV1#,SV11 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV1#,SV11 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV1#,SV11 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV1#,SV11 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV1#,SV11 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
CV1#,SV11 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-32010 |
CV10,SV11 |
1 | ||
| 45870-32050 |
CV1#,SV11 |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
CV1#,SV11 |
4 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
CV1#,SV11 |
4 | ||
| 45205G - RING, O(FOR STEERING COLUMN TUBE) | ||||
| 90301-11005 |
CV1#,SV11 |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-32010 |
CV1#,SV11 |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-32040 |
CV1#,SV11 |
1 | ||
| 45025-32020 |
CV10,SV11 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CV1#,SV11 |
1 | ||
| 45264 - RING, STEERING COLUMN, NO.2 | ||||
| 45264-32010 |
CV1#,SV11 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
CV1#,SV11 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45020-32020 |
CV10,SV11 |
1 | ||
| 45020-32100 |
CV1#,SV11 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3202001 |
SV11 UPR,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45286-3202023 |
CV10,SV11 UPR,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3290803 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45287-3202023 |
CV10,SV11 LWR,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3202006 |
SV11 LWR,DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45287-3202016 |
CV10,SV11 LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-3290805 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3202014 |
CV10,SV11 UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3202014 |
CV10,SV11 LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3202001 |
SV11 LWR,BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45286-3290804 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3202006 |
SV11 UPR,DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45286-3202016 |
CV10,SV11 UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-20010 |
CV1#,SV11 |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-08060 |
CV1#,SV11 |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-08029 |
CV1#,SV11 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-32010 |
CV1#,SV11 |
2 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-20010 |
CV1#,SV11 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20010 |
CV1#,SV11 |
1 | ||
| 45839 - GROMMET, RETURN SPRING | ||||
| 45839-20010 |
CV1#,SV11 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-26010 |
CV1#,SV11 |
2 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-20020 |
CV1#,SV11 |
2 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90154-50011 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-08061 | ||||
| 90179-10053 | ||||
| 90460-69004 | ||||
| 90980-07232 | ||||
| 91611-60818 | ||||
| 91651-40620 | ||||
| 93219-55010 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
