SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

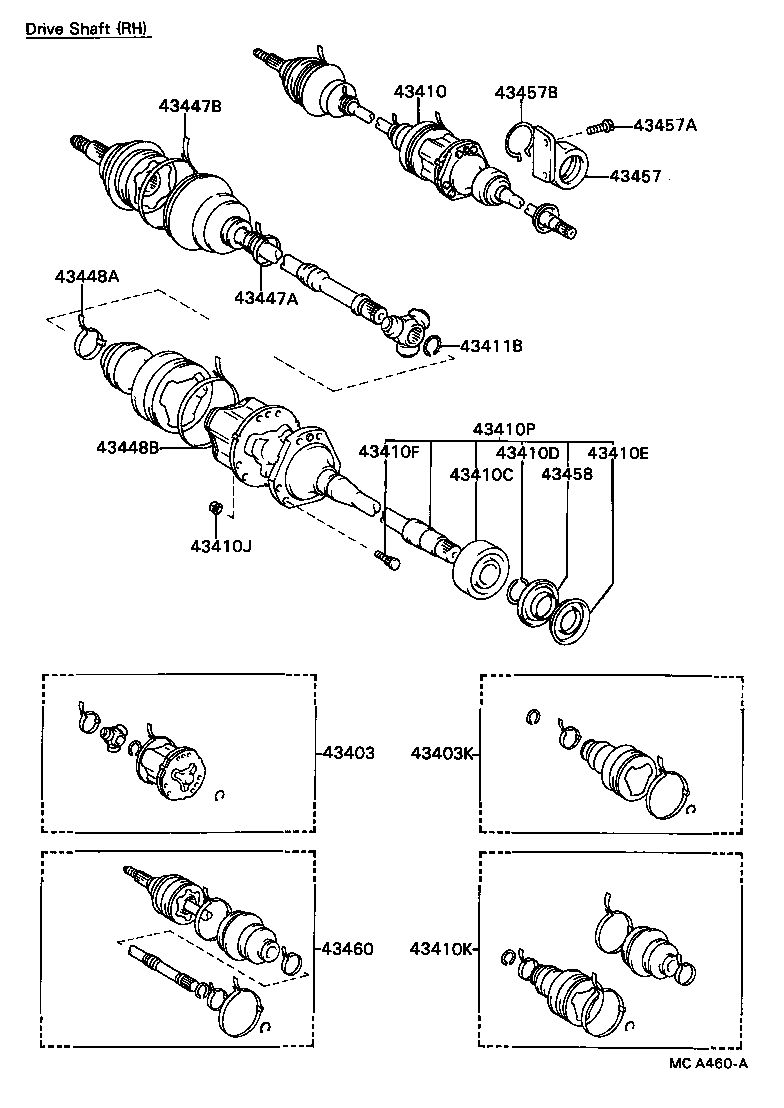

(8210-8406)SV1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43046 - SHAFT SUB-ASSY, FRONT DRIVE BEARING | ||||
| 43046-32010 |
SV11 |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
CV1#,SV11 |
1 | ||
| 43403K - BOOT KIT, FRONT AXLE INBOARD JOINT SET | ||||
| 04438-32011 |
CV1#,SV11 |
2 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-32011 |
SV11 |
1 | ||
| 43410-32031 |
SV11 |
1 | ||
| 43410-32030 |
SV11 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-32001 |
SV11 |
1 | ||
| 90369-36001 |
SV11 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-29003 |
SV11 |
1 | ||
| 90520-33008 |
SV11 |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
CV1#,SV11 |
12 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-08007 |
SV11 |
4 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
CV1#,SV11 |
12 | ||
| 43410K - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-32021 |
SV11 |
2 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
CV1#,SV11 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
CV1#,SV11 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
CV1#,SV11 |
2 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-32010 |
SV11 |
1 | ||
| 43457-20021 |
SV11 |
1 | ||
| 43457-20020 |
SV11 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10051 |
SV11 *10-1.25PX22-19.5 |
2 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
SV11 |
1 | ||
| 90521-69001 |
SV11 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-32010 |
SV11 |
1 | ||
| 43458-20011 |
SV11 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-39017 |
SV11 |
1 | ||
| 43460-39016 |
SV11 |
1 | ||
| 43470-39016 |
SV11 |
1 | ||
| 43497 - INSULATOR, BEARING BRACKET HEAT | ||||
| 43497-32011 |
SV11 T=1.0 |
1 | ||
| 43497-32010 |
SV11 T=0.7 |
1 | ||
| 43497A - BOLT (FOR BEARING BRACKET HEAT INSULATOR) | ||||
| 90119-08223 |
SV11 |
2 | ||
(8210-8406)SV1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43440 - JOINT ASSY, UNIVERSAL | ||||
| 43440-32010 |
SV11 |
1 | ||
| 43440A - YOKE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37302-32010 |
SV11 |
1 | ||
| 43440B - BEARING, UNIVERSAL JOINT SPIDER | ||||
| 37402-30020 |
SV11 RED PAINTED |
4 | ||
| 37402-30010 |
SV11 |
4 | ||
| 43440C - COVER, DUST (FOR UNIVERSAL JOINT) | ||||
| 41336-32010 |
SV11 |
1 | ||
| 43440D - RING, SHAFT SNAP (FOR UNIVERSAL JOINT SPIDER BEARING) | ||||
| 90520-26233 |
SV11 T=1.50 |
4 | ||
| 90520-26234 |
SV11 T=1.55 |
4 | ||
| 90520-26235 |
SV11 T=1.60 |
4 | ||
| 43440E - RING, HOLE SNAP (FOR UNIVERSAL JOINT) | ||||
| 90521-27005 |
SV11 |
1 | ||
| 43440K - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-30020 |
SV11 |
1 | ||
| 43444 - BOOT, SPLINE | ||||
| 43444-32010 |
SV11 |
1 | ||
(8406- )SV1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(8301-8408)SV11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43046 - SHAFT SUB-ASSY, FRONT DRIVE BEARING | ||||
| 43046-32010 |
SV11 |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
CV1#,SV11 |
1 | ||
| 43403K - BOOT KIT, FRONT AXLE INBOARD JOINT SET | ||||
| 04438-32011 |
CV1#,SV11 |
2 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-32011 |
SV11 |
1 | ||
| 43410-32031 |
SV11 |
1 | ||
| 43410-32030 |
SV11 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-32001 |
SV11 |
1 | ||
| 90369-36001 |
SV11 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-29003 |
SV11 |
1 | ||
| 90520-33008 |
SV11 |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
CV1#,SV11 |
12 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-08007 |
SV11 |
4 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
CV1#,SV11 |
12 | ||
| 43410K - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-32021 |
SV11 |
2 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
CV1#,SV11 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
CV1#,SV11 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
CV1#,SV11 |
2 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-32010 |
SV11 |
1 | ||
| 43457-20021 |
SV11 |
1 | ||
| 43457-20020 |
SV11 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10051 |
SV11 *10-1.25PX22-19.5 |
2 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
SV11 |
1 | ||
| 90521-69001 |
SV11 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-32010 |
SV11 |
1 | ||
| 43458-20011 |
SV11 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-39017 |
SV11 |
1 | ||
| 43460-39016 |
SV11 |
1 | ||
| 43470-39016 |
SV11 |
1 | ||
| 43497 - INSULATOR, BEARING BRACKET HEAT | ||||
| 43497-32011 |
SV11 T=1.0 |
1 | ||
| 43497-32010 |
SV11 T=0.7 |
1 | ||
| 43497A - BOLT (FOR BEARING BRACKET HEAT INSULATOR) | ||||
| 90119-08223 |
SV11 |
2 | ||
(8301- )SV11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43440 - JOINT ASSY, UNIVERSAL | ||||
| 43440-32010 |
SV11 |
1 | ||
| 43440A - YOKE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37302-32010 |
SV11 |
1 | ||
| 43440B - BEARING, UNIVERSAL JOINT SPIDER | ||||
| 37402-30020 |
SV11 RED PAINTED |
4 | ||
| 37402-30010 |
SV11 |
4 | ||
| 43440C - COVER, DUST (FOR UNIVERSAL JOINT) | ||||
| 41336-32010 |
SV11 |
1 | ||
| 43440D - RING, SHAFT SNAP (FOR UNIVERSAL JOINT SPIDER BEARING) | ||||
| 90520-26233 |
SV11 T=1.50 |
4 | ||
| 90520-26234 |
SV11 T=1.55 |
4 | ||
| 90520-26235 |
SV11 T=1.60 |
4 | ||
| 43440E - RING, HOLE SNAP (FOR UNIVERSAL JOINT) | ||||
| 90521-27005 |
SV11 |
1 | ||
| 43440K - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-30020 |
SV11 |
1 | ||
| 43444 - BOOT, SPLINE | ||||
| 43444-32010 |
SV11 |
1 | ||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43403K - BOOT KIT, FRONT AXLE INBOARD JOINT SET | ||||
| 04438-32011 |
CV1#,SV11 |
2 | ||
| 43404 - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-39016 |
CV1#,SV11 |
1 | ||
| 43410E - COVER, DUST (FOR FRONT DRIVE SHAFT) | ||||
| 41336-32020 |
CV1#,SV11 LH |
1 | ||
| 41336-20011 |
SV11 RH |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
CV1#,SV11 |
12 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-08007 |
SV11 |
4 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-27005 |
CV1#,SV11 |
2 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
CV1#,SV11 |
12 | ||
| 43410K - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-32021 |
SV11 |
2 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
CV1#,SV11 |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-32012 |
CV1#,SV11 |
1 | ||
| 43420-32011 |
CV10,SV11 |
1 | ||
| 43420A - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 41309-32010 |
CV1#,SV11 |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
CV1#,SV11 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
CV1#,SV11 |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-39016 |
CV10,SV11 |
1 | ||
| 43470-39017 |
CV1#,SV11 |
1 | ||
| 43460-39016 |
SV11 |
1 | ||
(8408- )SV11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
CV1#,SV11 |
1 | ||
| 43403K - BOOT KIT, FRONT AXLE INBOARD JOINT SET | ||||
| 04438-32011 |
CV1#,SV11 |
2 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-32011 |
SV11 |
1 | ||
| 43410-32031 |
SV11 |
1 | ||
| 43410-32030 |
SV11 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-32001 |
SV11 |
1 | ||
| 90369-36001 |
SV11 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-29003 |
SV11 |
1 | ||
| 90520-33008 |
SV11 |
1 | ||
| 43410E - COVER, DUST (FOR FRONT DRIVE SHAFT) | ||||
| 41336-32020 |
CV1#,SV11 LH |
1 | ||
| 41336-20011 |
SV11 RH |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
CV1#,SV11 |
12 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
CV1#,SV11 |
12 | ||
| 43410K - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-32021 |
SV11 |
2 | ||
| 43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH | ||||
| 43049-32020 |
SV11 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
CV1#,SV11 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
CV1#,SV11 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CV1#,SV11 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
CV1#,SV11 |
2 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-32010 |
SV11 |
1 | ||
| 43457-20021 |
SV11 |
1 | ||
| 43457-20020 |
SV11 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10051 |
SV11 *10-1.25PX22-19.5 |
2 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
SV11 |
1 | ||
| 90521-69001 |
SV11 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-32010 |
SV11 |
1 | ||
| 43458-20011 |
SV11 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-39017 |
SV11 |
1 | ||
| 43460-39016 |
SV11 |
1 | ||
| 43470-39016 |
SV11 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
