SV11L-UHMEEK (1983)
Toyota Camry
(8406- )2SE#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50157 | ||||
| 90462-06015 | ||||
| 91655-40820 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

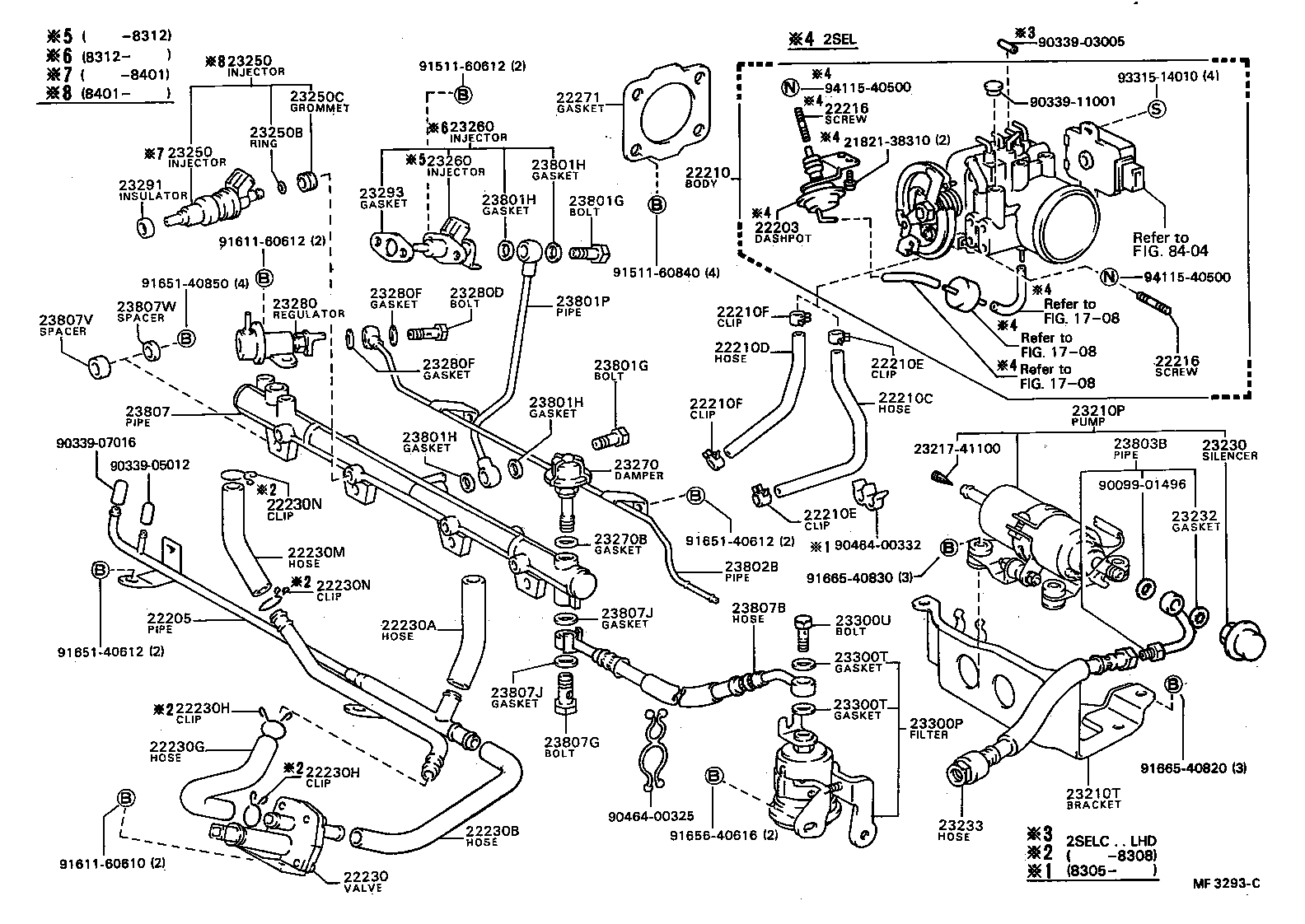

(8303-8406)2SE#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 21821-38310 | ||||
| 23217-41100 | ||||
| 90099-01496 | ||||
| 90339-03005 | ||||
| 90339-05012 | ||||
| 90339-07016 | ||||
| 90339-11001 | ||||
| 90464-00325 | ||||
| 90464-00332 | ||||
| 91511-60612 | ||||
| 91511-60840 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40850 | ||||
| 91656-40616 | ||||
| 91665-40820 | ||||
| 91665-40830 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8404 | ||||

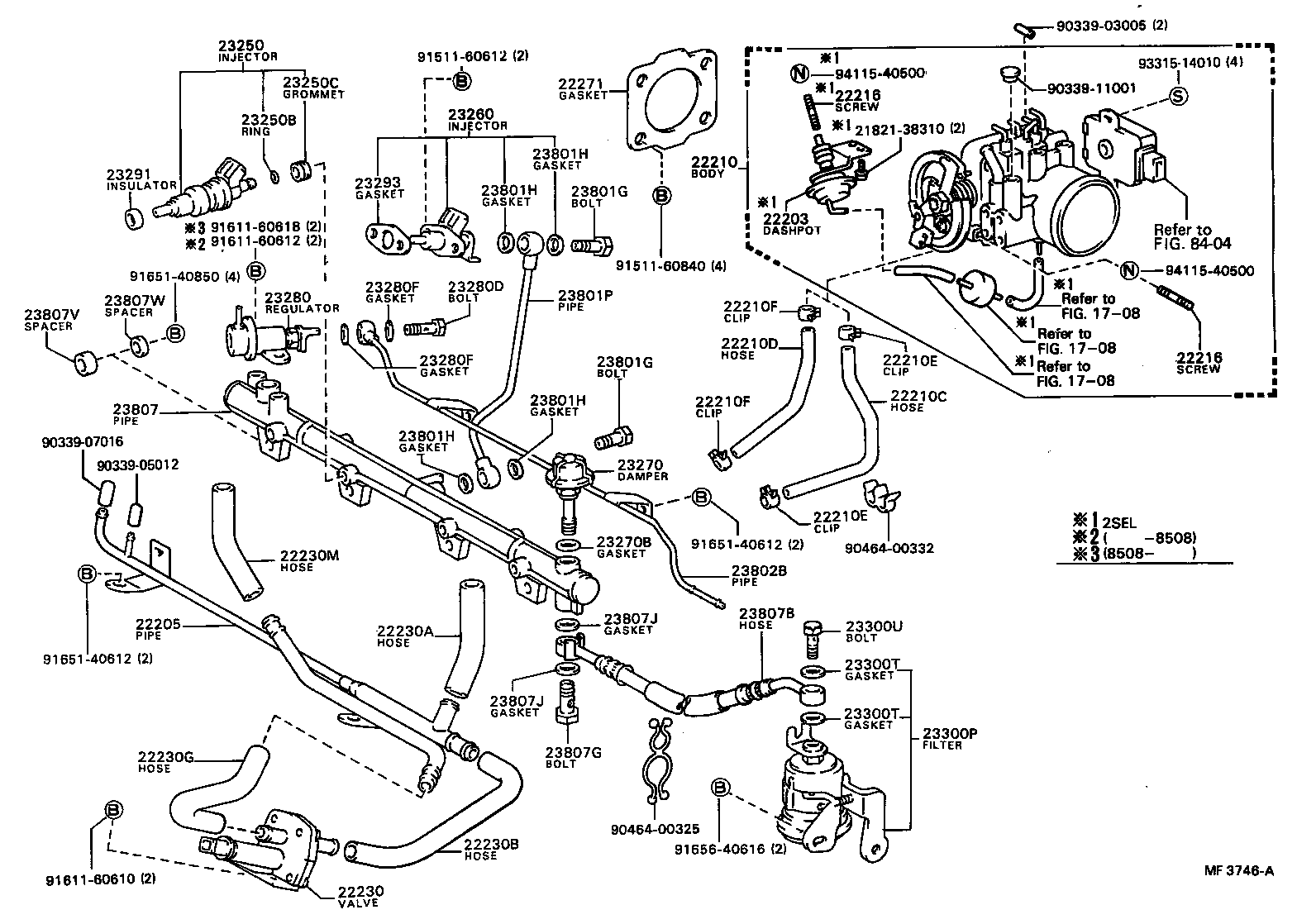

(8406- )2SE#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 21821-38310 | ||||
| 90339-03005 | ||||
| 90339-05012 | ||||
| 90339-07016 | ||||
| 90339-11001 | ||||
| 90464-00325 | ||||
| 90464-00332 | ||||
| 91511-60612 | ||||
| 91511-60840 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60618 | ||||
| 91651-40612 | ||||
| 91651-40850 | ||||
| 91656-40616 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8404 | ||||

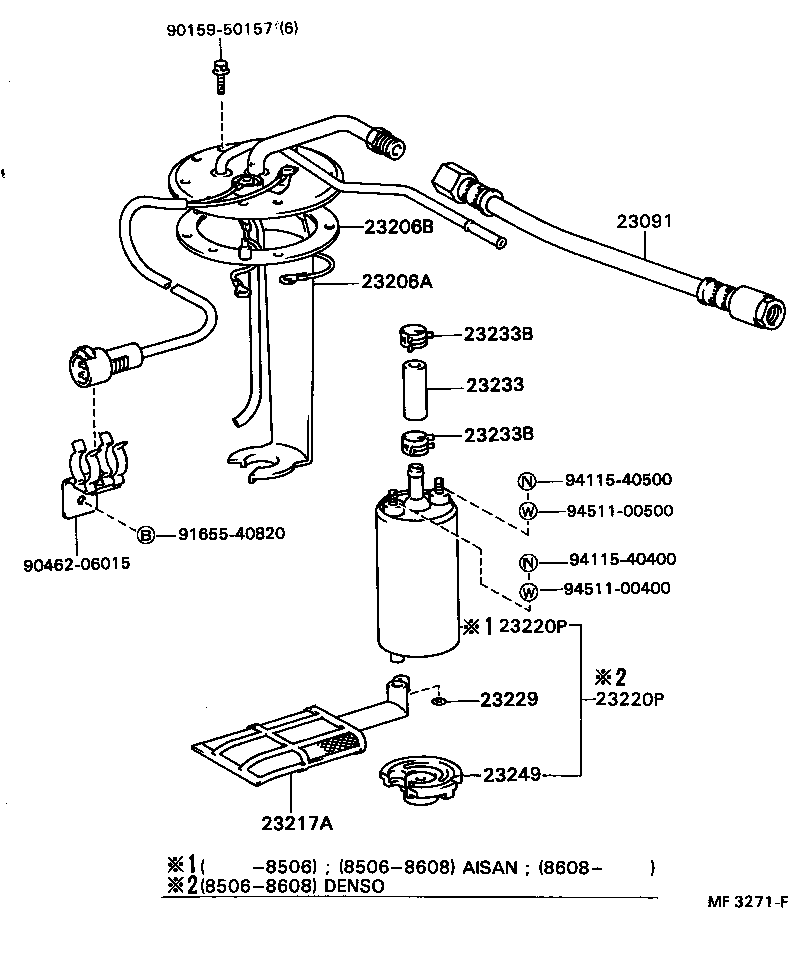

(8408- )2SELC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74020 |
2SELC..SV11 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74080 |
2SELC..SV11 |
1 | ||
| 23206-74110 |
2SELC..SV11 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-32010 |
2SELC..SV11 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16022 |
2SELC..SV11 AISAN |
1 | ||
| 23217-16023 |
2SELC..SV11 AISAN |
1 | ||
| 23217-16010 |
2SELC..SV11 DENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-19015 |
2SELC..SV11 DENSO |
1 | ||
| 23220-16081 |
2SELC..SV11 AISAN |
1 | ||
| 23220-16080 |
2SELC..SV11 AISAN |
1 | ||
| 23220-16083 |
2SELC..SV11 AISAN |
1 | ||
| 23220-16070 |
2SELC..SV11 DENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-19015 |
2SELC..SV11 DENSO |
1 | ||
| 23220-16081 |
2SELC..SV11 AISAN |
1 | ||
| 23220-16080 |
2SELC..SV11 AISAN |
1 | ||
| 23220-16083 |
2SELC..SV11 AISAN |
1 | ||
| 23220-16070 |
2SELC..SV11 DENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2SELC..SV11 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90923-01264 |
2SELC..SV11 |
1 | ||
| 23239-16010 |
2SELC..SV11 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
2SELC..SV11 |
1 | ||
| 23249-43080 |
2SELC..SV11 DENSO |
1 | ||
| 23249-16010 |
2SELC..SV11 AISAN |
1 | ||
| 23249-16010 |
2SELC..SV11 |
1 | ||
| Common parts | ||||
| 90462-06015 | ||||
| 91655-40820 | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
(8301-8408)2SELC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22205 - PIPE SUB-ASSY, AUXILIARY AIR | ||||
| 22205-74011 |
2SELC..SV11..CND |
1 | ||
| 22205-74011 |
2SELC..SV11 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74050 |
2SELC..SV11..5F W/AUTO DRIVE |
1 | ||
| 22210-74051 |
2SELC..SV11..5F W/AUTO DRIVE |
1 | ||
| 22210-74031 |
2SELC..SV11..5F |
1 | ||
| 22210-74030 |
2SELC..SV11..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-74010 |
2SELC..SV11 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-74010 |
2SELC..SV11 |
1 | ||
| 16267-74011 |
2SELC..SV11 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
2SELC..SV11 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-74020 |
2SELC..SV11..CND |
1 | ||
| 22230-74020 |
2SELC..SV11 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 90445-21007 |
2SELC..SV11 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-74011 |
2SELC..SV11 |
1 | ||
| 22230G - HOSE, AUXILIARY AIR VALVE, NO.3 | ||||
| 22236-74010 |
2SELC..SV11 |
1 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-20002 |
2SELC..SV11 |
2 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-20002 |
2SELC..SV11 |
2 | ||
| 22230M - HOSE, AUXILIARY AIR VALVE, NO.4 | ||||
| 22237-74010 |
2SELC..SV11 |
1 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-20002 |
2SELC..SV11 |
2 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-20002 |
2SELC..SV11 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74010 |
2SELC..SV11 |
1 | ||
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-74020 |
2SELC..SV11 |
1 | ||
| 23210T - BRACKET, FUEL PUMP | ||||
| 23265-74010 |
2SELC..SV11 |
1 | ||
| 23230 - SILENCER ASSY | ||||
| 23230-74020 |
2SELC..SV11 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
2SELC..SV11 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90923-01264 |
2SELC..SV11 |
1 | ||
| 23239-16010 |
2SELC..SV11 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-45011 |
2SELC..SV11 |
1 | ||
| 23250-45011 |
2SELC..SV11 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-45011 |
2SELC..SV11 |
1 | ||
| 23250-45011 |
2SELC..SV11 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
2SELC..SV11 |
1 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
2SELC..SV11 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79055 |
2SELC..SV11 |
1 | ||
| 23260-74010 |
2SELC..SV11 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79055 |
2SELC..SV11 |
1 | ||
| 23260-74010 |
2SELC..SV11 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-45010 |
2SELC..SV11 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
2SELC..SV11 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74010 |
2SELC..SV11 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-08004 |
2SELC..SV11 |
1 | ||
| 90401-08003 |
2SELC..SV11 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-08009 |
2SELC..SV11 |
2 | ||
| 90430-08005 |
2SELC..SV11 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-08009 |
2SELC..SV11 |
2 | ||
| 90430-08005 |
2SELC..SV11 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-74010 |
2SELC..SV11 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-74010 |
2SELC..SV11 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23030-79025 |
2SELC..SV11 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2SELC..SV11 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2SELC..SV11 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
2SELC..SV11 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
2SELC..SV11 |
2 | ||
| 90401-08003 |
2SELC..SV11 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
2SELC..SV11 |
2 | ||
| 90401-08003 |
2SELC..SV11 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-74010 |
2SELC..SV11 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74010 |
2SELC..SV11 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-79025 |
2SELC..SV11 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-74010 |
2SELC..SV11 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74020 |
2SELC..SV11 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-14091 |
2SELC..SV11 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
2SELC..SV11 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
2SELC..SV11 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11006 |
2SELC..SV11 |
4 | ||
| 23807W - SPACER, NO.2(FOR DELIVERY PIPE) | ||||
| 90560-08024 |
2SELC..SV11 |
4 | ||
| Common parts | ||||
| 23217-41100 | ||||
| 90099-01496 | ||||
| 90339-05012 | ||||
| 90339-07016 | ||||
| 90339-11001 | ||||
| 90464-00325 | ||||
| 90464-00332 | ||||
| 91511-40840 | ||||
| 91511-60612 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40850 | ||||
| 91656-40616 | ||||
| 91665-40820 | ||||
| 91665-40830 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
(8408- )2SELC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22205 - PIPE SUB-ASSY, AUXILIARY AIR | ||||
| 22205-74011 |
2SELC..SV11..CND |
1 | ||
| 22205-74011 |
2SELC..SV11 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74050 |
2SELC..SV11..5F W/AUTO DRIVE |
1 | ||
| 22210-74051 |
2SELC..SV11..5F W/AUTO DRIVE |
1 | ||
| 22210-74031 |
2SELC..SV11..5F |
1 | ||
| 22210-74030 |
2SELC..SV11..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-74010 |
2SELC..SV11 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-74010 |
2SELC..SV11 |
1 | ||
| 16267-74011 |
2SELC..SV11 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
2SELC..SV11 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
2SELC..SV11 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-74020 |
2SELC..SV11..CND |
1 | ||
| 22230-74020 |
2SELC..SV11 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 90445-21007 |
2SELC..SV11 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-74011 |
2SELC..SV11 |
1 | ||
| 22230G - HOSE, AUXILIARY AIR VALVE, NO.3 | ||||
| 22236-74010 |
2SELC..SV11 |
1 | ||
| 22230M - HOSE, AUXILIARY AIR VALVE, NO.4 | ||||
| 22237-74010 |
2SELC..SV11 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74010 |
2SELC..SV11 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-45011 |
2SELC..SV11 |
1 | ||
| 23250-45011 |
2SELC..SV11 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
2SELC..SV11 |
1 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
2SELC..SV11 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79055 |
2SELC..SV11 |
1 | ||
| 23260-74010 |
2SELC..SV11 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-45010 |
2SELC..SV11 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
2SELC..SV11 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74010 |
2SELC..SV11 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-08004 |
2SELC..SV11 |
1 | ||
| 90401-08003 |
2SELC..SV11 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-08009 |
2SELC..SV11 |
2 | ||
| 90430-08005 |
2SELC..SV11 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-08009 |
2SELC..SV11 |
2 | ||
| 90430-08005 |
2SELC..SV11 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-74010 |
2SELC..SV11 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-74010 |
2SELC..SV11 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23030-79025 |
2SELC..SV11 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2SELC..SV11 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2SELC..SV11 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
2SELC..SV11 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
2SELC..SV11 |
2 | ||
| 90401-08003 |
2SELC..SV11 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
2SELC..SV11 |
2 | ||
| 90401-08003 |
2SELC..SV11 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
2SELC..SV11 |
4 | ||
| 90430-08005 |
2SELC..SV11 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-74010 |
2SELC..SV11 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74010 |
2SELC..SV11 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-74010 |
2SELC..SV11 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74020 |
2SELC..SV11 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-14091 |
2SELC..SV11 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
2SELC..SV11 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
2SELC..SV11 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11006 |
2SELC..SV11 |
4 | ||
| 23807W - SPACER, NO.2(FOR DELIVERY PIPE) | ||||
| 90560-08024 |
2SELC..SV11 |
4 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90339-05012 | ||||
| 90339-07016 | ||||
| 90339-11001 | ||||
| 90464-00325 | ||||
| 90464-00332 | ||||
| 91511-60612 | ||||
| 91511-60840 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60618 | ||||
| 91651-40612 | ||||
| 91651-40850 | ||||
| 91656-40616 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
